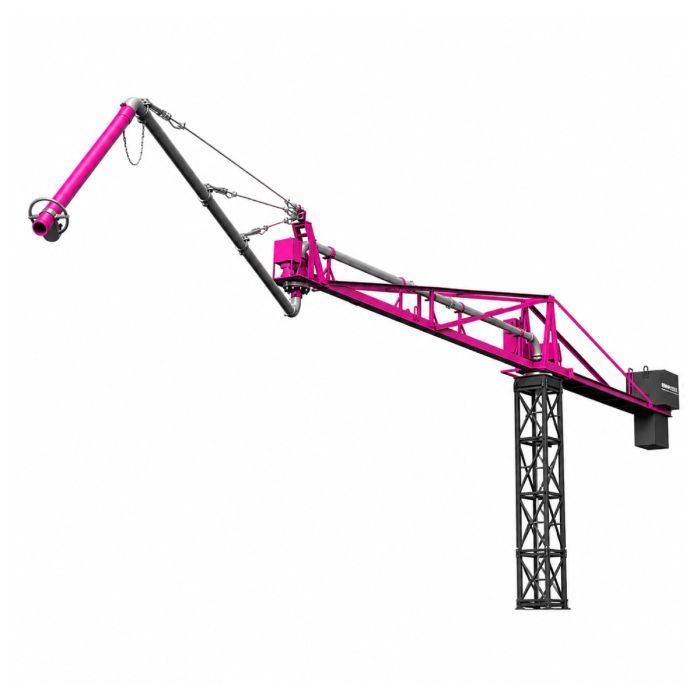

BMR Intelligent Follow-Up Concrete Placing Pump

An algorithm-guided placing boom that carries the concrete line across the slab, so a single operator or a preset path can do the work of a hose crew. Built for floor and basement pours on multi-storey projects, and supplied with advice and support by Robots Middle East.

In stock

BRAND:
BMR
ORIGIN:
China
Warranty:
12 MONTHS
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
BMR-Intelligent-Follow-up-Concrete-Placing-Pump

BMR Intelligent Follow-Up Concrete Placing Pump

On a floor plan, a concrete placing boom draws a circle. Everything inside that circle can be poured without anyone dragging a hose across the rebar; everything outside it means repositioning, waiting or a return to manual labour. Choosing the right machine therefore begins with geometry, and the BMR Intelligent Follow-up Concrete Placing Pump offers four circles to choose from: 12m, 15m, 18m and 20m of placing radius, across the HG12, HG15, HG18 and HG20 models. Inside that reach, the movement of the boom and arm is governed by algorithms, so that one operator with a joystick, or a preset path running by itself, carries out work that once needed a full hose crew. Follow-up placing completes the work with only 30% of the manpower, and automatic placing reduces the levelling workload by 13%, helping to achieve a high-precision floor.

Robots Middle East supplies the BMR Intelligent Follow-up Concrete Placing Pump to contractors, developers and concrete specialists across the Middle East. Our team advises on which of the four models suits a project's floor plates and installation conditions, prepares the formal quotation, and coordinates delivery, commissioning and after-sales support throughout the region.

Background

Shenzhen BrightMaster Robotics and the BMR range

The placing pump is manufactured by Shenzhen BrightMaster Robotics Co., Ltd., the company behind the BMR brand. Its equipment for the concrete stage of a building project is grouped in our Concrete Robots category, where the placing pump sits alongside machines that work on the slab after the concrete has arrived. The placing pump addresses the step that comes first: getting the mix from the pipeline onto the deck, evenly and where it is needed.

Placing booms of this kind are a familiar sight on multi-storey sites. They hold the end of the concrete line above the working surface and move the discharge point across the slab, so that the pump's output reaches the formwork without workers hauling a heavy, pulsing hose. What distinguishes one machine from another is how that movement is controlled, how the boom is installed, and how readily it can be moved up the building as each floor is completed.

Algorithm-controlled boom and arm

The defining feature of this BMR machine is that the boom and arm are moved by algorithms rather than by direct manual effort. That control logic underpins four working modes. In automatic mode the machine places concrete along a preset path. In follow-up mode a single person directs the pour with a joystick. In remote mode the boom and arm are operated from a distance. In manual mode the crew can revert to traditional manual pulling. The result is a machine that can run largely on its own on a well-planned pour, yet still hand control back to people when a site situation calls for it.

Technical Specifications

SpecificationHG12HG15HG18HG20
Max. placing radius12 m15 m18 m20 m
Total weight (excl. counterweight)1.6 T1.7 T3.1 T3.3 T
Min. weight for transfer between floors1.6(2.2) T1.7(2.2) T2.2 T2.5 T
InstallationOutrigger span 3.6×3.6Outrigger span 4.2×4.2—Preformed hole: 1.2×1.2~1.5×1.5; Elevator shaft installation: 2.1×2.1~2.3×2.3
Operating voltageAC380V (±40V) Three-phase five-wireAC380V (±40V) Three-phase five-wireAC380V (±40V) Three-phase five-wireAC380V (±40V) Three-phase five-wire
Max. wind resistance13.8m/s (force 6 wind)13.8m/s (force 6 wind)13.8m/s (force 6 wind)13.8m/s (force 6 wind)
Working modesAutomatic, Follow-up, Remote, ManualAutomatic, Follow-up, Remote, ManualAutomatic, Follow-up, Remote, ManualAutomatic, Follow-up, Remote, Manual

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the boom and arm construction, the concrete output rate, the pipe diameter, the power rating, the control and sensing hardware, the dimensions when folded, the noise level, the contents of the delivery or the installation method of the HG18; these are confirmed at quotation.

How does follow-up placing differ from pulling the hose by hand?

On a conventional pour, the discharge hose is guided by one worker while others drag it across the deck, following the pump's rhythm and the progress of the pour. It is physically demanding work, and the evenness of the concrete depends on how well a tiring crew keeps pace. Follow-up placing transfers that effort to the machine. The operator indicates where the concrete should go through the joystick, and the algorithms translate that input into coordinated movement of the boom and arm. Because the machine carries the line, the placing work is completed with only 30% of the manpower.

Automatic mode goes a step further. Once a path has been set, the machine distributes the concrete along it with high uniformity, and that uniformity has a measurable effect downstream: the levelling workload is reduced by 13%. A more even placement leaves less material to be moved by the levelling crew or levelling equipment, which helps the site achieve a high-precision floor. Remote and manual modes complete the set, so that the pour can continue whether the operator needs to stand back from the boom or the crew prefers to take over entirely.

Which model suits my project: HG12, HG15, HG18 or HG20?

The four models differ in reach, weight and installation. The HG12 and HG15 are the lighter pair, at 1.6 T and 1.7 T excluding counterweight, and stand on outrigger spans of 3.6×3.6 and 4.2×4.2 respectively. They suit compact floor plates and basement pours, where a radius of 12m or 15m covers the working area and a light machine is easier to move between levels. The HG18 and HG20 extend the reach to 18m and 20m and weigh 3.1 T and 3.3 T. The HG20 can be installed through a preformed hole of 1.2×1.2~1.5×1.5 or in an elevator shaft of 2.1×2.1~2.3×2.3, which makes it well suited to buildings where the boom climbs with the structure. For transfer between floors, the minimum weights are 2.2 T for the HG18 and 2.5 T for the HG20. All four run on AC380V (±40V) three-phase five-wire power and resist wind up to 13.8m/s (force 6 wind).

Who is the BMR Intelligent Follow-up Concrete Placing Pump for?

The principal buyers are main contractors and concrete subcontractors working on multi-storey residential and commercial buildings, where slab after slab must be poured on a tight cycle and labour for hose handling is difficult to secure. For towers with large floor plates and a central core, the HG20 is the natural choice, given its 20m radius and its preformed-hole and elevator-shaft installation options. The HG18 offers similar reach for projects that need slightly less coverage, and our team will advise on how it is mounted on a given site.

Contractors focused on basements, podiums and low-rise blocks will usually find the HG12 or HG15 more appropriate, since their lighter weights and outrigger-mounted installation suit smaller areas and frequent repositioning. Developers and project managers who want consistent, evenly placed concrete ahead of finishing work will also value automatic mode, because a more uniform placement reduces the levelling effort that follows. Firms building a wider fleet of concrete equipment can compare the placing pump with the other machines in our Concrete Robots range.

What is the BMR Intelligent Follow-up Concrete Placing Pump used for?

  1. strong>Floor slab pours: placing concrete across the slabs of multi-storey buildings, level by level.
  2. Basement construction: distributing concrete in basement levels, where the range is designed to operate.
  3. Preset-path placing: running automatic mode along a planned route for uniform distribution.
  4. Reduced-crew pours: completing placing work with one joystick operator in follow-up mode.
  5. Remote operation: moving the boom and arm from a distance when the operator needs to stand clear.
  6. Manual fallback: switching to traditional manual pulling when site conditions require it.

Pricing and Availability

Robots Middle East prepares each quotation for the specific model and project, taking into account the floor plates, the installation method and the site's power supply. Delivery, customs clearance and technical support are arranged with the quotation. To receive a formal offer for the HG12, HG15, HG18 or HG20, please use the quotation request available on this page.

Frequently Asked Questions

How many models are available?

There are four models: the HG12, HG15, HG18 and HG20, with placing radii of 12m, 15m, 18m and 20m respectively.

How much labour does follow-up placing save?

By controlling the movement of the boom and arm through algorithms, follow-up placing completes the work with only 30% of the manpower.

What does automatic mode do?

Automatic mode places concrete along a preset path. Its high uniformity reduces the levelling workload by 13% and helps to achieve a high-precision floor.

What power supply does the machine require?

All models operate on AC380V (±40V) three-phase five-wire power.

How much wind can the machine withstand?

The maximum wind resistance is 13.8m/s, equivalent to force 6 wind.

Can the machine be installed in an elevator shaft?

The HG20 offers elevator shaft installation of 2.1×2.1~2.3×2.3 and can also be installed through a preformed hole of 1.2×1.2~1.5×1.5. The HG12 and HG15 stand on outriggers, and our team will advise on mounting the HG18 for your site.

Where can I buy the BMR Intelligent Follow-up Concrete Placing Pump and what does it cost?

You can buy it from Robots Middle East, which supplies the machine across the Middle East. The cost depends on the model and project requirements, so please request a quotation and our team will prepare a formal offer.

Summary

The circle a placing boom draws on a floor plan decides how much of the slab can be poured without people hauling a hose, and the BMR Intelligent Follow-up Concrete Placing Pump lets you choose that circle from four sizes. Within it, algorithm-controlled movement of the boom and arm reduces the placing crew to 30% of the manpower, automatic placing cuts the levelling workload by 13%, and four working modes keep the pour under control whatever the site demands. The lighter HG12 and HG15 suit basements and compact floors, while the HG18 and HG20 extend the reach for larger, taller structures. For a quotation from Robots Middle East, with delivery and support arranged across the region, this page is the starting point.
