Inspire RH56E2 Dexterous Robot Hand
In stock
- BRAND:
- INSPIRE ROBOTS
- PART #:
- RH56E2
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Inspire-RH56E2

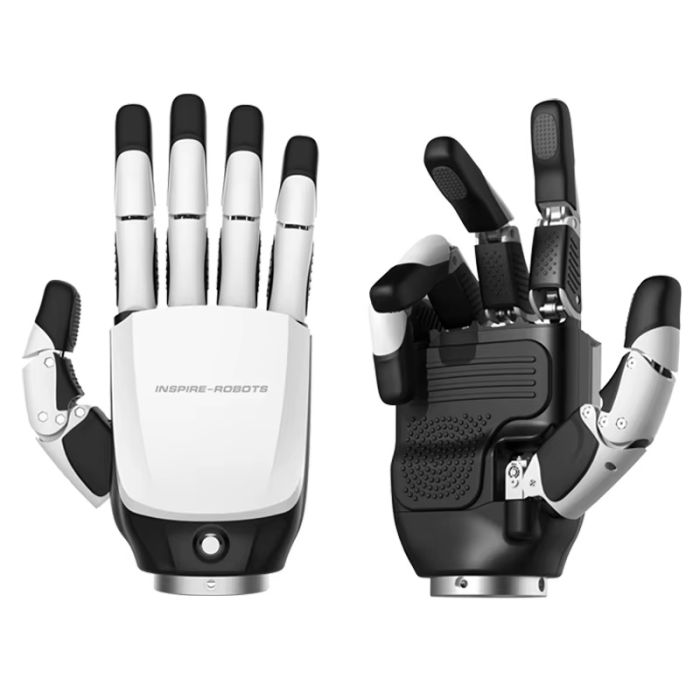

Inspire RH56E2 Dexterous Robot Hand
Dexterous robot hands have spent most of their working lives in laboratories, where a slipped grip means another trial rather than a damaged part or a stopped line. Moving such a hand onto a factory floor raises a harder question: can it hold real weight, cycle after cycle, while still knowing how firmly each finger is pressing? The Inspire RH56E2 Dexterous Robot Hand is Inspire Robots' answer to that question. Its maker describes it as the world's first industrial-grade dexterous hand with human-hand-comparable grasping force, and it combines a fingertip gripping force of 30N and an overall load capacity equivalent to 15KG with built-in force sensors that report the distribution of force across the fingers in real time.
Robots Middle East supplies the RH56E2 to universities, research centres, system integrators and industrial users throughout the Middle East. Our team prepares each quotation for the exact version your project requires, arranges delivery to your site and remains your point of contact for technical questions and support once the hand is in service.
Background
Inspire Robots and its dexterous hand range
Inspire Robots builds dexterous robotic hands for humanoid platforms, research and automation, and its catalogue covers several distinct families, among them the RH56BFX, the EG2-4B and EG2-4C, and the RH56F1 series, all of which can be explored in the Inspire Robots collection. Within that range, the RH56E2 occupies a particular position: it is the hand intended for demanding operating conditions, where gripping strength matters as much as finger dexterity. For buyers, this means the RH56E2 is not simply a larger or newer model but a hand designed around a different priority.
From laboratory dexterity to industrial load
The central idea of the RH56E2 is that a multi-fingered hand should be able to grip with a strength comparable to that of a human hand without giving up control. Inspire Robots describes it as capable of meeting various demanding operating conditions. Strength alone, however, would make the hand blunt; the built-in force sensors provide real-time feedback on how force is distributed across the fingers, so a controller can regulate grip rather than simply close the hand. Beyond that, the RH56E2 supports the integration of tactile sensor modules that capture real-time tactile data from all palm areas, giving tactile-equipped versions a second, broader layer of contact information alongside the finger force readings.
Technical Specifications
The sources list the following version codes. With tactile sensors: RH56E2-0R-T1, RH56E2-0L-T1, RH56E2-2R-T1, RH56E2-2L-T1, RH56E2-0R-T2, RH56E2-0L-T2, RH56E2-2R-T2 and RH56E2-2L-T2. Without tactile sensors: RH56E2-0L / 2L and RH56E2-0R / 2R. Most figures are shared by all versions; where they differ, the table shows each figure in its own column.
| Specification | With tactile sensors (T1 / T2) | Without tactile sensors |
|---|---|---|
| Degrees of freedom | 6 | 6 |
| Number of joints | 12 | 12 |
| Weight | 790g±10g | 770g±10g |
| Overall load capacity | Equivalent to 15KG | Equivalent to 15KG |
| Thumb fingertip strength | 30N | 30N |
| Fingertip strength | 28N | 28N |
| Force resolution | 0.05N | 0.05N |
| Repeatability | ±0.20mm | ±0.20mm |
| Lateral rotation range of thumb | 75°‑170° | 75°‑170° |
| Flexion speed of four fingers | >200°/s | >200°/s |
| Hand closing time | 0.8S | 0.8S |
| Control interface | RS485, CAN, ModbusTCP | RS485, CAN, ModbusTCP |
| Operating voltage | 24V±10% | 24V±10% |
| Quiescent current | 0.25A @24V | 0.2A @24V |
| Peak current | 4A @24V | 4A @24V |
| Tactile sensor accuracy | ≤5%FS | Not applicable |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation. The manufacturer has not published the dimensions, IP rating, operating temperature range, box contents, communication baud rates, service life, payload per finger or housing material; these details are confirmed at quotation.
Should I choose an RH56E2 with or without tactile sensors?
The mechanical heart of every RH56E2 version is the same. All versions share 6 degrees of freedom across 12 joints, a thumb fingertip strength of 30N, a fingertip strength of 28N, a force resolution of 0.05N and a repeatability of ±0.20mm. The built-in force sensors that report finger force distribution are part of the hand itself, so even a version without tactile sensors can regulate its grip on the basis of measured force.
What the tactile-equipped T1 and T2 versions add is contact information from the palm. Tactile sensor modules capture real-time tactile data from all palm areas with a tactile sensor accuracy of ≤5%FS. That matters when the question is not only how hard the fingers press, but where an object actually rests against the hand: during whole-hand power grasps, when an item shifts during transfer, or when a research team wants to record rich contact data for learning-based control.
The cost of that extra sensing in physical terms is modest. Tactile versions weigh 790g±10g against 770g±10g for versions without tactile sensors, and their quiescent current is 0.25A @24V rather than 0.2A @24V. Peak current is 4A @24V in both cases. For projects where grasp force feedback is sufficient, a version without tactile sensors keeps the hand slightly lighter and its idle draw slightly lower; for projects that depend on contact mapping, the T1 or T2 versions are the natural choice. The sources do not explain the difference between the T1 and T2 designations, or between the 0 and 2 prefixes, so Robots Middle East confirms the correct code with you before quotation.
What does industrial-grade mean for a dexterous hand?
For a dexterous hand, industrial-grade is less about appearance and more about whether it can carry out useful work reliably. The RH56E2 addresses this on three fronts. First, force: an overall load capacity equivalent to 15KG and fingertip strength in the region of 28N to 30N move the hand beyond the light objects typical of many research hands. Second, speed and consistency: a four-finger flexion speed of >200°/s, a hand closing time of 0.8S and a repeatability of ±0.20mm support repeated, predictable motions. Third, integration: the choice of RS485, CAN and ModbusTCP control interfaces at a 24V±10% operating voltage suits the communication and power arrangements commonly found in automation cells and robotic platforms. A thumb lateral rotation range of 75°‑170° allows the thumb to oppose the fingers across a wide arc, which supports both precision pinches and enveloping grasps.
Who is the Inspire RH56E2 Dexterous Robot Hand for?
Humanoid robot developers form one natural audience: a hand that combines human-like strength with force feedback lets a humanoid platform attempt tasks that lighter hands cannot, such as lifting tools or heavier household and warehouse items. Research groups in robotic manipulation, grasp planning and tactile perception are a second audience, particularly where the tactile-equipped versions provide palm-wide contact data for experiments and dataset collection.
System integrators and industrial engineers evaluating dexterous manipulation for production, logistics or inspection will value the industrial control interfaces and the emphasis on demanding operating conditions. Teleoperation teams, who need a hand that responds quickly and reports what it feels, are a further group. Where a project calls for a different size, form factor or degree of strength, the wider Robot Hands category offers alternatives, and Robots Middle East can help compare them against your task.
What is the Inspire RH56E2 Dexterous Robot Hand used for?
- Humanoid robot end effectors – giving humanoid platforms a hand able to grip and lift objects of meaningful weight.
- Industrial handling trials – evaluating multi-fingered grasping of parts and tools that conventional grippers handle awkwardly.
- Force-controlled grasping research – using real-time finger force distribution to study and tune grip regulation.
- Tactile perception studies – collecting palm-wide tactile data with the T1 and T2 versions for perception and learning work.
- Teleoperation and data collection – mirroring an operator's hand motions while recording force and contact information.
- Service and logistics robotics – handling varied everyday items where both dexterity and holding strength are required.
Pricing and Availability
Robots Middle East provides the RH56E2 on a quotation basis, so that the version, sensor configuration and integration requirements are matched to your project before any commitment is made. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, please let us know which version you are considering and how you intend to use the hand, using the quotation request available on this page.
Frequently Asked Questions
How many degrees of freedom does the RH56E2 have?
Every version of the RH56E2 has 6 degrees of freedom distributed across 12 joints.
How strong is the RH56E2's grip?
The thumb fingertip strength is 30N and the fingertip strength is 28N, with an overall load capacity equivalent to 15KG.
Does the hand measure force without the tactile modules?
Yes. The built-in force sensors provide real-time feedback on finger force distribution, with a force resolution of 0.05N, independently of the tactile sensor modules.
What do the tactile versions add?
The T1 and T2 versions capture real-time tactile data from all palm areas, with a tactile sensor accuracy of ≤5%FS. They weigh 790g±10g, compared with 770g±10g for versions without tactile sensors.
Which control interfaces are supported?
The RH56E2 can be controlled via RS485, CAN or ModbusTCP, and it operates at 24V±10%.
Is the IP rating or operating temperature published?
Neither has been published by the manufacturer. Robots Middle East confirms these details, together with dimensions and box contents, at quotation.
Where can I buy the Inspire RH56E2 Dexterous Robot Hand and what does it cost?
You can obtain the RH56E2 through Robots Middle East, which supplies it across the Middle East. Pricing depends on the version and configuration you require and is provided in a quotation prepared for your project.
Summary
The RH56E2 is Inspire Robots' attempt to take dexterous manipulation out of the laboratory and into work that carries real load. It joins human-hand-comparable grasping force, an overall load capacity equivalent to 15KG and 6 degrees of freedom with built-in force sensing, so that strength is always measured rather than applied blindly, and tactile-equipped versions extend that awareness across the palm. Industrial control interfaces make it practical to integrate into automation cells and robotic platforms. For teams across the Middle East planning a humanoid, research or industrial manipulation project with Robots Middle East, this page is the starting point.
