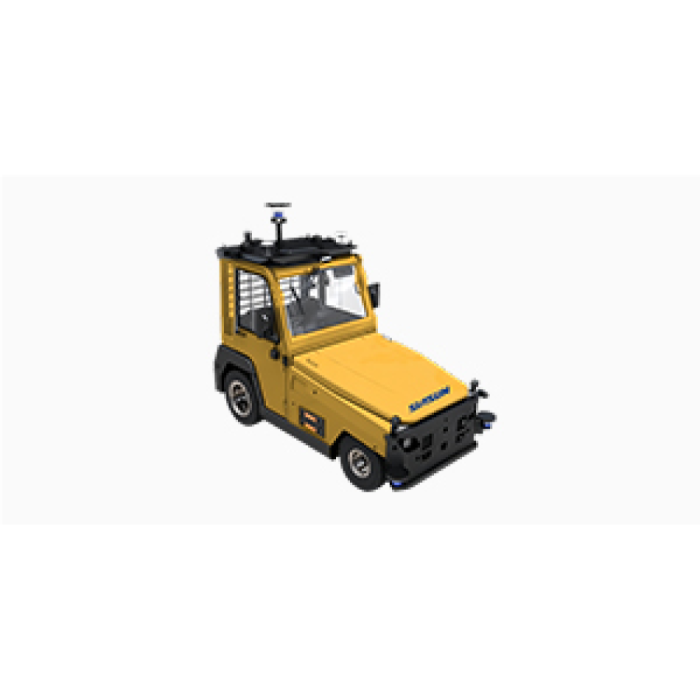

SIASUN G-40X (G-40X)

In a railway marshalling yard, the shunting locomotive does work that nobody notices until it stops. It collects wagons, couples them, moves them and leaves them exactly where the next process needs them. The SIASUN G-40X (G-40X) brings that shunting logic to the manufacturing site. It is a heavy-load towing mobile robot rated for a towing weight of 40000 kg. It hitches to a load cart, hauls it between buildings and unhitches again using SIASUN's patented automatic coupling technology, with no member of staff at the drawbar. For automotive, lithium battery and 3C electronics manufacturers, it turns the heaviest and most labour-dependent leg of internal logistics into a scheduled, automated movement.

Robots Middle East sells the SIASUN G-40X across the Middle East. We supply manufacturers and logistics operators in the region with the robot and a formal quotation prepared for their site. Before an offer is made, our team reviews your routes, loads and integration requirements with you. Robots Middle East then remains your point of contact for delivery, technical questions and after-sales support throughout the life of the installation.

Background

SIASUN and its towing robot family

SIASUN is a Chinese robotics and automation manufacturer. Its portfolio covers industrial robots, mobile robots and complete automation systems for production and warehousing. Within its Mobile Robots range, the company offers machines for indoor workshops, such as under-ride lift units that carry racks from beneath. It also offers towing robots built for transport at the scale of a whole factory site. The G-40X belongs to this towing family, alongside the G-20-30X, G-8-15X and G-5-6X. It was conceived for the point at which material flows leave the controlled environment of a hall and cross open ground to another building, a warehouse or a loading area.

Fusion navigation and automatic hitching

Two technologies define the G-40X. The first is its multi-sensor fusion navigation. The robot combines 3D lidar, satellite navigation, inertial navigation and vision sensing to determine its position and plan its path. In practice, positioning rests on 3D SLAM, an IMU and RTK working together, so that each source covers the weaknesses of the others in changing outdoor conditions. The second is SIASUN's patented automatic hitch and unhitch technology. It lets the tractor dock with and separate from a load cart without staff, which removes the manual step that usually interrupts an otherwise automated transport chain.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, the vehicle weight, the battery type and capacity, the charging method, the positioning accuracy, the turning radius, the IP rating, the operating temperature range or the contents of the delivery; these are confirmed at quotation.

How does the SIASUN G-40X couple and release a load cart without an operator?

In conventional yard logistics, a towing tractor can drive itself only as far as the cart. Someone still has to walk out, align the drawbar, secure the coupling and release it again at the destination. That single manual task ties every movement to the availability of staff, and it puts people beside heavy vehicles at the most hazardous moment of the cycle. The G-40X addresses this with SIASUN's patented automatic hitch and unhitch technology. The tractor docks with the load cart and separates from it precisely and without staff, so a transport order can run from pick-up to drop-off as one continuous automated sequence.

Precision matters most during docking. Here the robot draws on the same fusion of 3D SLAM, inertial measurement and RTK satellite positioning that guides it along the route. Rear-wheel drive delivers the tractive effort, and hydraulic power-assisted braking provides the service brake for controlling a heavy towed load. The result is a tractor that can take over the whole task rather than only the driving.

Is the SIASUN G-40X suited to outdoor, round-the-clock operation?

SIASUN designed the G-40X for complex outdoor environments. Its sensing combines 3D lidar, satellite navigation, inertial navigation and vision so that the robot keeps an accurate position where a single technology would struggle, for example in open yards with few fixed reference points, between tall buildings, or where the surroundings change from one shift to the next. The robot supports 7*24H all-weather operation and fast, flexible deployment that can be scaled up across a site.

Operating continuously also depends on knowing when something is wrong. The G-40X provides remote monitoring, sensor self-check, fault alarms and protection against abnormal operation, so supervisors can follow the fleet from a control point rather than from the yard. Through its communication capability, several vehicles can coordinate with one another and integrate with management software to optimise logistics flows. Sites in the Middle East often face high summer temperatures and airborne dust, and Robots Middle East reviews these site conditions with you when preparing the offer.

Who is the SIASUN G-40X for?

The G-40X is aimed at manufacturers whose heaviest material flows cross open ground. Automotive plants that move body parts, sub-assemblies or components between press shop, assembly and warehouse are an obvious fit. So are lithium battery producers transferring materials and finished goods between process buildings, and 3C electronics manufacturers running high-volume flows across multi-building campuses. Industrial parks and logistics operators that link several facilities with scheduled tows will also find the automatic coupling relevant, as will plants that want to remove staff from the drawbar for safety reasons.

Systems integrators and plant engineering teams planning a site-wide transport concept form a further audience. For them, the robot's integration with management software and its multi-vehicle coordination are as important as the towing rating. Where a site's carts are considerably lighter than the G-40X is built for, the same towing family includes the SIASUN G-20-30X, the SIASUN G-8-15X and the SIASUN G-5-6X. The wider selection is collected under Logistics Robots.

What is the SIASUN G-40X used for?

1. Automotive yard transfers: towing heavy carts of parts and assemblies between production halls and warehouses.
2. Lithium battery logistics: moving materials and products between process buildings without manual coupling.
3. 3C electronics campuses: running repeatable heavy-load shuttles across multi-building manufacturing sites.
4. Warehouse-to-line supply: collecting loaded carts at storage and delivering them to the point of use.
5. Round-the-clock shift logistics: keeping heavy transport running through every shift with 7*24H operation.
6. Coordinated fleet operation: working with other vehicles and management software to optimise site-wide flows.

Pricing and Availability

Robots Middle East supplies the SIASUN G-40X on a quotation basis. Each heavy towing installation depends on the site layout, the carts in use, the routes and the software environment. Your quotation sets out the configuration prepared for your site. Delivery, customs clearance and support are arranged with the quotation. To begin, please use the quotation request available on this page.

Frequently Asked Questions

What towing weight is the SIASUN G-40X rated for?

The G-40X has a rated towing weight of 40000 kg.

How does the SIASUN G-40X navigate?

It uses multi-sensor fusion navigation, combining 3D lidar, satellite navigation, inertial navigation and vision sensing. Positioning is based on 3D SLAM together with an IMU and RTK navigation.

How fast does the SIASUN G-40X travel?

The G-40X has a travel speed of 2.2 m/s.

Does a member of staff need to couple the load cart?

No. SIASUN's patented automatic hitch and unhitch technology allows the tractor to dock with and separate from the load cart without staff.

Can the G-40X work with fleet or management software?

Yes. The robot coordinates with other vehicles through its communication capability and integrates with management software. Robots Middle East reviews your site's software environment with you when preparing the offer.

What safety functions does the SIASUN G-40X provide?

It offers remote monitoring, sensor self-check, fault alarms and protection against abnormal operation. Its service brake uses hydraulic power-assisted braking.

Where can I buy the SIASUN G-40X (G-40X) and what does it cost?

You can buy the SIASUN G-40X from Robots Middle East, which supplies it across the Middle East. The cost depends on your configuration and site requirements, so it is set out in a formal quotation that you can request on this page.

Summary

A shunting locomotive earns its place by joining, moving and releasing loads without fuss, and the SIASUN G-40X does the same for heavy factory carts. It has a rated towing weight of 40000 kg and a travel speed of 2.2 m/s, and it navigates by fusing 3D SLAM, IMU and RTK. With patented automatic hitching, it removes the last manual step from heavy yard transport. Remote monitoring, self-checks and integration with management software let it run as part of a coordinated, round-the-clock fleet. Robots Middle East reviews your site with you and arranges delivery and support. For manufacturers ready to automate the heaviest leg of their logistics, this page is the starting point.
