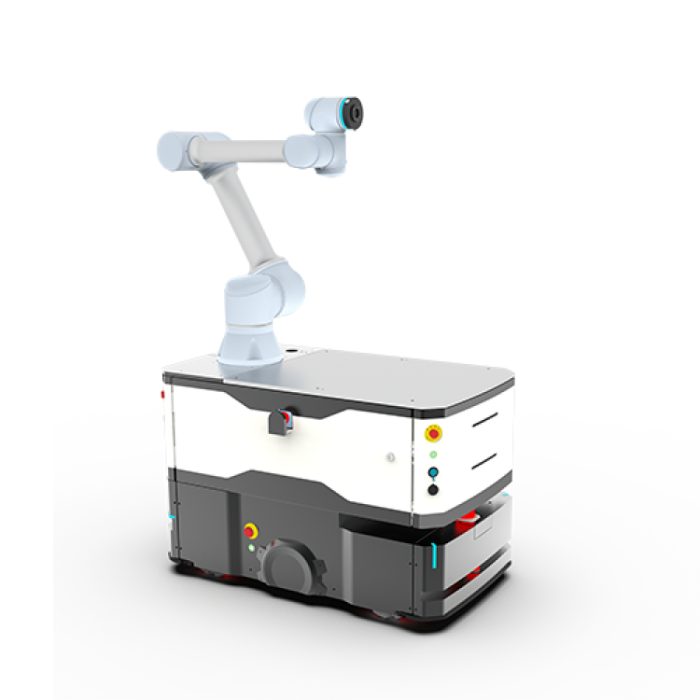

SIASUN HC-X6-B (HC-X6-B)

On a factory floor, scale usually forces a choice: the equipment that moves heavy loads is rarely the equipment trusted with fine work, and the equipment trusted with fine work rarely leaves its station. The SIASUN HC-X6-B (HC-X6-B) removes that divide. It is a mobile collaborative robot whose platform carries up to 470kg and whose overall accuracy is ±0.3mm. It brings handling capacity and placement precision together on one vehicle that drives itself between workstations.

Robots Middle East supplies the SIASUN HC-X6-B to manufacturers, logistics operators, laboratories and system integrators across the Middle East. Robots Middle East prepares each quotation, coordinates delivery to your site and provides the support that follows commissioning. That way, a single partner handles the project from the first specification discussion to the robot's working life on your floor.

Background

SIASUN and the DUCO sub-brand

SIASUN is a Chinese robotics manufacturer whose product range covers industrial, collaborative and mobile systems. SIASUN DUCO is the company's sub-brand focused on intelligent robotics. SIASUN DUCO has broken foreign technology monopolies in multiple fields, and all of its core components are independently developed. For buyers, this matters mainly because the mobile platform, the collaborative arm and the supporting units come from one engineering organisation rather than from separate suppliers whose products must be made to cooperate.

One vehicle, one arm, one interface

The HC-X6-B belongs to the DUCO family of mobile collaborative robots. Each of these robots integrates a self-developed mobile platform with a collaborative robot arm. The system can be fitted with SIASUN's own vision systems, grippers and other execution units, so that a single machine performs material handling, assembly, inspection and precision processing. The chassis uses a wheel system designed specifically for the mobile collaborative robot, offering greater stability and reliability. Programming is brought together on a single teach pendant: one screen handles visual interaction and debugging for both the mobile platform and the collaborative arm, allowing for faster deployment.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the power consumption, the IP rating, the total weight of this model without its arm, the battery run time, the maximum travel speed or the list of included accessories for the HC-X6-B; these are confirmed at quotation.

What does a 470kg platform load mean for a mobile cobot?

Most mobile manipulators are designed around light totes and small parts. With a platform load of 470kg Max, the HC-X6-B is positioned for heavier work. It can carry substantial fixtures, material stacks, tooling or workpieces between stations while the collaborative arm handles the parts themselves. The same vehicle can therefore do the transport and the manipulation. Without it, a plant would typically need a pallet mover or trolley and a separately installed arm.

Capacity on its own would be of limited value if the robot lost precision once it was on the move. The overall accuracy of the HC-X6-B is ±0.3mm. Because this figure describes the system as a whole, it is the one that matters when the arm must locate a part in a fixture, place a component on a jig or present a workpiece to a machine after the vehicle has driven there. The purpose-built wheel system, which offers greater stability and reliability, provides the steady base that this combination of load and accuracy depends on.

The vehicle dimensions of 1250*700*800mm give the footprint around which aisles, docking points and work cells must be planned. Your site's layout drawings should be reviewed against this footprint during the quotation stage.

How does the HC-X6-B find its way and work safely beside people?

The HC-X6-B navigates by SLAM & QR CODE. In general terms, SLAM lets a robot build and use a map of its surroundings, which suits layouts that change over time. QR code markers on the floor give fixed reference points where repeatable positioning at defined stations is wanted. Having both methods available gives planners a choice: open areas can rely on mapping, while critical docking positions can be fixed with markers.

Safety is addressed on two levels. The robot provides ground and airspace safety with real-time protection. This covers the space the vehicle travels through and the space the arm moves in, enabling safe human-robot collaboration. Even so, every collaborative installation still calls for a site-specific risk assessment, and Robots Middle East can discuss this as part of the project.

Charging is designed around continuity. The robot supports contact-based, wireless and automatic charging methods, supporting short-term, real-time and round-the-clock operation. The charging strategy should be planned together with the duty cycle when the quotation is prepared.

Who is the SIASUN HC-X6-B for?

The HC-X6-B suits operations that need one machine to move heavy material and also handle parts with care. Manufacturers running machine-tending or assembly lines spread across a large floor are an obvious fit. So are logistics and intralogistics teams that want to replace manual trolley runs with an autonomous vehicle that can also load and unload. Quality and inspection departments can use the robot to bring a vision system to the product rather than the other way round. System integrators may value the single teach pendant and SIASUN's own vision and gripper units, which simplify building complete cells.

The DUCO mobile collaborative range also includes the SIASUN HC-X2-B (HC-X2-B), the SIASUN HC-X3-B (HC-X3-B), the SIASUN HC-X4-B (HC-X4-B), the SIASUN HC-X2-L (HC-X2-L) and the SIASUN HC-X2-T (HC-X2-T). Each of these versions has its own page with its own figures. If your application involves lighter loads or tighter spaces, comparing those pages against your requirements is worthwhile, and Robots Middle East can advise which version matches the task.

What is the SIASUN HC-X6-B used for?

1. Material handling: carrying heavy loads between stores, lines and workstations, with the arm transferring parts at each stop.
2. Machine tending: driving to machine tools to load blanks and unload finished parts without a fixed robot at every machine.
3. Assembly: bringing components and a collaborative arm to the assembly point to place parts alongside human operators.
4. Inspection: fitted with a vision system, visiting products or equipment in turn to check them where they stand.
5. Precision processing: carrying out fine operations that depend on the system's ±0.3mm overall accuracy.
6. Continuous operation: using automatic, contact-based or wireless charging to keep the robot working across shifts.

Pricing and Availability

The HC-X6-B is supplied on a project basis, because the arm configuration, end effectors, vision units and navigation set-up all depend on the application. Request a quotation from Robots Middle East with a short description of your task, loads, layout and working hours, and the configuration will be specified with you. Delivery, customs clearance and after-sales support are all arranged together with the quotation. To begin, use the quotation request available on this page.

Frequently Asked Questions

What load can the HC-X6-B platform carry?

The platform load of the HC-X6-B is 470kg Max.

How accurate is the HC-X6-B?

The HC-X6-B has an overall accuracy of ±0.3mm.

Which navigation methods does it use?

The HC-X6-B navigates by SLAM & QR CODE. This allows mapped navigation in open areas and marker-based positioning at fixed stations.

How large is the vehicle?

The vehicle dimensions are 1250*700*800mm. Robots Middle East recommends checking this footprint against your aisle widths and docking areas.

Can it work safely alongside people?

Yes: the robot has ground and airspace safety with real-time protection, enabling safe human-robot collaboration. A site-specific risk assessment is still part of any installation.

How is the robot charged?

It supports contact-based, wireless and automatic charging. The battery run time for this model is confirmed with your quotation.

Where can I buy the SIASUN HC-X6-B and what does it cost?

You can buy the SIASUN HC-X6-B from Robots Middle East, which supplies it across the Middle East. Its cost depends on the configuration you need, so please request a quotation through this page.

Summary

The SIASUN HC-X6-B is built for the point where heavy handling and fine manipulation usually part ways. It combines a 470kg Max platform load with ±0.3mm overall accuracy, adds SLAM & QR CODE navigation, a purpose-built wheel system, ground and airspace safety, flexible charging and a single teach pendant, and brings all of this to whichever station needs it. Built on SIASUN DUCO's independently developed components, it lets one mobile machine take on the work of a transport vehicle and a stationary arm. If you are planning that kind of combined automation with Robots Middle East, this page is the starting point.
