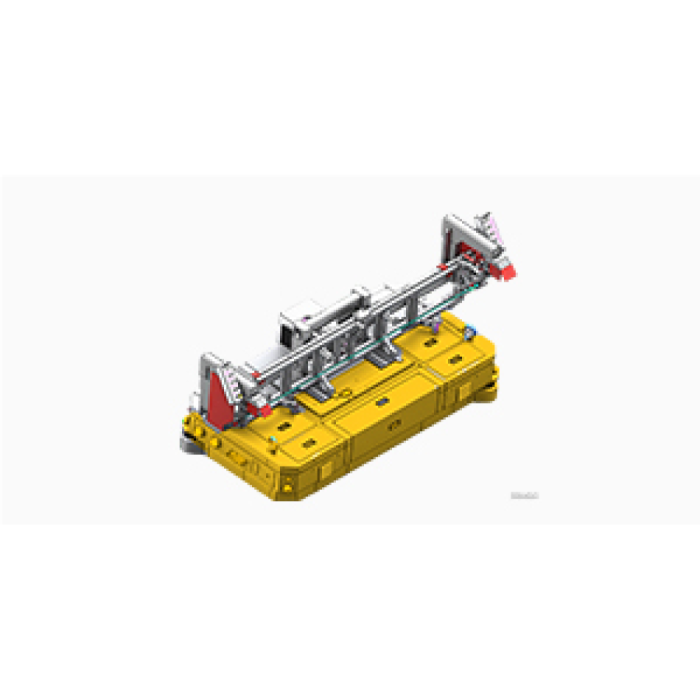

SIASUN Instrument Panel Line Assisted Assembly Mobile Robot (Instrument Panel Line Assisted Assembly Mobile Robot)

Two figures tell most of the story of this machine. Along its route it holds its line to within ±10 mm; when it comes to a stop, it holds its station to within ±5 mm. The difference matters, because on an instrument panel line nobody judges a carrier by how it travels between stations. They judge it by where it comes to rest. The SIASUN Instrument Panel Line Assisted Assembly Mobile Robot (Instrument Panel Line Assisted Assembly Mobile Robot) is built around that distinction. It is a mobile robot developed for instrument panel assembly processes in automotive manufacturing, combining a 250 kg payload, screw-driven high-precision lifting and a braking system that pairs a servo motor with a mechanical brake. The aim is a moment of placement that is calm, repeatable and the same on every cycle.

Robots Middle East supplies the SIASUN Instrument Panel Line Assisted Assembly Mobile Robot to automotive manufacturers and assembly plants across the Middle East. We prepare each quotation against your line layout and arrange delivery and customs clearance to your site. We also remain your point of contact for support after commissioning. Before any order is placed, our team works through the configuration with you, including the navigation method, the charging arrangement and how the robot meets your existing stations.

Background

SIASUN and its mobile robot range

SIASUN is a robotics manufacturer with a broad portfolio of industrial mobile robots. Within that family, the instrument panel robot sits at the precise, process-specific end. At the other end are the heavy-duty platforms rated in tonnes for moving large loads across a plant. Both sit alongside software for monitoring a fleet. You can browse the wider family in our Mobile Robots category. This model is not a general-purpose transporter fitted with a lifting table. It was developed for one section of one process, and its design choices follow from that.

A carrier designed around one part

An instrument panel is a large, irregular assembly that must meet the vehicle body at defined mounting points. SIASUN's answer is to integrate several mechanisms on a single mobile base. A screw-driven lift handles the vertical motion and gives stable assembly. A drive arrangement of two drive wheels and four caster wheels, together with omnidirectional mobility, allows flexible operation in tight spaces. The lightweight design is optimised for 250 kg instrument panels. Fast switching between vehicle models means one robot can serve a line that builds more than one variant. Wireless charging and intelligent interaction features complete the package and raise the level of automation and intelligence in the instrument panel assembly section.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the dimensions, weight, battery capacity, runtime, travel speed, lifting height, safety sensors, IP rating, power supply voltage or the contents of the delivery; these are confirmed at quotation.

Why does the robot quote two accuracy figures?

The two figures describe two different jobs. Navigation accuracy, at ±10 mm, describes how closely the robot follows its guided path while it is moving along the line. Positioning accuracy, at ±5 mm, describes how closely it arrives at a defined stop. For an instrument panel line, the second figure is the one that shapes the assembly. The panel has to meet the body at its mounting points, and the tighter the stop, the less correction remains for the operator or the downstream station.

The braking system supports that tighter figure. A servo motor controls deceleration, and a mechanical brake holds the robot once it has stopped. Above the base, the screw-driven lift adds vertical precision. A screw drive moves in a controlled, steady way rather than in steps, which matters when a heavy, bulky part is being raised towards its final position. Together, these elements give the robot stable and consistent instrument panel assembly.

How does tape navigation compare with a magnetic strip?

As standard, the robot follows colour tape combined with QR code tape, and a magnetic strip is available as an option. Each approach suits a different kind of plant. Colour tape is visible, so supervisors and maintenance staff can see the robot's route at a glance. It can also be re-laid when a station moves or a new vehicle model enters production. The QR code tape adds reference points along that route, so the robot knows where it is on the path as well as how to follow it. A magnetic strip is less exposed to dirt and wear on the floor surface. That can make it the better choice where traffic is heavy or the floor is cleaned aggressively, but it is less convenient to relocate. Robots Middle East can help you weigh these factors against your floor conditions and how often your line layout changes, and the chosen method is fixed in the quotation.

Who is the SIASUN Instrument Panel Line Assisted Assembly Mobile Robot for?

The first audience is automotive manufacturers running an instrument panel assembly section. That includes plants that want to relieve operators of carrying and holding a heavy panel, and plants that want each fit to be made the same way every time. Mixed-model lines are a particular fit, because the robot is designed for fast switching between multiple vehicle models.

A second audience is the systems integrators and manufacturing engineers who plan new lines or modernise existing ones. Compact floor plans also benefit, because flexible operation in tight spaces matters where stations are close together and aisles are narrow. Plants aiming for longer unattended operation will look closely at the wireless charging.

Where the task is moving heavy loads rather than placing an instrument panel, a different SIASUN platform is more appropriate. The SIASUN 3T Heavy-Duty Mobile Robot and the SIASUN 5T Heavy-Duty Mobile Robot are built for loads measured in tonnes. Operators running several robots may also want to consider the SIASUN Mobile Robot Statistical Analysis System (Mobile Robot Statistical Analysis System) alongside them. Further options for production automation are collected under Factory Robots.

What is the SIASUN Instrument Panel Line Assisted Assembly Mobile Robot used for?

1. Instrument panel installation: carrying and lifting the panel to its position on the vehicle body in the assembly section.
2. Operator assistance: taking the load of the panel so that operators can concentrate on alignment and fastening.
3. Mixed-model production: switching quickly between vehicle models on a line that builds several variants.
4. Precise station docking: stopping at a defined point to within ±5 mm so the panel meets its mounting points.
5. Compact line layouts: working flexibly in tight spaces between stations and fixtures.
6. Higher automation in the cockpit section: using wireless charging and intelligent interaction to reduce manual intervention in the process.

Pricing and Availability

The robot is supplied on a quotation basis, because the configuration depends on your line, your vehicle models and the navigation method you choose. Delivery, customs and support are arranged with the quotation. Tell Robots Middle East about your assembly section, the models you build and the layout of your floor, and we will prepare an offer to match. The quotation request for the SIASUN Instrument Panel Line Assisted Assembly Mobile Robot is available on this page.

Frequently Asked Questions

What payload does the robot carry?

The payload capacity is 250 kg, and the lightweight design is optimised for 250 kg instrument panels.

How does the robot navigate?

It follows colour tape combined with QR code tape. A magnetic strip is available as an option.

How precisely does it stop?

Positioning accuracy is ±5 mm, and navigation accuracy along the route is ±10 mm.

Can one robot handle more than one vehicle model?

Yes. The design provides fast switching between multiple vehicle models, which suits mixed-model lines.

How is the robot charged?

It uses wireless charging, which works together with its intelligent interaction features to raise the level of automation in the instrument panel assembly section.

What braking system does it use?

Braking combines a servo motor with a mechanical brake, which supports a steady stop and a secure hold at the station.

Where can I buy the SIASUN Instrument Panel Line Assisted Assembly Mobile Robot and what does it cost?

You can buy it from Robots Middle East, which supplies it across the Middle East. The cost depends on your configuration and is set out in a quotation, which you can request from this page.

Summary

A carrier on an instrument panel line is judged at its stop, not on its journey, and the SIASUN Instrument Panel Line Assisted Assembly Mobile Robot is designed with that in mind. It follows its path within ±10 mm and settles within ±5 mm. Servo braking with a mechanical brake, a screw-driven lift and a 250 kg payload turn that stop into a stable, repeatable placement. Tape-based navigation with an optional magnetic strip, omnidirectional mobility for tight spaces, fast model switching and wireless charging fit it to the realities of a modern mixed-model line. Robots Middle East quotes, delivers and supports it across the region, and for any plant planning to automate its instrument panel assembly, this page is the starting point.
