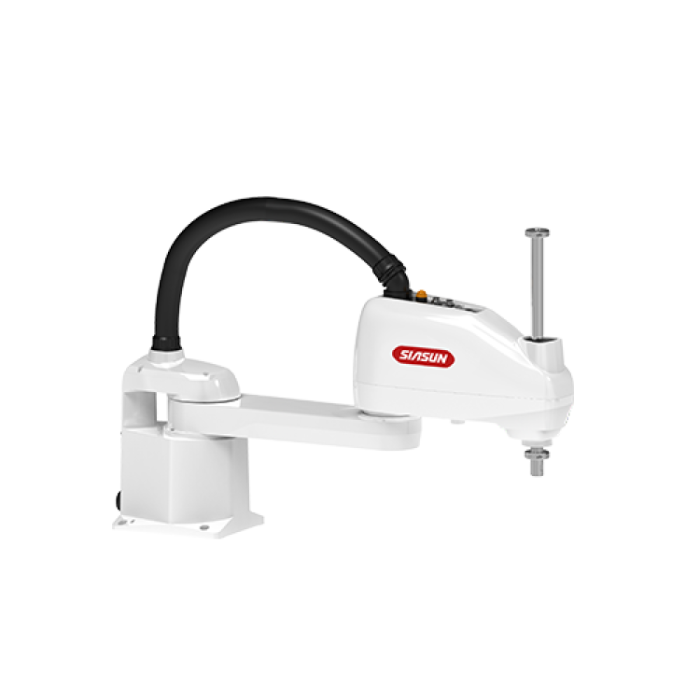

SIASUN SA10A-10/0.60 (SA10A-10/0.60)

Every part a SCARA robot sets down is a small promise that the next one will land exactly where the last one did. That promise is easy to keep with a light component and an unhurried cycle. It becomes far harder when the gripper is heavy, the line is fast and the tolerance is counted in hundredths of a millimetre. The SIASUN SA10A-10/0.60 (SA10A-10/0.60) is built for exactly that tension. This new-generation SCARA arm carries a 10kg payload across a 600mm reach and holds a repeatability of ±0.02mm on its J1 and J2 axes combined. Its dual-support structure and proprietary core components serve one purpose: load and precision should not have to be traded against each other.

Robots Middle East supplies the SIASUN SA10A-10/0.60 to manufacturers, system integrators and technical institutions across the Middle East. Our team prepares your quotation, coordinates delivery to your facility and remains your point of contact for support once the robot is in service. You deal with one partner from the first enquiry to the day the cell runs in production.

Background

The SA10A generation from Siasun

Siasun launched the SA10A series as a brand-new generation of its SCARA robots. The sources name several versions within this family: the SA10A-10/0.60 described on this page, the SA10A-10/0.70 and the SA10A-10/0.80. They also list the SA7A-7/0.60 and SA7A-7/0.70. Each version carries its own figures, and the figures on this page belong to the SA10A-10/0.60 alone.

The series is built on a modular design. Siasun's stated aim is to meet the needs of a wider range of automation scenarios while reducing maintenance costs. For a buyer, that matters in two ways. A modular robot is easier to adapt as a production line changes. It is also simpler to keep in service, because maintenance can be planned around defined assemblies rather than the machine as a whole. The SA10A-10/0.60 sits within the broader SCARA range that Robots Middle East offers.

Dual support, proprietary components and a lower profile

A SCARA robot is rigid in the vertical direction and compliant in the horizontal plane. This is why the class is so widely used for fast assembly and pick-and-place work on a flat working surface. The SA10A series reinforces that architecture with all-new proprietary core components and a dual-support structure. Siasun credits the combination with enhanced load capacity, higher precision, faster speed, greater rigidity and reduced vibration.

The design also pays attention to installation. The main body is lighter, which makes deployment convenient and simple. The overall height is lower, which reduces space constraints in cells where headroom is limited. The main unit carries abundant user cables for tooling and sensors, and it works with a new generation of S series control cabinet. It supports multiple programming and teaching methods, so the robot can be adapted to more automation scenarios while the overall machine cost stays under control.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

Siasun has not published the weight, power supply, maximum speed, cycle time, communication interfaces, controller model, mounting method, operating temperature, axis motion ranges or the contents of the delivery for this version; Robots Middle East confirms these at quotation.

What does the dual-support structure mean for a 10kg SCARA arm?

Payload and precision usually pull in opposite directions. A heavier end effector puts more load on the arm, and every acceleration and stop tends to excite vibration. Vibration costs time, because the robot must settle before it places a part. It also costs accuracy, because a part released during residual motion lands slightly off position. On a robot carrying a 10kg load at the end of a 600mm arm, these effects are central to how the cell performs.

The dual-support structure of the SA10A series addresses this at the mechanical level. By supporting the moving assemblies more rigidly, it is designed to raise load capacity and stiffness while reducing vibration. The repeatability figures show the result: ±0.02mm for J1 and J2 combined, ±0.01mm on the vertical J3 axis and ±0.01° on the rotating J4 axis. For assembly work that means pressing, inserting or seating components, tight control of the J3 and J4 axes is often what decides whether a part goes in cleanly at the first attempt.

The proprietary core components complete the picture. Because Siasun designs these elements for this generation, structure and drive train are matched to each other rather than assembled from unrelated parts. That supports the faster, more precise motion the series is built to deliver.

How do I choose between the SA10A-10/0.60 and the other SA10A versions?

Within the SA10A family, the decision starts with the working envelope of your cell. The SA10A-10/0.60 combines its 10kg payload with a 600mm reach. That suits compact cells, where feeders, fixtures and conveyors sit close together and floor space is at a premium. A reach that matches the layout keeps the arm efficient. An oversized robot occupies more space and moves more mass than the task requires.

The lower overall height and lighter main body support the same logic. Where a cell sits beneath existing structures, inside a machine enclosure or on a crowded production line, a compact SCARA is easier to integrate. If your layout calls for a larger envelope, compare the other SA10A versions. Robots Middle East confirms their figures on their own pages and in your quotation, so that each figure stays with its version.

Who is the SIASUN SA10A-10/0.60 for?

The first group of buyers comes from the industries Siasun names as primary for the series: 3C electronics, lithium battery, photovoltaic and automotive electronics, together with related sectors. These manufacturers share a need for fast, repeatable handling of small and medium components, often in cells where space is tight and product changes are frequent. The modular design and the range of programming and teaching methods help such plants adapt the robot as their product mix evolves.

The second group is system integrators who build turnkey cells for these industries. For them, abundant user cables on the main unit and a simple deployment process reduce engineering effort on each project. The S series control cabinet gives them a consistent platform across installations.

The IP20 protection rating points to clean, dry indoor environments, typical of electronics assembly and controlled production halls. Applications exposed to water, coolant or heavy dust should be discussed with our team before you order. Where a cell needs a larger working envelope with the same payload class, the SIASUN SA10A-10/0.70 (SA10A-10/0.70) and the SIASUN SA10A-10/0.80 (SA10A-10/0.80) are the series versions to compare. Buyers planning a wider automation programme can explore the full range of Industrial Robots from Siasun.

What is the SIASUN SA10A-10/0.60 used for?

1. 3C electronics assembly – placing, inserting and fastening components in compact assembly cells for consumer electronics.
2. Lithium battery production – handling cells and modules between process stations where repeatable positioning matters.
3. Photovoltaic manufacturing – transferring and positioning parts along production lines for solar components.
4. Automotive electronics – assembling and handling electronic modules where precision and consistency are essential.
5. Pick-and-place and sorting – moving parts between trays, feeders and conveyors in tightly arranged cells.
6. Machine and test-fixture loading – feeding parts into inspection or test stations where accurate seating is required.

Pricing and Availability

Robots Middle East supplies the SIASUN SA10A-10/0.60 on the basis of a quotation prepared for your application. Tell us about your task, the parts you handle, the layout of your cell and your integration requirements, and we will confirm the configuration and the details that are not yet published. Delivery, customs clearance and support are arranged together with your quotation. To begin, simply use the quotation request available on this page.

Frequently Asked Questions

What payload does the SIASUN SA10A-10/0.60 handle?

The SA10A-10/0.60 has a payload of 10kg (22 lbs). This covers the gripper or tool as well as the part it carries, so both should be considered together when planning the cell.

What is the reach of the SA10A-10/0.60?

The reach is 600mm. For a larger working envelope, compare the other SA10A versions with our team.

How repeatable is the robot?

Repeatability is ±0.02mm for J1 and J2 combined, ±0.01mm on J3 and ±0.01° on J4. These values make the robot well suited to precise assembly and placement tasks.

Can the SA10A-10/0.60 be used in wet or dusty environments?

The robot carries an IP20 protection rating, which is intended for clean, dry indoor conditions. If your application involves liquids or heavy dust, please discuss it with Robots Middle East before ordering.

Which control cabinet does it use?

The SA10A series works with a new generation of S series control cabinet. The specific controller model is confirmed in your quotation.

How is the robot programmed?

The SA10A series supports multiple programming and teaching methods, allowing it to be adapted to a wide range of automation scenarios. Our team can advise on the approach that best fits your production environment.

Where can I buy the SIASUN SA10A-10/0.60 and what does it cost?

You can obtain the SIASUN SA10A-10/0.60 from Robots Middle East, which supplies it across the Middle East. The cost depends on your configuration and project requirements, so please request a quotation and our team will prepare an offer for your application.

Summary

A SCARA robot earns its place by keeping its promise on every cycle: the next part lands where the last one did, even when the load is heavy and the pace is fast. The SIASUN SA10A-10/0.60 is designed around that promise. It pairs a 10kg payload and a 600mm reach with repeatability of ±0.02mm on J1 and J2, ±0.01mm on J3 and ±0.01° on J4. Its dual-support structure and proprietary core components are there to keep load and precision in balance. A modular design, a lighter main body, a lower overall height, abundant user cables and the new S series control cabinet make it practical to deploy in the compact cells of the 3C, lithium battery, photovoltaic and automotive electronics industries. Robots Middle East quotes, delivers and supports the robot across the region. If precise handling in a tight space is your next automation task, this page is the starting point.
