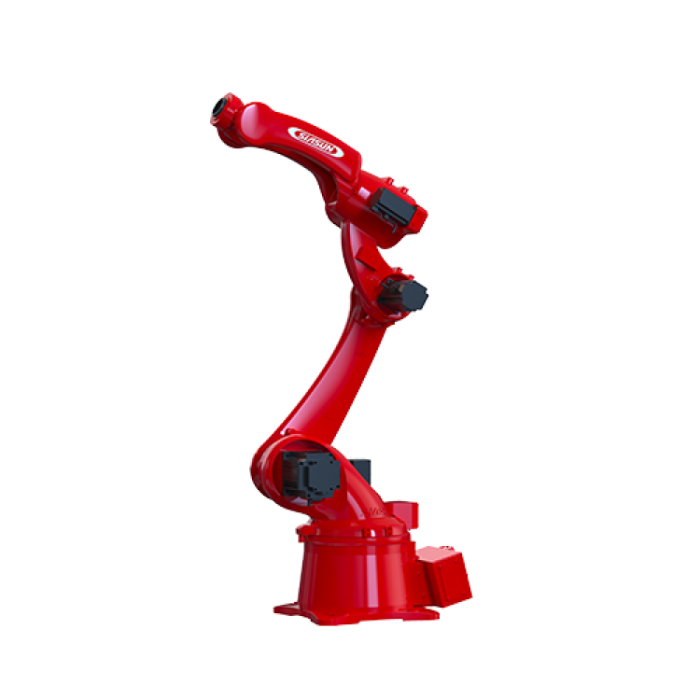

SIASUN SR12A-12/1.46 (SR12A-12/1.46)

Engineers who make a robot arm lighter usually expect to give something back in stiffness, and therefore in precision. The SIASUN SR12A-12/1.46 (SR12A-12/1.46) reverses that expectation. Compared with the previous generation, it is 25% lighter, its repeat positioning accuracy is 40% higher and its operational efficiency is 67% greater. Developed for demanding arc welding applications, it combines a 12 kg (26.5 lbs) payload, a reach of 1465mm and a repeatability of ±0.03mm in an arm built for cells where every centimetre of floor space is accounted for.

Robots Middle East supplies the SIASUN SR12A-12/1.46 to manufacturers, metal fabricators and system integrators throughout the Middle East. We prepare each quotation around the configuration you need, including the choice of controller and the mounting arrangement for your cell. Robots Middle East also arranges delivery to your site and provides support once the robot is in production.

Background

SIASUN and its engineering record

SIASUN builds its industrial robots on over two decades of engineering validation and thousands of project experiences. The company does not present its robots as stand-alone machines. Instead, it combines robot products with application know-how and delivers value-added services. This matters to anyone planning a welding line, because a robot arm only delivers value once it is integrated with a torch, a wire supply, fixtures and a controller that suits the process. The SR12A-12/1.46 belongs to the SIASUN Small Payload range, part of the wider family of Industrial Robots from the same manufacturer.

A lighter arm built around the welding process

SIASUN made the SR12A-12/1.46 lighter with a special casting process that uses automotive engine-grade aluminium alloy, which gives a weight reduction of 25% over the previous generation. The arm is hollow and bow-shaped, so the cabling runs inside the structure and does not trail along its outside. The wire feeder is integrated compactly into the robot body, which improves wire feeding stability. The robot can be floor-mounted or ceiling-hung, which makes it well suited to operations with small turning radii and to narrow working areas. Taken together, these choices show a design that treats the welding process as part of the robot itself rather than something attached to it afterwards.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the robot weight, axis speeds, axis motion ranges, wrist permissible torque, power supply voltage, operating temperature, dimensions, cable length or the contents of the box; we confirm these at quotation.

What does the new generation of the SR12A-12/1.46 improve over its predecessor?

SIASUN states three generational gains, and they are best read together. The 25% weight reduction comes from the change to automotive engine-grade aluminium alloy and a special casting process. A lighter arm has less mass to accelerate and stop at every point of a weld path, so the drives have less inertia to control.

The second gain is a 40% increase in repeat positioning accuracy. In arc welding, repeatability decides whether the torch returns to the same seam on every part. With a published repeatability of ±0.03mm, the arm can retrace a programmed joint consistently across a production run, which reduces rework and makes fixture tolerances easier to manage.

The third gain is a 67% increase in operational efficiency over the previous generation. For a production manager, this is the figure that turns into parts per shift. Because the robot is also lighter and more accurate, the extra efficiency does not come at the expense of seam quality.

For a buyer replacing an older SIASUN welding robot, these three figures give a clear basis for the business case. A lighter structure, more consistent positioning and more output come from one unit that still works within a compact footprint.

Why does internal cabling matter for an arc welding robot?

Any welding robot has to carry a torch package: power, shielding gas and filler wire, all routed from the base to the wrist. If that package runs outside the arm, it can snag on fixtures, wear against the robot's own links and limit how far the wrist can turn before the hoses pull tight. In a narrow cell, an external dress pack also takes up space that the operator or the workpiece could otherwise use.

The SR12A-12/1.46 deals with this in two ways. Its hollow bow-shaped arm carries the cabling inside, which gives greater flexibility in confined spaces. Its wire feeder sits compactly within the robot body, which improves wire feeding stability. The wire therefore has a shorter and better-protected path to the torch, and steady wire feed is one of the basic conditions for a consistent arc. SIASUN describes the conduit layout as integrated, and this is what makes the robot so well suited to welding. Because the robot can also be ceiling-hung, a cell designer can free the floor for positioners and part handling and let the arm reach down into the work.

Who is the SIASUN SR12A-12/1.46 for?

The first group of buyers is fabricators who weld steel assemblies in medium and high volumes and want a dedicated arc welding robot rather than a general-purpose arm adapted for the job. For them, the integrated wire feeder, internal cabling and IP65 wrist protection are the most relevant features.

The second group is system integrators who build welding cells for customers with limited floor space. The choice between floor mounting and ceiling mounting, together with the suitability for small turning radii, gives them more freedom in how they lay out a cell.

The third group is plants that want one robot model they can use beyond welding. SIASUN lists handling, assembly, adhesive application, loading and unloading, and torqueing and fastening as application areas alongside welding, so a site can standardise on one arm across several stations.

Buyers whose parts or tooling go beyond a 12 kg (26.5 lbs) payload, or whose workpieces need a longer reach than 1465mm, should look at the wider SIASUN Industrial Robots range. Robots Middle East can advise on which model in that range suits the application.

What is the SIASUN SR12A-12/1.46 used for?

1. Arc welding — its main purpose, with an integrated wire feeder and internal cabling to support stable wire feeding and a tidy torch package.
2. Handling — moving parts and sub-assemblies between stations within the robot's payload and reach.
3. Assembly — placing and joining components, where repeatability of ±0.03mm supports consistent fit.
4. Adhesive application — laying beads of adhesive along programmed paths on panels and assemblies.
5. Loading and unloading — tending machines and fixtures, including in narrow areas where a ceiling-hung arm frees the floor.
6. Torqueing and fastening — driving fasteners in assembly lines where the same position must be reached repeatedly.

Pricing and Availability

Robots Middle East prices the SIASUN SR12A-12/1.46 by quotation, so that the offer reflects the controller, the mounting arrangement and the application you plan for the robot. Please share your welding process, the parts you intend to produce and the layout of your cell, and our team will prepare a quotation for your project. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, please use the quotation request available on this page.

Frequently Asked Questions

What payload and reach does the SIASUN SR12A-12/1.46 offer?

The robot has a payload of 12 kg (26.5 lbs) and a reach of 1465mm.

How precise is the SR12A-12/1.46?

Its repeatability is ±0.03mm. SIASUN also states that repeat positioning accuracy is 40% higher than in the previous generation.

Can the robot be mounted on the ceiling?

Yes. The SR12A-12/1.46 can be floor-mounted or ceiling-hung, which suits operations with small turning radii and narrow areas.

Which controllers are used with the SR12A-12/1.46?

The controller model is SRC M5 / SRC E5. Robots Middle East confirms the appropriate controller for your configuration when we prepare the quotation.

How well is the wrist protected in a welding environment?

The wrist is rated IP65.

Is the SR12A-12/1.46 only suitable for welding?

No. It was developed for demanding arc welding applications, but SIASUN also lists handling, assembly, adhesive application, loading and unloading, and torqueing and fastening as application areas.

Where can I buy the SIASUN SR12A-12/1.46 and what does it cost?

You can buy the SIASUN SR12A-12/1.46 from Robots Middle East, which supplies it across the Middle East. The cost depends on your configuration and application, so please request a quotation, and our team will respond with an offer that covers delivery, customs and support.

Summary

The SIASUN SR12A-12/1.46 shows that a lighter arm does not have to mean a less precise one. Against its predecessor, it is 25% lighter, 40% more accurate in repeat positioning and 67% more efficient in operation. It achieves this with automotive engine-grade aluminium casting, a hollow bow-shaped arm that carries its cabling inside, and a wire feeder built into the body for stable wire feeding. With a 12 kg (26.5 lbs) payload, a reach of 1465mm, repeatability of ±0.03mm, an IP65 wrist and the choice of floor or ceiling mounting, it is designed for compact, demanding welding cells, and it can also take on handling, assembly and fastening work. For a welding line that needs to produce more in less space, this page is the starting point.
