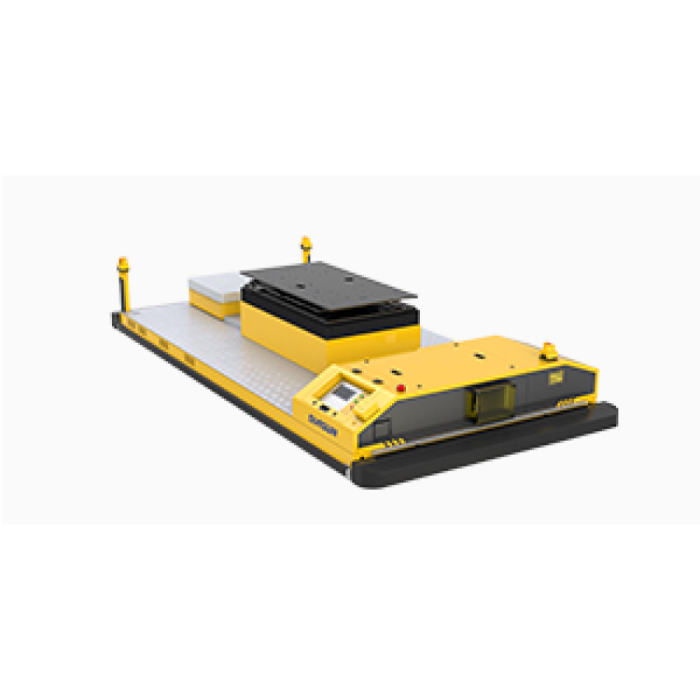

SIASUN Single-Lift Automotive Assembly Mobile Robot (Single-Lift Automotive Assembly Mobile Robot)

Most of the automation in a car plant works from above or from the side: overhead conveyors carry the body, and robot arms reach in to weld, seal and paint. The marriage station is different, because there the decisive work has to rise from beneath the vehicle. A heavy module must meet its mounting points while the line keeps its rhythm. The SIASUN Single-Lift Automotive Assembly Mobile Robot (Single-Lift Automotive Assembly Mobile Robot) is built for exactly that upward task. It travels to the station without tracks, carries up to 1000 kg on a servo-driven scissor lift and docks with mainline hangers and station fixtures. Front suspension, rear suspension and power battery pack marriage can therefore be automated without fixing the floor plan in steel.

Robots Middle East supplies this SIASUN mobile robot to automotive manufacturers, assembly plants and systems integrators across the Middle East. Our team prepares each quotation around the loads, layout and integration needs of your stations. We also arrange delivery, customs clearance and after-sales support for projects in the region. Should you be planning a new final assembly line or retrofitting an existing one, Robots Middle East will be pleased to review your stations and loads with you.

Background

SIASUN and its automotive assembly range

SIASUN is a robotics manufacturer whose portfolio extends from factory automation to a broad family of mobile robots, including heavy-duty platforms for industrial transport. Within that family, the automotive assembly robots form a dedicated line. The sources name four versions: Single-Lift, Dual-Lift, Triple-Lift and Four-Lift, all intended for the transport-and-assembly tasks of final assembly workshops. The model described here is the Single-Lift version, and every figure on this page belongs to it alone. The wider range is listed in our Mobile Robots category.

Positioning: a lifting robot for the marriage station

In automotive manufacturing, marriage is the step at which major modules are joined to the painted body. These include the front and rear suspension and, on electric vehicles, the power battery pack. The work has long been handled by fixed lifting tables or rail-guided carriers, which perform reliably but tie each station to one location and one layout. SIASUN positions the Single-Lift robot as a trackless alternative. It combines high-precision navigation with synchronised motion control to achieve accurate docking with mainline hangers and station fixtures, supporting consistent takt time and process accuracy. Its compatibility is aimed at adapting to multiple vehicle models and to long-cycle production, which makes it a transport-and-assembly solution for the final assembly workshop rather than a simple carrier.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the overall dimensions, the weight, the battery capacity, the operating time, the travel speed, the positioning accuracy, the safety certifications or the package contents; Robots Middle East confirms these with SIASUN at quotation.

How does the robot cope with off-centre loads at the marriage point?

A suspension module or a battery pack rarely places its mass neatly over the centre of a lifting platform. Brackets, subframes and housings shift the centre of gravity to one side, and a lift that cannot tolerate this will tilt, bind or demand slow, careful handling. SIASUN addresses the problem with a scissor structure driven by a servo motor and states that the robot offers high-load lifting capability with excellent tolerance to eccentric loads.

The servo drive gives the lift controlled, repeatable motion through its 1000 mm stroke, which matters when a module must stop precisely beneath its mounting points. The lift platform float of X ±125 mm, Y ±50 mm and ±2° in angle complements this. In marriage applications, float of this kind gives a component room to settle onto its locating features rather than being forced against them. That reduces stress on both the module and the body hanging above it. Navigation accuracy of ±10 mm / ±1° brings the robot into position, and the float absorbs the remaining difference between where the robot stops and where the body actually hangs.

Why choose a trackless assembly robot rather than a fixed lifting station?

A fixed lifting table is anchored to one spot on the floor, and a rail-guided carrier can only follow the route laid for it. Both are dependable, yet both turn every change of model or layout into civil works. The Single-Lift robot moves trackless and flexibly on its single-steering-wheel drive, so routes and stations can be redefined in software rather than in concrete.

This flexibility is the basis of SIASUN's claim of efficient adaptation to multiple vehicle models and long-cycle production. A plant that builds several derivatives on one line, or that expects its product mix to evolve over the life of the programme, can reassign the robot to new tasks without dismantling infrastructure. Docking with mainline hangers and station fixtures through synchronised motion control means this flexibility need not be paid for in cycle time. Auto-charging and monitoring also help to keep the robot available across shifts without manual intervention.

Who is the SIASUN Single-Lift Automotive Assembly Mobile Robot for?

The primary buyers are vehicle manufacturers operating final assembly lines, particularly those performing front suspension, rear suspension or power battery pack marriage. Plants producing electric vehicles will find the battery marriage application especially relevant, since battery packs are heavy, valuable and sensitive to rough handling. Manufacturers running mixed-model lines, or planning frequent layout changes, benefit most from the trackless concept. Systems integrators designing new marriage stations in the Middle East will also find it a suitable building block.

Where a station's design calls for more than one lifting unit, the Dual-Lift, Triple-Lift and Four-Lift versions named in the SIASUN range may be the better match, and Robots Middle East will set them side by side with the Single-Lift model on request. Buyers comparing broader automation for the workshop may also consult our Factory Robots category.

What is the SIASUN Single-Lift Automotive Assembly Mobile Robot used for?

1. Front suspension marriage: raising the front suspension module to the body on the final assembly line.
2. Rear suspension marriage: presenting the rear suspension assembly to its mounting points beneath the hanging body.
3. Power battery pack marriage: carrying and lifting battery packs into position on electric vehicle assembly lines.
4. Mainline hanger docking: aligning with overhead hangers through high-precision navigation and synchronised motion control.
5. Station fixture docking: meeting station fixtures accurately to keep takt time and process accuracy consistent.
6. Mixed-model and long-cycle production: adapting to several vehicle models without fixed tracks or floor rebuilding.

Pricing and Availability

Robots Middle East supplies the SIASUN Single-Lift Automotive Assembly Mobile Robot on a quotation basis, as each marriage station has its own loads, layout and integration requirements. When you send us details of your application, we prepare an offer to suit your project. Delivery, customs clearance and support are arranged together with the quotation. To begin, please use the quotation request available on this page.

Frequently Asked Questions

What load can the robot lift?

The load capacity is 1000 kg, which SIASUN specifies for battery and suspension assembly.

How far does the lift platform travel?

The lifting stroke is 1000 mm, delivered by a single-lift scissor structure with servo motor lifting.

How accurately does the robot navigate?

Navigation accuracy is ±10 mm / ±1°. The lift platform float of X ±125 mm, Y ±50 mm and ±2° in angle supports the final alignment with the vehicle body.

Does the robot require tracks or floor rails?

No. The robot moves trackless on a single-steering-wheel drive, so stations and routes can be adapted as the line changes.

How is the robot charged and protected?

SIASUN specifies multiple protections with auto-charging and monitoring, so the robot recharges and is supervised as part of its normal operation.

Can one robot serve several vehicle models?

Yes. Its trackless movement and strong compatibility are designed for adaptation to multiple vehicle models and long-cycle production.

Where can I buy the SIASUN Single-Lift Automotive Assembly Mobile Robot and what does it cost?

Robots Middle East supplies this robot across the Middle East. Pricing depends on your configuration and project scope, so please request a quotation and our team will reply with a tailored offer.

Summary

The marriage station is where assembly work must come from below, and the SIASUN Single-Lift Automotive Assembly Mobile Robot is designed for that upward task. A servo-driven scissor lift carries up to 1000 kg through a 1000 mm stroke, and its tolerance to eccentric loads and generous platform float let off-centre modules settle onto the body. Accurate docking with hangers and fixtures keeps takt time steady. Because the robot travels without tracks, the station stays as adaptable as the product plan, from suspension modules to power battery packs and from one model to several. For manufacturers and integrators in the Middle East seeking a quotation from Robots Middle East, this page is the starting point.
