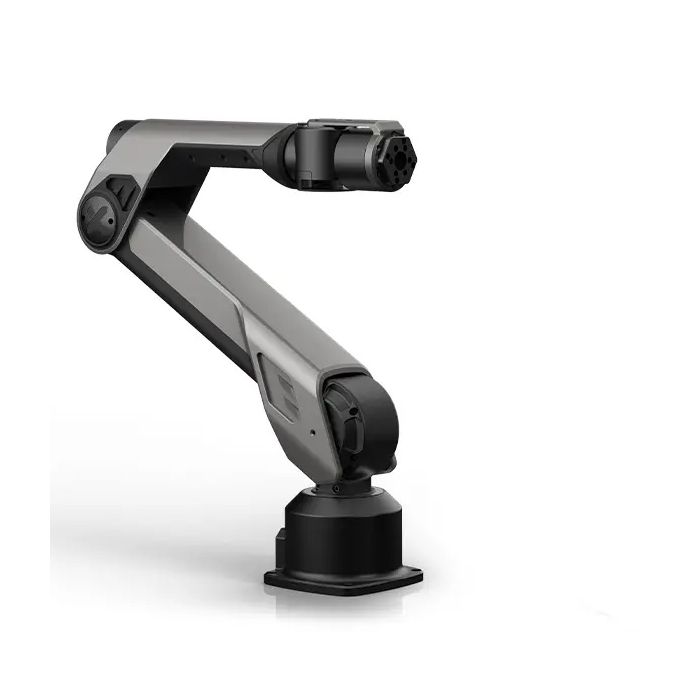

Galaxea A1 Robotic Arm

A lightweight, force-controlled robotic arm from GALAXEA, the very arm the company builds into its R1 wheeled humanoid, offered here as a standalone manipulator for research, teaching and embodied AI work. Robots Middle East supplies it to laboratories and integrators who need an arm that can meet objects gently rather than simply reach them.

In stock

BRAND:
GALAXEA
PART #:
A1
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Galaxea-A1

Galaxea A1 Robotic Arm

Robot learning has an awkward habit: a policy that looks polished in simulation often falls apart the moment a real gripper meets a real object, because the world pushes back. An arm that only knows where it is meant to be has no graceful answer to that push. The Galaxea A1 Robotic Arm is built to answer it. It is a lightweight, force-controlled arm with six degrees of freedom and a maximum reach of 700 mm, and it is the same arm GALAXEA builds into its own wheeled humanoid. That makes it a manipulator designed for contact rather than merely for travel between waypoints.

Robots Middle East sells the Galaxea A1 Robotic Arm and supplies it to universities, research institutes, system integrators and industrial innovation teams across the Middle East. Our team prepares each quotation, coordinates delivery to your site and remains your point of contact for technical support once the arm is in service, so that a laboratory in the Gulf or the Levant deals with one accountable supplier from enquiry to commissioning.

Background

GALAXEA and the R1 lineage

GALAXEA develops robots for embodied artificial intelligence, the field concerned with machines that learn and act in the physical world rather than on a screen. Its Galaxea R1 wheeled humanoid carries two Galaxea A1 robot arms and two Galaxea G1 grippers, which tells a buyer something useful about the A1: it was designed as the working limb of a complete mobile manipulation platform, not as an isolated catalogue item. Offered on its own, the A1 gives a team the arm without the torso, wheels and sensor head, which suits projects that already have a base, a bench or a cell of their own.

The sources also name further versions in the family: A1X, A1Z and A1XY. This page covers the A1 only, and no figure from those siblings is carried over here.

Force control as the defining idea

Most arms in teaching and light automation are driven by position control: the controller commands a joint angle and the motor holds it, whatever the arm happens to touch. A force-controlled arm also regulates the effort it applies, so it can yield, press with a measured hand or follow a surface. In practice, that is what allows a robot to insert a peg, wipe a table, open a drawer or pass an object to a person without treating every unexpected contact as a collision. For embodied AI research it matters doubly, because learned policies are rarely perfect and an arm that can absorb small errors makes real-world experiments safer and more repeatable.

GALAXEA pairs that compliant behaviour with what it describes as high dynamics: full-stroke motion across all six joints. Each joint can use its complete range of travel, which gives a planner more freedom in how it reaches a pose.

Technical Specifications

SpecificationValue
Product typeLightweight, force-controlled robotic arm
Degrees of freedom6
Joint motionFull-stroke motion across all six joints
Maximum reach700 mm
Rated voltage48 V
Platform useFitted as a pair, with two Galaxea G1 grippers, to the Galaxea R1

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

GALAXEA has not published the IP rating, the operating temperature range, the package contents, the software and SDK support, the operating noise level or the control interface protocol; Robots Middle East confirms each of these with you at quotation.

What does force control change for a six-axis arm?

Six degrees of freedom give an arm the ability to place its tool at any position and orientation within its working envelope, which is the minimum for general-purpose manipulation. On its own, that only settles where the tool can go. Force control settles how it behaves when it arrives. A position-controlled arm asked to place a part in a tight fixture will either succeed or jam; a force-controlled arm can sense the resistance and adjust. For tasks such as assembly, surface following, door and drawer opening or human hand-overs, the second behaviour is often the difference between a demonstration and a dependable routine.

The 700 mm maximum reach places the A1 in the class of arms suited to tabletop and workstation tasks, where most objects in a laboratory, kitchen mock-up or light assembly cell sit within arm's length of a fixed or mobile base. The 48 V rated voltage is worth noting early in planning, because it determines how the arm is powered on a bench or drawn from the battery system of a mobile platform. Your power supply arrangement is something Robots Middle East reviews with you before ordering.

How does the Galaxea A1 relate to the Galaxea R1?

The Galaxea R1 Wheeled Humanoid Robot uses two A1 arms with two Galaxea G1 grippers. For a research group this opens two sensible paths. A team that wants the full mobile humanoid, with both arms already integrated, will look at the R1. A team that wants to study manipulation first, perhaps on a fixed table before moving to a mobile base, can start with a single A1 and work with the same arm the humanoid uses. Because the arm is shared, skills developed on a standalone A1 address the same limb found on the R1, which can make the later step to a full platform more natural. Robots Middle East can advise on which path fits your programme.

Who is the Galaxea A1 Robotic Arm for?

The first group is university and institute laboratories working on robot learning, teleoperation and embodied AI. They need an arm that tolerates imperfect policies and supports contact-rich experiments, which is where force control earns its place. The second group is robotics teams building their own mobile manipulators, who need a lightweight arm to mount on a base they already have. The third is innovation and pilot-line teams in industry evaluating whether compliant manipulation can take on tasks currently done by hand, such as fitting, handling and inspection at a workstation.

Teaching departments form a fourth group: a six-axis, force-controlled arm lets students meet both kinematics and interaction control on one machine. Buyers comparing variants should know that the family also includes the A1X, A1Z and the Galaxea A1 XY Robotic Arm (A1 XY); the sources available to us do not set out how those versions differ in figures, so Robots Middle East confirms the differences with the manufacturer before recommending one over another. Those still surveying the field can browse our Robot Arms and Cobots categories.

What is the Galaxea A1 Robotic Arm used for?

  1. Embodied AI research: collecting real-world manipulation data and testing learned policies on physical hardware.
  2. Teleoperation studies: letting an operator guide the arm through tasks that are later used to train autonomous behaviour.
  3. Contact-rich manipulation: insertion, wiping, pushing and other tasks that depend on controlled force rather than exact position.
  4. Mobile manipulation prototypes: mounting a lightweight arm on a custom wheeled or tracked base for service-robot development.
  5. Human–robot interaction: exploring hand-overs and shared workspaces where compliant motion is essential.
  6. Robotics education: teaching kinematics, motion planning and interaction control on a modern six-axis arm.

Pricing and Availability

Robots Middle East supplies the Galaxea A1 Robotic Arm on quotation, so that the configuration, power arrangements and accessories match your project. Delivery, customs clearance and technical support are arranged together with your quotation. Tell us about your application, your mounting plans and any grippers or platforms you intend to use, and our team will prepare a proposal for your site. To begin, the quotation request is available on this page.

Frequently Asked Questions

How many degrees of freedom does the Galaxea A1 have?

The Galaxea A1 has six degrees of freedom, with full-stroke motion across all six joints.

What is the maximum reach of the A1?

The A1 has a maximum reach of 700 mm, which suits tabletop, workstation and mobile-manipulation tasks.

What voltage does the arm run on?

The rated voltage is 48 V. Robots Middle East reviews your power supply arrangement with you before ordering.

Is this the same arm used on the Galaxea R1?

Yes. The Galaxea R1 features two Galaxea A1 robot arms together with two Galaxea G1 grippers.

Which software and control interfaces does the A1 support?

GALAXEA has not published the software, SDK or control interface details in the sources available to us. Robots Middle East confirms them with the manufacturer as part of your quotation.

How does the A1 differ from the A1X, A1Z and A1XY?

The sources name these versions but do not publish comparative figures for them. Our team obtains the differences from the manufacturer so that you can choose with confidence.

Where can I buy the Galaxea A1 Robotic Arm and what does it cost?

You can buy the Galaxea A1 Robotic Arm from Robots Middle East, which supplies it across the Middle East. Pricing depends on configuration and delivery, so it is provided in a tailored quotation that you can request on this page.

Summary

The gap between simulation and the physical world is closed at the moment of contact, and that is where the Galaxea A1 Robotic Arm is designed to perform. It combines six degrees of freedom, full-stroke joint motion and a maximum reach of 700 mm with force control, the property that lets an arm press, yield and follow rather than simply arrive. It has already been proven as the working limb of the Galaxea R1, and as a standalone arm it gives laboratories, integrators and teaching departments that same capability on a base of their choosing. Robots Middle East quotes, delivers and supports it across the region, and confirms every detail the manufacturer has yet to publish. For a project that needs an arm able to cope with a world that pushes back, this page is the starting point.
