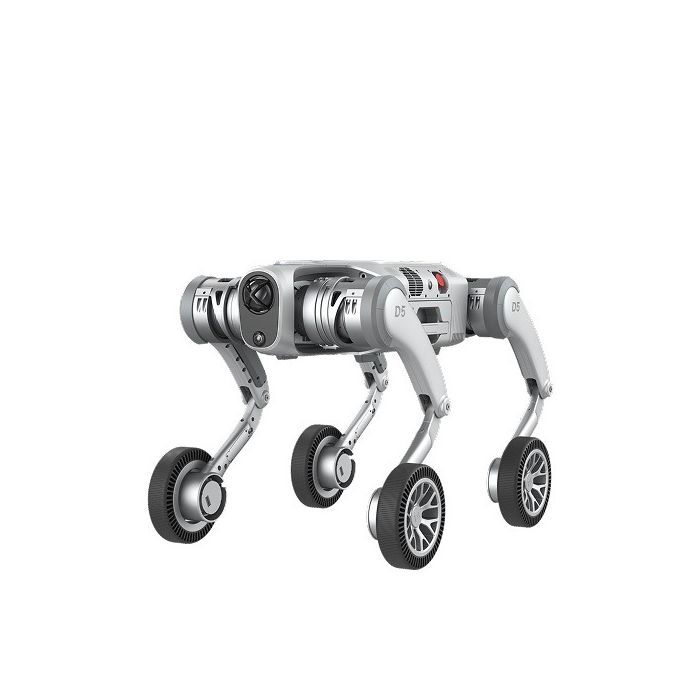

PUDU D5-W Wheeled Quadruped Robot Dog

A wheel-leg quadruped from PUDU Robotics that rolls efficiently along long patrol routes and lifts itself over kerbs, ramps and steps whenever the route demands it. Robots Middle East supplies it for security, inspection and site logistics across the region.

In stock

BRAND:
PUDU ROBOTICS
MODEL:
D5
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
PUDU-D5-W
AED 317,726.13
Free Shipping
Loading...

PUDU D5-W Wheeled Quadruped Robot Dog

Across much of the Middle East, the distance a patrol must cover and the heat it must cover it in tend to grow together. Logistics parks, utility compounds and campus estates stretch over long service roads and open aprons, interrupted by kerbs, ramps and the occasional flight of steps, while the afternoon sun punishes any machine that cannot keep moving. The PUDU D5-W Wheeled Quadruped Robot Dog answers that pairing with wheels at the end of its four legs. It rolls wherever the ground allows, steps wherever it does not, and is rated to work from –20°C up to 55°C. Within PUDU's D5 series, it is the version tuned for efficient cruising and longer-range patrols across mixed but relatively smooth terrain.

Robots Middle East supplies the PUDU D5-W to organisations throughout the Middle East, including security integrators, facility and estate operators, utilities, universities and research laboratories. Our team prepares each quotation, arranges delivery to your site and provides support once the robot is in service. We can also advise on the optional accessories and add-on modules that suit your deployment, so that the configuration you receive matches the work you have planned for it.

Background

PUDU Robotics and the move outdoors

PUDU Robotics built its name with service robots for indoor commercial spaces, where machines deliver, clean and guide in restaurants, hotels and offices. The D5 series takes that experience into the field, on sites where the floor is no longer level, the weather is no longer controlled and the routes run to kilometres rather than corridors. The series comprises two configurations. The PUDU D5 is the legged version, built for maximum terrain adaptability. The PUDU D5-W is the wheeled version, designed for optimised performance on mixed surfaces. Both share the same family purpose: an autonomous, ruggedised platform that operators can direct, monitor and extend with mission-specific equipment.

Wheels on legs, and the computing behind them

The defining idea of the D5-W is the wheel-leg. On a paved road or a smooth apron, the wheels carry the robot efficiently, which is why this version is aimed at longer patrol routes. When the route presents a step, a kerb or a slope, the legs do the work, lifting the body over obstacles that would halt a purely wheeled vehicle. Behind this mobility sits a dual-processor architecture pairing an NVIDIA Jetson Orin AGX 64GB with an RK3588, delivering up to 275 TOPS of computing performance. Perception comes from dual 3D LiDAR and four fisheye cameras. Autonomous navigation is included as a standard feature, complete with tools for creating and editing maps and configuring tasks, and the RCOS Remote Control System gives operators a live panoramic video feed, real-time operating status and the ability to issue commands instantly.

Technical Specifications

SpecificationValue (PUDU D5-W)
Standing dimensions900 × 543 × 572 mm (35.4 × 21.4 × 22.5 in)
Weight (with battery)62 kg (136.7 lbs)
Computing platformNVIDIA Jetson Orin AGX 64GB + RK3588
Computing performanceUp to 275 TOPS
Perception sensorsDual 3D LiDAR + Four Fisheye Cameras
Maximum joint torque165 Nm (121.7 lb·ft)
Battery capacity1000 Wh
Operating time2 – 3 hours
Continuous walking payload20–30 kg (44–66 lbs)
Climbing capabilityUp to 80 cm (up to 31.5 in)
Maximum step height25 cm (9.84 in)
Slope capability30° ascent, 45° descent
Maximum cruising speedUp to 5 m/s
Operating temperature–20°C to 55°C (–4°F to 131°F)
Cold-start capabilityBelow –10°C (below 14°F)
Ingress protectionIP67
Voice and gesture interaction10+ natural gestures, 6-mic array
Remote controlRCOS Remote Control System with live panoramic video feed

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

PUDU has not published the contents of the box, the battery charging time, the wireless connectivity, the operating system, the camera resolution or the noise level; these details are confirmed at quotation.

What makes the PUDU D5-W different from the PUDU D5?

The two robots share a family and a purpose, but they answer different kinds of ground. The PUDU D5 Quadruped Robot Dog is the legged version, built for maximum terrain adaptability. The D5-W adds wheels to its legs and is optimised for efficient cruising and longer-range patrols across mixed but relatively smooth terrain. The practical question for a buyer is therefore what most of the route looks like. Where the majority of a patrol runs over roads, pavements, yards and warehouse aprons, with obstacles appearing only occasionally, the D5-W converts its 1000 Wh battery into distance more readily, while its legs still handle a 25 cm step or a 30° ascent when one appears. Where the ground is broken, loose or cluttered for most of the route, the legged D5 is the better match. Both share the series' open architecture, autonomous navigation and remote-control capability, so the decision rests on terrain rather than on software or integration.

Can the PUDU D5-W work in Middle Eastern heat and dust?

The D5-W carries an IP67 rating, which under the international IP classification denotes a dust-tight enclosure that is also protected against temporary immersion in water. Its operating temperature range extends from –20°C to 55°C, which covers a demanding summer afternoon on an exposed site as well as cold nights at altitude, and the robot can cold-start below –10°C. For operators in the Gulf and the wider region, these ratings matter more than any headline speed: a patrol robot is only useful if it is still running when the temperature peaks. As with any outdoor equipment, the site conditions, shade and charging arrangements should be discussed with Robots Middle East before deployment so that the robot works within its rated envelope throughout the year.

Who is the PUDU D5-W for?

The D5-W suits organisations whose sites are large, largely paved and patrolled regularly. Security operators and integrators responsible for industrial estates, logistics hubs, ports, data-centre campuses and utility compounds will find that its cruising efficiency and live panoramic video support routine rounds with an operator supervising from a control room. Facility and asset managers can pair it with the optional inspection kit to run repeatable inspection routes, with maps and tasks configured in advance. Campus operators, including universities and large mixed-use developments, can use the open architecture to fit delivery boxes for internal logistics.

Research institutions, robotics laboratories and developers form a further segment. PUDU provides a comprehensive SDK, developer documentation and integration support, so teams can build and deploy applications for their own use cases on a platform with substantial onboard computing. Buyers whose ground is predominantly rough, unpaved or obstructed should consider the legged PUDU D5 Quadruped Robot Dog instead, as that version is built for maximum terrain adaptability.

What is the PUDU D5-W used for?

  1. Perimeter and site patrol — covering long fence lines and service roads on wheels, stepping over kerbs and ramps along the way.
  2. Routine inspection rounds — carrying the optional inspection kit or an inspection gimbal on repeatable, pre-configured routes.
  3. Remote monitoring — streaming a live panoramic video feed to operators through the RCOS Remote Control System.
  4. Campus and site logistics — moving items in a fitted delivery box, with a continuous walking payload of 20–30 kg.
  5. Research and application development — building custom functions on the SDK and dual-processor computing platform.
  6. Human–robot interaction — responding to voice and more than ten natural gestures for demonstrations and guided operation.

Pricing and Availability

The PUDU D5-W is supplied by Robots Middle East on a quotation basis, prepared for your project and configuration. Tell us about your site, the routes you intend to cover and any accessories you require, such as the inspection kit or charging dock, which are optional and sold separately. Delivery, customs clearance and after-sales support are arranged with your quotation. To begin, request a quotation using the form available on this page.

Frequently Asked Questions

Does the PUDU D5-W navigate autonomously?

Yes. Autonomous navigation is included as a standard feature, together with tools for creating and editing maps and configuring tasks.

How long does the PUDU D5-W operate on one charge?

The D5-W operates for 2 to 3 hours on its 1000 Wh battery. A charging dock is available as an optional accessory, sold separately.

How much can the PUDU D5-W carry?

Its continuous walking payload is 20–30 kg (44–66 lbs). Add-ons such as delivery boxes and inspection gimbals can be mounted thanks to the open architecture.

Is the PUDU D5-W protected against dust and water?

Yes, it carries an IP67 rating. It is also rated to operate from –20°C to 55°C.

Are the charging dock and inspection kit included?

No. The inspection kit and charging dock are optional accessories sold separately, and Robots Middle East can include them in your quotation.

Can we develop our own applications for the robot?

Yes. PUDU provides a comprehensive SDK, developer documentation and integration support for building and deploying applications for specific use cases.

Where can I buy the PUDU D5-W Wheeled Quadruped Robot Dog and what does it cost?

You can buy the PUDU D5-W from Robots Middle East, which supplies it across the Middle East. Pricing depends on configuration and accessories, so we prepare a quotation for each project, including delivery, customs and support.

Summary

Long routes and hard climates are the quiet challenge of outdoor patrol in this region, and the PUDU D5-W is shaped around both. Its wheel-leg design spends energy on distance where the ground is smooth and saves its legs for steps and slopes, while its IP67 rating and –20°C to 55°C operating range keep it working when conditions turn severe. Dual 3D LiDAR, four fisheye cameras, up to 275 TOPS of computing performance, standard autonomous navigation and the RCOS remote-control system turn that mobility into useful rounds, and the open architecture and SDK let each organisation adapt it to security, inspection, logistics or research. For sites that are mostly paved yet never entirely level, it is a considered choice, and for a quotation from Robots Middle East, this page is the starting point.

Specifications

up to hours
Runtime

General

BRAND PUDU ROBOTICS
MODEL D5
ROBOT TYPE WHEELED QUADRUPED

Physical

LENGTH 90.0 cm
WIDTH 54.3 cm
DEPTH 57.2 cm
WEIGHT 62 kg

Performance

SLOPE ANGLE 30 DEGREES
STAIR CLIMBING HEIGHT 25 CM
OPERATING TEMPERATURE -20°C TO 55°C
INGRESS PROTECTION IP 67

Battery + Power

RUNTIME UP TO 3 HOURS
