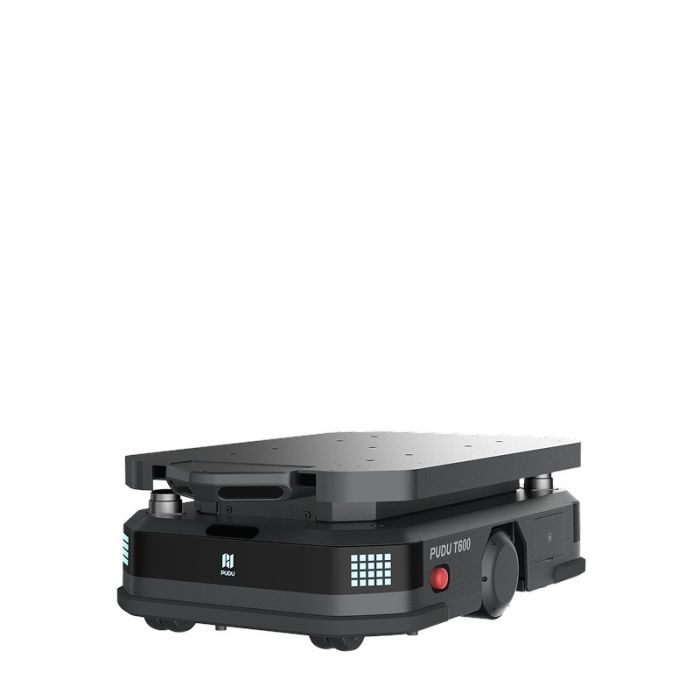

PUDU T600 Underride Heavy-Payload Industrial Delivery Robot

A low-profile autonomous mobile robot that slips beneath racks and shelves, lifts them from the centre and carries them through factories and warehouses. It suits operations where whole storage units, rather than individual boxes, need to move between aisles, workstations and dispatch areas.

In stock

BRAND:
PUDU ROBOTICS
MODEL:
T600 UNDERRIDE
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
PUDU-T600-Underride
AED 86,982.71
Loading...

PUDU T600 Underride Heavy-Payload Industrial Delivery Robot

A forklift moves a rack by lifting it from the front, which demands a trained driver and an aisle wide enough to swing a mast. The PUDU T600 Underride Heavy-Payload Industrial Delivery Robot takes the opposite approach. It drives beneath the rack, raises it from the centre and carries it to where the work happens. The aisle only has to fit the load, and no operator has to stay with it. For sites where floor space and labour are both scarce, that changes how storage and production are laid out.

Robots Middle East supplies the PUDU T600 Underride to factories, distribution centres and industrial facilities across the Middle East. Our team prepares the quotation, arranges delivery to your site and provides support once the robot is working. Every project begins with a review of your racks, aisles and building systems, so that the robot you receive fits the operation you actually run.

Background

PUDU ROBOTICS and the T600 series

PUDU ROBOTICS first became known for service robots in restaurants, hotels and other public spaces. It has since moved into industrial delivery with a family of autonomous mobile robots for factories and warehouses. The T600 series sits at the heavy end of that family and is built for material handling where loads are large and trips are frequent. The series has two versions: the upright PUDU T600 and the PUDU T600 Underride described on this page. Both share the same fleet software, safety concept and building integration. They differ in how they meet the load.

Underride lifting and the shared intelligence

The PUDU T600 Underride is a chassis-based autonomous mobile robot with a low-profile design. It moves under racks or shelves, lifts them and transports them, which suits dense, automated material handling environments. It lifts cargo from the centre underneath, so it needs minimal path clearance. Navigation is by LiDAR SLAM only. The robot therefore builds and follows its map from laser scanning, with no dependence on ceiling features or visual markers. The series software supports VDA5050 fleet communication, multi-elevator scheduling, narrow-aisle traffic management and a disaster avoidance module. Together, these place the Underride in a coordinated system rather than leaving it to work as a lone vehicle.

Technical Specifications

SpecificationValue
Product typeChassis-based industrial AMR, low-profile underride design
Dimensions33.3 x 19.7 x 10.0 in (845 x 500 x 255 mm)
Weight208 lbs
Battery capacity30 AH
Charging time2 H (from 0% to 90%)
Run-time12 H (none load)
Cruise speed0.67 - 3.94 ft/s
Navigation methodLiDAR SLAM only
Minimum passability25.6 in
Max. surmountable gap1.38 in
LiftingLifts cargo from the centre underneath, minimal path clearance
Power optionsAutomatic recharging and battery replacement
Fleet protocolVDA5050 compatible
Safety (T600 series)ISO 3691-4; LiDAR sensors, depth cameras, collision protection sensors, emergency stop switches
DeploymentOn-premises deployment supported

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the IP rating, the type of lift mechanism, the sensor models, the contents of the box, the Wi-Fi and network standards, the noise level or the charging dock details; Robots Middle East confirms each of these with you at quotation.

What makes the PUDU T600 Underride different from the upright PUDU T600?

The difference is where the load sits. The PUDU T600 Heavy-Payload Industrial Delivery Robot is the upright version of the series. The Underride is reduced to a chassis that fits beneath the storage unit, with a height of 10.0 in. It does not carry goods on a body of its own. Instead, it treats the rack as the container, rolls under it, lifts it from the centre and moves the whole unit. A rack can be loaded once, collected and taken to a picking station, a production cell or a dispatch zone, then returned, with no one handling the individual items on the way.

The form factor has practical consequences. Because the robot lifts from the centre underneath, it needs very little clearance around the path. Its minimum passability of 25.6 in and maximum surmountable gap of 1.38 in describe a vehicle built for tight aisles and the ordinary unevenness of an industrial floor. Navigation by LiDAR SLAM only means the robot locates itself by laser in spaces where racks are constantly being moved. Buyers who need a robot that people load directly, rather than one that moves racks, should review the upright version.

How does the PUDU T600 Underride fit into an existing site?

A rack mover is only as useful as its connection to the rest of the building. Its compatibility with the VDA5050 standard communication protocol allows collaborative scheduling with other compliant robots and systems, so the Underride can join a mixed fleet. It does not require its own isolated control system. The modular IoT connectivity supports access control, elevator rides, goods call buttons and more. The robot can therefore interface with factory systems without complex software integration.

In multi-storey facilities, the system calls idle elevators first when several are available, which keeps vertical transport moving at busy times. In narrow aisles, it decides between single-lane and dual-lane traffic modes according to the path width and each robot's real-time load dimensions. This matters when wide racks and empty robots share the same corridor. For organisations with strict data policies, on-premises deployment keeps the operating environment fully under your control. The disaster avoidance module receives signals such as fire alarms and earthquakes. It then runs avoidance plans automatically, including autonomous navigation to a safe area. Automatic recharging and battery replacement options support round-the-clock operation.

Who is the PUDU T600 Underride for?

The first group of buyers is manufacturers who stage components on racks next to the line. For them, the Underride replaces carts pushed by hand with scheduled, autonomous replenishment, and it belongs alongside the other machines in our Factory Robots range. The second group is warehouse and e-commerce operators moving towards goods-to-person picking, where racks travel to the picker rather than the reverse. Third-party logistics providers in the region's free zones and industrial cities form a third group. These businesses value a robot that works within VDA5050-based fleets and on-premises systems already in place.

Facilities with several floors, controlled doors or call points on the shop floor gain the most from the IoT and elevator features. Operations that need the load carried on the robot itself are better served by the upright PUDU T600. Buyers comparing autonomous transport options more broadly can see the full family in our Industrial Robots category.

What is the PUDU T600 Underride used for?

  1. Goods-to-person picking: it brings storage racks to a fixed picking station so that staff no longer walk the aisles.
  2. Line-side replenishment: it delivers racks of components to production cells on schedule and removes the empty ones.
  3. Work-in-progress transfer: it moves partly finished goods on shelving between process stages without manual pushing.
  4. Dispatch staging: it carries completed order racks to loading areas ready for collection.
  5. Multi-floor logistics: it uses elevator integration to move racks between storeys in factories and warehouses.
  6. Dense storage reorganisation: it repositions racks in tight aisles to free floor space as demand changes.

Pricing and Availability

Robots Middle East prices the PUDU T600 Underride by quotation, because the right configuration depends on your racks, floor layout, fleet size and integration needs. When you contact us, we review your site and confirm the specification against the current datasheet. Delivery, customs clearance and after-sales support are all arranged with the quotation. To begin, request your quotation for the PUDU T600 Underride using the enquiry form available on this page.

Frequently Asked Questions

How does the PUDU T600 Underride move a rack?

It drives beneath the rack or shelf and lifts the cargo from the centre underneath. It then transports the whole unit to its destination, and the path needs only minimal clearance.

How does it navigate?

The Underride uses LiDAR SLAM only. It maps and locates itself by laser scanning of the environment.

How long does it run and how quickly does it charge?

The run-time is 12 H (none load), and charging takes 2 H (from 0% to 90%). Automatic recharging and battery replacement options support continuous operation.

Can it work with robots from other manufacturers?

Yes. It is compatible with the VDA5050 standard communication protocol, which enables collaborative scheduling with other compliant robots and systems.

What safety measures does it carry?

The T600 series complies with ISO 3691-4. It is equipped with LiDAR sensors, depth cameras, collision protection sensors and emergency stop switches, and a disaster avoidance module guides the robot to a safe area on signals such as fire alarms.

How much weight can the Underride lift?

The specification we hold for this version does not state a rated lifting capacity. Robots Middle East confirms it against the datasheet as part of your quotation.

Where can I buy the PUDU T600 Underride and what does it cost?

You can buy the PUDU T600 Underride from Robots Middle East, which supplies and supports it across the Middle East. The cost depends on your configuration and is set out in a tailored quotation that you can request through this page.

Summary

The PUDU T600 Underride removes the need for a mast and a driver to move a rack. It works from underneath instead, lifting racks and shelves from the centre and carrying them through aisles too tight for conventional equipment. Navigation by LiDAR SLAM only, VDA5050 compatibility, elevator and IoT integration, on-premises deployment and an ISO 3691-4 safety concept make it part of a wider system, not simply a vehicle. For factories and warehouses in the region that want their racks to come to the work, this page is the starting point.

Specifications

General

BRAND PUDU ROBOTICS
MODEL T600 UNDERRIDE
ROBOT TYPE AUTONOMOUS MOBILE ROBOTS (AMRS)
ROBOT USE WAREHOUSE

What's included

Pudu PUDU T600 Underride (PUDU T600 Underride)
