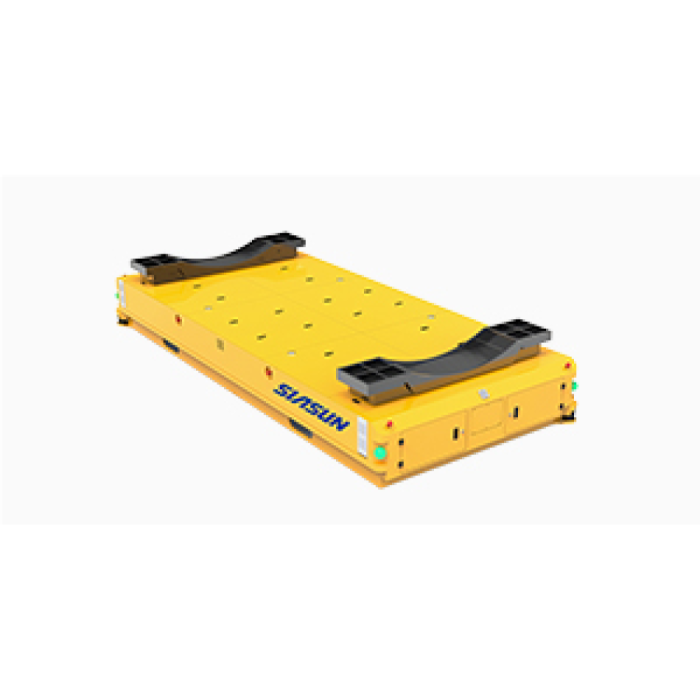

SIASUN 10,000 Kg Heavy-Duty Mobile Robot

For most of industrial history, the heaviest loads have decided where everything else goes. The crane rail fixes one axis of the building, the forklift aisle fixes another, and fixed conveyors and turntables settle the rest. The SIASUN 10,000 Kg Heavy-Duty Mobile Robot reverses that relationship. Rather than drawing the factory around the route of its heaviest components, it sends a ten-tonne-class platform to wherever the next process happens to be. The platform lifts the load by up to 100 mm and sets it down within ±10 mm of its target. The layout can then follow the work, rather than the work bending to fit the layout.

Robots Middle East supplies the SIASUN 10,000 Kg Heavy-Duty Mobile Robot to industrial customers across the Middle East, from port and container operators to shipyards, energy-storage manufacturers and heavy fabrication plants. Each enquiry is assessed against the site and the loads in question, and Robots Middle East prepares the quotation, arranges delivery to the customer's facility and provides support once the robot is in service.

Background

SIASUN and its heavy-duty programme

SIASUN has been developing heavy-duty mobile robots, and investing steadily in them, since 2009. The programme has grown into a full series of autonomous platforms rather than a single model. That depth matters to a buyer. A heavy-load robot is rarely bought off the shelf and left to run. It is specified against a particular load, a particular floor and a particular sequence of processes, and a manufacturer with years of work in this class has dealt with those variables many times before.

A customised platform within a scalable series

SIASUN lists its heavy-duty mobile robots among its Customized Products. The series covers capacities from 3 t to 120 t, and the 10T sits in the middle of that range. Across the series, an optimised wheelset is designed to balance load capacity against traction while protecting the floor. The platforms support omnidirectional movement with a zero turning radius, so a robot can turn on the spot instead of sweeping a wide arc. The series is also built for obstacle crossing and for stable travel through harsh processes. In practice, the 10T is the point in the range where loads move beyond the reach of ordinary material-handling equipment but still need to pass through a conventional production hall.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, weight, travel speed, battery type and capacity, operating time, charging method, IP rating, drive configuration, package contents or operating temperature range; these are confirmed at quotation.

How does the 10T find its way and keep people safe?

The robot offers three navigation methods: SLAM, magnetic guidance and colour-tape guidance. The choice shapes how much a site has to change. SLAM builds its own picture of the surroundings, so it suits facilities where routes shift as projects progress and laying fixed markers would be impractical. Magnetic guidance and colour-tape guidance follow a defined path on the floor, which suits repetitive shuttle routes between the same stations. Having all three options lets a facility start with the method that fits its floor today and plan its routes around the way the site actually operates.

Safety is handled in layers. Non-contact collision avoidance is intended to detect obstacles before the robot reaches them. An audible and visual alarm warns people nearby that a heavy load is moving. An emergency stop gives operators a direct way to halt the robot. For a platform carrying up to 10 t through areas where staff also work, each layer has a distinct role, and together they form the baseline for a site's own risk assessment.

What do a 100 mm lift and ±10 mm accuracy mean in practice?

The 100 mm lifting height defines how the robot takes a load. It raises the load clear of its rest points, carries it to the next station and lowers it again, without a crane, a sling or a separate jacking crew. Fixtures, stands and pallets are therefore designed around that lift, and that design work belongs early in any project.

Positioning accuracy of ±10 mm determines what happens on arrival. A heavy assembly delivered close to its mark, but not on it, still needs nudging into place, which costs time and puts people near the load. Arriving within ±10 mm reduces that final correction and makes the hand-off to the next process more repeatable. Combined with zero-radius turning across the series, the robot can approach a station from the angle the process needs, rather than the angle a wide turning circle allows. The 3% gradeability should also be considered during planning: the robot is designed primarily for level industrial floors, and any ramps on the route need checking against that figure.

Who is the SIASUN 10,000 Kg Heavy-Duty Mobile Robot for?

The robot is aimed at operations whose loads are too heavy for conventional forklifts but which still want flexible, floor-based transport rather than fixed overhead infrastructure. That includes manufacturers of large assemblies who move work in progress between stations, energy-storage producers handling heavy modules, shipyards and aerospace facilities moving structural sections, and port and logistics operators who want to automate heavy internal transfers. Plants running several robots together will find multi-robot coordination relevant, while a single transfer line can run the robot in standalone operation.

Load size should drive the choice of version. Where the heaviest items fall well below the 10T's capacity, the SIASUN 5T Heavy-Duty Mobile Robot may be the more proportionate choice. Where loads exceed it, the SIASUN 20T Heavy-Duty Mobile Robot or the SIASUN 30T Heavy-Duty Mobile Robot continue the series, and for the largest structures the SIASUN 60T Heavy-Duty Mobile Robot is the place to look. The full range is gathered under Heavy Duty Mobile Robots.

What is the SIASUN 10,000 Kg Heavy-Duty Mobile Robot used for?

1. Port and container logistics: automating heavy internal transfers within terminals and logistics yards.
2. New energy and energy storage: moving heavy battery modules and energy-storage assemblies between production stages.
3. Aerospace: transferring large structural sections between assembly positions with controlled, precise placement.
4. Shipbuilding: carrying heavy components and sub-assemblies around fabrication halls without relying on overhead cranes.
5. Automotive and construction machinery manufacturing: shuttling heavy frames and work in progress along flexible assembly routes.
6. Steel, metallurgy and heavy industry: providing stable travel for heavy loads through demanding process environments.

Pricing and Availability

The SIASUN 10,000 Kg Heavy-Duty Mobile Robot is a customised product, so it is supplied on quotation rather than at a fixed list price. Robots Middle East will ask about your loads, floor conditions, routes and preferred navigation method, then prepare a quotation that reflects the configuration your site actually needs. Delivery, customs clearance and support are arranged together with the quotation. To begin, send us your application details using the quotation request available on this page.

Frequently Asked Questions

What load can the SIASUN 10,000 Kg Heavy-Duty Mobile Robot carry?

It has a payload capacity of 10 t and a lifting height of 100 mm. Heavier loads are handled by larger versions in the same series.

Which navigation methods does it support?

It supports SLAM, magnetic guidance and colour-tape guidance. The most suitable method depends on how fixed or changeable your routes are.

How precisely does it position a load?

Its positioning accuracy is ±10 mm, which keeps manual correction at the receiving station to a minimum.

Can several robots work together?

Yes. The series supports both multi-robot coordination and standalone operation, so one robot or a coordinated fleet can be deployed.

What safety features are included?

The robot has an emergency stop, an audible and visual alarm, and non-contact collision avoidance.

Can it handle slopes?

The robot's gradeability is 3%, so routes that include ramps should be reviewed against that figure during planning.

Where can I buy the SIASUN 10,000 Kg Heavy-Duty Mobile Robot and what does it cost?

Robots Middle East supplies it across the Middle East on quotation. Because each unit is configured for its application, the cost is set out in a quotation prepared for your site.

Summary

The SIASUN 10,000 Kg Heavy-Duty Mobile Robot is built for facilities that no longer want their heaviest loads to dictate the shape of the building. It combines a 10 t payload, a 100 mm lift and ±10 mm positioning with three navigation methods and layered safety protection. Across the series, it adds zero-radius omnidirectional movement and the option of coordinated or standalone operation. Together, these features let heavy transport follow the process instead of fixing it in place. It sits within a series that SIASUN has developed since 2009, with smaller and larger versions on either side. For any operation in the region ready to let the layout follow the work, this page is the starting point.
