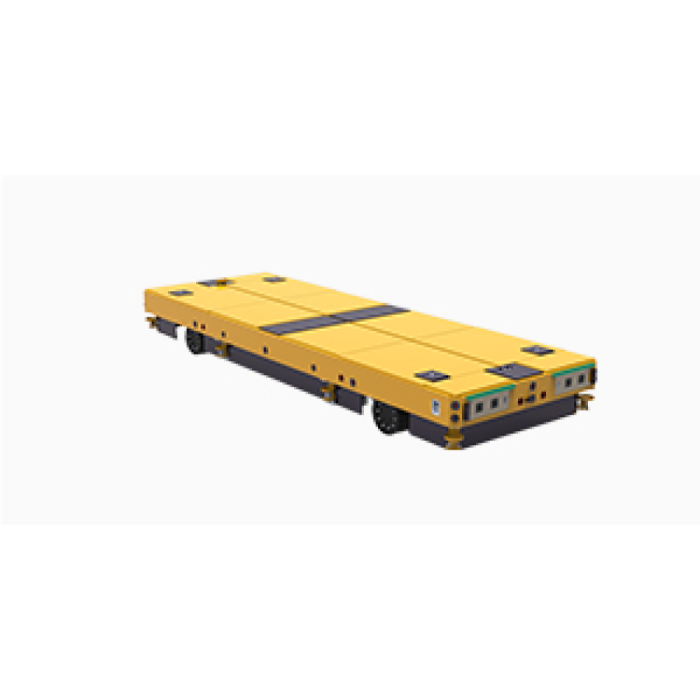

SIASUN 60T Heavy-Duty Mobile Robot (60T Heavy-Duty Mobile Robot)

On a shipyard floor or in an aerospace assembly hall, the most valuable object in the building is often also the heaviest, and every metre it travels carries risk. The SIASUN 60T Heavy-Duty Mobile Robot treats that journey as a positioning task rather than a lifting spectacle. It carries a 60 t payload, steers in any direction without a turning circle to work around, and sets its load down to a positioning accuracy of ±10 mm. Where cranes and tugs ask the building to adapt to the load, this vehicle adapts the move to the building.

Robots Middle East supplies the SIASUN 60T Heavy-Duty Mobile Robot to manufacturers, port operators and energy projects across the Middle East. Robots Middle East prepares each quotation around the customer's own loads and site, arranges delivery and remains your point of contact for technical support once the vehicle is in service.

Background

SIASUN and its robotics lineage

SIASUN is a Chinese robotics and automation manufacturer with roots in national research on industrial automation. Its portfolio spans industrial robot arms, cleanroom handling systems and mobile robots for factories and logistics. The heavy-duty mobile robot family is one strand of that work: a series of autonomous transport vehicles that SIASUN offers across a payload range of 3–120 t. Versions named in the manufacturer's material include the 3T, 5T, 10T, 20T, 30T, 60T and 80T, which allows a facility to match the vehicle to the loads it actually moves instead of over-specifying a single machine for every task.

A platform built around the floor, not the hook

The 60T sits in the upper part of that series. Its design draws on three ideas that run through the family. The first is omnidirectional movement, which removes turning-radius constraints so that the vehicle can travel sideways, diagonally or turn in place. The second is a well-balanced wheel system that combines load-bearing and driving capabilities while protecting the floor, an important point when a heavy load is concentrated beneath a single vehicle. The third is flexible guidance: the 60T can navigate by SLAM, by magnetic guidance or by colour-tape guidance, depending on how much infrastructure a site is prepared to install. Stable, constant-speed operation and a choice of multi-robot coordination or single-robot modes complete the picture.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, weight, travel speed, battery type and capacity, runtime and charging, IP rating, operating temperature, power supply or package contents of the 60T; these are confirmed at quotation.

How does omnidirectional movement help with a 60 t load?

A conventional heavy transporter has to swing its load through an arc whenever it changes direction, and the larger the load, the wider the aisle that arc demands. Omnidirectional movement removes that constraint. The 60T can approach a workstation sideways, correct its alignment without reversing and leaving, and rotate a long component in the space it already occupies. In practice this means that the route is drawn around the process rather than around the vehicle's turning circle.

Precision matters just as much as manoeuvrability. A positioning accuracy of ±10 mm allows a heavy assembly to be presented to a fixture, a test bay or a docking point close enough for the next operation to begin without a lengthy manual adjustment. The lifting height of 80-100 mm is enough for the vehicle to raise a load clear of its supports and set it down again, while the constant-speed operation keeps acceleration predictable and the load steady along the way. Because the wheel system shares the load-bearing and driving duties while protecting the floor, the same move can be repeated many times a day without the floor itself becoming the limiting factor.

Which navigation method suits a heavy-duty site?

The 60T leaves the choice of guidance to the customer. SLAM navigation builds and uses a map of the surroundings, so routes can be changed in software and the floor needs little or no preparation; this suits facilities whose layouts evolve with each project. Magnetic guidance follows markers laid into the floor and gives fixed, highly repeatable paths, which is often preferred in permanent production lines. Colour-tape guidance offers a visible, low-cost route that is quick to lay out and easy for staff to understand, useful for trials or for areas where routes are temporary.

A site does not have to commit to a single answer for every area. Robots Middle East discusses the floor, the routes and the process with you when preparing the quotation, so that the guidance method reflects how your facility actually operates. The modest gradeability of 3% also deserves attention at this stage: ramps and slopes along the intended route should be checked against that figure before the layout is finalised.

Who is the SIASUN 60T Heavy-Duty Mobile Robot for?

The 60T is for operations where individual loads are counted in tens of tonnes and where a crane or a manually driven tug has become the bottleneck. Shipyards moving hull blocks, aerospace plants transferring large assemblies, and manufacturers of construction machinery shifting frames between stations are natural candidates. Port and container logistics operators, energy storage producers and steel and metallurgy plants form further segments, as the manufacturer lists these among the series' application areas.

Facilities with several heavy items of differing sizes should consider the multi-robot coordination mode, in which more than one vehicle works together on a task; single-robot mode covers the everyday moves. Where your heaviest loads exceed what the 60T carries, the larger SIASUN 80T Heavy-Duty Mobile Robot (80T Heavy-Duty Mobile Robot) is the version to discuss. For lighter components, the SIASUN 30T Heavy-Duty Mobile Robot (30T Heavy-Duty Mobile Robot) or the SIASUN 20T Heavy-Duty Mobile Robot (20T Heavy-Duty Mobile Robot) may be a better match for the application. The full range is presented in our Heavy Duty Mobile Robots category.

What is the SIASUN 60T Heavy-Duty Mobile Robot used for?

1. Port and container logistics: moving heavy units across terminal and yard areas along defined routes.
2. New energy and energy storage: transferring large battery and energy storage assemblies between production stages.
3. Aerospace manufacturing: carrying large airframe sections to assembly and inspection stations with precise placement.
4. Shipbuilding: relocating hull blocks and heavy outfitting modules within the yard and its workshops.
5. Automotive and construction machinery: shuttling heavy frames, dies and sub-assemblies between production lines.
6. Steel, metallurgy and heavy industry: handling heavy semi-finished products and equipment where crane time is scarce.

Pricing and Availability

The SIASUN 60T Heavy-Duty Mobile Robot is supplied by quotation, because the right configuration depends on your loads, your floor and the navigation method your site requires. Send Robots Middle East a short description of the application, the heaviest load you intend to move and the route it must follow, and we will prepare a proposal tailored to your project. Delivery, customs clearance and technical support are arranged together with the quotation. To begin, the quotation request for the SIASUN 60T Heavy-Duty Mobile Robot is available on this page.

Frequently Asked Questions

What payload does the SIASUN 60T Heavy-Duty Mobile Robot carry?

The 60T has a payload capacity of 60 t. The wider SIASUN heavy-duty series covers a range of 3–120 t, so other versions are available for lighter or heavier loads.

How accurately does it position a load?

The manufacturer specifies a positioning accuracy of ±10 mm for the 60T. This allows heavy components to be delivered close to their intended position at a fixture or workstation.

Which navigation methods are supported?

The 60T supports SLAM, magnetic guidance and colour-tape guidance. The most suitable method depends on how often your routes change and how much floor preparation is acceptable.

Can several robots work together?

Yes. The vehicle offers both multi-robot coordination and single-robot modes, so it can operate alone or alongside other units on a shared task.

What safety features are included?

Safety protection comprises an E-stop, a sound and light alarm and non-contact anti-collision. Robots Middle East can discuss how these fit into the safety concept of your site.

Can the 60T travel on slopes?

The published gradeability of the 60T is 3%. Routes with ramps should be reviewed against this figure when the project is planned.

Where can I buy the SIASUN 60T Heavy-Duty Mobile Robot and what does it cost?

You can buy the SIASUN 60T Heavy-Duty Mobile Robot from Robots Middle East, which supplies it across the Middle East. The cost depends on configuration and project scope, so please request a quotation through this page.

Summary

Heavy loads have traditionally dictated how a building is laid out: where the crane runs, how wide the aisles must be, and how long everyone waits while a single component is moved. The SIASUN 60T Heavy-Duty Mobile Robot reverses that relationship. With a 60 t payload, ±10 mm positioning accuracy, omnidirectional movement, a floor-protecting wheel system and a choice of SLAM, magnetic or colour-tape guidance, it turns the movement of a very heavy object into a repeatable, software-defined task. Robots Middle East quotes, delivers and supports the vehicle for projects across the region, and helps you choose between the 60T and its siblings where your loads call for a different version. If moving your heaviest loads with precision is the next step for your facility, this page is the starting point.
