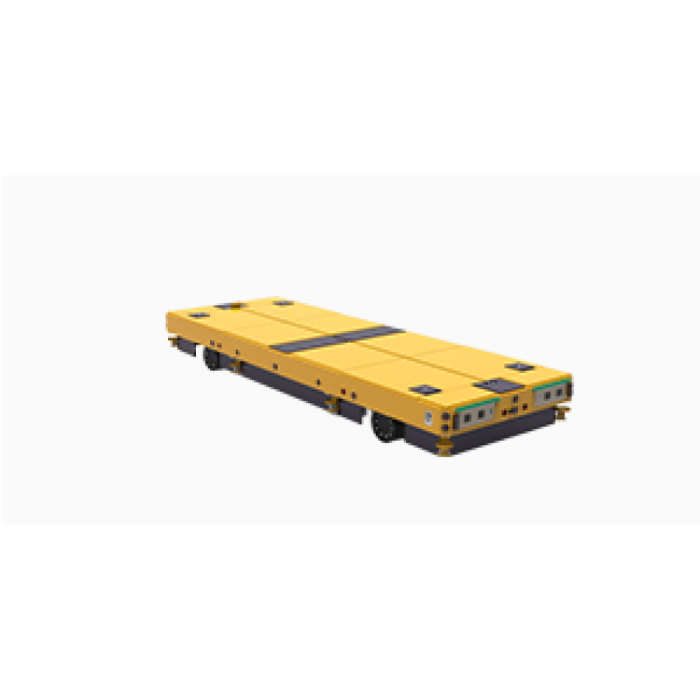

SIASUN 80T Heavy-Duty Mobile Robot (80T Heavy-Duty Mobile Robot)

In ultra-heavy logistics the load itself is rarely the hardest thing to manage; the floor beneath it, the aisle around it and the final approach to its destination usually are. A floor that suffers under concentrated weight, a bay too narrow for a conventional turning circle, a fixture that has to be met precisely. These are the constraints that decide whether a heavy move is routine or a project in its own right. The SIASUN 80T Heavy-Duty Mobile Robot is designed around exactly those constraints. It has a payload capacity of 80 t, a wheel system that balances load bearing against traction so that it moves smoothly while protecting factory floors, and omnidirectional motion that removes the need for a turning radius altogether.

Robots Middle East supplies the SIASUN 80T Heavy-Duty Mobile Robot to industrial customers across the Middle East, from port operators and shipyards to steelworks and energy-sector manufacturers. Robots Middle East prepares each quotation for the customer's application, arranges delivery to site and remains the point of contact for support after the robot enters service. Customers therefore deal with one regional partner throughout the project.

Background

SIASUN and its robotics heritage

SIASUN is a Chinese manufacturer of industrial robots and automation systems, with roots in the Shenyang Institute of Automation of the Chinese Academy of Sciences. Its portfolio covers industrial arms, cleanroom handling and mobile robots, and the heavy-duty mobile robot family is one of its most specialised lines. That family runs from the 3T model up to the 80T, which sits at the top of the range and is intended for the heaviest loads the series addresses.

An omnidirectional platform for ultra-heavy logistics

The 80T is built for ultra-heavy industrial logistics: moving large components, assemblies and structures between stations without relying on fixed cranes or rail-bound carriages. Its defining technology is the combination of omnidirectional motion and a wheel system that balances load bearing with traction. Omnidirectional motion allows the robot to travel sideways, diagonally or rotate in place, which enables flexible routing in tight spaces. The wheel system keeps movement smooth while protecting factory floors. The robot can work alone or as part of a coordinated multi-robot operation, and it offers obstacle crossing and stable driving for less-than-ideal surfaces.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the robot's weight, dimensions, travel speed, battery type and capacity, charging method, operating time, IP rating, software or fleet management, package contents or drive type; Robots Middle East confirms these at quotation.

Why does omnidirectional motion matter for an 80 t load?

With a conventional heavy transporter, the route is dictated by the vehicle's turning circle. Aisles must be wide enough for the vehicle to swing, corners must be generous, and the final positioning often involves repeated forward-and-back manoeuvres. With a load of this scale, each of those manoeuvres takes time and introduces risk. Omnidirectional motion changes the geometry of the task. Because the SIASUN 80T needs no turning radius, it can approach a fixture from the side, crab along a narrow bay or rotate a load on the spot. Layouts can therefore be planned around production rather than around the transporter.

Precision completes the picture. A positioning accuracy of ±10 mm means the robot can deliver a load close enough to its target for downstream alignment work to begin without extensive manual correction. The 100 mm lifting height allows the robot to raise a load from its supports, carry it and set it down again. The 3% gradeability allows for gentle slopes such as ramps between floor levels.

Which navigation method suits your site?

The 80T supports three navigation methods, and the right choice depends on how the facility is organised. SLAM navigation builds and uses a map of the environment, which suits sites where routes change regularly or where markings on the floor are impractical. Magnetic guidance follows magnetic markers in or on the floor. This is a robust option for fixed, frequently repeated routes in demanding environments. Colour-tape guidance follows visible tape and is generally the quickest to lay out and modify, which makes it well suited to trial runs or temporary routes. Many sites combine methods, using a guided route for repetitive transfers and SLAM where flexibility is needed. Robots Middle East can discuss the options as part of the quotation.

Who is the SIASUN 80T Heavy-Duty Mobile Robot for?

The 80T is aimed at organisations whose single heaviest load defines their logistics problem. Port and container terminal operators may consider it for moving heavy units within yards and sheds. Shipbuilders and aerospace manufacturers handle large hull sections, structures and assemblies that must travel between stations and arrive accurately. Steelworks and metallurgical plants move heavy coils, castings and equipment through demanding environments. Manufacturers of automotive and construction machinery, as well as new energy and energy storage producers, transport heavy frames, modules and battery systems along their production flow.

Not every heavy-handling task requires the top of the range. Where the heaviest regular load is lighter, a smaller model may be the more appropriate investment. Examples include the SIASUN 60T Heavy-Duty Mobile Robot, the SIASUN 30T Heavy-Duty Mobile Robot, the SIASUN 20T Heavy-Duty Mobile Robot and the SIASUN 10,000 Kg Heavy-Duty Mobile Robot. The full family can be compared in the Heavy Duty Mobile Robots category.

What is the SIASUN 80T Heavy-Duty Mobile Robot used for?

1. Port and container logistics: moving heavy units within terminals and storage areas without a fixed crane route.
2. New energy and energy storage: transporting heavy modules and storage systems between assembly and test stations.
3. Aerospace manufacturing: relocating large structures and assemblies with accurate final positioning.
4. Shipbuilding: carrying hull blocks and sections through yards and halls with tight manoeuvring space.
5. Automotive and construction machinery manufacturing: moving heavy frames and machinery along production lines.
6. Steel, metallurgy and heavy industry: handling heavy materials and equipment in demanding plant environments.

Pricing and Availability

The SIASUN 80T Heavy-Duty Mobile Robot is offered by quotation, as each heavy-handling project depends on the load, the site layout, the navigation method and whether one robot or a coordinated fleet is required. Robots Middle East reviews your application and the conditions at your site. Delivery, customs and support are arranged with the quotation. To begin, please share details of your loads and your facility. A quotation request for the SIASUN 80T Heavy-Duty Mobile Robot is available on this page.

Frequently Asked Questions

What payload can the SIASUN 80T Heavy-Duty Mobile Robot carry?

The robot has a payload capacity of 80 t, which makes it the top model of the SIASUN heavy-duty mobile robot range.

How accurately does it position a load?

Positioning accuracy is ±10 mm. Loads can therefore be delivered close to their target for the next stage of alignment or assembly.

Which navigation methods does it support?

It supports SLAM navigation, magnetic guidance and colour-tape guidance. The most suitable method depends on how fixed or flexible your routes are.

Can it operate in narrow spaces?

Yes. Its omnidirectional motion eliminates the need for a turning radius, which enables flexible routing in tight spaces.

What safety features are included?

The robot provides an emergency stop, an audible and visual alarm, and non-contact collision avoidance.

Can several robots work together?

Yes. The 80T supports both multi-robot coordination and standalone operation, so it can work alone or alongside other units.

Where can I buy the SIASUN 80T Heavy-Duty Mobile Robot and what does it cost?

Robots Middle East supplies the robot across the Middle East by quotation. Pricing depends on your configuration and project scope, so please submit a quotation request through this page.

Summary

Moving 80 t is only part of the challenge; doing so without damaging the floor, without widening every aisle and without leaving the load out of position is what makes ultra-heavy logistics difficult. The SIASUN 80T Heavy-Duty Mobile Robot addresses each of those points with its specifications. A floor-conscious wheel system balances load bearing and traction. Omnidirectional motion removes the need for a turning radius, and positioning accuracy of ±10 mm brings the load close to its target. It also offers three navigation methods and the choice of standalone or coordinated operation. Robots Middle East handles the quotation, delivery and support for customers across the region. For any heavy-industry operation in which the largest load still dictates the layout, this page is the starting point.
