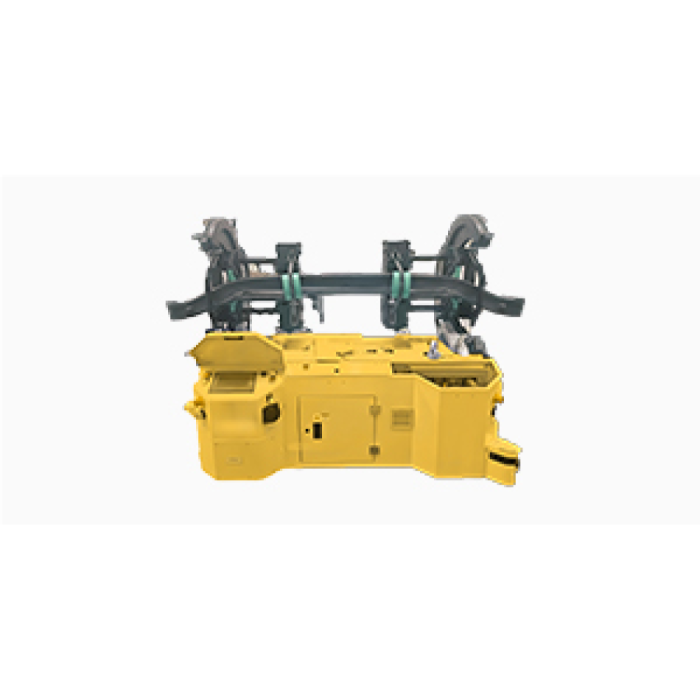

SIASUN Axle Base Line Assisted Assembly Mobile Robot (Axle Base Line Assisted Assembly Mobile Robot)

A fixed axle conveyor commits a plant to its layout for a decade; a line of coloured tape on the floor can be lifted and relaid when the model mix changes. That difference sits at the heart of the SIASUN Axle Base Line Assisted Assembly Mobile Robot (Axle Base Line Assisted Assembly Mobile Robot). It is a mobile platform that carries an axle component along a tape-guided route, stops where it is needed and turns the part through a controlled flipping movement so that work can continue on the other side. Rather than building the assembly sequence around a fixed piece of steel, the axle base line becomes something the factory can rearrange as its needs evolve.

Robots Middle East supplies this SIASUN robot to automotive manufacturers and assembly plants across the Middle East. Our team prepares each quotation around the buyer's line, coordinates delivery and customs to the site, and remains the point of contact for support after commissioning, so that one partner handles the project from enquiry to operation.

Background

SIASUN and its place in industrial automation

SIASUN is a Chinese robotics and automation manufacturer with roots in national research on automation, and it has grown into one of the better-known names in the country's industrial robot sector. Its portfolio spans industrial arms, clean-room handling systems and a broad range of mobile robots for factories and logistics. Within that portfolio, the mobile robots are developed for specific production tasks rather than offered as a single general-purpose vehicle, and the axle base-line robot is a clear example of that approach: a machine designed around one operation in automotive manufacturing.

An assembly aid rather than a transporter

Many mobile robots in a factory simply move loads from one point to another. This robot is positioned differently. SIASUN developed it for axle base-line operations, where the challenge is not only delivering a heavy part but presenting it to the operator in the orientation the next task requires. The combination of a payload rated for axle components, a flipping mechanism driven by chain and sprocket, and a compact structure that balances stability with agility is intended to reduce manual workload and to provide an efficient, intelligent and flexible solution for axle assembly.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

SIASUN has not published the dimensions, weight, battery capacity and type, travel speed, runtime, charging time, safety sensors, IP rating, operating temperature, power supply voltage, delivery contents or the software and dispatch system; Robots Middle East confirms these at quotation.

How does the ±90° flipping function help on an axle line?

An axle is worked on from more than one side. Components are fitted to the top, fasteners are driven from below, and inspection often needs a clear view of surfaces that face the floor when the part first arrives. On a conventional line, each change of orientation tends to mean a hoist, a dedicated fixture or several operators working together, and every one of those steps adds time and handling risk.

The SIASUN robot brings the turn onto the vehicle itself. Its flipping function rotates the axle component through ±90°, so the part can be presented in either direction from its carrying position. The movement is driven by a chain-and-sprocket arrangement, which SIASUN selected to keep the flipping process smooth and reliable. Because the rotation happens on the robot, the operator stays at the station while the part is brought into a workable attitude, rather than the operator having to reposition the part or move around it.

The 700 kg payload capacity sits alongside this function: the robot is built to carry and turn the class of component found on an axle base line, not merely light sub-assemblies.

Why does the robot follow colour tape and QR codes?

Guidance by floor tape is a deliberate choice for assembly lines. Colour tape gives the robot a continuous path to follow, while QR code tape provides fixed reference points along that path, so the vehicle knows where it is at each station. Navigation accuracy along the route is ±10 mm and positioning accuracy at the stopping point is ±5 mm, which is the figure that matters when an operator or a tool expects the axle to be in the same place every cycle. Where a plant prefers it, a magnetic strip can be specified as an optional navigation method.

The practical advantage is adaptability. Tape can be relaid when stations are moved or a new axle variant is introduced, without the civil works a fixed conveyor would require. The drive layout of one drive wheel and two caster wheels keeps the chassis simple, and the braking system pairs a servo motor with a mechanical brake so that the robot can hold its position while work is carried out on the load.

Who is the SIASUN Axle Base Line Assisted Assembly Mobile Robot for?

The clearest fit is the automotive manufacturer running a dedicated axle base line, whether in a vehicle assembly plant or at a supplier producing axle modules for delivery to the main line. These buyers gain most from a machine that combines transport, turning and holding in a single platform, because each of those tasks otherwise demands separate equipment or additional labour.

A second group comprises plants that are restructuring their lines. Production engineers planning a new model, a change in volume or a move towards more flexible cells can use tape-guided robots to test and adjust a layout before committing to permanent infrastructure. Industrial engineers concerned with ergonomics form a third group: removing manual turning of heavy parts from the station is often a priority in its own right.

Buyers whose task is whole-vehicle assembly rather than axle work may wish to compare the SIASUN Commercial Vehicle Assembly Mobile Robot (Commercial Vehicle Assembly Mobile Robot). Where the requirement is moving heavy loads without a flipping function, the heavy-duty platforms such as the SIASUN 3T Heavy-Duty Mobile Robot and the SIASUN 5T Heavy-Duty Mobile Robot are worth reviewing. The wider range is collected under Mobile Robots and Factory Robots.

What is the SIASUN Axle Base Line Assisted Assembly Mobile Robot used for?

1. Axle base-line assembly: carrying axle components between stations on the base line it was developed for.
2. Orientation changes: turning a part through its flipping range so that work can be carried out on another face.
3. Station presentation: stopping at a defined point so that operators and tools find the axle where they expect it.
4. Reducing manual handling: taking lifting and turning of heavy components away from the operator.
5. Flexible line layouts: following relaid tape when stations move or a new variant enters production.
6. Axle module supply: supporting suppliers who assemble axle sub-assemblies for automotive customers.

Pricing and Availability

The SIASUN Axle Base Line Assisted Assembly Mobile Robot is supplied on quotation, because the right configuration depends on the axle being handled, the layout of the line and the navigation method chosen. Robots Middle East reviews these details with you before preparing the offer. Delivery, customs clearance and after-sales support are arranged together with the quotation. To start the process, the quotation request is available on this page.

Frequently Asked Questions

What payload can the robot handle?

The payload capacity is 700 kg, intended for axle components on an automotive base line.

How far can the robot turn an axle?

The flipping function covers ±90°, driven by a chain-and-sprocket mechanism designed for a smooth and reliable movement.

Which navigation methods are available?

The robot follows colour tape combined with QR code tape as standard. A magnetic strip is available as an optional navigation method.

How precisely does it stop at a station?

Positioning accuracy is ±5 mm, and navigation accuracy along the route is ±10 mm.

How does the robot hold its position while work is carried out?

Braking combines a servo motor with a mechanical brake, and the drive layout uses one drive wheel with two caster wheels.

Can the route be changed if the line layout changes?

Yes. Because the robot follows floor tape, the route can be relaid when stations move or a new axle variant is introduced, without the civil works a fixed conveyor would require.

Where can I buy the SIASUN Axle Base Line Assisted Assembly Mobile Robot and what does it cost?

Robots Middle East supplies the robot across the Middle East. The cost depends on configuration and project scope, so it is provided in a tailored quotation requested through this page.

Summary

The case for this SIASUN robot rests on the same contrast with which this article opened: a fixed line ties the factory down, whereas a tape-guided assembly aid moves with it. By carrying axle components rated up to its 700 kg payload, turning them through ±90° and stopping within ±5 mm of its target, the robot gathers transport, orientation and presentation into one compact platform built for the axle base line. Robots Middle East handles quotation, delivery, customs and support throughout the region. For automotive plants that want their axle assembly to remain adaptable as models and volumes change, this page is the starting point.
