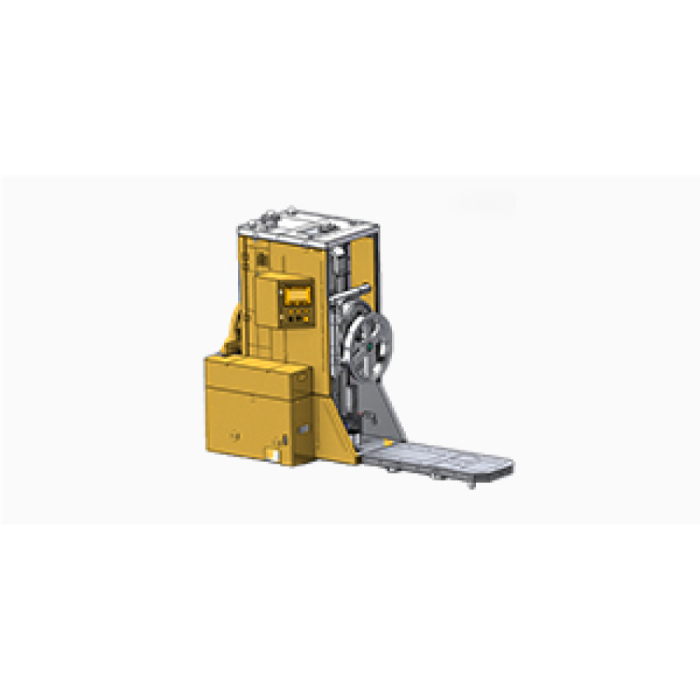

SIASUN Engine Assisted Assembly Mobile Robot (Engine Assisted Assembly Mobile Robot)

On many engine lines, the most important instruction a 2000 kg load receives is printed on the floor. A strip of coloured tape and a sequence of QR codes tell the SIASUN Engine Assisted Assembly Mobile Robot where to travel, where to halt and when it has arrived. A screw lift then raises the engine to the height at which people and tools can work on it. The machine is defined by that pairing: a simple, visible guidance method carrying a load that leaves no margin for carelessness, with positioning held to ±5 mm where the assembly work happens.

Robots Middle East sells the SIASUN Engine Assisted Assembly Mobile Robot to manufacturers and system integrators across the Middle East. It is supplied on a quotation basis and configured for the route, the station layout and the guidance option the plant intends to use. Robots Middle East handles the quotation, the delivery to site and the technical support that follows, so one point of contact remains responsible from the first enquiry until the robot is in service.

Background

SIASUN and its industrial lineage

SIASUN is a Chinese robotics and automation manufacturer based in Shenyang. Its origins lie in the robotics research of the Shenyang Institute of Automation of the Chinese Academy of Sciences. Its portfolio includes industrial manipulators and an extensive family of mobile robots for factories and intralogistics, ranging from compact carriers to heavy-duty platforms for very large loads. The Engine Assisted Assembly Mobile Robot belongs to that mobile family, but it is not offered as a general-purpose transporter. It is designed for engine assembly work, and every element of its specification points towards the assembly station rather than the warehouse aisle.

A carrier shaped by the assembly station

A robot in this class does two connected jobs. First it moves a heavy component along a defined path. Then it presents that component to the people or equipment that will work on it. SIASUN equips this model with a 2000 kg payload capacity and a screw lift mechanism offering up to 700 mm of travel. This combination lets an engine arrive low and stable before being raised to a working height suited to the task in hand. The drive layout uses one drive wheel with four caster wheels, and braking combines a servo motor with a mechanical brake. The result is a platform designed to travel to the station, stop precisely, and then hold an engine securely while work is carried out on it.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, the weight, the battery capacity, the travel speed, the lifting speed, the operating time, the charging method or the IP rating; Robots Middle East confirms these at quotation.

How does colour tape and QR code navigation suit an engine line?

Guided mobile robots generally follow one of two broad approaches. Some build a map of their surroundings. Others follow a physical reference laid on the floor. The SIASUN Engine Assisted Assembly Mobile Robot takes the second approach, combining colour tape with QR code tape. In this type of system the tape gives the robot a continuous path to follow, and the QR codes act as discrete reference points. These points tell the vehicle exactly where it is along that path. The two accuracy figures reflect this division of labour: navigation accuracy of ±10 mm along the route, and positioning accuracy of ±5 mm at the points where the robot must stop.

On an engine line this has a practical appeal. The route is visible to everyone on the shop floor. It can be inspected at a glance, and re-routing a station is a question of relaying tape and codes rather than reprogramming a map. For plants that prefer a different floor reference, a magnetic strip is available as an option. Magnetic guidance is commonly chosen where floor traffic or cleaning regimes would wear surface tape, and Robots Middle East can discuss which option suits a particular facility when preparing the quotation.

Why does a screw lift matter for engine assembly?

Transporting an engine is only half of the task. The other half is presenting it at the right height and keeping it there while fasteners are tightened, hoses are connected and components are fitted. Screw lift mechanisms convert rotation into steady linear movement, and they are generally chosen in this class of equipment where a heavy load must be raised under control and held at height. The durability and stability of this model suit it to engine assembly. With up to 700 mm of lifting travel, the same robot can serve stations that need the engine close to the floor and stations that need it raised towards the operator.

The braking arrangement supports the same aim. A servo motor combined with a mechanical brake gives the platform both controlled deceleration and a mechanical means of holding its position. This matters when a 2000 kg engine sits on top and people are working within arm's reach.

Who is the SIASUN Engine Assisted Assembly Mobile Robot for?

The clearest audience is vehicle manufacturers and their suppliers who assemble engines or install powertrains. Their lines need a heavy component to arrive at each station on time and at a usable height. Engine remanufacturing and overhaul facilities form a second group, as their work also involves moving heavy units between stations and presenting them for repeated handling. Producers of commercial vehicles, industrial engines and similar powertrain assemblies can apply the same principle wherever a heavy unit travels through a sequence of workstations.

System integrators are a further audience. They design assembly cells for clients in the region and need a mobile carrier with a defined guidance method and stated accuracy figures to build around. For projects in which the task is general heavy transport rather than presenting an engine at a station, the heavy-duty platforms in the same SIASUN family, such as the SIASUN 3T Heavy-Duty Mobile Robot or the SIASUN 10,000 Kg Heavy-Duty Mobile Robot, may merit comparison. Robots Middle East can advise which platform matches a given application. The wider ranges are presented under Mobile Robots and Factory Robots.

What is the SIASUN Engine Assisted Assembly Mobile Robot used for?

1. Engine presentation at assembly stations – bringing an engine to a station and raising it to the working height required.
2. Powertrain installation support – carrying and positioning an engine where it is joined to the rest of the vehicle.
3. Transfer between sub-assembly stations – moving an engine along a guided route as components are added step by step.
4. Ergonomic working heights – using the lifting travel so that operators work at a comfortable height rather than stooping or reaching.
5. Remanufacturing and overhaul lines – handling heavy units through disassembly, inspection and rebuild stations.
6. Flexible alternatives to fixed conveyors – supporting lines whose layout may change, as routes are defined by tape and QR codes rather than fixed structures.

Pricing and Availability

The SIASUN Engine Assisted Assembly Mobile Robot is offered on a quotation basis, so the configuration, the guidance option and the integration requirements can be agreed before an order is placed. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, please send Robots Middle East a description of your line and stations using the quotation request available on this page.

Frequently Asked Questions

What payload does the SIASUN Engine Assisted Assembly Mobile Robot carry?

The robot has a payload capacity of 2000 kg.

How far can the robot lift an engine?

The screw lift mechanism provides up to 700 mm of travel. This allows the engine to be presented at different working heights along the line.

Which navigation methods does it use?

The robot navigates using colour tape combined with QR code tape. A magnetic strip is available as an option.

How precisely does it stop at a station?

Positioning accuracy is ±5 mm and navigation accuracy is ±10 mm.

What braking system is fitted?

Braking combines a servo motor with a mechanical brake.

Can the route be changed if the line layout changes?

Yes. Because the route is defined by colour tape and QR code tape on the floor, a station can be moved by relaying the tape and codes rather than rebuilding fixed infrastructure.

Where can I buy the SIASUN Engine Assisted Assembly Mobile Robot and what does it cost?

The robot is available from Robots Middle East, which supplies it across the Middle East. The cost depends on the configuration and the scope of the project, so it is provided in a formal quotation prepared for your application.

Summary

The SIASUN Engine Assisted Assembly Mobile Robot is a study in proportion. Its route is set by tape and QR codes that anyone on the shop floor can see, yet it carries a 2000 kg payload and stops with positioning accuracy of ±5 mm. Its screw lift offers up to 700 mm of travel, so the engine meets the operator at a usable height, and its servo motor and mechanical brake keep that load where it should be. For manufacturers, remanufacturers and integrators in the Middle East who want heavy engine handling to follow the rhythm of the line, with quotation, delivery and support provided by Robots Middle East, this page is the starting point.
