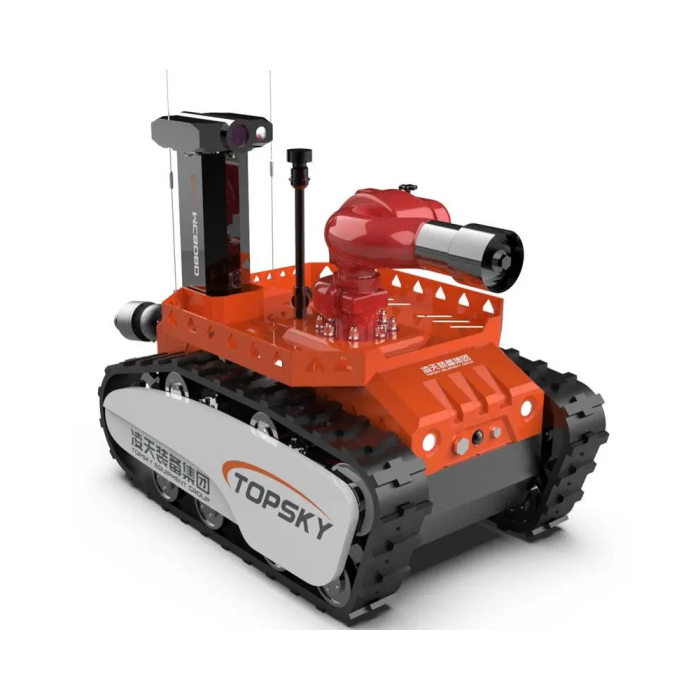

Topsky Tianlong Conquest D5 Explosion-Proof Fire Fighting Robot (RXR-MC80BD)

A tracked, explosion-proof fire fighting and scouting robot that takes the monitor, the hose line and gas detection into refinery, fuel storage and chemical site fires. It allows your crew to direct suppression and gather information from a safe stand-off position, rather than from inside a hazardous atmosphere.

In stock

BRAND:
TOPSKY
MODEL:
TIANLONG CONQUEST D5
PART #:
RXR-MC80BD
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Topsky-D5-RXR-MC80BD

Topsky Tianlong Conquest D5 Explosion-Proof Fire Fighting Robot (RXR-MC80BD)

On an industrial fireground, water is rarely the scarce resource; putting it in the right place is. A charged DN80 line is heavy, stiff and unforgiving, and at a refinery or fuel depot the ground it has to cross may lie inside an atmosphere that could ignite. The Topsky Tianlong Conquest D5 Explosion-Proof Fire Fighting Robot (RXR-MC80BD) turns that hauling and aiming task into a remote operation. It is a certified explosion-proof tracked platform with the traction to drag two 100M lengths of water-filled DN80 hose, a remotely directed monitor for water or foam, and an integrated gas detection platform that reports on the surrounding air as the machine advances.

Robots Middle East supplies the Tianlong Conquest D5 to fire services, oil and gas operators, chemical producers and logistics sites throughout the Middle East. Our team prepares the quotation, helps you identify the version and optional equipment that suit your facility, arranges delivery to site and remains your point of contact for support once the robot is in service.

Background

Topsky and the Tianlong fire robot family

Topsky builds a range of robots for fire and emergency services, from compact reconnaissance units to machines dedicated to smoke extraction or dry powder extinguishing; the wider range can be explored in our Firefighting Robots category. Within that range, the Tianlong Conquest D5 occupies the most demanding niche: fire-extinguishing and reconnaissance in explosive environments. The sources describing the robot refer to several related designations, namely RXR-MC80BD, RXR-MC80BD - M (3kW), RXR-MC80BD-GX0 and RXR-M80BD. The published material does not set out in detail how these versions differ from one another, so Robots Middle East confirms the exact configuration with you before any quotation is finalised.

Built as a four-part system

Rather than a single vehicle, the D5 is supplied as a system of four parts: the robot itself, the fire cannon, the environment detection device and the remote control box. That structure reflects how the machine is meant to be used. The tracked chassis provides mobility and traction, the cannon delivers the extinguishing agent, the detection device reads the gas and environment parameters around the robot, and the remote control box keeps the operator at a safe distance while all three are directed. For a site safety manager, this means one procurement covers suppression, monitoring and control together, rather than three separate pieces of equipment that must be integrated afterwards.

Technical Specifications

SpecificationValue
Intended useFire-extinguishing and reconnaissance in explosive environments, such as petrochemical refining, oil and fuel gas storage, and other chemical manufacturing, storage and transportation sites
ProtectionExplosion-proof certified; IP67 & IP68
TrackHeat tolerant, fire retardant rubber and metal lining
CoolingAutomatic water curtain cooling system
Gas detectionIntegrated gas detect platform for gas and environment parameters
Hose tractionDrags two 100M lengths of DN80 fire hose filled with water
Monitor controlRemote rotation, pitching and conversion between multiple spraying modes; easy switch between water and foam
Remote control distanceExceeds 1 kilometre
ImagingHD image system with real-time monitoring; 4G/5G upload optional
Thermal imagingHeat eye detection by infrared thermal imaging (optional)
Hose handlingKnotting prevention and auto drop off function (optional)
System compositionRobot, fire cannon, environment detection device and remote control box

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the battery capacity, the maximum speed, the operating temperature range, the details of network connectivity or a list of included accessories; these are confirmed with you at quotation.

Why does hose traction matter at a petrochemical fire?

In a tank farm or process unit, the safest attack position for a crew is often far from the seat of the fire, yet the monitor has to be close enough to reach it. Bridging that gap normally means people advancing charged lines by hand across hot, wet and potentially hazardous ground. The D5 is built to do that part of the work: its large traction lets it drag two 100M lengths of DN80 hose filled with water, so the supply line travels forward with the robot rather than with the firefighters.

The optional knotting prevention and auto drop off functions address the practical problems that follow. Hoses dragged over pipe racks, kerbs and debris can kink or snag, and a robot that cannot release its line may be harder to manoeuvre or recover. With the hose managed by the machine, the operator can concentrate on positioning and on the monitor, which is turned, pitched and switched between spraying modes remotely. The ability to change from water to foam during an operation is particularly relevant where hydrocarbons are involved and the response may move from cooling exposed structures to blanketing a liquid fire.

How does the D5 protect itself and its operator in an explosive atmosphere?

Protection works on several levels. The robot is explosion-proof certified, which is the threshold requirement for entering zones where flammable gases or vapours may be present. Its IP67 and IP68 ratings describe sealing against dust and water, an important point for a machine that operates in the spray of its own monitor and in pooled firefighting water. The tracks use heat tolerant, fire retardant rubber with a metal lining, and an automatic water curtain cooling system helps shield the robot when it is working close to radiant heat.

The operator, meanwhile, stays well back. The remote control distance exceeds 1 kilometre, and the HD image system provides real-time video of what the robot sees, with 4G/5G upload available as an option so that footage can reach a command post or remote team. The integrated gas detection platform reads gas and environment parameters on the spot, and the optional infrared heat eye tracks heat sources through smoke. Together these turn the robot into a forward observer as well as an extinguishing unit, giving incident commanders information they would otherwise have to send a person in to collect.

Who is the Tianlong Conquest D5 for?

The clearest fit is the in-house fire brigade of a refinery, petrochemical complex or gas processing plant, where explosive atmospheres are a design assumption rather than an exception. Operators of oil and fuel gas storage terminals form a second group: large tank farms present long distances, heavy hose requirements and the constant possibility of vapour release, all of which match the robot's traction, remote range and gas monitoring.

Chemical manufacturers and the companies that store and transport chemicals are a third segment, since the D5 is certified for those manufacturing, storage and transportation sites. Municipal and civil defence fire services that cover industrial zones may also consider it as a specialist asset for hazardous incidents. Industrial safety contractors and emergency response providers serving the oil and gas sector can deploy it as part of a contracted response capability.

Buyers whose main requirement is smoke extraction, dry powder extinguishing or lightweight reconnaissance rather than heavy hose work may find a better match elsewhere in the Topsky range, and broader automation needs are covered in our Industrial Robots category. Where the choice lies between the D5 designations named in the sources, Robots Middle East reviews your site conditions and confirms the appropriate version at quotation.

What is the Tianlong Conquest D5 used for?

  1. Refinery fire attack: advancing a water or foam monitor towards a fire in a process unit while the crew remains at a safe distance.
  2. Storage tank cooling: directing water onto exposed tanks and structures to limit escalation at oil and fuel gas terminals.
  3. Hose line deployment: dragging charged DN80 supply lines into positions that would be hazardous to reach on foot.
  4. Atmospheric reconnaissance: reading gas and environment parameters ahead of any decision to commit personnel.
  5. Hot spot location: tracking heat sources through smoke with the optional infrared thermal imaging.
  6. Chemical site incidents: providing suppression and live video at chemical manufacturing, storage and transportation sites.

Pricing and Availability

The Tianlong Conquest D5 is supplied on quotation, as the final configuration depends on the version, the optional functions selected and the requirements of your site. Request a quotation and the Robots Middle East team will confirm the specification against the manufacturer's datasheet and answer your technical questions. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, please use the quotation request available on this page.

Frequently Asked Questions

Is the Tianlong Conquest D5 certified for explosive environments?

Yes. The robot is explosion-proof certified and is designed and certified for fire-extinguishing and reconnaissance in explosive environments such as petrochemical refining and oil and fuel gas storage.

What ingress protection does the robot have?

The D5 carries IP67 and IP68 ratings, describing its sealing against dust and water.

How much hose can the robot pull?

It has the traction to drag two 100M lengths of DN80 fire hose filled with water.

Can the monitor switch between water and foam?

Yes. The monitor is controlled remotely for rotation, pitching and multiple spraying modes, and it switches easily between water and foam.

How far away can the operator stay?

The remote control distance exceeds 1 kilometre, and the HD image system provides real-time video, with 4G/5G upload as an option.

Which features are optional?

The infrared thermal imaging heat eye, the knotting prevention and auto drop off hose functions, and 4G/5G upload are listed as optional. Robots Middle East confirms the chosen options in the quotation.

Where can I buy the Topsky Tianlong Conquest D5 and what does it cost?

You can buy it from Robots Middle East, which supplies the robot across the Middle East. The cost depends on the version and options, so we provide it in a formal quotation requested through this page.

Summary

At a refinery or fuel depot, the hardest part of fighting fire is moving water and attention into ground where people should not stand. The Topsky Tianlong Conquest D5 Explosion-Proof Fire Fighting Robot (RXR-MC80BD) takes on that work: an explosion-proof certified, IP67 and IP68 rated tracked platform that drags two charged DN80 lines, aims a water or foam monitor by remote control from more than 1 kilometre away, cools itself with a water curtain and reports gas and environment readings as it goes. For fire services and industrial operators in the Middle East who want that capability quoted, delivered and supported by Robots Middle East, this page is the starting point.

Specifications

General

BRAND TOPSKY
MODEL TIANLONG CONQUEST D5
PART # RXR-MC80BD

What's included

Topsky Tianlong Conquest D5 RXR-MC80BD (Tianlong Conquest D5 RXR-MC80BD)
