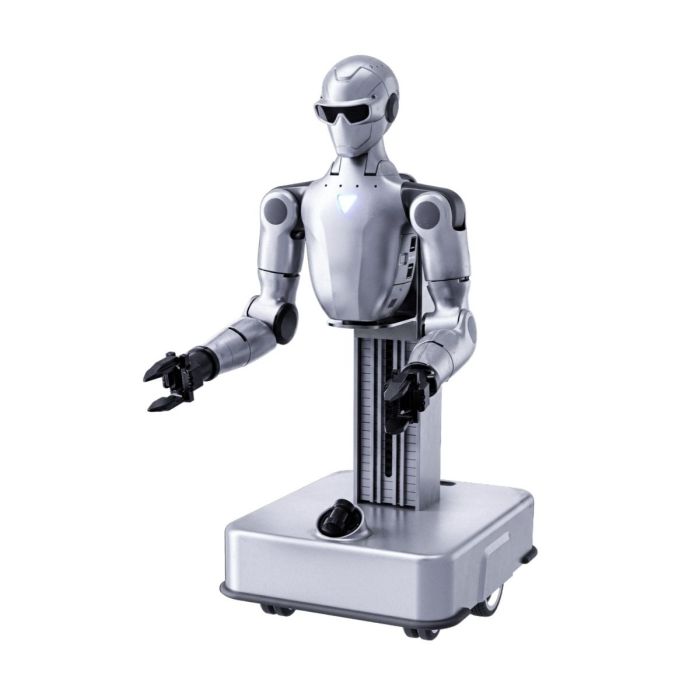

Unitree R1-A5-D Smart Ultimate C Humanoid Robot

Most robots keep all of their thinking in one place. The Unitree R1-A5-D Smart Ultimate C Humanoid Robot divides it. An 8-core high-performance CPU sits in the body. A second 8-core CPU, with 10 TOPS of AI computing, sits in the head, directly behind the binocular camera that watches the workspace. Add chassis LiDAR lower down, two arms with five degrees of freedom each and a choice of gripper or dexterous hand, and the result is a working platform rather than a showpiece. Its senses and its processing are placed where the work happens, so a development team has a sensible structure to build on from the first day.

Robots Middle East sells the Unitree R1-A5-D Smart Ultimate C Humanoid Robot to universities, research centres, system integrators and enterprises throughout the Middle East. We prepare each quotation for the exact configuration requested and arrange supply into the buyer's country. We also remain the buyer's point of contact for technical support once the robot has been delivered and commissioned.

Background

Unitree Robotics and the R1 family

Unitree Robotics is a Chinese manufacturer best known for agile quadruped robots. In recent years it has extended that experience in motors, control and perception into humanoid platforms. The R1 line belongs to that move. The sources name several versions: the R1-A5, the R1-A7, the R1-A5-D, the R1-A7-D and the R1-A5-D Ultimate C. The figures on this page belong to the R1-A5-D, or to the whole series where that is stated. The wider family can be browsed in the Unitree R1 category. Readers comparing configurations of this specific model will find them gathered under Unitree R1-A5-D.

Inner-rotor joint motors and a two-tier computer

Every joint in the series is driven by a low-inertia, high-speed inner-rotor permanent magnet synchronous motor (PMSM). Unitree chose this design for superior responsiveness and heat dissipation. A rotor with little inertia can change speed and direction quickly, which matters for an arm that must react to what its cameras see. Good heat dissipation matters when a robot works through a long session of repetitive tasks.

The second distinctive choice is the computing layout. Separate processors in the body and the head give developers two clear places to deploy software. The head carries the additional 10 TOPS of AI capacity. Across this class of robot, placing vision workloads close to the cameras is common practice, and it keeps the platform easier to reason about as projects grow.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the ingress protection rating, the maximum travel speed of the chassis, the hand payload, the battery capacity or the operating temperature range; these are confirmed at quotation.

Why does the R1-A5-D Smart Ultimate C put AI computing in its head?

A robot that manipulates objects spends much of its effort turning images into decisions. On this model the binocular camera covers 146° horizontally and 124° vertically. That is a wide view of the table, the shelf or the person in front of it. Pairing that camera with an 8-core CPU and 10 TOPS in the same head gives perception software dedicated resources of its own. It does not have to share them with everything else the robot is doing.

The body has its own 8-core CPU. For a research group this two-tier arrangement is a practical advantage. Vision and interaction experiments can be developed on the head processor, while other software runs on the body computer. The optional wrist camera extends the same idea to the hand. With it, the robot can watch the final approach to a grasp, a view the head camera may not have once the arm moves in front of it.

Fixed base or mobile base: how should buyers decide?

The series supports two mounting types, a fixed base and a mobile base. The choice shapes the whole project. A fixed installation suits a laboratory bench, a demonstration counter or a training cell, where repeatability matters more than reach. A mobile base suits work that moves between locations, such as fetching items, guiding visitors or carrying out inspection rounds. The R1-A5-D camera module includes chassis LiDAR for spatial awareness at floor level.

When battery-powered, the series runs for approx. 1.5h. That supports structured working sessions, trials and demonstrations, so charging should be planned into the schedule of any mobile deployment. The R1-A5-D also changes height between its shrunk and raised sizes while its 520x440mm footprint stays the same. Robots Middle East confirms the mounting type and the power arrangement of the Smart Ultimate C package when preparing the quotation.

Who is the Unitree R1-A5-D Smart Ultimate C Humanoid Robot for?

The clearest fit is the university or research laboratory working on manipulation, embodied AI or human-robot interaction. These groups need two arms, capable vision and enough on-board computing to run their own models. The interchangeable end effectors let one robot serve several research questions in turn. A simple gripper suits grasping studies, and a five-finger hand suits dexterity work.

System integrators form a second group. They evaluate humanoid platforms for customers in logistics, retail, hospitality and light assembly. For them, WiFi 6, Bluetooth 5.2 and the choice of mounting type make the robot straightforward to fit into an existing site. Innovation centres, technical colleges and visitor attractions form a third group. They value a robot that can speak through its dual speakers, gesture with two arms and engage an audience safely.

Unitree offers the R1-A5-D in several packages, and buyers should compare them before deciding. The bare Unitree R1-A5-D Mobile Base Dual-Arm Humanoid Robot and the Unitree R1-A5-D Smart C Humanoid Robot are the closest relatives of this Ultimate C configuration. Robots Middle East will set out the contents of each package side by side, so that the choice rests on what a project actually requires.

What is the Unitree R1-A5-D Smart Ultimate C Humanoid Robot used for?

1. Manipulation research: studying grasping and bimanual tasks with grippers or dexterous hands.
2. Embodied AI development: deploying vision and language models on the head computer and testing them on real objects.
3. Human-robot interaction: exploring speech, gesture and attention with a robot of human proportions.
4. Teaching and training: giving engineering students a complete platform for perception, control and programming.
5. Service demonstrations: greeting, guiding and presenting in showrooms, exhibitions and visitor centres.
6. Integration pilots: evaluating dual-arm automation in retail, logistics or light assembly before a wider roll-out.

Pricing and Availability

The price of the Unitree R1-A5-D Smart Ultimate C Humanoid Robot depends on the configuration chosen. This includes the mounting type, the end effector and whether the optional wrist camera is fitted. Robots Middle East therefore provides it by quotation, prepared against your requirements and the current manufacturer datasheet. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, simply send us your project details using the quotation request available on this page.

Frequently Asked Questions

How many degrees of freedom does each arm have?

On the R1-A5-D, each arm has 5 degrees of freedom, giving the robot two independently controlled arms.

Which hands can be fitted to the robot?

The series offers an optional two-finger gripper, a three-finger dexterous hand or a five-finger dexterous hand. The end effector supplied with your package is confirmed in the quotation.

How long does the robot run on battery power?

When battery-powered, the series runs for approx. 1.5h. The battery capacity itself has not been published by the manufacturer.

What sensors does it use to perceive its surroundings?

The R1-A5-D combines chassis LiDAR with a binocular camera, and a wrist camera is available as an option. The binocular camera has a field of view of 146° horizontally and 124° vertically.

How does the robot connect to other systems?

The series supports WiFi 6 and Bluetooth 5.2, which allows wireless connection to development workstations and site networks.

What are the IP rating and the hand payload?

Neither has been published by the manufacturer, and nor have the chassis travel speed or the operating temperature range. Robots Middle East confirms these points with the manufacturer during quotation.

Where can I buy the Unitree R1-A5-D Smart Ultimate C Humanoid Robot and what does it cost?

You can buy it from Robots Middle East, which supplies it across the Middle East. The cost depends on the configuration, so we provide a tailored quotation rather than a fixed list price.

Summary

The Unitree R1-A5-D Smart Ultimate C Humanoid Robot is defined by where it places its intelligence. A body computer and a head computer with 10 TOPS divide the work. A wide-angle binocular camera and chassis LiDAR supply the perception, and two five-degree-of-freedom arms carry a gripper or a dexterous hand of your choice. Responsive inner-rotor joint motors, wireless connectivity and a choice between fixed and mobile mounting make it a platform for laboratories, classrooms and integration pilots alike. Robots Middle East supplies it across the region, with the configuration, logistics and support handled in one quotation. For any organisation weighing a dual-arm humanoid for serious development work, this page is the starting point.
