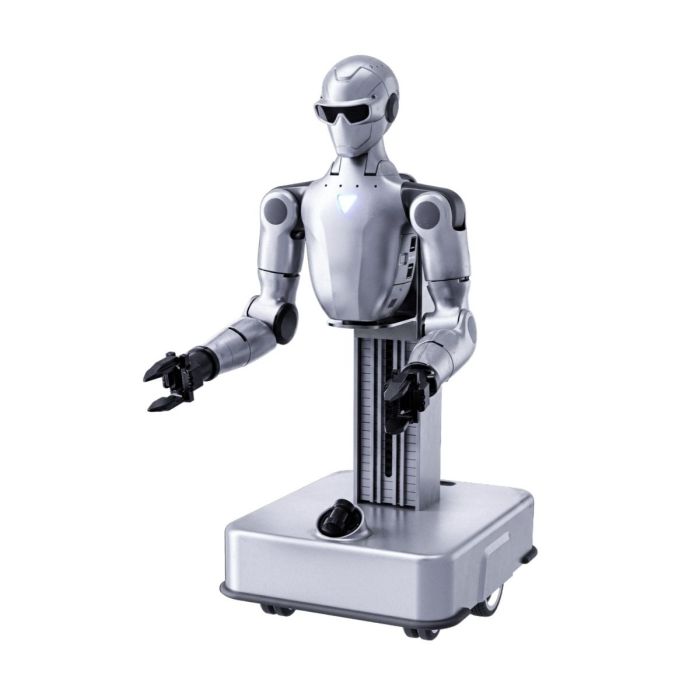

Unitree R1-A5-D Smart Ultimate H Humanoid Robot

With a humanoid, the body is often the easier choice. Arms, a waist and a head that turns can be judged against a task in an afternoon. The harder choice is how much thinking the machine should do for itself, without a cable back to a workstation. The Unitree R1-A5-D Smart Ultimate H Humanoid Robot puts that choice at the centre of the purchase. It combines the R1-A5-D body, whose upper half rises on a pillar above a mobile base, with the tendon-driven dexterous hand of the H configuration. Unitree lists its built-in compute at two levels: an Orin Nano module for the Smart H and an Orin NX module for the Ultimate H. Choosing between them decides how much perception and decision-making takes place inside the robot itself.

Robots Middle East supplies the Unitree R1-A5-D Smart Ultimate H Humanoid Robot to universities, research centres, system integrators and businesses across the Middle East. Our team prepares each quotation for the exact configuration you specify and sets out in writing which compute module is included. We also arrange delivery, customs clearance and after-sales support for your location, so the robot arrives ready for your programme and not as a box of open questions.

Background

Unitree Robotics and the R1 family

Unitree Robotics built its reputation on agile quadruped robots and has since become one of the most visible makers of humanoid platforms for research and development. The R1 line continues that approach: capable hardware made accessible to laboratories and developers, with open interfaces so that buyers can write their own behaviour and do not have to accept a closed product. Within the line, the R1-A5-D designation identifies a specific body, and the Smart and Ultimate labels, together with the lettered suffixes, identify how that body is equipped. The H configuration is the one fitted with a tendon-driven dexterous hand.

A body that changes height, a mind in layers

Two design decisions define this robot. The first is physical. The R1-A5-D measures 683x520x440mm collapsed and 1600x520x440mm raised, so the same footprint serves both storage and work at human height. The second is computational. The head module carries its own computing power, and the Smart H and Ultimate H configurations add an Orin module built into the robot. For developers, this means perception, speech and manipulation software can run on board, and the open interfaces to the underlying system, arm, audio, lighting and visual control allow that software to be replaced or extended.

Technical Specifications

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

Unitree has not published the IP rating, the operating temperature range, the battery capacity, the maximum travel speed or the speed of the lift column; we confirm these at quotation.

What does the Ultimate H add over the Smart H?

The difference lies in the built-in compute. The Smart H carries an Orin Nano module rated at 40 Tops, and the Ultimate H carries an Orin NX module rated at 100 Tops. The body, sensing, joint motors and degrees of freedom are specified for the R1-A5-D platform as a whole, so the choice concerns on-board processing headroom, not mechanics.

In practice, that headroom decides what can run on the robot at the same time. A team running a single vision model with modest manipulation logic may find the Smart H sufficient. A team that wants several perception pipelines, voice interaction and learned manipulation policies running together on board, without sending work to an external computer, has a clear reason to choose the Ultimate H. Because the product name brings both levels together, tell us which level your work needs and our team will build the order around it. The tendon-driven dexterous hand is listed for the Smart H configuration.

Why does a tendon-driven dexterous hand matter?

In a tendon-driven hand, the actuators sit away from the fingers and move them through cables, much as forearm muscles move human fingers. The fingers themselves can therefore stay slim and light, and the cable transmission gives the grip a natural compliance when it closes around irregular objects. For research in grasping, tool use and learning from demonstration, that behaviour is often more valuable than raw force.

Combined with the binocular camera's wide field of view and the option of a wrist camera, the hand gives the robot what it needs to see an object, approach it and close on it with care. That is the foundation of most manipulation research and of many service-robot demonstrations.

Who is the Unitree R1-A5-D Smart Ultimate H Humanoid Robot for?

The first group is university and institutional laboratories working on embodied AI, manipulation and human–robot interaction. They need a complete body with open interfaces, not a sealed appliance. The second group is system integrators and innovation teams who build demonstrators for retail, hospitality, logistics or customer service, where a robot that collapses for transport and rises to human height is easier to take from site to site. The third group is education: engineering faculties and technical colleges that want students to work on a real humanoid with industry-standard compute.

Buyers who do not need the dexterous hand or the larger built-in compute should compare the other configurations of the same body in the Unitree R1-A5-D range. That range includes the Unitree R1-A5-D Mobile Base Dual-Arm Humanoid Robot and lettered configurations such as the Unitree R1-A5-D Smart A Humanoid Robot. The wider Unitree R1 family is also available for comparison. Our team will help you match a configuration to your programme before you commit.

What is the Unitree R1-A5-D Smart Ultimate H Humanoid Robot used for?

1. Manipulation research: grasping studies and learned manipulation policies built on the tendon-driven hand.
2. Embodied AI development: running perception and decision models on the built-in Orin compute.
3. Human–robot interaction: dialogue and gesture experiments using the speakers, lighting and head movement.
4. Service demonstrations: receptions, showrooms and exhibitions where a mobile humanoid greets and assists visitors.
5. Engineering education: teaching robotics, control and computer vision on a complete humanoid platform.
6. Integration prototyping: testing custom applications through the open interfaces before wider deployment.

Pricing and Availability

Robots Middle East quotes the Unitree R1-A5-D Smart Ultimate H Humanoid Robot for each order, because the configuration, the compute module, any optional wrist camera and the support package all shape the final offer. Delivery, customs and support are arranged with the quotation, so the document you receive covers the robot and its arrival at your site. Send us your requirements and we will reply with a quotation for the exact configuration you need. The request form is available on this page.

Frequently Asked Questions

What is the difference between the Smart H and the Ultimate H?

The difference is the built-in compute: an Orin Nano 40 Tops module for the Smart H and an Orin NX 100 Tops module for the Ultimate H. The choice depends on how much processing you want to run on board.

How many degrees of freedom does the robot have?

The R1-A5-D has 16 degrees of freedom in total: five in each arm, one in the waist, two in the head, one in the pillar and two in the base.

What sensors are fitted?

The R1-A5-D carries a chassis LiDAR and a binocular camera with a field of view of Horizontal 146°, Vertical 124°. A wrist camera is available as an option.

How long does the battery last?

Battery life is approx. 1.5h. For longer sessions, plan charging breaks into your working schedule.

Can I develop my own software for it?

Yes. Unitree provides open interfaces to the underlying system, the robotic arm, audio, lighting and visual control, among others.

What connectivity and audio does the robot offer?

The robot supports WiFi 6 & Bluetooth 5.2 and is fitted with Dual Speakers (3W×2) for voice interaction.

Where can I buy the Unitree R1-A5-D Smart Ultimate H Humanoid Robot and what does it cost?

You can buy it from Robots Middle East, which supplies it across the Middle East. The cost depends on the configuration and services you choose, so we provide it in a personal quotation, which you can request on this page.

Summary

The Unitree R1-A5-D Smart Ultimate H Humanoid Robot answers the body question with an adjustable-height humanoid on a mobile base, a tendon-driven dexterous hand and wide binocular vision. It leaves the buyer one real decision: how much intelligence to build in. The Orin Nano module of the Smart H and the Orin NX module of the Ultimate H give two clear levels of on-board processing, and the open interfaces make the robot a platform for your own work, not someone else's script. For laboratories, integrators and educators in the Middle East who want to settle that decision with expert help and a quotation that covers delivery and support, this page is the starting point.
