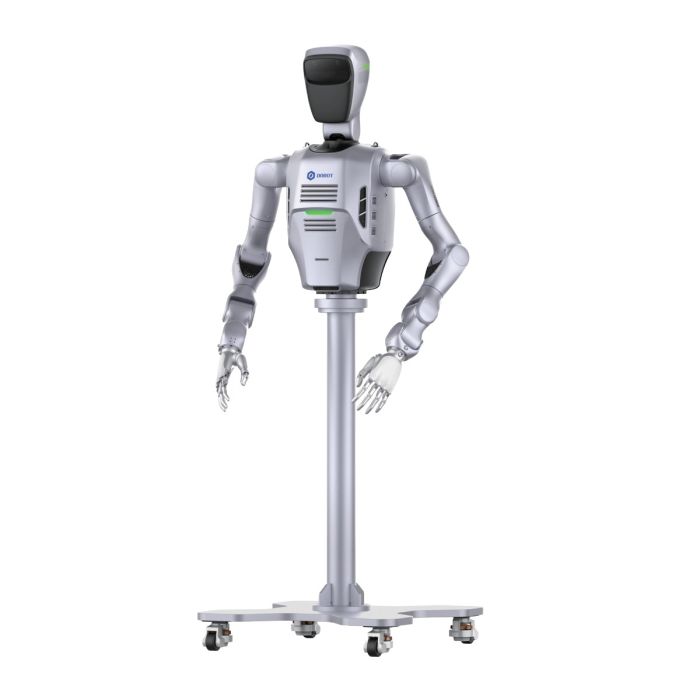

Dobot Atom D Upper Body Humanoid Robot

A humanoid upper body built to record how skilled hands work, giving embodied AI teams articulated arms, a moving head and depth vision for capturing demonstrations. Robots Middle East supplies it to research laboratories and innovation centres that need clean, consistent data to train the next generation of robot intelligence.

In stock

BRAND:
DOBOT
MODEL:
ATOM D
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Dobot-Atom-D

Dobot Atom D Upper Body Humanoid Robot

A good scientific instrument is judged less by its appearance than by what it allows a laboratory to observe and keep. The Dobot Atom D Upper Body Humanoid Robot works on the same principle. Its legs give way to a human-like torso, arms and head, so its value lies in how faithfully it captures manipulation, how clearly it sees the workspace and how readily its recordings flow into the computers that learn from them. For a research group, it is a measuring device shaped like a person.

Robots Middle East sells the Dobot Atom D and supplies it to universities, research institutes, innovation centres and corporate AI teams across the Middle East. Robots Middle East prepares each quotation for the configuration a project requires, arranges delivery to the customer's site and remains the point of contact for support once the robot is in service.

Background

DOBOT and the Atom series

DOBOT built its reputation on collaborative robot arms and on robots for education. The Atom series marks its move into humanoid robotics and embodied AI. The series as a whole is presented as the world's first full-sized humanoid robot combining dexterous manipulation with straight-knee walking. Rather than offering one humanoid for every purpose, DOBOT divides the line into named versions: ATOM Max, ATOM Trainer, ATOM D - Data Collection and ATOM D EDU. The Atom D sits within the Upper Body Humanoids category, where locomotion matters less than what happens at arm's length.

A platform optimised for data

The ATOM D - Data Collection is optimised for large-scale data tasks. Embodied AI models learn from demonstrations, and a demonstration only becomes useful when the robot's movements, the scene and the operator's intent are recorded consistently over thousands of repetitions. The Atom D addresses that requirement with 7-DoF dual arms, a 2-DoF head, customisable end-effectors, a head-mounted vision pair and Ethernet connectivity for external data collection and processing. Each of these elements serves the same purpose: turning a session at the robot into a clean, repeatable record.

Technical Specifications

SpecificationATOM D - Data Collection
Arms7-DoF dual arms
Head2-DoF
Maximum end speed of arm1.5 m/s
Head sensorRGB-D camera x1 + Full HD binocular camera x1
Depth cameraIntel RealSense D455 (6m range)
Binocular camera60fps Full HD
Basic computing moduleIntel i5
ConnectivityEthernet
Joint assembly actuators hollow alignmentYes
SDK supportSupported
End-effectorsCustomisable: dexterous hands/grippers and wrist cameras
Optional accessoriesBattery Pack 1x, Battery Charger 1x, 6-DoF Dexterous Hands 2x, 2-Finger Adaptive Grippers 2x, Wrist-Mounted RGB-D Cameras 2x, Mobile Base 1x

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

DOBOT has not published the IP rating, operating temperature, battery capacity, power consumption, overall dimensions or payload per arm with hands fitted; Robots Middle East confirms these at quotation.

What makes the Atom D different from a full-sized walking humanoid?

The Atom series is known for combining dexterous manipulation with straight-knee walking, yet many embodied AI projects never need the robot to cross a room. Grasping, sorting, assembling, folding and handing over objects all take place within the reach of two arms. The Atom D concentrates its engineering on that zone. With 7-DoF per arm, each arm has the redundancy of a human limb, so it can approach an object from several angles and reproduce the varied postures an operator uses when demonstrating a task. The 2-DoF head points the cameras where the hands are working, keeping the action in frame.

Mobility remains available when it is needed. DOBOT lists a Mobile Base among the optional accessories, together with a Battery Pack and Battery Charger, so a team can begin with a stationary data station and later take the robot to different scenes. Because the end-effectors are customisable, the same upper body can collect data with 6-DoF Dexterous Hands for fine manipulation or with 2-Finger Adaptive Grippers for simpler, more repeatable grasps. The hollow alignment of the joint assembly actuators also matters on a platform of this kind, as it gives cabling a tidy internal path through the joints.

Why does the vision system matter for teleoperation and data collection?

A demonstration is only as good as the operator's view of the task. The Atom D's head carries a 60fps Full HD binocular camera that minimises VR/MR motion sickness while ensuring high-quality imaging. For teleoperation through a headset, this has practical consequences: an operator who stays comfortable can work longer sessions and produce steadier demonstrations, which means more usable data per day. Alongside it, the Intel RealSense D455 depth camera, with a 6m range, adds depth information to the scene, so a learning model receives geometry as well as colour.

The optional Wrist-Mounted RGB-D Cameras extend this view to the point of contact, capturing the close-range detail of a grasp that a head camera cannot always see. All of this is useful only if it leaves the robot efficiently, and the Ethernet connection supports external data collection and processing. The Intel i5 basic computing module handles on-board work, while SDK support allows research teams to connect the Atom D to their own recording pipelines, training frameworks and control software.

Who is the Dobot Atom D for?

The Atom D is aimed at organisations whose main output is data rather than finished work. Embodied AI start-ups and corporate research groups building imitation learning or vision-language-action models will find a platform designed around recording demonstrations at scale. University laboratories in robotics, computer vision and human-robot interaction can use it as a shared instrument for postgraduate research, comparing grippers and dexterous hands on the same arms. Innovation centres and national research programmes in the region can use it as the core of a data-collection facility serving several projects.

Buyers whose research depends on locomotion, or who need the full-sized walking platform for which the series is known, should compare the wider line, including the Dobot Atom Max Full-Size Embodied Al Humanoid Robot and the Dobot Atom Trainer. Teams who want a humanoid that moves on wheels may also consider the Dobot ATOM-W Wheeled Humanoid Robot. DOBOT also names an ATOM D EDU version, which Robots Middle East can discuss alongside the Data Collection model. The full range is available in the Humanoids category.

What is the Dobot Atom D used for?

  1. Teleoperated demonstration capture: operators guide the arms through tasks while the binocular camera supplies a comfortable view.
  2. Imitation learning datasets: repeated, consistent recordings of manipulation tasks become training material for embodied AI models.
  3. Grasping and manipulation research: dexterous hands and adaptive grippers can be compared on the same pair of arms.
  4. Depth-aware vision research: the RealSense D455 and optional wrist cameras provide RGB-D data for perception studies.
  5. Software and pipeline development: the SDK and Ethernet link connect the robot to custom recording and training systems.
  6. Multi-scene data collection: with the optional Mobile Base and Battery Pack, the robot can gather data beyond a single workstation.

Pricing and Availability

Robots Middle East supplies the Dobot Atom D by quotation, because the final configuration depends on the end-effectors, cameras and accessories each project needs. Delivery, customs clearance and after-sales support are arranged together with the quotation. To discuss your data-collection programme and receive a tailored offer for the Dobot Atom D Upper Body Humanoid Robot, please use the quotation request available on this page.

Frequently Asked Questions

How many degrees of freedom do the arms and head have?

The ATOM D - Data Collection has 7-DoF dual arms and a 2-DoF head.

How fast can the arms move?

The maximum end speed of the arm is 1.5 m/s.

Which cameras does the robot use?

The head carries an Intel RealSense D455 depth camera with a 6m range and a 60fps Full HD binocular camera. Wrist-Mounted RGB-D Cameras are available as an optional accessory.

Can I choose between hands and grippers?

Yes. The end-effectors are customisable, and the optional accessories include 6-DoF Dexterous Hands and 2-Finger Adaptive Grippers.

Can the Atom D run on battery or move around?

A Battery Pack, Battery Charger and Mobile Base are listed as optional accessories, so the robot can be configured for work away from a fixed workstation.

Can I integrate the robot with my own software?

SDK support is provided, and the Ethernet connection supports external data collection and processing on your own systems.

Where can I buy the Dobot Atom D and what does it cost?

Robots Middle East supplies the Dobot Atom D across the Middle East. The cost depends on the configuration and accessories chosen, so please request a quotation from this page.

Summary

Like any fine instrument, the Dobot Atom D is defined by what it lets a team observe and keep. Its 7-DoF dual arms reproduce human manipulation, its 2-DoF head and paired cameras capture the scene in depth and in comfortable stereo, and its Ethernet link and SDK move those recordings into the systems that learn from them. Customisable end-effectors and optional mobility allow the instrument to grow with the research. For organisations in the Middle East building embodied AI on high-quality demonstration data, with Robots Middle East handling supply and support, this page is the starting point.
