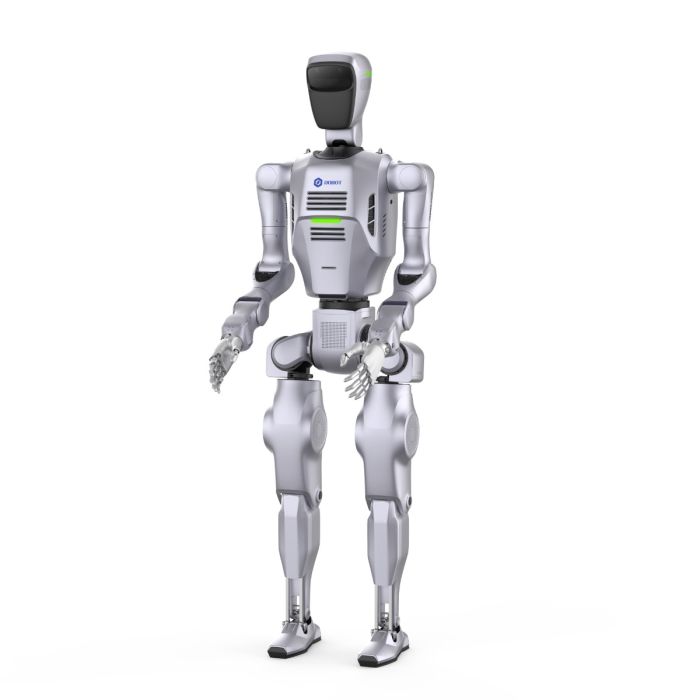

Dobot Atom Max Full-Size Embodied Al Humanoid Robot

A full-size humanoid that walks upright on straight knees and works with dexterous hands, built so that research laboratories and industrial cells can explore embodied AI in spaces designed for people. Guided by VR/MR teleoperation and powered by on-board AI compute, it learns from human demonstration and turns it into skilled, repeatable work.

In stock

BRAND:
DOBOT
MODEL:
ATOM MAX
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Dobot-Atom-Max

Dobot Atom Max Full-Size Embodied Al Humanoid Robot

Factories, laboratories and logistics halls across the Gulf were laid out for people: benches at elbow height, aisles a shoulder wide, tools shaped for a human grip. A robot built on human proportions can work in those spaces without rebuilding them, and that is the bet behind the Dobot Atom Max Full-Size Embodied Al Humanoid Robot. It walks upright on straight knees, works with two dexterous hands, sees through a binocular and depth-sensing head, and carries enough on-board compute to learn from the people who guide it. It is aimed at teams who want a humanoid that fits their existing environment rather than one that needs a new environment built around it.

Robots Middle East supplies the Atom Max to research institutions, universities, industrial integrators and innovation centres throughout the Middle East. Our team prepares each quotation, coordinates delivery and import formalities into your country, and provides technical support after installation, so that your project has a single regional point of contact from first enquiry to first experiment.

Background

DOBOT and the Atom Series

DOBOT is known internationally for collaborative robot arms and robotics platforms for education and research. The Atom Series extends that experience into full-size humanoid robotics, and it includes more than one version, among them the ATOM Max and the ATOM D for data collection. Atom is the world's first full-sized humanoid robot to combine dexterous manipulation with straight-knee walking. The Atom Max is the version designed for advanced robotics research and industrial applications, and it is the most fully equipped in terms of teleoperation and on-board AI compute.

Two systems: hands and gait

The design rests on two named technologies. The Neuro-Driven Dexterity System (NDS) controls 28 upper-body degrees of freedom through a Transformer-based architecture and binocular RGB vision, running at 200Hz with servo-level vibration suppression. The approach is inspired by human brain-hand co-evolution, and it is intended for fine motor tasks such as tool use, assembly and handling items of differing specifications. The Anthropomorphic Walking System (AWS) replaces the bent-knee gait common to many humanoids with straight-knee walking, which reduces energy consumption by 42% compared with traditional bent-knee walking. That gain supports stability and endurance during continuous operation, as well as movement through narrow spaces and work at workstation heights between 700 and 1000mm.

Technical Specifications

SpecificationValue
Degrees of freedom (with dexterous hands)41
Full-body degrees of freedom (without dexterous hands/jaws)29
Dexterous hands6-DoF
Upper-body degrees of freedom controlled by NDS28
Control frequency200Hz
Height≈1650mm
Weight (without dexterous hands/jaws)≈62kg
Single arm load (without dexterous hand/gripper)3.5kg
Single arm repeatability± 0.05mm
Maximum walking speed1.5m/s
Energy saving of AWS versus bent-knee walking42%
Workstation heights supported700-1000mm
Battery life≈2h
Head sensorsRGB-D Camera x1 + Full HD Binocular Camera x1
Vision system60FPS Full HD
Depth sensingIntel RealSense D455
AI module1500 TOPS
Edge computing for multi-robot collaboration7.7x industry-standard computational power
TeleoperationVR/MR, markerless tracking, full-body and segmented control modes
Optional Embodied AI SetHigh-precision URDF models, open-source training framework, multi-modal data tools

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the IP rating, the operating temperature range, the operating system, the maximum payload of the hands, the charging input voltage or the connectivity options; Robots Middle East confirms these with you at quotation.

Why does straight-knee walking matter for a working humanoid?

Most bipedal robots keep their knees bent so that the body stays low and easier to balance. The cost of that posture is constant muscular effort at every joint, which in a robot means continuous current draw. The Atom Max walks with straight knees, much as a person does, and its Anthropomorphic Walking System cuts energy consumption by 42% compared with bent-knee walking. For a buyer, the practical consequence is endurance: with a battery life of about two hours, every unit of energy saved on walking is energy available for the task itself.

An upright gait also changes what the robot can reach. Standing at a height of about 1650mm, the Atom Max is designed to adapt to workstation heights from 700 to 1000mm, the range of ordinary benches, conveyors and assembly tables. Combined with its ability to navigate narrow spaces, this means it can be evaluated in an existing laboratory or production cell without modifying the furniture around it.

What does the Atom Max add for embodied AI research?

The Atom Max is the version in which teleoperation and compute come to the fore. It supports VR/MR teleoperation with markerless tracking, so an operator can guide the robot without wearing reflective markers, and it offers two control modes: full-body, in which the robot follows the operator as a whole, and segmented, in which individual parts of the body are directed separately. This is the foundation of a common embodied AI workflow, in which human demonstrations are recorded and used to train policies that the robot later executes on its own.

All of this runs on a 1500 TOPS AI module for real-time edge computing, which keeps perception and control on the robot rather than dependent on a remote server. The optional Embodied AI Set adds high-precision URDF models for simulation, an open-source training framework and multi-modal data tools, shortening the path from recorded demonstration to trained behaviour. For laboratories that plan to run several robots together, the Atom platform supports multi-robot collaboration through an edge computing system that delivers 7.7x industry-standard computational power.

Who is the Dobot Atom Max for?

The Atom Max suits university and government research groups working on embodied AI, imitation learning and humanoid locomotion, who need a full-body platform with on-board compute and a teleoperation interface for gathering demonstration data. It also suits industrial innovation teams and system integrators who wish to test humanoid automation in real workstations, where the arm repeatability of ± 0.05mm and the dexterous hands are relevant to assembly, tool use and handling of mixed parts.

Technology parks, national research programmes and corporate innovation centres in the region may also consider it as a demonstrator that is capable of genuine work rather than display alone. Where a project is concerned chiefly with data collection and does not require the full walking platform, the Dobot Atom D Upper Body Humanoid Robot may be a closer fit; our team will gladly compare the two with you. The wider range is available in our Humanoid Robots category.

What is the Dobot Atom Max used for?

  1. Embodied AI research: training and testing manipulation and locomotion policies on a full-size humanoid body.
  2. Teleoperated data collection: recording human demonstrations through VR/MR teleoperation for imitation learning.
  3. Assembly tasks: fine, repeatable manipulation at standard workstation heights.
  4. Tool use: handling hand tools with dexterous hands controlled by the Neuro-Driven Dexterity System.
  5. Multi-specification handling: picking and placing items of differing shapes and sizes within a production or logistics cell.
  6. Multi-robot studies: coordinating several humanoids through edge computing for collaborative work.

Pricing and Availability

Robots Middle East provides the Atom Max on a quotation basis, so that the configuration, including whether the optional Embodied AI Set is required, matches your project. Delivery, customs clearance and technical support are arranged together with the quotation. Please tell us about your application, your site and your timeline, and our specialists will prepare an offer accordingly; a quotation for the Dobot Atom Max is available on this page.

Frequently Asked Questions

How many degrees of freedom does the Atom Max have?

The Atom Max is a 41-DoF humanoid robot. Without the dexterous hands or jaws, the full body has 29 degrees of freedom, and the hands are 6-DoF each.

How long does the battery last?

The battery life is approximately two hours. The straight-knee gait reduces walking energy consumption by 42% compared with bent-knee walking, which helps that capacity go further.

What sensors are in the head?

The head carries one RGB-D camera and one Full HD binocular camera. The vision system runs at 60FPS Full HD, with depth sensing by an Intel RealSense D455.

Can the robot be operated remotely?

Yes. The Atom Max supports VR/MR teleoperation with markerless tracking and offers both full-body and segmented control modes.

What does the optional Embodied AI Set include?

It provides high-precision URDF models, an open-source training framework and multi-modal data tools. These are intended to accelerate the development and training of robot behaviours.

What is the IP rating of the Atom Max?

The IP rating is one of the specifications listed beneath the table. Robots Middle East will confirm it for you at quotation.

Where can I buy the Dobot Atom Max and what does it cost?

You can buy the Atom Max from Robots Middle East, which supplies, delivers and supports it across the Middle East. Pricing depends on configuration and destination, so please request a quotation through this page.

Summary

The Atom Max starts from a simple observation: the places where work happens were designed around people, so a robot shaped like a person can join them with the fewest changes. Its straight-knee gait saves energy and adapts to standard workstation heights, its dexterous hands and Neuro-Driven Dexterity System handle fine manipulation, and its 1500 TOPS AI module and VR/MR teleoperation turn human demonstrations into training data. For research groups and industrial teams in the Middle East who want to explore humanoid automation in their own environments, with supply and support from Robots Middle East, this page is the starting point.
