Husarion ROSbot 3 PRO UGV
In stock
- BRAND:
- HUSARION
- MODEL:
- ROSbot 3
- ORIGIN:
- Poland
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Husarion-ROSbot-3-PRO

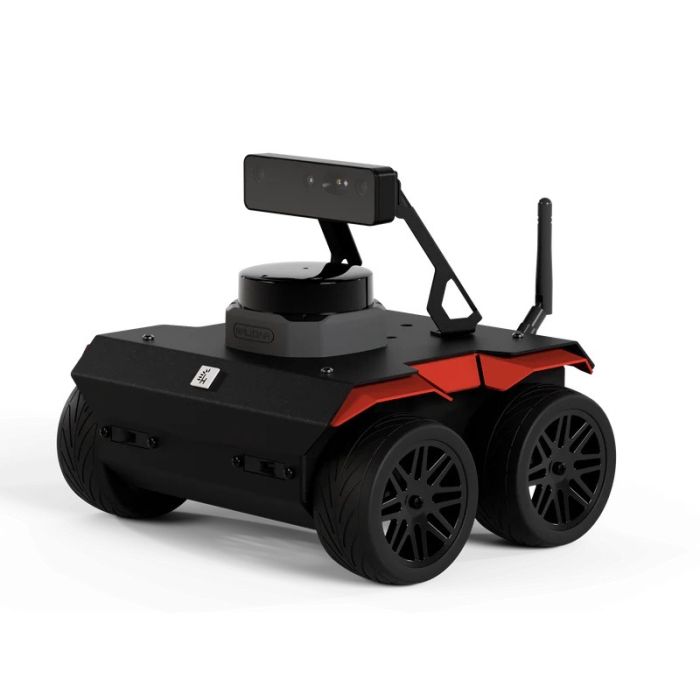

Husarion ROSbot 3 PRO UGV
Two robots can share a chassis, a computer and a top speed, yet perceive the same room in quite different ways. That difference is what the PRO suffix means. The Husarion ROSbot 3 PRO UGV keeps the compact aluminium body, the Raspberry Pi 5 and the ROS 2 software of its sibling, then changes what the robot sees, pairing an RPLIDAR S2 360 degree scanner with a Luxonis OAK-D Pro 3D camera. For teams whose results depend on the quality of sensor data, such as those working on mapping, localisation or visual perception, that change is the reason to choose it.
Robots Middle East supplies the ROSbot 3 PRO to universities, research institutes, schools and technology teams across the Middle East. We prepare formal quotations, arrange delivery to your institution and provide support once the robot is in service, so that a laboratory in the region deals with a single accountable supplier from the first enquiry to the first experiment.
Background
Husarion and the ROSbot line
Husarion develops mobile robots for the ROS community, and its range runs from compact indoor research platforms to larger machines such as the Husarion Panther Industrial Grade Indoor / Outdoor UGV (PTH12) and the Husarion Lynx UGV. The ROSbot family sits at the compact, indoor end of that range. It is a platform built for research and education, where a robot must be small enough for a laboratory bench or a classroom floor, yet complete enough to run real autonomy software. The wider selection is available in our Husarion collection.
The current generation is offered in two versions: the ROSbot 3 and the ROSbot 3 PRO. Both share the same mechanical design, onboard computer, drive sensing and software. They differ in their perception hardware, and that distinction defines the PRO.
A configured ROS 2 environment
The ROSbot 3 PRO runs Ubuntu 24.04 with ROS 2 Jazzy preinstalled. Husarion's open-source ROS 2 drivers are installed and configured before the robot ships, so it works out of the box rather than as a kit awaiting integration. The computing is split between a Raspberry Pi 5 single-board computer with 8GB RAM and a built-in STM32F407 microcontroller, while magnetic encoders on each of the four wheels, a BNO055 9-axis absolute orientation sensor and four VL53L0X Time-of-Flight distance sensors complete the onboard sensing.
Husarion also provides a simulation model of the ROSbot in the Gazebo environment. Algorithms can therefore be developed and tested in simulation and then transferred to the physical robot, a workflow that suits courses where many students share a small number of robots.
Technical Specifications
| Specification | ROSbot 3 PRO | ROSbot 3 |
|---|---|---|
| Product type | Indoor mobile robot platform for research and education | Indoor mobile robot platform for research and education |
| 3D camera | Luxonis OAK-D Pro | Luxonis OAK-D Lite |
| LIDAR | RPLIDAR S2, 360 degree | RPLIDAR C1, 360 degree |
| Single-board computer | Raspberry Pi 5 (ARM64 architecture) quad-core ARM-8 Cortex A76 @ 2.4GHz, 8GB RAM, 64 GB MicroSD flash memory | Raspberry Pi 5 (ARM64 architecture) quad-core ARM-8 Cortex A76 @ 2.4GHz, 8GB RAM, 64 GB MicroSD flash memory |
| Operating system | Ubuntu 24.04 with ROS 2 Jazzy preinstalled | Ubuntu 24.04 with ROS 2 Jazzy preinstalled |
| Built-in microcontroller | STM32F407 | STM32F407 |
| Dimensions with camera and LiDAR (L x W x H) | 200 x 233 x 197 mm / 7.9 x 9.2 x 7.7 in | 200 x 233 x 197 mm / 7.9 x 9.2 x 7.7 in |
| Weight | 2,84 kg / 100 oz with camera and LiDAR; 2,45 kg / 86 oz without | 2,84 kg / 100 oz with camera and LiDAR; 2,45 kg / 86 oz without |
| Chassis material | Powder-coated aluminium plate, 1.5 mm thick | Powder-coated aluminium plate, 1.5 mm thick |
| Maximum translational velocity | 1.0 m/s | 1.0 m/s |
| Maximum rotational velocity | 420 deg/s (7.33 rad/s) | 420 deg/s (7.33 rad/s) |
| Maximum load capacity | Up to 5 kg / 176 oz, not in continuous work | Up to 5 kg / 176 oz, not in continuous work |
| Battery life | 1.5h - 5h | 1.5h - 5h |
| Batteries | 3 x Li-Ion 18650 protected, rechargeable, 3500mAh, 3.7V nominal voltage | 3 x Li-Ion 18650 protected, rechargeable, 3500mAh, 3.7V nominal voltage |
| Infrared distance sensors | 4 x VL53L0X Time-of-Flight, up to 200 cm range | 4 x VL53L0X Time-of-Flight, up to 200 cm range |
| IMU | BNO055 9-axis absolute orientation sensor | BNO055 9-axis absolute orientation sensor |
| Encoders | 4, magnetic, 48cpr, 12 poles | 4, magnetic, 48cpr, 12 poles |
| USB (rear panel) | 2 x USB 2.0 host ports from SBC | 2 x USB 2.0 host ports from SBC |
| Antenna | Dual-band, connected to the Wi-Fi USB adapter | Dual-band, connected to the Wi-Fi USB adapter |
| Simulation | Gazebo model available | Gazebo model available |
| Set contents | ROSbot 3 PRO, dedicated charger, USB Ethernet adapter, aluminium case | ROSbot 3, dedicated charger, USB Ethernet adapter, aluminium case |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.
Husarion has not published an IP rating, an operating temperature range, the camera resolution, the voltage of the battery pack or the power consumption; Robots Middle East confirms these at quotation.
What does the ROSbot 3 PRO add over the ROSbot 3?
The answer is narrow and deliberate. Everything that moves the robot, computes on it and senses its own motion is identical across the two versions: the Raspberry Pi 5, the STM32F407 microcontroller, the four magnetic encoders, the BNO055 orientation sensor, the four Time-of-Flight distance sensors, the 1.0 m/s translational speed and the 420 deg/s rotational speed. The chassis, dimensions and weight are the same, and both ship with Ubuntu 24.04 and ROS 2 Jazzy.
What changes is the perception pair. The ROSbot 3 carries an RPLIDAR C1 and a Luxonis OAK-D Lite; the ROSbot 3 PRO carries an RPLIDAR S2 and a Luxonis OAK-D Pro. The PRO is therefore the version to choose when the sensors themselves are the subject of the work, for instance when a project compares SLAM methods, studies depth perception or builds datasets for perception research. Because the rest of the robot is unchanged, code written on one version carries over to the other, and a department can run both side by side without maintaining two separate software environments.
Can the ROSbot 3 PRO be used straight out of the box?
Yes. The open-source ROS 2 drivers are installed and configured before delivery, which means the camera, LiDAR, inertial sensor, distance sensors and wheel odometry are already presented to ROS 2 when the robot is first switched on. A team can move directly to visualising sensor data, teleoperating the base and building maps instead of spending its first weeks on wiring and driver work.
The set supports that start: it includes the robot, a dedicated charger, a USB Ethernet adapter and an aluminium case for storage and transport between laboratories. Two USB 2.0 host ports on the rear panel and a dual-band antenna connected to the Wi-Fi USB adapter cover the usual connections for development and remote operation.
Who is the Husarion ROSbot 3 PRO UGV for?
The first group is university research laboratories working on indoor autonomy. For them the combination of a 360 degree LiDAR, a 3D camera and a configured ROS 2 stack on one compact base is the main attraction, and the PRO sensor pair suits work where perception quality affects the results.
The second group is postgraduate and final-year programmes in robotics, computer science and mechatronics. A robot that arrives working, with a Gazebo model for simulation, lets a supervisor set meaningful projects within a single semester.
The third group is corporate innovation teams and start-ups prototyping indoor navigation or perception software before committing to larger hardware. The ROSbot 3 PRO offers a realistic sensor set at a scale that fits an office floor.
Where a classroom needs several robots for introductory teaching, and the finer perception of the PRO is not the focus, the Husarion ROSbot 3 UGV provides the same chassis, computer and software with the RPLIDAR C1 and OAK-D Lite. Projects that move outdoors or need a larger machine should look across our UGVs range, and Robots Middle East will advise on the most suitable platform.
What is the Husarion ROSbot 3 PRO UGV used for?
- SLAM research: building and comparing maps of indoor spaces with the RPLIDAR S2 and wheel odometry.
- Autonomous navigation: developing and testing path planning and obstacle avoidance under ROS 2 Jazzy.
- Depth perception studies: working with 3D data from the Luxonis OAK-D Pro for object detection and scene understanding.
- Robotics teaching: giving students a physical ROS 2 robot that works from the first lesson.
- Simulation-to-hardware transfer: developing in the Gazebo model and validating the same code on the real robot.
- Sensor fusion experiments: combining LiDAR, camera, IMU, encoder and Time-of-Flight data on one platform.
Pricing and Availability
Robots Middle East supplies the Husarion ROSbot 3 PRO UGV on quotation, prepared for your institution or organisation and the configuration you require. Delivery, customs and support are arranged together with the quotation. To begin, a quotation for the Husarion ROSbot 3 PRO UGV can be requested through the enquiry form available on this page.
Frequently Asked Questions
Which sensors does the ROSbot 3 PRO carry?
It carries an RPLIDAR S2 360 degree LiDAR, a Luxonis OAK-D Pro 3D camera, a BNO055 9-axis orientation sensor, four VL53L0X Time-of-Flight distance sensors and four magnetic wheel encoders.
What software is installed on the robot?
The ROSbot 3 PRO runs Ubuntu 24.04 with ROS 2 Jazzy preinstalled, and Husarion's open-source ROS 2 drivers are configured so the robot works out of the box.
Can I develop software before the robot arrives?
Yes. Husarion provides a simulation model of the ROSbot in the Gazebo environment, so development can begin in simulation and continue on the hardware.
How long does the battery last?
The battery life is 1.5h to 5h. The robot uses three protected, rechargeable Li-Ion 18650 cells of 3500mAh at 3.7V nominal voltage, and similar batteries may be supplied interchangeably.
How much can the robot carry?
The maximum load capacity is up to 5 kg / 176 oz, though not in continuous work.
Is the ROSbot 3 PRO intended for outdoor use?
It is designed as an indoor mobile robot platform for research and education. For outdoor projects, Robots Middle East can recommend other Husarion platforms.
Where can I buy the Husarion ROSbot 3 PRO UGV and what does it cost?
You can buy it from Robots Middle East, which supplies institutions across the Middle East. The cost depends on your requirements and is set out in a formal quotation, which you can request through this page.
Summary
The ROSbot 3 PRO shows that a meaningful upgrade does not have to change everything. It keeps the ROSbot 3's aluminium chassis, Raspberry Pi 5, drive sensing and configured ROS 2 Jazzy environment, and replaces the perception pair with the RPLIDAR S2 and Luxonis OAK-D Pro. Laboratories and programmes whose work depends on what the robot sees gain that sensor upgrade without giving up shared code, a Gazebo model or a robot that is ready on the day it arrives. For a quotation, with delivery and support arranged by Robots Middle East, this page is the starting point.
