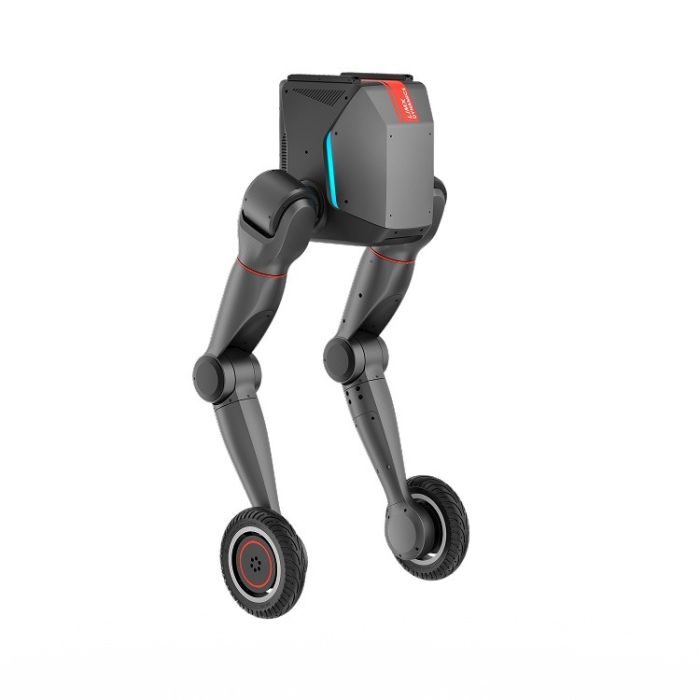

LimX Tron 2 Multi-Form Embodied Robot

A robot that walks, rolls, climbs and handles objects with its manipulator arms, the LimX Tron 2 gives research teams one platform for studying how machines move and work at the same time. Robots Middle East supplies it to laboratories, universities and development teams across the region for embodied AI and mobile manipulation projects.

In stock

BRAND:
LIMX
MODEL:
TRON 2
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
LimX-Tron-2

LimX Tron 2 Multi-Form Embodied Robot

Picture a corridor that ends in a short flight of stairs, with a box waiting on the landing above. For a research team, that ordinary scene is a demanding test. A robot has to cross flat floor briskly, climb without losing balance, settle its body and then use its arms with precision, all within one continuous task. The LimX Tron 2 Multi-Form Embodied Robot is designed so that the whole sequence can be studied on a single machine. It is one body that takes three configurations, joining high-performance dual manipulator arms to all-terrain bipedal mobility. Locomotion, balance and manipulation therefore share one platform and one software environment, rather than being split across separate robots.

Robots Middle East supplies the LimX Tron 2 to universities, research institutes, technology companies and innovation centres across the Middle East. Our team prepares each quotation, coordinates delivery to your facility and remains your point of contact for technical questions once the robot is in service. We work in English and Arabic, and we can align the offer with the procurement procedures of public and private institutions in the region.

Background

LimX and its family of embodied robots

LimX builds robots for embodied intelligence, the field concerned with machines that learn and act in the physical world rather than only in simulation. Its range, which you can browse in our LimX category, includes full-size humanoids as well as multi-modal bipeds such as the LimX Tron 1 Standard Edition Multi-Modal Biped Robot. The Tron 2 continues the multi-modal idea, but adds a pair of manipulator arms and an active vision head. The emphasis shifts from studying how a legged robot moves to studying how it moves and works at the same time.

One body, three configurations

The central design choice of the Tron 2 is that a single body serves three configurations. It is designed as an all-scenario, all-terrain integrated development platform for VLA (vision-language-action) research, mobile manipulation and full-body motion control. For locomotion, the robot travels either on soles or on wheels, so a team can pick the gait that suits the floor and the task. Each arm offers 7 DoF, each leg 5 DoF and the vision head 2 DoF. This allows perception, balance and grasping to be coordinated as one control problem. Development is supported in Python and C++, with ROS1 and ROS2 compatibility, so existing research code can be brought across rather than rewritten.

Technical Specifications

SpecificationValue
Product typeMulti-modal embodied robot, one body with three configurations
MaterialAluminium alloy, plastic
Degrees of freedom (single arm)7 DoF
Degrees of freedom (single leg)5 DoF
Active vision head DoF2 DoF
Arm reach70cm
Maximum end effector load5kg per arm (3kg extended)
Maximum end effector speed5 m/s
Repeat positioning accuracy± 0.5mm
Teleoperation delay100ms
Maximum movement speedSole: 2-3 m/s, Wheeled: 3-5 m/s
Maximum climbing slopeSole: 15°, Wheeled: 30°
Maximum step height20cm
Maximum load capacity30kg (flat ground), 20kg (stair climbing)
BatteryTernary lithium battery, 9Ah
Battery output voltage46.8V
Maximum battery power2,800W
Charging time30min (20-80%), 54min (20-100%)
SoftwarePython, C++ development environments; ROS1/ROS2 supported

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the robot's weight, its dimensions, its ingress protection rating, its runtime per charge, its operating temperature range or its wireless connectivity; we confirm these points with you at quotation.

How does the Tron 2 move on soles and on wheels?

The Tron 2 moves in two modes, and the contrast between them explains why the multi-form approach matters. On its soles, the robot reaches 2-3 m/s and climbs slopes of up to 15°. On wheels, it reaches 3-5 m/s and handles slopes of up to 30°. Wheeled travel therefore suits longer, faster transits and steeper ramps. Travel on soles offers a legged gait for situations in which stepping is the more natural behaviour. The maximum step height is 20cm, which brings stairs and kerbs within the range of experiments.

Carrying capacity follows the same practical logic. The robot carries up to 30kg on flat ground and up to 20kg while climbing stairs. For a team studying logistics or service tasks, this means the robot can carry a meaningful load as part of an experiment, not merely an empty end effector. Because both modes belong to one body, a researcher can compare gaits on the same hardware, with the same sensors and the same software. Results then reflect the behaviour under test rather than differences between machines.

What can the dual arms of the Tron 2 handle?

Each arm has 7 DoF and a reach of 70cm, which gives the redundancy needed to approach an object from several angles and to work around obstacles. The maximum end effector load is 5kg per arm, falling to 3kg at full extension. The maximum end effector speed is 5 m/s. Repeat positioning accuracy of ± 0.5mm supports tasks in which the same motion must be reproduced reliably, such as collecting consistent demonstrations for learning.

Teleoperation is a key part of how embodied AI datasets are built, and the Tron 2 has a teleoperation delay of 100ms. An operator can guide both arms while the robot records what it sees through its active vision head. The resulting data can then feed VLA models or imitation-learning pipelines. The battery is a ternary lithium pack of 9Ah at 46.8V, with a maximum power of 2,800W. A charge from 20% to 80% takes 30min, which helps keep data-collection sessions moving.

Who is the LimX Tron 2 Multi-Form Embodied Robot for?

The first audience is university and institute laboratories working on embodied intelligence, particularly vision-language-action models that must be tested on real hardware. The Tron 2 gives these groups one robot on which perception, locomotion and manipulation can be combined in a single experiment.

A second group is corporate research and development teams exploring mobile manipulation for logistics, inspection or service settings. For them, the combination of a stated load capacity, stair climbing and dual arms provides a realistic test bed before any task-specific system is designed. Control specialists form a third group. They will value the leg and arm degrees of freedom when developing full-body motion control, where balance and reaching interact.

The Tron 2 is offered in two versions, TRON 2 Standard and TRON 2 EDU. The EDU version is, by its name, aimed at teaching settings, and we set out the differences in configuration and support between the two in your proposal. Teams whose work centres on legged locomotion alone, without manipulation, may also wish to compare the LimX Tron 1 Education Edition Multi-Modal Biped Robot. Those who need a full humanoid form can look at the LimX Oli EDU Full-Size General Purpose Open Source Humanoid Robot.

What is the LimX Tron 2 Multi-Form Embodied Robot used for?

  1. VLA research: testing vision-language-action models on a robot that sees, moves and manipulates in the real world.
  2. Mobile manipulation: studying tasks in which the robot must travel to an object before handling it with both arms.
  3. Full-body motion control: developing controllers that coordinate legs, arms and vision head as one system.
  4. Teleoperation and data collection: recording operator-guided demonstrations to train learning-based policies.
  5. Load carrying on varied terrain: evaluating transport across flat floors, slopes and stairs.
  6. Teaching and software development: giving students and engineers a Python, C++ and ROS-compatible platform for practical robotics work.

Pricing and Availability

Robots Middle East supplies the LimX Tron 2 on a quotation basis, so that the offer reflects the version, configuration and support your project requires. Delivery, customs clearance and after-sales support are arranged together with the quotation. Tell us about your research goals, your facility and your preferred version, and we will prepare a tailored proposal. To begin, please use the quotation request available on this page.

Frequently Asked Questions

What does the multi-form design of the Tron 2 mean in practice?

The robot is one body that takes three configurations, combining dual manipulator arms with all-terrain bipedal mobility. A team can match the robot to the task without switching to a different machine or software stack.

Which programming environments does the Tron 2 support?

It is compatible with Python and C++ development environments and supports both ROS1 and ROS2. Existing research code can therefore be integrated with limited adaptation.

How much can the Tron 2 carry?

The maximum load capacity is 30kg on flat ground and 20kg when climbing stairs. Each arm handles up to 5kg at the end effector, or 3kg at full extension.

Can the Tron 2 climb stairs and slopes?

Yes. The maximum step height is 20cm, and the maximum climbing slope is 15° on soles and 30° on wheels.

Is the Tron 2 suitable for teleoperation?

The teleoperation delay is 100ms, and the robot is designed as a platform for collecting demonstrations. This makes it well suited to building datasets for learning-based control.

What is the difference between TRON 2 Standard and TRON 2 EDU?

Both versions are available, with the EDU version oriented towards teaching. Robots Middle East sets out the configuration and support of each version in your proposal.

Where can I buy the LimX Tron 2 Multi-Form Embodied Robot and what does it cost?

You can obtain it from Robots Middle East, which supplies customers across the Middle East. Pricing is provided by individual quotation, prepared according to your chosen version and project needs.

Summary

The corridor, the stairs and the box on the landing summarise why the LimX Tron 2 exists. Real tasks rarely separate travel from handling, and research that aims for real-world robots needs hardware that keeps them together. With 7 DoF arms, 5 DoF legs, an active vision head, travel on soles or wheels, and ROS1 and ROS2 support, the Tron 2 gives laboratories and development teams one platform for VLA research, mobile manipulation and full-body control. Robots Middle East quotes, delivers and supports it across the region. For teams ready to study the full sequence from approach to grasp, this page is the starting point.
