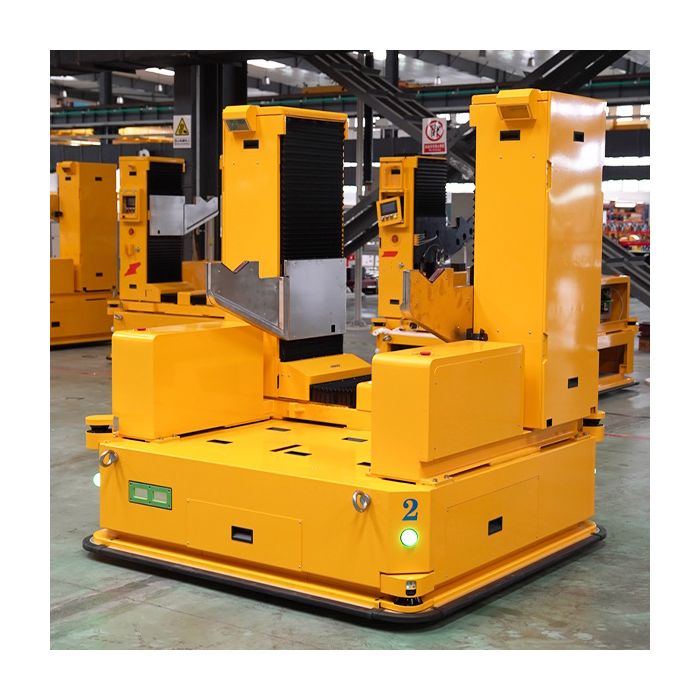

SIASUN AGV In New Energy Industry

A family of SIASUN mobile robots that carries delicate electrode rolls, cells and packs between the stations of a lithium battery plant, so the material arrives where each machine expects it. Robots Middle East supplies it to battery manufacturers who want transport to be as controlled as the process itself.

In stock

BRAND:
SIASUN
PART #:
AGV In New Energy Industry
ORIGIN:
China
AVAILABILITY:
FOR OPPORTUNITIES OVER 1 MILLION USD
SKU:
SIASUN-AGV-In-New-Energy-Industry

SIASUN AGV In New Energy Industry

A lithium battery plant is often described by its machines: coaters, presses, winders, formation lines. Yet much of the risk in such a plant sits in the spaces between them, where a finished electrode roll or a half-built pack has to travel from one station to the next without a scratch, a jolt or a misaligned handover. The SIASUN AGV In New Energy Industry is SIASUN's answer to those in-between spaces: a customised family of mobile robots that carries material through the whole battery production cycle, from pole piece and cell manufacturing to pack assembly, according to the process requirements of each stage.

Robots Middle East sells the SIASUN AGV In New Energy Industry and supplies it to battery manufacturers, gigafactory projects and automation integrators across the Middle East. Robots Middle East prepares each quotation around the customer's own process, arranges delivery to the site and provides support once the robots are working on the production floor.

Background

SIASUN and its approach to mobile robotics

SIASUN is a robotics manufacturer whose portfolio spans industrial robot arms, collaborative robots and mobile robots for factory logistics, all of which can be found in the SIASUN range. Rather than presenting a single vehicle for every factory, SIASUN treats mobile robotics in the new energy sector as a solution to be configured: the company has designed and developed high-precision mobile robots, cantilever axis mobile robots and lifting mobile robots to meet the transport needs of battery production, and pairs them with forklift type, roller type and lifting type mobile robots at the PACK end of the line.

A solution shaped by the process, not the other way round

The defining idea behind this product is customisation to the process. SIASUN has developed a mobile robot load-bearing structure suitable for lifting that is based on the external characteristics of the polar roll and on the form of the docking equipment it must meet. In other words, the robot is built around the electrode roll and the machine that receives it, rather than asking the plant to adapt its equipment to a standard vehicle. At the PACK end, where loads and handovers are more uniform, SIASUN uses relatively standard forms of mobile robot to improve efficiency and reduce costs. The whole fleet can be linked with the workshop MES system to achieve automated production.

Technical Specifications

SpecificationValue
Application areaLithium Battery Manufacture
Docking accuracyUp to ± 1mm
Maximum carrying capacityUp to 4T
Transport robot typesHigh-precision mobile robots, cantilever axis mobile robots, lifting mobile robots
PACK end robot typesForklift type, roller type and lifting type mobile robots
Load-bearing structureCustomised for lifting, based on the polar roll and the docking equipment
Workshop system integrationCan be linked with the workshop MES system

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, weight, battery type and capacity, travel speed, navigation method, runtime and charging, IP rating, safety certifications, power supply or the contents of the delivery for this solution; all of these are confirmed at quotation.

Why can electrode coils not simply be moved by hand?

The transport of coil material is one of the most demanding steps in battery manufacturing, and SIASUN built this solution around it. A finished coil is heavy, which makes purely manual handling impossible. The workshop also has to be kept clean, so every unnecessary contact and every improvised lifting aid is a risk to product quality. On top of that, the process requires high precision, high reliability and high conveying efficiency at the same time.

A mobile robot that docks with an accuracy of up to ± 1mm addresses the precision side of the problem: the roll arrives where the receiving equipment expects it, rather than roughly in the right place. A maximum carrying capacity of up to 4T addresses the weight. The customised load-bearing structure, designed around the shape of the polar roll and the docking equipment, addresses the handover itself, which is where damage most often occurs. Linked to the workshop MES system, the robots become part of automated production rather than a separate transport step that operators must coordinate by hand.

How do the electrode-stage robots differ from the PACK-end robots?

The fact sheet describes two quite different philosophies within one solution. In the front and middle stages, where pole pieces and battery cells are made, the transport task is specialised: large, sensitive rolls have to be lifted and presented to machines with tight tolerances. This is where SIASUN applies its high-precision, cantilever axis and lifting mobile robots, with load-bearing structures customised to the roll and the docking equipment.

At the PACK end, the task changes. Modules and packs move along an assembly line where handovers are more regular, so SIASUN uses relatively standard forms of mobile robot: forklift type, roller type and lifting type. The aim here is efficiency and lower cost rather than bespoke engineering. For a buyer, this means the project can be scoped stage by stage: specialised robots where the process is unforgiving, standard forms where it is repetitive.

Who is SIASUN AGV In New Energy Industry for?

The most obvious buyers are lithium battery manufacturers building or expanding production lines, particularly those planning to automate the whole product cycle rather than isolated cells of the factory. For these organisations, a single supplier covering electrode, cell and pack logistics simplifies integration with the workshop MES system.

Plants whose main concern is electrode roll handling will find the high-precision, cantilever axis and lifting mobile robots the most relevant part of the solution, since these address the weight, cleanliness and docking demands of coil transport. Pack assembly operations, by contrast, are better served by the forklift type, roller type and lifting type mobile robots that SIASUN uses at the PACK end, where standard forms keep costs down. Automation integrators and engineering contractors delivering new energy projects in the region are a further audience, as they can specify the appropriate robot type for each stage of a client's line.

What is SIASUN AGV In New Energy Industry used for?

  1. Electrode roll transport: moving finished coil material that is too heavy for purely manual handling.
  2. Precise docking: presenting rolls to process equipment with docking accuracy of up to ± 1mm.
  3. Pole piece manufacturing logistics: carrying material through the front and middle stages of electrode production.
  4. Battery cell manufacturing: linking cell production steps with reliable, repeatable material flow.
  5. PACK line handling: using forklift type, roller type and lifting type mobile robots on the pack assembly line.
  6. MES-linked automated production: connecting transport tasks to the workshop MES system for automated operation.

Pricing and Availability

Because each SIASUN AGV In New Energy Industry deployment is customised to the process requirements of the plant, Robots Middle East prices it by quotation, based on the stages to be automated, the robot types required and the docking equipment involved. Delivery, customs and support are arranged with the quotation. To begin, share your line layout and transport requirements with Robots Middle East through the quotation request available on this page.

Frequently Asked Questions

What is the SIASUN AGV In New Energy Industry?

It is a customised mobile robot solution for lithium battery manufacture, covering transport from front and middle pole piece and cell manufacturing through to pack assembly.

What docking accuracy do the mobile robots achieve?

Mobile robot docking accuracy can reach ± 1mm.

How much can the mobile robots carry?

The maximum carrying capacity of the mobile robots can reach 4T.

Can the robots be connected to our factory systems?

Yes. The solution can be linked with the workshop MES system to achieve automated production.

Which robot types are used at the PACK end?

SIASUN uses forklift type, roller type and lifting type mobile robots at the PACK end, relatively standard forms chosen to improve efficiency and reduce costs.

Is the load-bearing structure adapted to our equipment?

Yes. SIASUN develops a mobile robot load-bearing structure suitable for lifting, based on the external characteristics of the polar roll and the form of the docking equipment.

Where can I buy the SIASUN AGV In New Energy Industry and what does it cost?

You can buy it from Robots Middle East, which supplies it across the Middle East. The cost depends on the configuration of your project and is set out in a tailored quotation.

Summary

The machines of a battery plant attract the attention, but the spaces between them decide whether material arrives intact, on time and exactly where it should. The SIASUN AGV In New Energy Industry is built for those spaces: specialised high-precision, cantilever axis and lifting mobile robots for the heavy, sensitive work of electrode transport, standard forklift, roller and lifting types for the pack line, docking accuracy of up to ± 1mm, a maximum carrying capacity of up to 4T and a link to the workshop MES system. Robots Middle East quotes, delivers and supports the solution across the region. For a battery manufacturer ready to close the gaps between its machines, this page is the starting point.
