SIASUN SP160-160-3.05 (SP160-160/3.05)
In stock
- BRAND:
- SIASUN
- PART #:
- SP160-160/3.05
- ORIGIN:
- China
- AVAILABILITY:
- FOR OPPORTUNITIES OVER 1 MILLION USD
- SKU:
- SIASUN-SP160-160/3.05

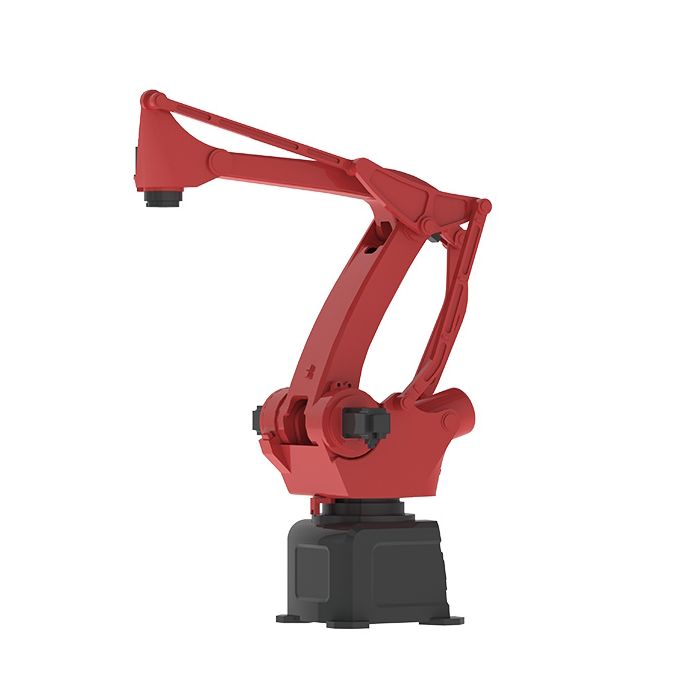

SIASUN SP160-160-3.05 (SP160-160/3.05)
Four axes can sound like a compromise next to the six-jointed arms that dominate trade-show stands, yet at the end of a production line the opposite is often true. Remove the joints a task does not need, and what remains can put its effort into lifting, reaching and repeating. The SIASUN SP160-160-3.05 (SP160-160/3.05) follows that logic: a floor-mounted industrial robot with a 160 kg payload, a reach of 3050 mm and dedicated palletising software, designed to build stable loads rather than to perform intricate manoeuvres.
Robots Middle East supplies the SIASUN SP160-160-3.05 (SP160-160/3.05) to manufacturers, packers and logistics operators across the Middle East. Robots Middle East prepares the quotation, arranges delivery to your site and coordinates technical support, so that a project moves from specification to installed cell through a single point of contact.
Background
SIASUN and its engineering lineage
SIASUN Robot & Automation Co., Ltd. is a Chinese robotics manufacturer based in Shenyang, with roots in the national research community for automation. Its portfolio spans industrial manipulators, mobile robots for factories and warehouses, and complete automation lines, which means the company approaches a palletising robot as one element of a wider material-flow system rather than as an isolated machine. Buyers who already work with SIASUN mobile platforms or production equipment will find the SP160-160/3.05 sits within a familiar family; the full range is listed in the SIASUN category.
A four-axis design built around palletising
The SP160-160/3.05 has four degrees of freedom and is mounted on the floor. In this class of robot, the arm typically rotates about its base, extends and lowers its load, and turns the tool at the wrist, while keeping the gripper parallel to the ground. That geometry suits stacking: a carton, sack or crate is picked from a conveyor, carried across, rotated into its pattern position and set down level on the growing layer. SIASUN equips the robot with special palletising software, so pallet patterns and layer sequences are handled by an application built for the purpose instead of being programmed point by point. Motion is governed by the SIASUN SRC E5 controller.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SP160-160/3.05 |
| Payload | 160 kg |
| Reach | 3050 mm |
| Repeatability | ± 0.2 mm |
| Degrees of freedom | 4 |
| Controller | SRC E5 |
| Mounting position | Floor |
| Cable connection | 32-core cable |
| Protection rating | IP53 |
| Power consumption | 8 kVA |
| Weight | 1000 kg |
| Software | Dedicated palletising software |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.
The manufacturer has not published the dimensions, the operating temperature range, the included accessories, the arm structure weight at the wrist or the allowable moment of inertia; Robots Middle East confirms these at quotation.
What makes a four-axis palletiser different from a six-axis robot?
A six-axis articulated arm can tilt and twist its tool in any direction, which is essential for tasks such as seam welding on curved parts or assembly that approaches a workpiece from awkward angles. Palletising rarely asks for that freedom. The load must travel from a pick point to a place point and arrive flat; tilting it would only risk spilling the contents or disturbing the pattern. By working with four degrees of freedom, the SP160-160/3.05 matches its kinematics to that requirement.
The practical consequences are felt in planning and in daily operation. Fewer axes mean fewer orientations for the integrator to consider, and the dedicated palletising software lets layer patterns be defined as patterns rather than as long lists of coordinates. The 3050 mm reach allows one floor-mounted robot to serve infeed conveyors and one or more pallet positions from a single base, while the 160 kg payload leaves room for the weight of the gripper as well as the product it carries. A repeatability of ± 0.2 mm keeps each unit landing where the pattern expects it, layer after layer, which is what produces a square, stable pallet ready for wrapping and transport.
Is the SP160-160/3.05 suited to demanding factory environments?
The robot carries an IP53 protection rating. Under the IP coding system, that classification indicates protection against dust ingress to a degree that does not impair operation and against spraying water, which is a sensible level for packing halls, building-material plants and warehouses where airborne dust is part of the working day. Sites with washdown regimes or heavy water exposure should discuss their conditions with Robots Middle East early in the project.
Installation planning starts with the published figures. The robot weighs 1000 kg and is mounted on the floor, so the foundation and anchoring must be assessed as part of the cell design. Power consumption is 8 kVA, which the site electrical supply must accommodate, and the connection uses a 32-core cable. Buyers operating in hot climates should review their environmental conditions with Robots Middle East before committing to a layout.
Who is the SIASUN SP160-160-3.05 (SP160-160/3.05) for?
The clearest fit is any operation where heavy, regular units leave a line and must be stacked: producers of bagged cement, fertiliser, flour, sugar or animal feed; beverage and food plants handling crates and shrink-wrapped packs; and manufacturers of building materials whose products are dense and unforgiving on manual handlers. In each case, the combination of payload and reach lets one robot take over a task that would otherwise demand repeated heavy lifting by staff.
Contract packers and third-party logistics providers form a second group. Their product mix changes often, and the palletising software helps them switch between pallet patterns without reprogramming the cell from scratch. The manufacturer also positions the robot for assembly, loading and unloading, welding and other production stages, so plant engineers seeking a sturdy floor-mounted manipulator for transfer tasks between machines may also find it relevant.
The SP160-160/3.05 is less appropriate where a task requires the tool to tilt or approach from many angles, which is the territory of six-axis arms. Companies planning a broader automated material flow can pair a palletising cell with SIASUN mobile robots that carry finished pallets onward; these are listed in the SIASUN category.
What is the SIASUN SP160-160-3.05 (SP160-160/3.05) used for?
- End-of-line palletising — stacking cartons, sacks and crates into stable patterns using the dedicated palletising software.
- Depalletising — lifting units from incoming pallets and feeding them onto conveyors for processing or packing.
- Loading and unloading — transferring heavy parts or packages between conveyors, machines and storage positions.
- Assembly support — placing substantial components into fixtures where a strong, repeatable floor-mounted arm is required.
- Welding cells — serving welding and other production stages that the manufacturer names among its suitable applications.
- Production line flexibility — replacing fixed handling equipment with a programmable robot that adapts as products and patterns change.
Pricing and Availability
Robots Middle East quotes each SIASUN SP160-160-3.05 (SP160-160/3.05) project individually, because the right configuration depends on the gripper, the pallet patterns, the cell layout and the site conditions. Share your product dimensions, unit weights, target pallet formats and line layout, and the quotation will reflect the cell you actually need. Delivery, customs clearance and technical support are arranged together with the quotation. To begin, use the quotation request available on this page.
Frequently Asked Questions
What payload can the SP160-160/3.05 handle?
The robot has a payload of 160 kg. That figure covers the gripper as well as the product, so the end-of-arm tool should be considered when sizing the application.
How far can the robot reach?
The reach is 3050 mm, which allows a single floor-mounted robot to serve conveyors and pallet positions arranged around its base.
How many axes does it have?
The SP160-160/3.05 has four degrees of freedom, a configuration suited to palletising, where loads are carried and placed level.
Which controller does it use?
The robot is operated by the SIASUN SRC E5 controller, and it is equipped with dedicated palletising software.
What protection rating does it have?
The robot is rated IP53. For washdown areas or unusually harsh conditions, discuss your environment with Robots Middle East before ordering.
What does the installation require?
The robot weighs 1000 kg, mounts on the floor and has a power consumption of 8 kVA. Foundation, anchoring and electrical supply should be assessed during cell design.
Where can I buy the SIASUN SP160-160-3.05 (SP160-160/3.05) and what does it cost?
You can buy it from Robots Middle East, which supplies the robot across the Middle East. The cost depends on the configuration and scope of your project, so request a quotation through this page.
Summary
The SIASUN SP160-160-3.05 (SP160-160/3.05) shows why fewer axes can be the stronger choice. By concentrating on what palletising truly demands — a 160 kg payload, a reach of 3050 mm, repeatability of ± 0.2 mm and software written for stacking — it turns the last metres of a production line into a predictable, automated step. Its floor mounting, IP53 rating and SRC E5 controller give integrators a clear basis for planning. Supplied, delivered and supported by Robots Middle East, it suits manufacturers and logistics operators who want heavy loads stacked consistently, shift after shift. If your line ends in pallets, this page is the starting point.
