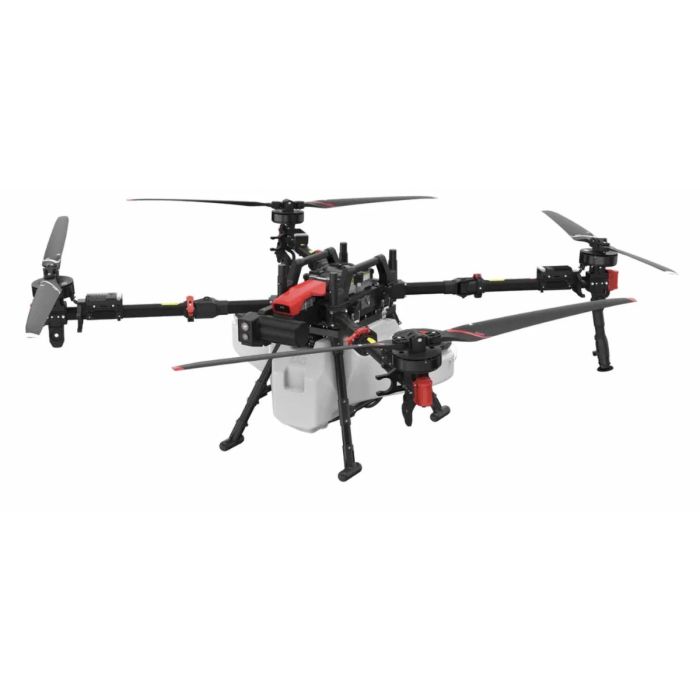

XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit

A starter configuration of XAG's P150 Max heavy-lift agricultural drone, a single autonomous platform that sprays, spreads, maps fields and carries farm loads by changing its task module. Robots Middle East supplies it to farms and service contractors who wish to bring precision aerial work in-house.

In stock

BRAND:
XAG
PART #:
XAG-P150-Max-Starter-7KW-2B2C-Kit
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
XAG-P150-Max-Starter-7KW-2B2C-Kit
AED 109,319.43
Loading...

XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit

There is something deliberately understated about calling a heavy-lift aircraft a starter. The XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit opens the way to a platform that carries an 80 kg payload, flies at up to 20 m/s and changes from sprayer to spreader, surveyor or carrier by exchanging the module beneath it. What begins modestly here is the configuration, not the machine. An operation can start with one aircraft and build its working methods around it, instead of replacing the aircraft each time the work on the farm changes.

Robots Middle East supplies the XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit to farms, agricultural service contractors and estate operators across the Middle East. Robots Middle East prepares each quotation, arranges delivery to your site and supports the aircraft after handover, so that you deal with a single team from the first enquiry to the first season in the field.

Background

XAG and its approach to agricultural robotics

XAG is an agricultural robotics company dedicated to making farming more efficient, sustainable and rewarding, delivering autonomous solutions intended to produce measurable results for farmers around the world. That emphasis on autonomy shapes the P150 Max. Missions are planned and managed through the XAG One 7.0 app, which is compatible with both Android and iOS, and the aircraft then carries out the work along its planned route. For a farm manager, the practical consequence is that the skill lies chiefly in planning the job well, rather than in piloting the aircraft by hand across every hectare.

A modular platform rather than a single-purpose sprayer

The defining idea of the P150 Max is separation. The flight platform and the task modules are detachable, which allows quick changes between spraying, spreading, field mapping and farm logistics as the season requires. XAG names three task systems for the aircraft: RevoSpray 5 for liquids, RevoCast 5 for granules and RevoSling for suspended loads. Lift comes from 63-inch high-performance propellers designed for strength and heat resistance, while foldable arms and propellers reduce the storage space required and make transport and handling more convenient between fields. The result is an aircraft that behaves less like a single tool and more like a carrier for several.

Technical Specifications

SpecificationValue
ApplicationsAutonomous spraying, spreading, field mapping and material transport
Payload capacity80 kg
Top flight speed20 m/s
Max. liquid tank capacity (RevoSpray 5)80 L
Droplet size adjusting range (RevoSpray 5)60-500 μm
Granule container capacity (RevoCast 5)115 L
Spread rate (RevoCast 5)Up to 300 kg/min
Max. flight speed with RevoSling13.8m/s
Field mapping per flightUp to 20 hectares
Obstacle detection4D imaging radar, 1.5 to 100 m along the flight path
Propellers63-inch
Protection ratingIPX6K
DesignDetachable flight platform and task modules; foldable arms and propellers
Swarm operationAutonomous control of two drones simultaneously
Battery charging (with Parallel Charging Kit)A single battery in 7 minutes
PositioningXAG XRTK 7 Mobile Station for RTK, or satellite-based PPP-AR mode
AppXAG One 7.0, compatible with Android and iOS

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

XAG has not published the kit contents, the drone weight, the folded and unfolded dimensions, the flight time or the operating temperature range; Robots Middle East confirms these at quotation.

Which task system does the P150 Max need for each job?

Because the aircraft and its modules separate, the question for a buyer is less which drone to buy and more which jobs it will be asked to do. For crop protection, RevoSpray 5 provides an 80 L tank and a droplet size adjusting range of 60-500 μm. That range matters in practice: finer droplets suit some products and canopies, while coarser droplets help where drift is a concern, and the operator chooses the setting to match the product and the conditions on the day.

For fertiliser, seed or other granular material, RevoCast 5 uses a 115 L granule container and, with the 80 kg payload, spreads at up to 300 kg/min, covering more ground with fewer stops for refilling. For moving material around the farm, RevoSling carries suspended loads, with a maximum flight speed of 13.8m/s in that configuration. Field mapping completes the picture: one flight surveys up to 20 hectares, producing the base data from which spraying and spreading routes are later planned.

Robots Middle East sets out the exact configuration of the Starter 7KW 2B2C Kit, including the task modules supplied, for each order. A buyer who intends to begin with spraying and add spreading later should say so at enquiry, so that the configuration offered matches the season ahead.

How does the P150 Max handle obstacles, positioning and wash-down?

Irrigated farmland is rarely an open sky. Power poles, overhead wires and centre pivots are common features of the landscape, and an autonomous aircraft has to respect them. The P150 Max uses a 4D imaging radar that detects obstacles along the flight path from 1.5 to 100 m, allowing the drone to avoid power poles, wires, centre pivots and other objects during the mission.

Accurate positioning is what makes autonomous coverage repeatable. The aircraft can work with the XAG XRTK 7 Mobile Station for stable RTK autonomous operation, or switch to the satellite-based PPP-AR mode, which offers the same accuracy with a quick, uncomplicated setup. This gives an operator a choice between a local reference station and a satellite service, depending on the site and the way the team works.

After chemical work, cleaning becomes part of the daily routine. With IPX6K protection, the drone can be washed with water to remove pesticide residues, which supports both the life of the equipment and good practice in handling crop protection products.

Who is the XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit for?

The kit suits large arable and irrigated farms that wish to bring spraying and spreading in-house, using one aircraft for work that would otherwise require separate machinery or contracted services. Agricultural service contractors form a second natural group: the ability to change task modules lets one aircraft serve different clients with different needs during the same week, and autonomous control of two drones simultaneously allows a contractor to scale coverage once a second aircraft joins the fleet.

Estate and plantation managers who need survey data before treatment will value the field mapping capability, while cooperatives and agricultural development projects can use the platform to introduce precision application to groups of growers. Buyers working in high summer temperatures should discuss their operating conditions with Robots Middle East at enquiry. Those still comparing platforms can review the wider ranges of Agricultural Robots and Drones offered by Robots Middle East.

What is the XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit used for?

  1. Crop protection spraying — autonomous application of liquid products with RevoSpray 5 and an adjustable droplet size.
  2. Granule spreading — fertiliser and seed distribution with RevoCast 5, with fewer stops for refilling.
  3. Field mapping — surveying fields to build the maps from which treatment routes are planned.
  4. Farm logistics — moving materials and supplies around the farm with the RevoSling system.
  5. Paired-drone coverage — controlling two drones simultaneously to work large blocks concurrently.
  6. Work in obstructed fields — operating near power lines, poles and centre pivots with 4D imaging radar.

Pricing and Availability

Robots Middle East provides the XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit on quotation, prepared for your intended tasks, your site and the configuration you require. Delivery, customs clearance and after-sales support are arranged with the quotation. A quotation request for the XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit is available on this page.

Frequently Asked Questions

Which jobs can the XAG P150 Max perform?

The P150 Max handles autonomous spraying, spreading, field mapping and material transport. The job is determined by the task module fitted to the detachable flight platform.

What payload does the P150 Max carry?

The aircraft has a payload capacity of 80 kg. With RevoSpray 5 it carries an 80 L liquid tank, and with RevoCast 5 a 115 L granule container.

What is included in the Starter 7KW 2B2C Kit?

Robots Middle East itemises the contents of the kit for each order, so you know precisely what is supplied before you commit.

Can the drone be washed after spraying?

Yes. With IPX6K protection, the P150 Max can be washed with water to remove pesticide residues after work.

Does the P150 Max require an RTK base station?

It can use the XAG XRTK 7 Mobile Station for RTK autonomous operation. Alternatively, the satellite-based PPP-AR mode offers the same accuracy with a quick setup.

How quickly does a battery charge?

With the Parallel Charging Kit, a single battery charges in 7 minutes, which keeps turnaround short between flights.

Where can I buy the XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit and what does it cost?

You can buy it from Robots Middle East, which supplies the kit across the Middle East. The cost depends on the configuration and delivery requirements, and is set out in a quotation prepared for you.

Summary

The word starter describes the entry point, not the ceiling. The XAG P150 Max is a heavy-lift, modular aircraft that sprays, spreads, maps and carries, finds its way around pivots and power lines with 4D imaging radar, and washes down after chemical work. Starting with this kit means committing to one platform and letting the operation grow around it, one task module and one season at a time. For a farm, contractor or estate preparing that step with Robots Middle East, this page is the starting point.
