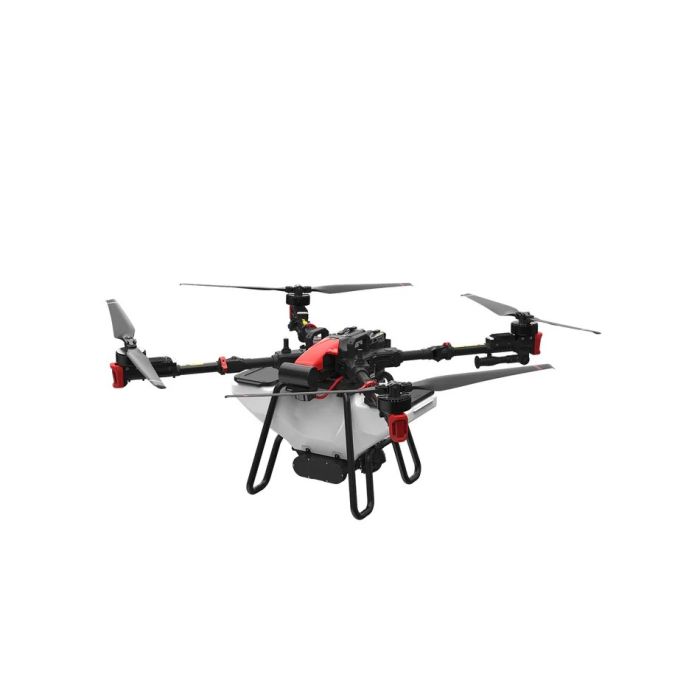

XAG P100 Pro 60L Standard (6B2C) Kit (XAG-P100-Pro-Lite)
Unfolded, the aircraft at the centre of this package measures 2927 × 2868 × 323 mm. With blades and arms folded, it measures 893 × 1095 × 345 mm. That contrast captures the character of the XAG P100 Pro 60L Standard (6B2C) Kit (XAG-P100-Pro-Lite). It is a heavy-lift agricultural machine that must be carried between fields, unpacked, flown for long working days and packed away again. For that reason it is supplied as a complete working set rather than as a lone drone. The set comprises the aircraft, a spray system, an RTK-capable remote controller, an RTK rover, six smart batteries, two chargers and two battery cooling towers.
Robots Middle East supplies this kit to farms, plantations, agricultural service contractors and public-sector programmes across the Middle East. Robots Middle East prepares each quotation, arranges delivery to the customer's site and provides support after handover. Buyers comparing other field machines will find related equipment in our Agricultural Robots and Drones categories.
Background
XAG and its agricultural focus
XAG is a technology company that has built its business around agriculture rather than around general-purpose aerial photography. Its range spans spraying and spreading drones, ground robots, positioning equipment and the batteries and charging hardware that keep them working. That focus shows in the way its products are packaged. The aircraft, the payload modules, the positioning system and the power equipment are designed as parts of one ecosystem, so an operator can plan a season around a single, coherent fleet rather than assembling components from several suppliers.
The P100 Pro platform and its modular payloads
The P100 Pro is a foldable quadcopter with a 50 kg rated payload and four Model A50 motors. It carries interchangeable functional modules. The RevoSpray system handles liquid application and the RevoCast 3 granule container handles dry materials. The platform also supports a RealTerra 2 mapping camera for surveying fields before treatment. A 4D imaging radar, the RD24912, watches the flight path with a wide horizontal and vertical field of view. RTK positioning, delivered here through the Remote Controller3 Pro with RTK and the XRTK4 Rover, gives the accuracy that repeatable, overlap-free application depends on. This kit is built around spraying: it ships with the RevoSpray P3 (60L) module.
Technical Specifications
| Specification | Value |
|---|---|
| Drone in kit | XAG P100 Pro 2023 Agricultural Drone (INTL), 1 pc |
| Spray system in kit | XAG RevoSpray P3 (60L) (INTL), 1 pc |
| Remote controller in kit | XAG Agricultural Remote Controller3 Pro (with RTK) (INTL), 1 pc |
| RTK rover in kit | XAG XRTK4 Rover, 1 pc |
| Batteries and chargers in kit | 6 smart batteries and 2 chargers |
| Battery cooling towers in kit | XAG 2024 Battery Cooling Tower (INTL), 2 pcs |
| Dimensions (unfolded) | 2927 × 2868 × 323 mm (blades unfolded) |
| Dimensions (folded) | 893 × 1095 × 345 mm (blades & arms folded) |
| Empty weight | 46 kg (payload system excluded, battery included) |
| Rated payload | 50 kg |
| Protection rating | IPX6K |
| Max flight speed | 13.8 m/s |
| Motors | 4 × 4100 W rated power (Model A50) |
| Spray tank (RevoSpray 3, specification table) | 50 L / 50 kg payload |
| Smart liquid tank (feature list) | 60 L spray tank with automatic liquid level sensing |
| Max flow rate | 22 L/min (dual peristaltic pumps) |
| Spray width | 5-10 m |
| Granule container (RevoCast 3) | 80 L / 50 kg rated payload |
| 4D imaging radar | RD24912; 1.5-80 m detection; ±40° horizontal, +90° to -45° vertical FOV |
| Battery | B13960S (962 Wh, 20000 mAh, 48.1V) |
| Charge time | 11 minutes (30%-95% with GC4000+ water cooling) |
| Remote controller | ARC3 Pro (6-hour battery, 1 km range, 2.4/5.8 GHz) |
| Operating temperature | 0-40°C (drone); -20 to 55°C (controllers) |
| Mapping camera (RealTerra 2) | 12 MP; 2.7 mm focal length; mechanical shutter; JPEG format |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.
The manufacturer has not published the flight time, the weight of the complete kit, the name of the operating software or app, the service life of the equipment or the cycle life of the batteries; Robots Middle East confirms these points at quotation.
What is included in the 60L Standard (6B2C) kit?
The contents explain why this configuration exists. A single aircraft is only productive while it has a charged battery on board. The Standard (6B2C) kit pairs the P100 Pro 2023 Agricultural Drone with six smart batteries and two chargers, so that batteries can be rotated through flight, charging and cooling throughout the working day. The two XAG 2024 Battery Cooling Towers belong to that same rotation. A battery that has just landed is cooled before it returns to the charger, which matters wherever field temperatures run high.
Positioning is covered by the Agricultural Remote Controller3 Pro with RTK, together with the XRTK4 Rover. The controller works on 2.4/5.8 GHz with a 1 km range and a 6-hour battery of its own. Its RTK capability allows routes to be planned and flown with the precision that makes automated spraying worthwhile. The RevoSpray P3 (60L) module completes the package for liquid work, using dual peristaltic pumps rated at up to 22 L/min across a 5-10 m spray width, with automatic liquid level sensing for accurate chemical use.
How does the P100 Pro cope with demanding field conditions?
Agricultural drones work in dust, spray drift and chemical residue, and they are washed down after almost every job. The P100 Pro carries an IPX6K protection rating, which addresses exactly that cycle of exposure and cleaning. For obstacle awareness, the RD24912 4D imaging radar detects objects from 1.5 to 80 m, with ±40° horizontal and +90° to -45° vertical coverage. That sensing is valuable around trees, power lines and irrigation structures.
Heat is the other consideration in this region. The operating range for the drone is 0-40°C, while the controllers are rated from -20 to 55°C. Operators in the Gulf and similar climates therefore plan flights around the cooler parts of the day, which many already do for agronomic reasons. The battery cooling towers in the kit support that discipline on the ground. The B13960S battery stores 962 Wh at 48.1V. With GC4000+ water cooling, it charges from 30% to 95% in 11 minutes; the GC4000+ is a separate unit and is not among the kit contents.
Who is the XAG P100 Pro 60L Standard (6B2C) Kit for?
The kit suits buyers whose spraying workload justifies a heavy-lift aircraft and a full power set. Large arable farms and plantations can treat their own fields on their own schedule, without relying on ground rigs that compact soil or cannot enter wet or tall crops. Agricultural service contractors are a natural fit as well. For them, folding the aircraft for transport and rotating several batteries translate directly into more treated area per working day across different clients' land.
Cooperatives and agricultural development programmes can use the kit as shared equipment, operated by a trained crew on behalf of many smallholders. Research stations and agronomy teams may value the platform's modularity, including the option of the RealTerra 2 mapping camera and the RevoCast 3 granule container alongside the spray system supplied here.
XAG also names a 60L Lite (4B4C w PCK) configuration and a Premium configuration. Buyers who are unsure whether the Standard (6B2C) arrangement matches their fleet size or charging infrastructure should ask Robots Middle East to compare the configurations before ordering.
What is the XAG P100 Pro 60L Standard (6B2C) Kit used for?
- Crop protection spraying: applying pesticides, fungicides and herbicides with RTK-guided routes and consistent coverage.
- Foliar nutrition: delivering liquid fertilisers and micronutrients directly to the canopy at the timing the crop requires.
- Granular spreading: distributing fertiliser granules or seed with the RevoCast 3 module, available as a separate payload for the platform.
- Orchard and plantation treatment: reaching tall or densely planted trees, such as date palms, where ground equipment struggles to manoeuvre.
- Contract application services: giving service operators a transportable, high-capacity aircraft for work across many customers' fields.
- Field mapping and planning: surveying plots with the RealTerra 2 mapping camera, a compatible payload, before precise treatment missions.
Pricing and Availability
Robots Middle East supplies the XAG P100 Pro 60L Standard (6B2C) Kit on a quotation basis. Each quotation reflects the configuration, the destination and any accessories or spare batteries the customer requires. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, please submit your requirements through the quotation request available on this page.
Frequently Asked Questions
Which drone is supplied in this kit?
The kit contains one XAG P100 Pro 2023 Agricultural Drone (INTL). It is accompanied by the RevoSpray P3 (60L) spray system, the Agricultural Remote Controller3 Pro with RTK and the XRTK4 Rover.
How many batteries and chargers are included?
The Standard (6B2C) kit includes six smart batteries and two chargers. It also comes with two XAG 2024 Battery Cooling Towers for managing battery temperature between flights.
What payload can the P100 Pro carry?
The aircraft has a rated payload of 50 kg. Its empty weight is 46 kg, with the payload system excluded and the battery included.
Can the drone spread granules as well as spray?
The P100 Pro platform supports the RevoCast 3 granule container, which holds 80 L with a 50 kg rated payload. This kit is supplied with the spray system, so a granule module would be quoted separately.
Is the drone suitable for washing down after use?
The drone carries an IPX6K protection rating, which is relevant to the cleaning that follows chemical application. Robots Middle East can advise on recommended cleaning practice at handover.
What range does the remote controller offer?
The ARC3 Pro remote controller has a 1 km range and operates on 2.4/5.8 GHz. Its own battery runs for 6 hours, which covers a long working day in the field.
Where can I buy the XAG P100 Pro 60L Standard (6B2C) Kit and what does it cost?
You can buy the kit from Robots Middle East, which supplies it across the Middle East. The cost is set out in a tailored quotation that covers the configuration, delivery, customs and support.
Summary
The gap between the aircraft's folded and unfolded dimensions is a fitting image for the whole XAG P100 Pro 60L Standard (6B2C) Kit (XAG-P100-Pro-Lite). It is compact when it travels and expansive when it works. The aircraft brings a 50 kg rated payload, an IPX6K rating, 4D imaging radar and RTK positioning. The kit adds what keeps that aircraft in the air: six batteries, two chargers and two cooling towers, all organised around a disciplined battery rotation. For farms, plantations and contractors across the Middle East who want aerial application as a dependable daily operation, a quotation from Robots Middle East through this page is the starting point.
