XAG P150 Standard 7KW 6B2C Kit

A complete field kit built around XAG's P150 Max agricultural drone, bringing together the aircraft, power equipment, controller and RTK positioning for spraying, spreading, mapping and transport. Robots Middle East supplies it to farms, plantations and contractors across the region that want aerial crop work to continue through the day without long stops on the ground.

In stock

BRAND:
XAG
PART #:
XAG-P150-Standard-7KW-6B2C
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
XAG-P150-Standard-7KW-6B2C
AED 134,625.55
Loading...

XAG P150 Standard 7KW 6B2C Kit

A spray window in the Gulf can close within hours. By mid-morning, heat and rising wind begin to work against every droplet that leaves a nozzle, and any machine that is slow to refill, recharge and return to work loses the most valuable part of the day. The XAG P150 Standard 7KW 6B2C Kit addresses that pressure in two ways. It pairs a heavy-lift agricultural aircraft, the XAG P150 Max with RevoSpray 5, with a set of batteries, power supplies and cooling towers. This keeps the work in the field rather than at the charging point.

Robots Middle East supplies this kit to farms, agricultural service contractors, plantation operators and research organisations across the Middle East. Our team prepares the quotation, coordinates delivery to your site and provides technical support once the kit is in operation. A single point of contact therefore handles the project from the first enquiry to the first flight and beyond.

Background

XAG and agricultural robotics

XAG is an agricultural robotics company. Its work centres on bringing automation to farming, and its aircraft belong to a class of equipment that has changed how crops are treated. Unmanned agricultural aircraft fly pre-planned routes over a field and apply liquids or granules from above. They do not compact the soil, and they reach areas where ground machinery struggles, such as wet ground, terraces and dense plantings. For growers and contractors, the attraction lies in consistency. A drone follows the same route with the same application settings every time, and a small team can cover a large area once the operation is organised around it.

The P150 Max with RevoSpray 5

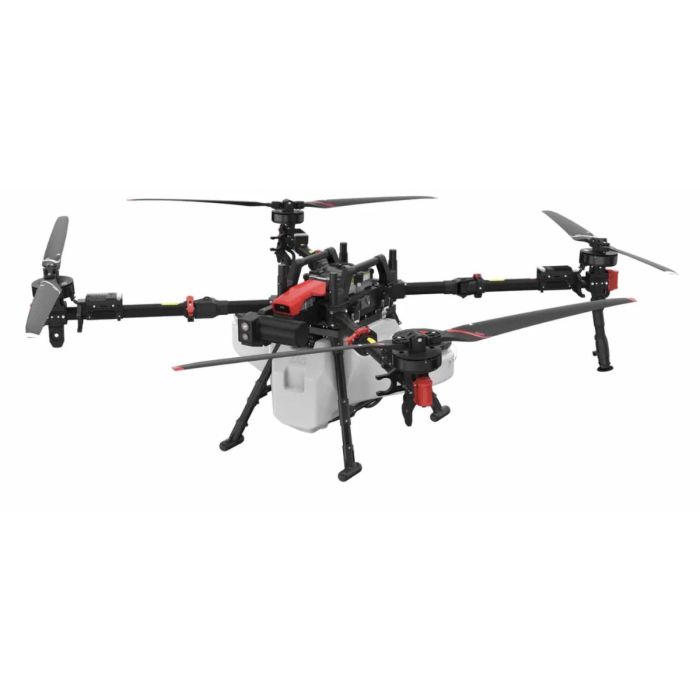

At the centre of this kit is the XAG P150 Max, a state-of-the-art agricultural drone designed for superior efficiency in field operations. It handles autonomous spraying, spreading, field mapping and material transport, with a top flight speed of 20 m/s and an 80 kg payload. The aircraft in this kit is fitted with the RevoSpray 5 system. Its obstacle sensing uses beamforming and 4D imaging, and a forward-view camera with a 1/2.7-inch CMOS-RGB sensor gives the operator a live picture from the aircraft. With RTK enabled, hovering precision is ± 10 cm horizontally and ± 10 cm vertically. This matters wherever rows, tree lines or field boundaries leave little margin for drift in position.

Technical Specifications

SpecificationValue
AircraftXAG P150 Max Agricultural Drone with RevoSpray 5
FunctionsAutonomous spraying, spreading, field mapping, material transport
Top flight speed20 m/s
Payload80 kg
Folded dimensions1799×1808×767 mm (propellers folded, XAG RevoSpray 5 included, clamps as the highest point)
Empty weight56 kg (with RevoSpray system in the current manual & B141050 batteries)
Maximum takeoff weight for spraying136 kg
Diagonal motor wheelbase2335 mm
Maximum flow rate32 L/min (dual pumps)
Atomised droplet size60 ~ 500 μm (depending on the actual operating environment, spray flow and other factors)
Maximum spread rate300 kg/min (tested with urea; affected by granular size and density)
Applicable granule size1-10mm (dry and solid granules)
Maximum flight distance2000 m
Hovering precision (RTK enabled)± 10 cm (horizontal), ± 10 cm (vertical)
Obstacle sensing modeBeamforming, 4D imaging
FPV camera1/2.7-inch CMOS-RGB sensor, 5 MP effective pixels

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation. The manufacturer has not published the kit's shipping weight, the total charging time for all six batteries, the flight time under full load, the weight of the batteries supplied or details of the case and packaging; these are confirmed at quotation.

What is included in the XAG P150 Standard 7KW 6B2C Kit?

The value of a kit lies less in the aircraft than in what surrounds it. An agricultural drone that lands with a flat battery and waits for a single charger is a machine standing still. This configuration is built so that several batteries can be in use at once: one in the aircraft, others cooling and others charging. The listed contents are:

  • 1x XAG P150 Max Agricultural Drone with RevoSpray 5 (SKU: 09-007-00158)
  • 6x B141050 Smart SuperCharge Batteries (20000mAh) (SKU: 09-017-00083)
  • 2x CM13600S Power Supply (SKU: 09-017-00069)
  • 2x XAG 2024 Battery Cooling Tower (SKU: 09-017-00065)
  • 1x XAG SRC5 Smart Remote Controller (SKU: 09-016-00085)
  • 1x XRTK7 Mobile Station (RTK Rover) (SKU: 09-016-00083)
  • 2x Plug Power Cord-US (for CM13600 Charger) (SKU: 01-027-02824)

Taken together, the list covers the full working chain. The aircraft and its spraying system do the work. The batteries, power supplies and cooling towers sustain it. The SRC5 controller and the XRTK7 mobile station handle control and centimetre-level positioning. The power cords listed are US-plug cords for the CM13600 charger, so please let us know the electrical supply at your site, whether mains or generator, when you make your enquiry.

Can one aircraft handle both liquids and granules?

Many operators in the region treat crops with liquid protection products at one stage of the season and apply fertiliser in granular form at another. The P150 Max is specified for both. On the liquid side, dual pumps deliver a maximum flow rate of 32 L/min, and the atomised droplet size ranges from 60 to 500 μm, depending on the operating environment and spray flow. A range that wide lets the operator choose between finer coverage on foliage and coarser droplets where drift is the greater concern, which is a real consideration in hot, open conditions.

For dry materials, the aircraft has a maximum spread rate of 300 kg/min, tested with urea and affected by granular size and density, and it accepts dry, solid granules of 1-10mm. The kit as listed ships with the RevoSpray 5 system; if your programme includes spreading, please mention it in your enquiry so that Robots Middle East can include the right hardware. One aircraft serving both roles means fewer machines to maintain, one training programme for the crew and one positioning system shared between every task.

Who is the XAG P150 Standard 7KW 6B2C Kit for?

The first group is agricultural service contractors. They treat fields for many clients and need equipment that moves between sites and works long days. A kit with several batteries and two power supplies suits a crew that wants continuous operation without assembling the supporting equipment piece by piece. The second group is large farms and plantations growing date palms, citrus, cereals or fodder crops. For them, a heavy-lift aircraft with RTK positioning brings repeatable treatment of the same blocks throughout the season.

Government agricultural programmes, research stations and universities form a third group. Their interest lies in the aircraft's mapping capability and the consistency of RTK-guided flights for trial plots and pest-control campaigns. Organisations that need to move materials across difficult terrain may also find the transport function useful.

The P150 Max is offered in several configurations: the XAG P150 Max Starter 7KW 2B2C Kit, the XAG P150 Max Standard 14KW 4B4C Kit, the XAG P150 Max Ultimate 14KW 6B4C Kit and the XAG P150 Max Swarm 28KW 8B8C Kit. Their contents differ, and the right choice depends on how many hours a day you intend to fly and how many aircraft you plan to run. Robots Middle East will help you compare the configurations against your operation. You can also browse our wider ranges of Agricultural Robots and Drones.

What is the XAG P150 Standard 7KW 6B2C Kit used for?

  1. Crop protection spraying – applying protection products over broad-acre fields with dual-pump flow and adjustable droplet size.
  2. Plantation and orchard treatment – treating date palms and fruit trees along RTK-guided routes that repeat accurately from one pass to the next.
  3. Granular fertiliser application – spreading dry, solid granules such as urea across large areas without ground traffic.
  4. Field mapping – surveying fields to plan routes, boundaries and treatment zones before work begins.
  5. Material transport – moving loads across terrain where vehicles are slow or cannot pass.
  6. Contract operations – running a multi-battery field operation for several clients from one mobile kit.

Pricing and Availability

Robots Middle East supplies the XAG P150 Standard 7KW 6B2C Kit on quotation. This lets the configuration, the accessories and the support package match your operation rather than a generic listing. Tell us about the crops you treat, the area you cover and the site where the kit will be based, and we will prepare a quotation that reflects those details. Delivery, customs clearance and after-sales support are arranged with the quotation. To begin, request a quotation using the form available on this page.

Frequently Asked Questions

Which aircraft is supplied in this kit?

The kit contains one XAG P150 Max Agricultural Drone fitted with the RevoSpray 5 system. The aircraft handles autonomous spraying, spreading, field mapping and material transport.

How many batteries and chargers are included?

The kit includes six B141050 Smart SuperCharge Batteries (20000mAh), two CM13600S power supplies and two XAG 2024 Battery Cooling Towers.

What payload can the P150 Max carry?

The P150 Max carries an 80 kg payload, and its maximum takeoff weight for spraying is 136 kg.

How precise is the positioning?

With RTK enabled, hovering precision is ± 10 cm horizontally and ± 10 cm vertically. The kit includes the XRTK7 Mobile Station (RTK Rover) for this purpose.

How does the aircraft detect obstacles?

The P150 Max uses beamforming and 4D imaging for obstacle sensing. A forward-view camera with a 1/2.7-inch CMOS-RGB sensor and 5 MP effective pixels gives the operator a live view.

Can the aircraft spread granules as well as spray?

Yes. The P150 Max has a maximum spread rate of 300 kg/min, tested with urea, and accepts dry, solid granules of 1-10mm.

Where can I buy the XAG P150 Standard 7KW 6B2C Kit and what does it cost?

You can buy it from Robots Middle East, which supplies the kit across the Middle East. The cost is set out in a tailored quotation, which you can request on this page.

Summary

In agricultural work under a hard sun, the time an aircraft spends on the ground is what decides how much gets done. The XAG P150 Standard 7KW 6B2C Kit is assembled around that fact. A P150 Max with RevoSpray 5, carrying an 80 kg payload and positioned to ± 10 cm with RTK, is supported by six batteries, two power supplies, two cooling towers, a smart controller and a mobile RTK station. Spraying, spreading, mapping and transport fall to one aircraft and one crew. Robots Middle East quotes, delivers and supports the kit throughout the region. For any operation that wants to make the most of a short spray window, this page is the starting point.

Specifications

General

BRAND XAG
PART # XAG-P150-Standard-7KW-6B2C
ROBOT TYPE DRONE
ROBOT USE AGRICULTURAL
