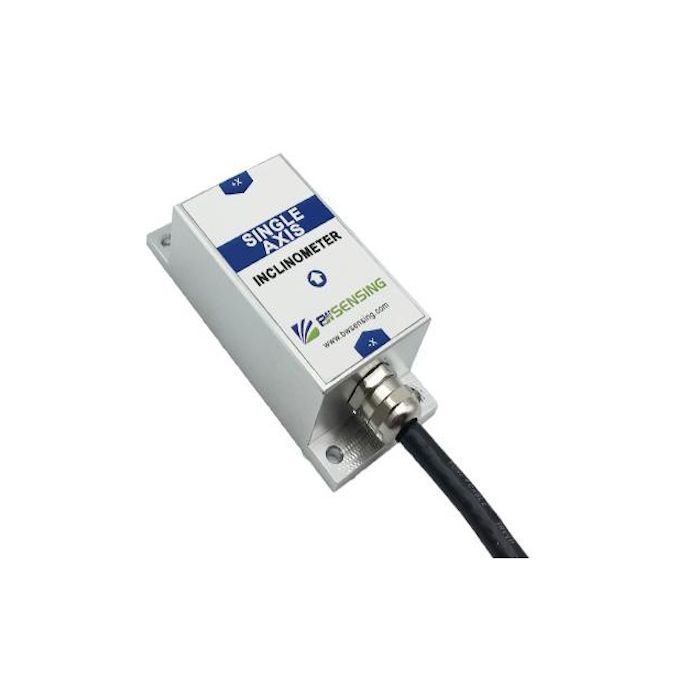

BWSENSING Low Cost Single-Axis Current Output Inclinometer (BWL318)
In stock
- BRAND:
- BWSENSING
- PART #:
- BWL318
- ORIGIN:
- China
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- BWSENSING-BWL318
BWSENSING Low Cost Single-Axis Current Output Inclinometer (BWL318)
Multiply one sensor by the tracker rows in a solar field, the masts along a transmission corridor or the lifting machines in a fleet, and tilt measurement soon becomes a budget line of its own. The BWSENSING Low Cost Single-Axis Current Output Inclinometer (BWL318) is built for that arithmetic. It measures inclination about one axis with an industrial level MEMS accelerometer and reports the result as a current signal. Projects that need many measurement points can therefore equip each one without paying for capabilities that a single-axis task does not require.
Robots Middle East supplies the BWL318 to system integrators, contractors, plant operators and engineering teams across the Middle East. Each quotation is prepared around the output range, quantity and application you specify. Robots Middle East also arranges delivery to your site and provides technical support after installation, so you have one point of contact from the first enquiry to commissioning.
Background
Wuxi Bewis Sensing Technology and the BWSENSING range
The BWL318 is designed by Bewis Sensing Technology. Wuxi Bewis Sensing Technology LLC (BWSENSING) is an innovative, fast-growing company established in 2010. Its catalogue covers inclinometers for a wide range of interfaces and axis counts, from analogue current models such as this one to digital, Modbus and CAN variants. Buyers can therefore standardise on one manufacturer while choosing the interface that suits each part of a project. The wider family is listed in the BWSensing section of our catalogue.
A MEMS sensor with an analogue output
Inside the housing, the BWL318 uses an industrial level MEMS accelerometer. This type of micro-machined sensor infers tilt from the direction of gravity, with no moving pendulum or fluid. The measured angle is then converted into a current signal. You can choose 4-20mA, 0-20mA or 0-24mA, whichever matches the analogue inputs of your controller. This combination places the BWL318 at the economical end of the BWSENSING range. It is aimed at installations that need a dependable angle reading on one axis, sent over a wiring standard that almost every PLC, data logger and industrial controller already accepts.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Current output low cost single-axis inclinometer |
| Sensing element | Industrial level MEMS accelerometer |
| Measurement range | ±180° |
| Highest accuracy | 0.1° |
| Resolution | 0.01° |
| Zero bias (-40~85℃) | ±0.02 °/℃ |
| Output | 4-20mA/0-20mA/0-24mA (optional) |
| Output frequency | 5-100Hz adjustable, up to 100Hz |
| Power supply | 12-36V |
| Start-up time | <3s |
| Protection level | IP67 |
| Impact resistance | 2000g, 0.5ms, 3 times/axis |
| MTBF | ≥90000 h |
| Dimensions | L90*W40.5*H26 (mm) |
| Weight | 210 g (without outer packaging) |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.
The manufacturer has not published the contents of the box, the cable length, the mounting hole spacing or the supply current at full load; these details are confirmed at quotation.
Why choose a current output inclinometer rather than a digital one?
Digital inclinometers bring addressing, configuration over the bus and several readings on one cable. Those are real advantages where a network already exists. Many sites, however, are built around analogue inputs, and a current loop has properties that remain hard to beat. A current signal is far less affected by voltage drop along the cable than a voltage signal, so the reading at the controller stays faithful to the reading at the sensor even over long runs. With the 4-20mA option, the live zero also lets the controller tell a genuine minimum reading from a broken wire, since a loop that falls to zero signals a fault rather than an angle.
The BWL318 adds flexibility to this established method by offering three output ranges. Integrators can match the sensor to existing input cards instead of reconfiguring the control system. Where a project does call for a fieldbus, BWSENSING offers single-axis alternatives: the BWSENSING Cost-Effective Single-Axis CAN Output Inclinometer (BWM415) for CAN networks and the BWSENSING Cost-Effective Single-Axis Digital Output With Modbus Inclinometer (BWM417) for Modbus installations.
What do the BWL318 figures mean for an installation?
The ±180° range covers a full turn about the measured axis. The sensor is therefore not restricted to small deviations from level and can follow a rotating element through its whole travel, such as a tracker table or an actuator arm. With a highest accuracy of 0.1° and a resolution of 0.01°, it suits levelling and inclination control tasks where small changes must be visible to the controller. The zero bias of ±0.02 °/℃ across -40~85℃ indicates how the reading behaves as temperature changes, an important consideration for equipment that sits outdoors through the day.
The physical figures matter as much. The IP67 protection level and the impact resistance of 2000g, 0.5ms, 3 times/axis support mounting on exposed structures and working machinery. The 12-36V supply range fits common industrial power rails, and the start-up time of under 3s means the sensor delivers a usable output soon after power is applied. The adjustable output frequency of 5-100Hz lets you choose between a calmer signal for slow structural monitoring and a faster one for active control. The MTBF of ≥90000 h is relevant to buyers planning long service intervals across many units.
Who is the BWL318 for?
The BWL318 is aimed first at system integrators and OEMs building machines or control panels around analogue inputs. For them, a current output inclinometer drops straight into an existing architecture. Renewable energy contractors equipping photovoltaic tracking systems form a second group, because the low-cost positioning matters most when the sensor count runs into the hundreds. Operators of towers, masts and lifting equipment who need continuous tilt monitoring on one axis will also find the specification fits their task. Manufacturers of medical instruments, special valves and industrial converters, all named among the intended applications of the BWL318, can integrate it as an angle feedback element.
Where both pitch and roll must be measured, a dual-axis model is the better choice. The BWSENSING Cost-Effective Dual-Axis Inclinometer (BWM427) is one option in the same family. Further alternatives are grouped under Sensors. Robots Middle East can advise on which model suits your axis count and interface.
What is the BWL318 used for?
- Industrial automatic levelling – feeding the angle of a platform or machine bed to a controller that corrects it automatically.
- Photovoltaic automatic tracking – reporting the angle of a tracker table so that panels follow the sun accurately.
- Tower tilt monitoring – watching masts and towers continuously for lean that develops over time.
- Lifting equipment inclination control – supplying boom or chassis angle to the safety and control systems of lifting machinery.
- Oil drilling equipment – providing inclination feedback on drilling rigs and associated machinery.
- Medical instruments – serving as an angle sensing element inside equipment that must know its orientation.
Pricing and Availability
Robots Middle East supplies the BWL318 on quotation. This lets the offer reflect the output range you select, the number of units and the requirements of your project, whether you need a single sensor for evaluation or a batch for a field deployment. Delivery, customs clearance and technical support are arranged with the quotation. To begin, send us your quantity and preferred output option through the quotation request available on this page.
Frequently Asked Questions
What output signals does the BWL318 offer?
The BWL318 offers a current output of 4-20mA, 0-20mA or 0-24mA, selectable as an option. Please state your preferred range when requesting a quotation.
What is the measurement range of the BWL318?
The BWL318 measures inclination about one axis over a range of ±180°.
How accurate is the BWL318?
The BWL318 has a highest accuracy of 0.1° and a resolution of 0.01°, with a zero bias of ±0.02 °/℃ across -40~85℃.
Can the BWL318 be installed outdoors?
The BWL318 carries an IP67 protection level, which makes it suitable for exposed installations such as towers and solar trackers. Please discuss your specific environment with our team when requesting a quotation.
What power supply does the BWL318 require?
The BWL318 operates from a 12-36V supply, which fits common industrial power rails.
Is there a version that measures two axes?
The BWL318 is a single-axis sensor. For two axes, BWSENSING offers dual-axis models such as the BWM427, and Robots Middle East can recommend the right one for your interface.
Where can I buy the BWSENSING Low Cost Single-Axis Current Output Inclinometer (BWL318) and what does it cost?
You can buy the BWL318 from Robots Middle East, which supplies customers across the Middle East. The cost depends on the output option, quantity and delivery requirements, so please request a quotation for an offer tailored to your project.
Summary
When tilt has to be measured at dozens or hundreds of points, each sensor must justify its place on the bill of materials. The BWL318 does so by concentrating on one axis and one proven signal type. It combines an industrial level MEMS accelerometer, a ±180° range and a choice of three current outputs with IP67 protection and a compact L90*W40.5*H26 (mm) housing. It suits tracker fields, tower monitoring, levelling systems and lifting equipment wherever an analogue input is waiting for an angle. For a quotation from Robots Middle East, with delivery and support arranged for your site, this page is the starting point.
