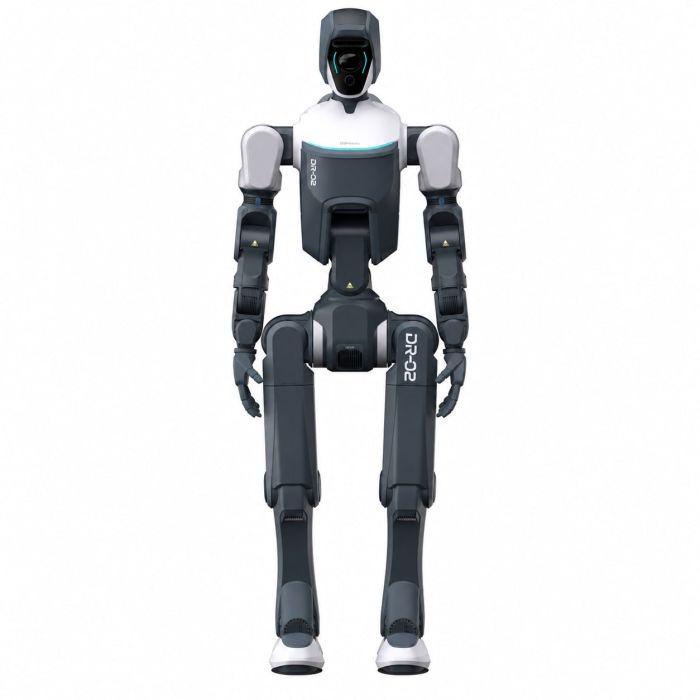

Deep Robotics DR02 All-Weather Industrial Grade Humanoid Robot

A sealed, human-sized robot from Deep Robotics, designed to keep working through rain, dust, chilled stores and hot workshops rather than waiting indoors for better conditions. Its human proportions and swappable limb modules suit existing industrial sites where every hour of downtime counts.

In stock

BRAND:
DEEP ROBOTICS
PART #:
DR02
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Deep-Robotics-DR02
AED 285,970.54
Free Shipping
Loading...

Deep Robotics DR02 All-Weather Industrial Grade Humanoid Robot

In a pit lane, races are won not by the car that never wears but by the crew that changes its tyres fastest. Industrial robotics is learning the same lesson. The Deep Robotics DR02 All-Weather Industrial Grade Humanoid Robot combines whole-body sealing against water and dust with forearms, arms and legs that come off and go back on as replaceable modules. A site therefore judges it less by how it performs on launch day and more by how many hours it actually spends at work. It is a new-generation, industry-grade humanoid, proportioned like an adult and equipped with onboard computing and perception intended for genuine tasks rather than staged demonstrations.

Robots Middle East sells the DR02 and supplies it to organisations across the Middle East, from industrial operators and logistics firms to research institutions and system integrators. Our team prepares each quotation, coordinates delivery to your site and remains your point of contact for support after commissioning. Technical questions, spare modules and service planning are therefore handled through a single regional partner.

Background

Deep Robotics: a Hangzhou company stepping beyond four legs

Deep Robotics is a Hangzhou-based robotics company that is best known internationally for its legged platforms. Its quadruped range, including the LYNX family of wheeled robot dogs, is aimed at inspection, patrol and field work in industrial settings. The DR02 carries that industrial orientation into the humanoid form. Rather than presenting a humanoid as a laboratory curiosity, the company positions the DR02 as an industry-grade machine, one that is meant to be deployed, maintained and kept in service in the same way as any other item of plant equipment.

Positioning: sealing, serviceability and a human-sized frame

Three design decisions define the DR02. The first is whole-body protection to IP66, which addresses the dust and water that stop many robots once they leave a controlled room. The second is an operating range of -20℃~55℃, allowing one machine to move between a chilled store, a rain-swept yard and a hot workshop. The third is a modular build in which forearms, full arms and full legs can be quickly detached and replaced, with the left and right arm and leg modules interchangeable. Around these sits a body 175cm tall with a 68cm arm length, close to the build of an adult man, so that the robot fits the tools, doorways and workstations that were designed for people in the first place.

Technical Specifications

SpecificationValue
Product typeNew-generation industry-grade humanoid robot
VersionStandard DR02
Ingress protectionIP66, whole body (waterproof and dustproof)
Operating temperature-20℃~55℃
Height175cm
Arm length68cm
Weight (Standard DR02)65 kg (143 lb) with battery
Degrees of freedom31: six per leg, seven per arm, three at the waist
Stair climbingContinuous stairs 25cm high
Slope climbing20°
Dual-arm operating load10kg
Whole-robot carrying capacity20kg
Dexterous handOptional
PerceptionOne LiDAR, three depth cameras, one wide-angle camera
Main processorIndustrial 64-bit octa-core
Memory16GB
Storage128GB
AI processorUp to 275 TOPS
Battery20Ah, 1,440Wh, swappable
Modular designQuick-detach forearms, full arms and full legs; left and right arm and leg modules interchangeable

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

Deep Robotics has not published the runtime per charge, the charge time, connectivity, the operating system, SDK availability, camera resolution, the degrees of freedom of the hand, the shipping dimensions or the contents of the box; Robots Middle East confirms these at quotation.

What makes the DR02 different from an indoor humanoid?

Most humanoid platforms are developed and shown on clean, dry floors at room temperature, and their joints, connectors and sensors are rarely protected against the conditions found on a working site. The DR02 is built with the opposite assumption. Its IP66 whole-body rating protects it against dust and powerful water jets, and its -20℃~55℃ operating range covers both the chill of a cold store and the heat of a process workshop. For a buyer, this changes the planning question from where the robot may safely go to which tasks it should take on.

Mobility points in the same direction. The DR02 climbs continuous stairs 25cm high and handles 20° slopes, which matters in warehouses with mezzanines, in plants with stairways between levels and at outdoor work points where the ground is rarely flat. Its hands are expected to do real work as well: the dual-arm operating load is 10kg and the whole robot can carry 20kg, enough for moving goods or passing emergency equipment along. The 31 degrees of freedom, with seven in each arm and three at the waist, give the reach and posture needed to use a human-sized workspace instead of a rebuilt one.

How does the modular design keep the DR02 working?

Downtime is the hidden cost of any robot fleet. When a limb on a conventional humanoid is damaged, the whole machine typically leaves service while that limb is repaired. On the DR02, forearms, full arms and full legs are designed for quick removal and replacement, and because the left and right modules are interchangeable, a single spare arm or leg can cover either side. Maintenance teams can therefore hold a smaller stock of spares and return the robot to work sooner.

The same thinking applies to energy. The DR02 uses a 20Ah, 1,440Wh swappable battery, so a charged pack can be exchanged rather than the robot being parked beside a charger. Onboard, an industrial 64-bit octa-core processor with 16GB of memory and 128GB of storage works alongside an AI processor providing up to 275 TOPS. That computing capacity supports real-time processing of data from the LiDAR, the three depth cameras and the wide-angle camera, so that the robot can identify obstacles and plan its path as conditions change.

Who is the Deep Robotics DR02 for?

The DR02 is aimed at organisations whose work does not stay inside a single controlled room. Manufacturers and process operators can consider it for tasks that cross between production halls, stores and outdoor areas. Logistics and warehousing companies, including those running cold storage, will find its sealing and temperature range relevant to work in chilled zones and loading yards. Facility, energy and infrastructure operators may look at it for duties at outdoor work points where dust and rain are routine, and emergency and safety teams for passing equipment where conditions are unpleasant for people.

Universities, research centres and integrators form a further segment: a sealed humanoid with substantial onboard computing and a multi-sensor perception system is a useful platform for developing applications for real sites. Such buyers should discuss their software requirements with Robots Middle East before committing. Buyers comparing humanoid platforms can view the Deep Robotics DR01 Humanoid Robot and the wider Humanoids and Bipedal Humanoids categories. Where a task calls for mobility over terrain rather than hands, the Deep Robotics quadruped range, such as the Deep Robotics LYNX M20 Omni Terrain Industrial Wheeled Quadruped Robot Dog, may also merit a look.

What is the Deep Robotics DR02 used for?

  1. Cargo handling: moving goods with both arms or carrying loads between stations.
  2. Emergency equipment delivery: bringing tools or safety equipment to where a team needs them, including in poor weather.
  3. Cold-storage work: operating in chilled stores within its -20℃~55℃ range without being withdrawn between zones.
  4. Outdoor site tasks: working at yards and outdoor work points where dust and rain would halt an unsealed robot.
  5. Multi-level warehouse operations: moving through shelving areas, stairways and ramps using its stair and slope capability.
  6. Application research and development: serving as a platform for perception, navigation and manipulation projects on real industrial sites.

Pricing and Availability

Robots Middle East supplies the DR02 on quotation, so that each offer reflects your configuration, including whether the optional dexterous hand is required, together with your site and your support needs. Delivery, customs clearance and after-sales support are arranged together with your quotation. Our team can also advise on the configuration best suited to your application. To begin, a quotation request for the Deep Robotics DR02 is available on this page.

Frequently Asked Questions

Can the DR02 work outdoors in rain and dust?

Yes. The DR02 has IP66 whole-body protection against water and dust, which is intended for continuous work in wet and dusty conditions as well as indoors.

What temperature range does the DR02 operate in?

The operating range is -20℃~55℃. This allows the robot to move between cold stores, outdoor areas and hot workshops.

How much can the DR02 carry?

Its dual-arm operating load is 10kg, and the whole robot can carry 20kg. These figures suit tasks such as cargo handling and passing emergency equipment.

Can the DR02 climb stairs and slopes?

Yes. It climbs continuous stairs 25cm high and handles 20° slopes, supporting work in warehouses and at outdoor work points.

What happens if an arm or leg is damaged?

Forearms, full arms and full legs can be quickly removed and replaced. Left and right arm and leg modules are interchangeable, which reduces both downtime and the number of spares required.

Does the DR02 come with dexterous hands?

A dexterous hand is available as an option. Robots Middle East can discuss this option with you when preparing your quotation.

Where can I buy the Deep Robotics DR02 and what does it cost?

Robots Middle East sells and supplies the DR02 across the Middle East. The cost depends on configuration, delivery and support, so it is given in a quotation, which you can request on this page.

Summary

Like a racing team that wins in the pit lane, the DR02 is designed to be measured by its time in service. IP66 sealing and a -20℃~55℃ operating range keep it working where weather and temperature would stop many humanoids, while interchangeable limb modules and a swappable battery shorten the pauses that every machine eventually needs. Its human proportions, 31 degrees of freedom, useful payload and substantial onboard computing give it the means to carry out practical work in spaces built for people. For organisations in the Middle East that want a humanoid capable of staying at work rather than in a showroom, and that would like Robots Middle East to quote, deliver and support it, this page is the starting point.

Specifications

Degrees of Freedom
m/s
Max Speed
kg (44.1 lbs)
Payload

General

BRAND DEEP ROBOTICS
PART # DR02
ROBOT TYPE HUMANOID
ROBOT USE INDUSTRIAL
FCC APPROVED —

Physical

HEIGHT 175.0 cm
WEIGHT 65 kg
FOREARM + UPPER ARM LENGTH 68.0 CM
ROBOT HEIGHT 175 cm / 5'9"

Mobility

TOTAL DOF 31 DOF
HEAD / NECK 2 DOF
ARM 7 DOF
LEG 6 DOF

Performance

MAXIMUM SPEED 4 METERS / SECOND
OPERATING SPEED 1.5 METERS / SECOND
MAXIMUM PAYLOAD 20 KG (44.1 LBS)
MAXIMUM ARM PAYLOAD 10 KG
SINGLE HAND LOAD 10 KG
SLOPE ANGLE 20 DEGREES
STAIR CLIMBING HEIGHT 25 CM
OPERATING TEMPERATURE -20°C TO 55°C
INGRESS PROTECTION IP 66

Computing

GPU 275 TOPS

Sensors

3D LIDAR 3D LIDAR

What's included

Deep Robotics DR02 All-Weather Industrial Grade Humanoid Robot (DR02)
