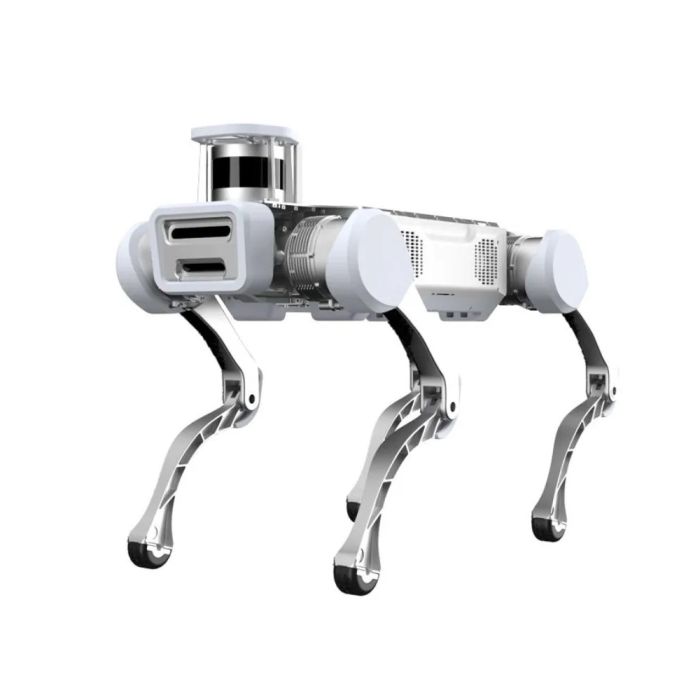

DISCONTINUED - Deep Robotics X20 Industrial Quadruped Robot Dog

A rugged legged inspection robot from DEEP ROBOTICS, built to walk patrol routes through dust, water, stairs and loose ground where wheeled platforms falter. Robots Middle East supplies it to industrial operators who want unmanned inspection across demanding sites.

Out of stock

BRAND:
DEEP ROBOTICS
PART #:
X20
ORIGIN:
China
AVAILABILITY:
DISCONTINUED
SKU:
Deep-Robotics-X20

DISCONTINUED - Deep Robotics X20 Industrial Quadruped Robot Dog

On an industrial site, dust gets into everything. Fine sand settles in connectors and seals, and then a cleaning crew arrives with hoses and the same equipment is drenched. Machines that patrol such sites must survive both, as well as climb stairs, cross gravel and keep walking when the ground is far from level. The DISCONTINUED - Deep Robotics X20 Industrial Quadruped Robot Dog was designed for this kind of work. It is a four-legged patrol inspection platform with IP66 dust and water protection, a 20 kg payload capacity and the mobility to keep a route going where wheels would stop.

Robots Middle East sells the Deep Robotics X20 and supplies it to industrial customers across the Middle East. Our team prepares each quotation, arranges delivery to your site and provides support after handover, so that one point of contact stays with your project from the first enquiry onwards.

Background

DEEP ROBOTICS and its family of legged robots

DEEP ROBOTICS specialises in legged robots for industry, research and education. Its catalogue covers several branches, including the industrial X Series, the compact Lite3 line for academic and development work, and the wheeled LYNX platform. The X20 belongs to the industrial branch. It was conceived as a working machine for operators who need dependable inspection rather than a demonstration of locomotion. As the product name shows, the X20 is now listed as discontinued. It remains relevant to organisations that already run the platform, to those standardising on equipment they know, and to buyers who want to see where the current industrial generation came from.

A modular patrol platform for extreme conditions

DEEP ROBOTICS built the X20 as a quadruped robot solution for industrial patrol inspection under extreme working conditions. Two ideas define this position. The first is mobility: the robot is built to handle obstacles, stairs, slopes and loose or wet ground as part of a normal route. The second is modularity. The X20 is designed for the seamless integration of peripherals and has a plentiful supply of interfaces, so the robot acts as a carrier for whatever sensing a particular site requires. On top of this, the platform supports precise navigation, dynamic obstacle avoidance, terrain recognition and human-robot interaction. These functions turn a legged chassis into an inspection tool.

Technical Specifications

SpecificationValue
Standing size950 × 470 × 700 mm
Weight53 kg
Payload capacity20 kg
Maximum speed≥ 4 m/s
Obstacle clearance≥ 200 mm
Maximum slope≥ 30°
Ingress protectionIP66
Endurance2 – 4 h
Mileage15 km

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the battery capacity, charging time, operating temperature range, onboard processor, sensor models, communication interfaces, degrees of freedom, software or SDK details, or the contents of the box; Robots Middle East confirms these with you at quotation.

How does the X20 cope with sand, water and stairs?

Most inspection routes include awkward stretches: a short flight of steps between plant levels, a ramp, a gravel yard, a patch of sand, or water that has collected after rain or washdown. The X20 adapts to 20 cm obstacles and stairs, 30° slopes, grass, sand, snow, gravel and standing water. A wheeled platform would treat each of these as a reason to turn back. A legged robot treats them as terrain to be read and crossed. Terrain recognition lets the X20 identify what lies underfoot, and dynamic obstacle avoidance lets it react to objects and people that were not there when the route was planned.

Protection matters as much as mobility. The IP66 rating gives the X20 dust and water resistance for adverse conditions, which is relevant wherever airborne sand, outdoor exposure or cleaning routines are part of daily life. With an endurance of 2 – 4 h and a mileage of 15 km, the robot is sized for substantial patrol rounds rather than brief excursions. We recommend planning routes and duty cycles around your own site conditions, and Robots Middle East is glad to discuss this with you.

What can be mounted on the X20?

A patrol robot is only as useful as the information it brings back. The X20's modular architecture and extensive interface array allow it to carry cameras, robotic arms, LiDAR units, gas sensors and more. This makes custom payload solutions possible for a wide range of industrial tasks. The 20 kg payload capacity gives room for meaningful equipment rather than a single lightweight sensor. One site might fit visual inspection cameras and gas detection for a processing area. Another might pair LiDAR with cameras to map and monitor a large outdoor compound.

For buyers, the practical question is which sensors are needed and how they will connect, so payload integration is best defined at the outset. Robots Middle East works through the intended configuration with you before quoting, so that the robot and its peripherals are specified together.

Who is the Deep Robotics X20 for?

The X20 suits operators of large industrial facilities where routine inspection is frequent, repetitive and sometimes hazardous for staff. Utilities, energy and process plants, and sites with mixed indoor and outdoor routes are natural candidates, as are system integrators who build inspection solutions around a mobile platform and need the freedom to fit their own sensors.

Organisations that already operate the X20 are a particular audience. Adding units of a familiar platform keeps training, procedures and integration work consistent. Because the X20 is listed as discontinued, buyers planning an entirely new deployment may also wish to compare it with the Deep Robotics X30 Industrial Quadruped Robot Dog and the Deep Robotics X30 Pro Industrial Quadruped Robot Dog. Universities and research teams whose priority is development work rather than field patrol will find a better fit in the Deep Robotics Lite3 Academic & Research Quadruped Robot Dog. Robots Middle East can advise on which platform best matches your requirements.

What is the Deep Robotics X20 used for?

  1. Industrial patrol inspection: repeating scheduled rounds across plants and facilities without sending staff on every circuit.
  2. Gas monitoring: carrying gas sensors through areas where people should not linger.
  3. Visual site checks: mounting cameras to record the condition of equipment, gauges and walkways along a route.
  4. Mapping and surveying: pairing LiDAR units with precise navigation to capture the layout of a site.
  5. Outdoor and exposed routes: walking through sand, gravel, grass and standing water with IP66 protection.
  6. Manipulation tasks: fitting a robotic arm where a patrol must interact with its surroundings as well as observe them.

Pricing and Availability

Robots Middle East supplies the Deep Robotics X20 on quotation, so that each offer reflects your configuration, payloads and site requirements. As the product name indicates, the X20 is listed as discontinued. Your quotation will therefore confirm whether the X20 can be supplied for your project, or which current X Series model would serve the same purpose. Delivery, customs and support are arranged together with the quotation. To begin, please send us your requirements using the enquiry options available on this page.

Frequently Asked Questions

What kind of work is the X20 designed for?

DEEP ROBOTICS designed the X20 for industrial patrol inspection under extreme working conditions. It walks inspection routes and carries the sensors that gather the data.

How much can the X20 carry?

The X20 has a payload capacity of 20 kg, which is enough for cameras, LiDAR units, gas sensors or a robotic arm.

Is the X20 protected against dust and water?

Yes. The X20 carries an IP66 ingress protection rating, giving it dust and water resistance for adverse conditions.

Can the X20 climb stairs?

Yes. The X20 adapts to 20 cm obstacles and stairs and to slopes of 30°, as well as grass, sand, snow, gravel and standing water.

How long does the X20 run on one charge?

The X20 has an endurance of 2 – 4 h and a mileage of 15 km, enough for substantial patrol rounds.

Which navigation functions does the X20 support?

The X20 supports precise navigation, dynamic obstacle avoidance, terrain recognition and human-robot interaction.

Where can I buy the Deep Robotics X20 and what does it cost?

Robots Middle East sells the Deep Robotics X20 in the Middle East and provides pricing by individual quotation. Please submit an enquiry through this page and our team will reply with an offer for your configuration.

Summary

Dust in the seals, water in the low corners, stairs between levels: these are the everyday conditions an industrial patrol robot must accept. The Deep Robotics X20 answers them with legged mobility over obstacles, slopes and loose ground, IP66 protection, a 20 kg payload and a modular interface array that carries the sensors each site needs. Although it is now listed as discontinued, it remains a capable reference point for operators who run it today and for buyers comparing the industrial X Series. Whether you plan to extend an existing fleet or to define a new inspection programme with Robots Middle East, this page is the starting point.

Specifications

General

BRAND DEEP ROBOTICS
PART # X20
ROBOT TYPE QUADRUPED
ROBOT USE INDUSTRIAL
FCC APPROVED Yes

What's included

Deep Robotics X20 Industrial Quadruped Robot Dog (X20)
