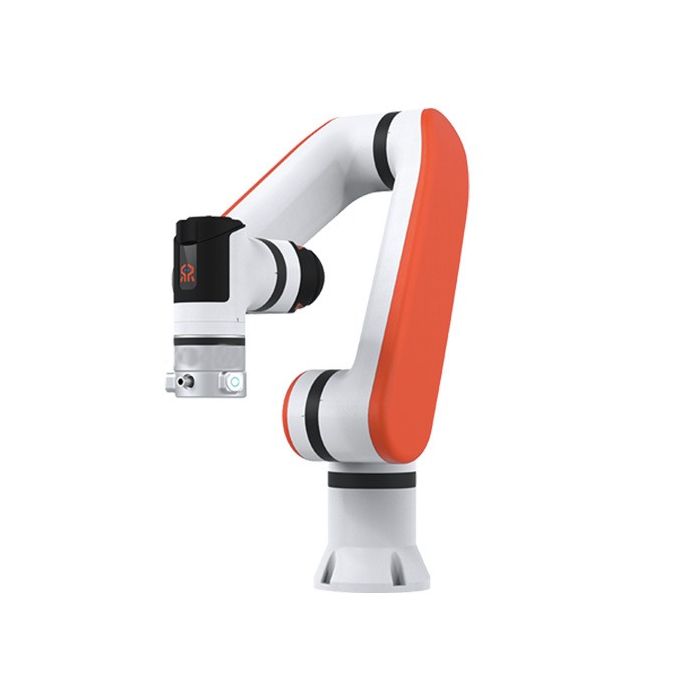

Realman Robotics 6-DOF Ultra-Lightweight Robotic Arm (ECO65-6F)

A compact collaborative arm from Realman that measures the forces at its wrist and holds firm when the power is off, made for tasks where contact must be controlled as carefully as position. Robots Middle East offers it for retail counters, production lines, therapy rooms and service settings across the region.

In stock

BRAND:
REALMAN
PART #:
ECO65-6F
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Realman Robotics-ECO65-6F

Realman Robotics 6-DOF Ultra-Lightweight Robotic Arm (ECO65-6F)

Lightweight arms are easy to place almost anywhere. The harder part is trusting them once they are there, beside a shop assistant, a line operator or a client lying on a treatment table. The Realman Robotics 6-DOF Ultra-Lightweight Robotic Arm (ECO65-6F) earns that trust in two ways: it measures the forces and torques acting at its wrist, and it locks its position mechanically when the power is removed. It is the Six-Axis Force version of Realman's ECO65 series, a 6-DoF collaborative arm with a 5 kg payload and ±0.05 mm repeatability, and it belongs to the family of compact robot arms built to share space with people rather than be fenced away from them.

Robots Middle East supplies the ECO65-6F to companies, system integrators, clinics, universities and research laboratories across the Middle East. Our team prepares each quotation around the intended application, coordinates delivery to the project site and remains the point of contact for technical support once the arm is in service. Buyers therefore deal with one regional partner, from the first enquiry through to commissioning and beyond.

Background

Realman and the ECO65 series

Realman is a robotics manufacturer whose range is built around lightweight collaborative arms intended for integration into service, research and industrial systems. The ECO65 series is one strand of that range, and it is offered in two versions: the ECO65 Standard (ECO65-B) and the ECO65 Six-Axis Force (ECO65-6F). Both share the series architecture of six degrees of freedom, a 5 kg payload, a reach of 610–627 mm across the series, full mechanical brakes on every joint and ±0.05 mm repeatability.

What separates the two versions is sensing. The ECO65-B is the standard arm for tasks governed by position; the ECO65-6F is the version configured around force and torque measurement. Elsewhere in the Realman family, buyers will also find other lightweight lines such as the RM75 and GEN72 arms, each aimed at a different balance of configuration and budget. Within the ECO65 series itself, the decision is simpler: it comes down to whether the task requires the arm to feel what it is touching.

Six-axis force and torque sensing

A six-axis force/torque sensor measures force along three axes and torque about those same three axes at the point where the tool meets the arm. The ECO65-6F offers an optional built-in sensor of this kind, rated at 200N and 7N·m with an accuracy of ±0.5%FS, intended for precision contact tasks. Building the sensor into the arm, rather than adding a separate unit between flange and tool, generally keeps the tool chain shorter and the cabling tidier, which counts for a great deal in compact installations.

Force and torque data allow a controller to do things that position control alone cannot. Depending on the control software, it can hold a steady pressure against a surface, register an unexpected contact, follow a contour by feel or respond when an operator guides the arm by hand. These are the capabilities that make this version relevant to massage therapy and lifestyle service scenarios, where contact with a person or a delicate object is the very purpose of the task.

Technical Specifications

SpecificationValue
VersionECO65 Six-Axis Force (ECO65-6F)
Degrees of freedom6
Payload5 kg
Net weight7.9 kg
Reach (ECO65 series range)610–627 mm
Repeatability±0.05 mm
Joint brakesMechanical brakes on all joints (J1–J6), with power-off position lock
Force/torque sensorOptional built-in six-axis sensor, 200N / 7N·m
Force/torque sensor accuracy±0.5%FS

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation. The manufacturer has not published the dimensions, the mounting hole pattern, the cable length, the noise level or the certifications for this version; all of these are confirmed at quotation.

What does the Six-Axis Force version add over the ECO65-B?

On the mechanical side, the two ECO65 versions are presented as one series: the same six degrees of freedom, the same 5 kg payload, the same repeatability and the same brakes on every joint. The difference lies in what the arm knows about its surroundings. A standard arm knows precisely where its tool is; the ECO65-6F also knows how hard that tool is pressing, and in which direction.

That second kind of knowledge changes the nature of the work the arm can take on. Inserting a part that must seat without being forced, applying a consistent pressure in a massage routine, wiping or polishing a surface whose shape varies slightly from piece to piece, handing an object to a person and releasing it only when it has been taken: each of these depends on measured contact force rather than on position alone. With a sensor rated at 200N and 7N·m and an accuracy of ±0.5%FS, the ECO65-6F is aimed squarely at this category of precision contact task.

The practical question for a buyer is therefore not which version is better, but whether the application involves controlled contact. Where it does, the Six-Axis Force version is the logical choice. Where the arm only needs to move objects from one known point to another, the standard version covers the requirement.

Why do brakes on every joint matter in shared spaces?

Every joint of the ECO65-6F, from J1 to J6, is fitted with a mechanical brake that holds the arm in place and locks its position when the power is off. In a fenced industrial cell, a sagging arm after a power cut is an inconvenience. At a retail counter, beside a production operator or over a client on a treatment couch, it is a far more serious concern.

Mechanical brakes on all joints mean the arm keeps its posture through a power interruption, an emergency stop or a planned shutdown, and it can be restarted from a known position. Combined with force sensing, this gives the ECO65-6F two complementary safeguards: one that responds to contact while the arm is moving, and one that holds it securely when it is not.

Who is the ECO65-6F for?

The first group is operators of new retail and lifestyle service concepts, who need a compact arm that can work in full view of customers and interact with objects, and sometimes people, without heavy guarding. The second is system integrators and manufacturers adding collaborative stations to industrial production lines, particularly for assembly, inspection or finishing steps where contact force decides the quality of the result.

The third group is developers of massage therapy and wellness equipment, for whom force measurement is not an option but the foundation of the product. The fourth is universities and research laboratories working on force control, human–robot interaction and service robotics, where a lightweight arm with built-in force/torque sensing shortens the path from idea to experiment.

Buyers whose tasks are purely positional, such as moving parts between fixed points or presenting items at set locations, will find that the Realman Robotics 6-DOF Ultra-Lightweight Robotic Arm (ECO65-B) shares the series architecture without the force sensor, and may suit their project better.

What is the ECO65-6F used for?

  1. New retail: serving, presenting or preparing items at a counter where the arm works alongside staff and customers.
  2. Industrial production lines: collaborative assembly and handling steps where parts must be seated with a controlled force.
  3. Massage therapy: applying measured, repeatable pressure as the working end of a therapy or wellness system.
  4. Lifestyle service scenarios: household-style and hospitality tasks that involve handing over or manipulating everyday objects.
  5. Surface finishing and contact inspection: following a surface by feel for wiping, polishing or checking the fit of components.
  6. Research and teaching: experiments in force control, compliant motion and human–robot interaction in laboratories and classrooms.

Pricing and Availability

Robots Middle East supplies the ECO65-6F on a quotation basis, so that the configuration, including the force/torque sensor, and any accessories can be matched to the intended application. Delivery, customs clearance and technical support are arranged together with the quotation. To receive a tailored offer for your project, please use the quotation request available on this page.

Frequently Asked Questions

What payload does the ECO65-6F handle?

The ECO65-6F has a payload of 5 kg and a net weight of 7.9 kg.

What does the force/torque sensor measure?

The optional built-in six-axis sensor measures forces and torques at the wrist, with a rating of 200N and 7N·m and an accuracy of ±0.5%FS. It is intended for precision contact tasks.

What reach does the ECO65 series offer?

The ECO65 series covers a reach of 610–627 mm.

Does the arm hold its position if the power fails?

Yes. All joints, J1 to J6, are equipped with mechanical brakes that hold the arm and lock its position when the power is off.

How does the ECO65-6F differ from the ECO65-B?

Both versions share the series architecture of six degrees of freedom, a 5 kg payload, brakes on every joint and ±0.05 mm repeatability. The ECO65-6F is the Six-Axis Force version, built around force/torque sensing for contact tasks.

Which industries is the ECO65-6F designed for?

The ECO65-6F is purpose-built for new retail, industrial production lines, massage therapy and lifestyle service scenarios. Its force/torque sensing makes it particularly suited to tasks where the arm is in controlled contact with an object or a person.

Where can I buy the ECO65-6F and what does it cost?

You can buy the ECO65-6F from Robots Middle East, which supplies it across the Middle East. The cost depends on the configuration and project scope, so it is provided in a tailored quotation that you can request on this page.

Summary

Placing a lightweight arm in a shared space is easy; trusting it there is what counts. The ECO65-6F builds that trust on two foundations: a six-axis force/torque sensor that tells the controller how firmly the tool is pressing, and mechanical brakes on every joint that keep the arm where it is when the power is removed. Around them sits the ECO65 series architecture of six degrees of freedom, a 5 kg payload and ±0.05 mm repeatability, aimed at new retail, production lines, massage therapy and lifestyle services. For buyers whose work depends on controlled contact, and who want a regional partner to quote, deliver and support the arm, this page is the starting point.

Specifications

General

BRAND REALMAN
PART # ECO65-6F
ROBOT TYPE COBOT

What's included

Realman Robotics ECO65-6F 6-DOF Ultra-Lightweight Humanoid Robotic Arm (ECO65-6F)
