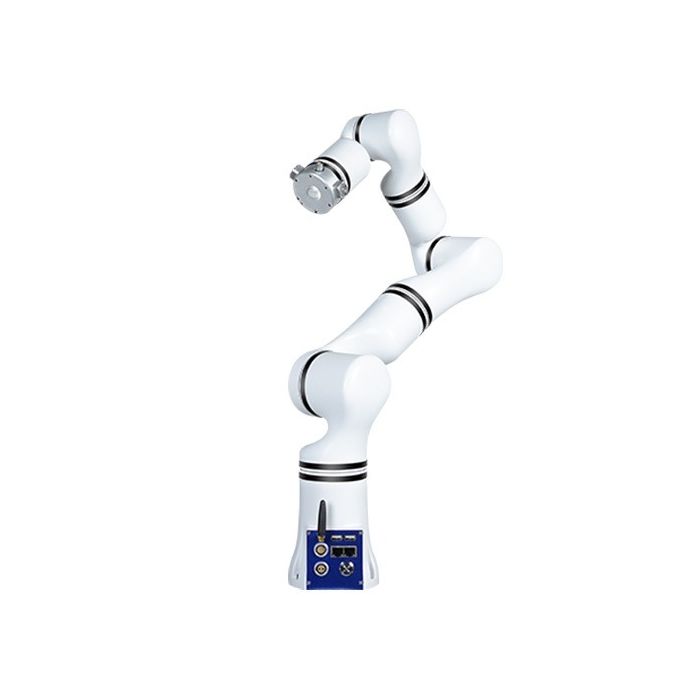

Realman Robotics Ultra-Lightweight Robotic Arm (RM65-B)

A lightweight collaborative robotic arm from RealMan that stops on contact and can be taught by hand, made for laboratories, compact workcells and mobile platforms where a conventional industrial arm would be too heavy to place. It suits teams that want precise, repeatable motion without building heavy infrastructure around the robot.

In stock

BRAND:
REALMAN
MODEL:
RM65-B
PART #:
RM65-B
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Realman Robotics-RM65-B

Realman Robotics Ultra-Lightweight Robotic Arm (RM65-B)

Precision and mass have long been treated as a pair: the heavier and stiffer the arm, the more faithfully it holds its path. The Realman Robotics Ultra-Lightweight Robotic Arm (RM65-B) breaks that pairing. Its six-axis aluminium-alloy body weighs 7.2 kg, yet it returns to a taught position with a repeatability of ±0.05 mm. That combination changes the planning conversation. Instead of asking how much structure must be built to carry the robot, a project team can start from the task itself: the bench, the trolley, the test fixture or the mobile base where the work actually happens.

Robots Middle East supplies the RM65-B across the Middle East to universities, research centres, system integrators and manufacturers. Our team prepares the quotation, arranges delivery to your site and provides support once the arm is in service, so that each project has one point of contact from the first enquiry to commissioning.

Background

RealMan and the RM series

The RM65-B is made by RealMan (Beijing) Intelligent Technology Co., Ltd., a company that concentrates on lightweight collaborative arms. The RM65-B belongs to the RM series, which comprises five models. The RM65-B and RM75-B are the basic versions, and the RM65-6F and RM75-6F are the six-axis force versions; the sources also name an RM65-B-V variant. Within that family, the RM65-B is the basic six-degree-of-freedom arm: the model for buyers who want the platform's light weight and precise motion without the additional force-sensing hardware of the 6F versions. It sits alongside the wider range of Robot Arms and Cobots available through our store.

Contact-stop safety and drag teaching

The feature that defines the RM65-B in daily use is its built-in safety module, which stops the arm's operation when it makes contact. This has two practical consequences. First, it enables safe human-machine collaboration, so an operator can share a workspace with the arm rather than standing behind a guarded fence. Second, it simplifies drag-and-drop teaching: the operator guides the arm by hand through the desired motion, and the arm records it. For laboratories and small production teams without a dedicated robot programmer, that approach shortens the step from idea to working routine and makes human-robot interaction considerably more approachable.

Technical Specifications

SpecificationValue
ModelRM65-B
Degrees of freedom6
Body weight7.2 kg
Working radius610 mm
Repeatability±0.05 mm
Joint motion range J1±178°
Joint motion range J2±130°
Joint motion range J3±135°
Joint motion range J4±178°
Joint motion range J5±128°
Joint motion range J6±360°
Joint maximum speed J1-J2180°/s
Joint maximum speed J3-J6225°/s
MaterialAluminium alloy
Reliability testContinuous operation under a 5 kg load for over 30,000 hours without failure

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the rated payload, the packaging dimensions, the contents of the box, the operating temperature, the certifications, whether the joints are fitted with brakes or the noise level; these details are confirmed with your quotation.

How does the RM65-B differ from the RM65-6F?

Both arms belong to the same RM series, and the difference lies in the designation. The "B" marks the basic version, while "6F" marks the six-axis force version. For a buyer, the choice comes down to whether the application needs the arm to measure the forces it applies, or whether precise, repeatable positioning is sufficient.

Many tasks fall squarely into the second group. Moving parts between fixtures, presenting samples to an instrument, repeating a test sequence or demonstrating a motion routine all depend on reaching the same point reliably, and the RM65-B's ±0.05 mm repeatability addresses exactly that. Tasks such as surface finishing, assembly with tight fits or controlled pressing are the natural territory of a force version, and buyers working on them should discuss the RM65-6F with us. Choosing the basic version where force sensing is not required keeps the configuration simpler, and the contact-stop safety module is part of the RM65-B in any case, so collaborative operation does not depend on moving up to the 6F.

How reliable is the RM65-B in continuous operation?

Light weight often raises a fair question about durability: does an arm this light survive production duty? The RM65-B has been tested to operate continuously under a 5 kg load for over 30,000 hours without failure. That result speaks directly to buyers planning long-running installations rather than occasional demonstrations, and it supports the use of the arm in demanding industrial settings as well as in the laboratory.

The joint figures complete the picture. The wrist joint J6 rotates through ±360°, and J1 and J4 each cover ±178°, which gives the arm a broad envelope within its 610 mm working radius and reduces the need for awkward repositioning between moves. With J1-J2 reaching 180°/s and J3-J6 reaching 225°/s, the arm can carry out brisk cycles where the process allows, while the aluminium-alloy structure keeps the moving mass low.

Who is the RM65-B for?

Research groups and universities form the first natural audience. An arm that one can carry, set on a bench and teach by hand fits the rhythm of experimental work, where set-ups change from one week to the next and students need to see results quickly. The contact-stop module also makes the arm easier to introduce in shared teaching spaces.

System integrators and developers of mobile robots are a second group. When an arm is to be mounted on a trolley, an automated guided platform or a compact cell, every kilogram counts, and the RM65-B's 7.2 kg body weight gives them more freedom in the design of the carrier.

Manufacturers taking their first steps in automation make up the third segment. Drag-and-drop teaching lowers the barrier for teams without programming specialists, and the reliability test gives confidence for continuous duty.

Buyers whose applications depend on force feedback are better served by the RM65-6F within the same series. Those who need a longer reach than the RM65-B offers may wish to compare the Realman Robotics RML63-B Long Arm Span Robotic Arm Basic Version (RML63-B); our team will help you weigh the options against your task.

What is the RM65-B used for?

  1. Research and education: a hands-on platform for robotics courses, motion studies and laboratory experiments.
  2. Compact pick-and-place: transferring parts or samples between fixtures in space-constrained cells.
  3. Mobile manipulation: mounting on mobile platforms where low arm weight eases the carrier's design.
  4. Laboratory automation: repeatable handling of samples, containers and instruments on the bench.
  5. Collaborative workstations: sharing a workspace with operators, supported by the contact-stop safety module.
  6. Prototyping and proof of concept: testing an automation idea quickly through hand-guided teaching before scaling up.

Pricing and Availability

Robots Middle East supplies the RM65-B on quotation, so that the configuration, accessories and support match your project rather than a standard listing. Tell us about your application, your intended mounting and the region of delivery, and we will prepare an offer and confirm the datasheet figures with it. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, use the quotation request available on this page.

Frequently Asked Questions

How many degrees of freedom does the RM65-B have?

The RM65-B has six degrees of freedom. The wrist joint J6 rotates through ±360°, giving a broad range of orientations for the tool.

How much does the arm weigh?

The body of the RM65-B weighs 7.2 kg. Its structure is made of aluminium alloy.

What happens if the arm touches a person?

The built-in safety module stops the arm's operation upon contact. This enables safe human-machine collaboration and simplifies drag-and-drop teaching.

What is the working radius of the RM65-B?

The working radius is 610 mm. Within that envelope the arm repeats positions with a repeatability of ±0.05 mm.

How fast do the joints move?

Joints J1-J2 reach a maximum speed of 180°/s, and joints J3-J6 reach 225°/s.

Is the RM65-B suitable for force-controlled tasks?

The RM65-B is the basic version of the series. For applications that require six-axis force sensing, the RM65-6F is the appropriate choice, and our team can advise on which model suits your task.

Where can I buy the Realman Robotics Ultra-Lightweight Robotic Arm (RM65-B) and what does it cost?

You can buy the RM65-B from Robots Middle East, which supplies it across the Middle East. The cost depends on your configuration and delivery requirements, so we provide it in a quotation prepared for your project.

Summary

The RM65-B challenges the assumption that precision requires bulk. A 7.2 kg aluminium-alloy body, six degrees of freedom, a 610 mm working radius and a repeatability of ±0.05 mm give it the accuracy that laboratory and production tasks demand, while its contact-stop safety module and drag-and-drop teaching make it approachable for teams new to robotics. Its continuous-duty test under load shows that a light arm can also be a durable one. Where force sensing is essential, the RM65-6F completes the picture within the same series. For research groups, integrators and manufacturers in the Middle East who want precise motion without heavy infrastructure, this page is the starting point.

Specifications

General

BRAND REALMAN
MODEL RM65-B
PART # RM65-B
ROBOT TYPE COBOT

What's included

Realman Robotics RM65-B Ultra-Lightweight Humanoid Robotic Arm (RM65-B)
