SIASUN Medium And Thick Plate Welding Machine Set

A robotic arc-welding set built around SIASUN's SR-series robots for fabricators who join heavier steel, stainless and aluminium sections. Robots Middle East supplies it as an integrated cell for workshops that want consistent, clean seams without depending on scarce manual welders.

In stock

BRAND:
SIASUN
PART #:
Medium and Thick Plate Welding Machine Set
ORIGIN:
China
AVAILABILITY:
FOR OPPORTUNITIES OVER 1 MILLION USD
SKU:
SIASUN-Medium-Thick-Plate-Welding-Set

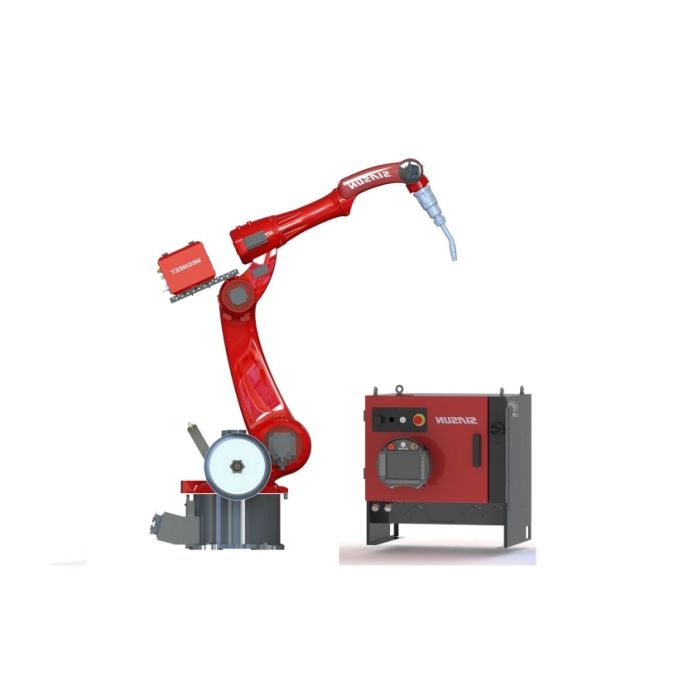

SIASUN Medium And Thick Plate Welding Machine Set

Sheet metal punishes a welder for too much heat; plate punishes him for too little. On a heavy joint the arc must carry real current, feed wire without hesitation and keep doing so layer after layer, while the seam itself wanders from where the drawing placed it. The SIASUN Medium And Thick Plate Welding Machine Set is built for that second kind of work. It brings an SR-series industrial robot, an intelligent welding control system and digital welding equipment together as one set, so the buyer is not left matching a robot, a power source and software from separate catalogues.

Robots Middle East sells the SIASUN Medium And Thick Plate Welding Machine Set to fabricators, contractors and manufacturers across the Middle East. Configuration advice, the formal quotation, delivery to site and after-sales support are all handled by Robots Middle East, so you deal with a single party from the first technical question to the first production weld.

Background

SIASUN and the SR-series robots

SIASUN is a Chinese robotics and automation manufacturer that grew out of the Shenyang Institute of Automation of the Chinese Academy of Sciences, and it builds industrial robots, mobile robots and complete automated lines. This welding set is centred on SIASUN's independently developed SR-series industrial robots. Two robots are offered for it, the SR12A-12/1.46 and the SR25A-12/2.01, and both are built with internal wiring, which keeps the cabling inside the arm rather than draped along its outside. Our wider range of SIASUN arms is collected under Industrial Robots.

Intelligent control and digital welding equipment

What turns a robot into a welding cell is the process side. SIASUN pairs the SR-series arm with a next-generation intelligent welding control system and integrates digital welding equipment; the welding machine for this set is the Megmeet Dex2 500MPR. The integrated welding software provides position sensing detection, seam tracking and multi-pass welding among its routine functions. The combination achieves low-spatter, smooth welding on carbon steel, low-alloy steel, stainless steel and aluminium alloys, with even bead deposition and a clean transition that leaves a neat finished seam.

Technical Specifications

SpecificationApplies toValue
Max payloadSR12A-12/1.46 robot12kg
Max payloadSR25A-12/2.01 robot12kg
Protection (wrist)SR12A-12/1.46 robotIP65
Protection (wrist)SR25A-12/2.01 robotIP65
Wiring methodSR-series robotBuilt-in wiring
Welding machineWelding setMegmeet Dex2 500MPR
Rated output currentDex2 500MPR500A
Rated output voltageDex2 500MPR39V
Rated voltageDex2 500MPR380Vac
Wire feeding speedDex2 500MPR0.5-28m/min
Cooling methodDex2 500MPRAir Cooled / Water Cooled
Recirculating cooling tankDex2 500MPRAnycool-66
WeightDex2 500MPR40 kg
Dimensions L*W*H (mm)Dex2 500MPR647*291*572
Welding software functionsWelding setPosition sensing detection, seam tracking, multi-pass welding
Weldable materialsWelding setCarbon steel, low-alloy steel, stainless steel, aluminium alloys

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

SIASUN has not published the controller model, the welding torch model, the robot's axis count, the teach pendant specifications or a full list of what is supplied in the box for this set; Robots Middle East confirms each of these at quotation.

What does the Megmeet Dex2 500MPR bring to heavy-section welding?

On plate, the power source sets the ceiling for everything the robot can do. The Dex2 500MPR has a rated output current of 500A at a rated output voltage of 39V, which is the kind of headroom heavier joints call for when fill and cap passes have to be laid down without starving the arc. Its wire feeding speed runs from 0.5-28m/min, so the same unit can feed gently on a root pass and push volume on fill passes, with the control system choosing the setting for each layer rather than an operator reaching for a dial.

Cooling matters as soon as a cell runs long seams back to back. The Dex2 500MPR is specified as air cooled and water cooled, with the Anycool-66 recirculating cooling tank. The unit draws 380Vac, weighs 40 kg and measures 647*291*572 mm, which helps when planning the floor space and three-phase supply for the cell. Because the power source is digital and integrated with SIASUN's control system, the welding parameters live alongside the robot programme instead of in a separate box.

How does this set differ from the SIASUN Sheet Metal Welding Machine Set?

SIASUN offers a separate SIASUN Sheet Metal Welding Machine Set for thinner material, and the difference between the two is a matter of process priorities rather than of brand or philosophy. Thin sheet needs careful control of heat input to avoid distortion and burn-through; plate needs current, deposition and the patience of multi-pass welding. This set is the one configured for the heavier side of that divide, with the Dex2 500MPR as its welding machine and seam tracking and multi-pass welding in its software.

The two sets should not be compared figure for figure from memory: each has its own power source and its own datasheet, and Robots Middle East quotes each against its own documentation. If your work mixes thin enclosures with heavy frames, it is worth discussing both sets before you commit to one.

Who is the SIASUN Medium And Thick Plate Welding Machine Set for?

The natural buyer is a fabricator whose daily work is plate rather than sheet: steel structure workshops, makers of machinery frames and chassis, manufacturers of tanks and pressure equipment, and contractors serving construction, energy and infrastructure projects across the region. These shops typically face long seams, repeated multi-pass joints and parts that never sit in exactly the same place twice, which is where position sensing and seam tracking earn their keep.

Manufacturers working in stainless steel or aluminium alloys will find the set relevant as well, since it welds both. Buyers in shipbuilding and marine fabrication may prefer to look at SIASUN Industrial Robot Smart Welding Solutions For Ships, which is designed specifically for vessel construction. Workshops whose main obstacle is programming time on high-mix, low-volume parts may also wish to compare the SIASUN Teach-Free Welding Robot before deciding.

What is the SIASUN Medium And Thick Plate Welding Machine Set used for?

  1. Structural steel fabrication — welding beams, columns, brackets and connection plates for buildings and industrial structures.
  2. Heavy machinery frames — joining base frames, chassis and booms for construction, mining and handling equipment.
  3. Multi-pass butt and fillet joints — building up root, fill and cap layers on heavier sections with programmed sequencing.
  4. Stainless steel vessels and tanks — producing low-spatter seams on stainless components for process and storage equipment.
  5. Aluminium alloy assemblies — welding aluminium structures where an even bead and a clean finish matter.
  6. Batch production with part variation — using position sensing and seam tracking to compensate for fit-up differences between parts.

Pricing and Availability

The SIASUN Medium And Thick Plate Welding Machine Set is supplied on quotation, because the final configuration depends on the robot chosen, the cooling arrangement, fixturing and the materials you intend to weld. Send Robots Middle East a description of your parts, joint types and production volumes, and we will prepare a quotation matched to your application. Delivery, customs clearance and support are arranged together with the quotation. To begin, use the quotation request available on this page.

Frequently Asked Questions

Which robots are used in this welding set?

The set is built on two SIASUN SR-series robots, the SR12A-12/1.46 and the SR25A-12/2.01. Both carry a wrist protection rating of IP65 and use built-in wiring.

Which welding power source is included?

The set's welding machine is the Megmeet Dex2 500MPR, with a rated output current of 500A and a rated output voltage of 39V.

Which materials can it weld?

The set achieves low-spatter, smooth welding on carbon steel, low-alloy steel, stainless steel and aluminium alloys.

Does the set include seam tracking?

Yes. The integrated welding software provides position sensing detection, seam tracking and multi-pass welding among its routine functions.

What electrical supply does the power source need?

The Dex2 500MPR has a rated voltage of 380Vac. Robots Middle East reviews your site supply as part of the quotation.

Which controller and torch come with the set?

Robots Middle East confirms the controller model and the welding torch model at quotation, together with the full scope of supply.

Where can I buy the SIASUN Medium And Thick Plate Welding Machine Set and what does it cost?

You can buy it from Robots Middle East, which supplies and supports it across the Middle East. The cost depends on the configuration, so request a quotation on this page and we will prepare one for your application.

Summary

Plate asks more of a welding cell than sheet does: more current, steadier wire feed, several passes per joint and the ability to find a seam that is not quite where it should be. The SIASUN Medium And Thick Plate Welding Machine Set meets those demands by combining an SR-series robot, an intelligent welding control system and the Megmeet Dex2 500MPR digital power source, with seam tracking and multi-pass welding built into its software. Robots Middle East quotes, delivers and supports it for fabricators across the region. If heavy-section welding is holding back your output, this page is the starting point.

Specifications

General

BRAND SIASUN
PART # Medium and Thick Plate Welding Machine Set
ROBOT TYPE COBOT
ROBOT USE WELDING

What's included

SIASUN Medium And Thick Plate Welding Machine Set (Medium and Thick Plate Welding Machine Set)
