BMR T100 Exterior Wall Coating Robot
In stock
- BRAND:
- BMR
- MODEL:
- EXTERIOR WALL COATING ROBOT T100
- ORIGIN:
- China
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- ALLOW 8 TO 12 WEEKS FOR DELIVERY
- SKU:
- BMR-Exterior-Wall-Coating-Robot

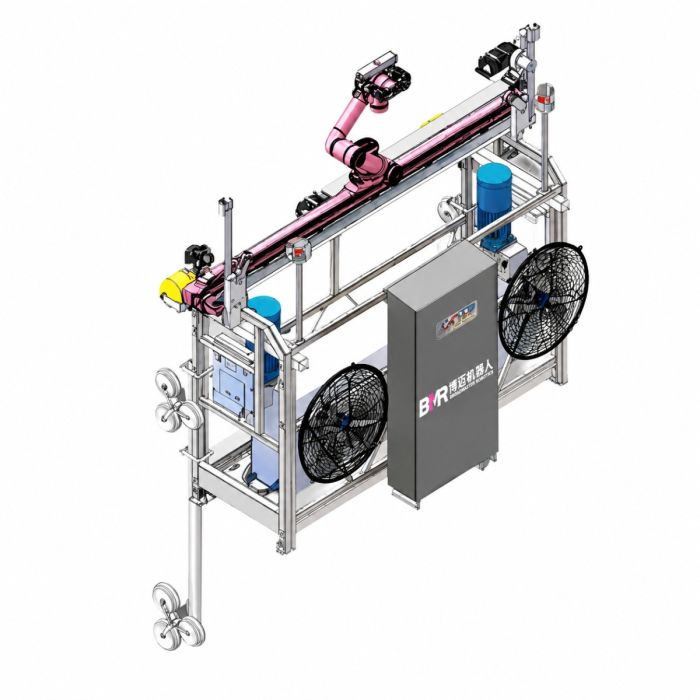

BMR T100 Exterior Wall Coating Robot
A building's facade is the surface its city looks at every day. On a tall structure, however, it is often the last surface to be finished and the hardest to finish evenly, because every square metre must be reached from a platform hanging in open air. The BMR T100 Exterior Wall Coating Robot approaches that problem from the platform outwards. It does not ask contractors to adopt a new access system. Instead, it mounts on the industry-standard aerial work gondolas they already use and takes over the spraying itself, applying primer and topcoat to the exterior walls of mid- and high-rise buildings while the crew supervises the work. The machine carries the repetition, and the people carry the judgement.
Robots Middle East sells the BMR T100 Exterior Wall Coating Robot to construction companies, facade contractors and building maintenance firms across the Middle East. Our team prepares each quotation around the project in hand, arranges delivery to the site or yard, and provides the support that keeps the robot working once it is on the gondola. The T100 belongs to our range of Coating Robots, which sits within the wider family of Construction Robots that Robots Middle East supplies to the region.
Background
Shenzhen BrightMaster Robotics and the BMR brand
The T100 is manufactured by Shenzhen BrightMaster Robotics Co., Ltd., whose products are sold under the BMR name. The company builds robots for building construction rather than for the factory floor. That focus shows in the design of the T100, which is shaped around the realities of a building site: existing access equipment, a variety of finishes and facades that seldom run flat from top to bottom. Within the BMR line carried by Robots Middle East, the T100 is the machine dedicated to the outside of the building. Other BMR robots address floors and concrete surfaces.
A modular, platform-based concept
BrightMaster describes the T100 as modular, lightweight and platform-based. In practice, the robot is designed to be carried by the suspended gondolas already common on facade projects, in the 2–4 m class, rather than by a bespoke rig. Each module weighs no more than 50kg, which matters when equipment has to be brought up to roof level, fitted to a cradle and moved from one drop to the next. Because the robot adapts to a standard platform rather than replacing it, it can move between projects and contractors without changing how the access side of the job is organised.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Intelligent aerial work robot for exterior facades of mid- and high-rise buildings |
| Weight | ≤400kg |
| Module weight | ≤50kg |
| Rated power | 4kW |
| Operating voltage | 380V |
| Working height | ≤100m |
| Effective stroke | 2-4m |
| Gondola compatibility | Industry-standard aerial work gondolas (2-4 m) |
| Material tank capacity | 80L |
| Coating efficiency | 180m²/h |
| Overall coverage rate | ≥80% |
| Obstacle crossing height | ≤200mm |
| Trajectory planning | Manual, fully automatic |
| Construction coatings | Latex paint, real stone paint, relief paint, multicolour paint |
| Construction scenarios | Flat surfaces, balconies, internal/external corners, bay windows, curved surfaces |
Specifications as published by the manufacturer; confirmed against the datasheet at quotation.
The manufacturer has not published the dimensions, the IP rating, battery or runtime details, the spray pressure, connectivity, the sensor set, the package contents or a manufacturer part number; these are confirmed at quotation.
How does the T100 work with an existing gondola?
The central idea of the T100 is that access and application are separate problems. The gondola solves access: it is suspended from the roof, raised and lowered along the facade, and operated under the safety procedures contractors already follow. The robot solves application. Mounted on the platform, it sprays across an effective stroke of 2-4m, matching the gondola widths it is designed for, and draws coating from an 80L material tank. The tank allows sustained passes before the material needs topping up.
Spraying can be planned manually or fully automatically. The robot recognises facade features, plans its spray path, crosses obstacles of up to 200mm, and reports its aerial attitude while it works. Remote construction monitoring and construction data statistics allow a supervisor to follow progress and keep a record of what has been coated. For a contractor, the gondola keeps its familiar role. What changes is that the repetitive strokes are executed by a machine at 180m²/h, with an overall coverage rate of at least 80%. The remaining areas are left for finishing by hand where the facade requires it.
Which coatings and facade features can the T100 handle?
A facade robot is only as useful as the finishes it can apply. The T100 supports latex paint, real stone paint, multicolour paint and relief paint, as well as other commonly used exterior wall coating systems. These cover much of the work on residential and public buildings, from plain painted render to textured stone-effect finishes. The robot applies both primer and topcoat, so it can take part in the full coating sequence rather than a single layer.
Geometry is the other test. Towers are rarely flat from parapet to podium, and the T100 is specified for flat surfaces, balconies, internal and external corners, bay windows and curved surfaces. BrightMaster also names gable walls among the irregular surfaces it supports. Automatic feature recognition is what allows the robot to adjust its trajectory to these changes in plane rather than treating the facade as a single uniform sheet.
Who is the BMR T100 Exterior Wall Coating Robot for?
The first audience is the specialist facade contractor who already runs gondola crews on mid- and high-rise projects and wants to raise output without adding people at height. For such firms, the T100 fits into existing equipment and procedures, and its data statistics provide a record of progress for clients and site management.
Main contractors delivering residential towers and public buildings form the second group. On these projects, the exterior finish is frequently on the critical path, and a machine that follows a planned spray path brings consistency across large, repetitive elevations. Building owners and maintenance companies responsible for repainting or renovating existing facades are a third group, since the robot works from the same suspended platforms used for maintenance access. Where a buyer's need lies inside the building or on horizontal surfaces rather than on the facade, the other machines in our coating range are the better place to look, and the Robots Middle East team will advise on the appropriate choice.
What is the BMR T100 Exterior Wall Coating Robot used for?
- New-build residential towers: applying primer and topcoat across large, repetitive elevations of mid- and high-rise housing.
- Public and civic buildings: coating the exterior walls of public buildings with a planned, recorded spray process.
- Stone-effect and textured finishes: spraying real stone, relief and multicolour paint systems on decorative facades.
- Balconies and bay windows: working around projections and recesses that slow down manual spraying.
- Corners and curved walls: following internal and external corners, gable walls and curved surfaces with automatic path planning.
- Facade repainting and renovation: refreshing the exterior of existing buildings from standard maintenance gondolas.
Pricing and Availability
Robots Middle East supplies the BMR T100 Exterior Wall Coating Robot on a quotation basis, so that the offer reflects the project, the gondola equipment on site and the support required. Delivery, customs clearance and after-sales support are arranged with the quotation. Our team will also confirm the specifications that BrightMaster has not yet published before any order is placed. A quotation request for the BMR T100 Exterior Wall Coating Robot is available on this page.
Frequently Asked Questions
Does the T100 need its own access platform?
No. The robot is designed to be mounted on industry-standard aerial work gondolas in the 2-4 m class, so it works from the suspended platforms that facade contractors already use.
How high can the T100 work?
The T100 performs exterior wall coating at working heights of up to 100m, which covers mid-rise and high-rise buildings.
Which paints can it spray?
It applies latex paint, real stone paint, multicolour paint, relief paint and other commonly used exterior wall coating systems, for both primer and topcoat.
Can it work around balconies and corners?
Yes. It is specified for balconies, bay windows, internal and external corners, curved surfaces and gable walls, and it crosses obstacles of up to 200mm automatically.
What power supply does it require?
The T100 operates on 380V with a rated power of 4kW, and the site power arrangements are reviewed as part of the quotation.
Can progress be monitored from the ground?
The robot offers remote construction monitoring, construction data statistics and aerial attitude monitoring, so supervisors can follow the work and keep a record of each coated area.
Where can I buy the BMR T100 Exterior Wall Coating Robot and what does it cost?
Robots Middle East sells the T100 across the Middle East and prices it by individual quotation. Please submit a quotation request from this page, and our team will prepare an offer that includes delivery, customs and support.
Summary
The most visible surface of a tall building has long been the most awkward to finish. The BMR T100 Exterior Wall Coating Robot changes that by leaving access to the gondola and giving the spraying to a machine. It applies primer and topcoat in the common exterior coating systems, works up to 100m, follows corners, balconies and curves with automatic path planning, and records what it has done. Robots Middle East supplies, delivers and supports it for contractors and building owners across the region. For anyone planning a facade programme with fewer people on the spray gun at height, this page is the starting point.
