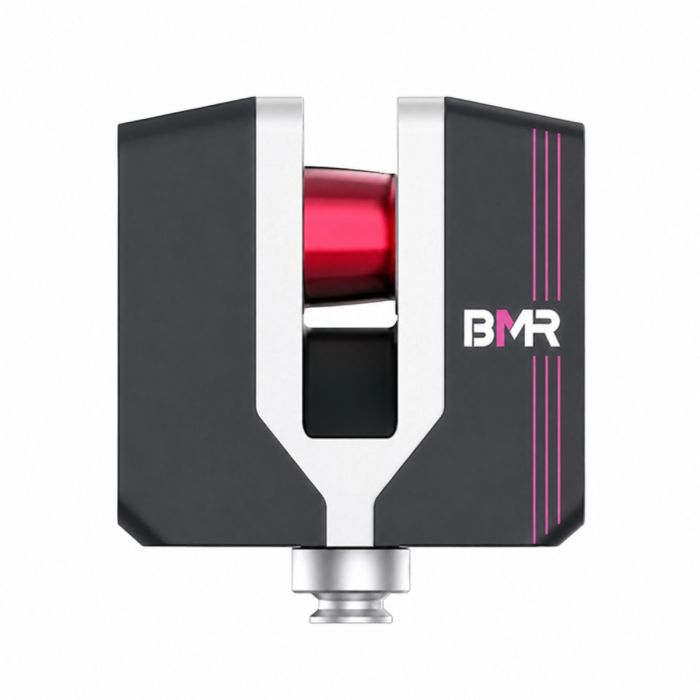

BMR Construction Measuring Robot

An intelligent measuring robot that examines finished rooms, floors and facades and turns construction quality inspection into point clouds, panoramic records and live BIM models. Robots Middle East offers it to contractors and inspection teams who need acceptance evidence they can act upon.

In stock

BRAND:
BMR
MODEL:
CL10 / CL100 / CL400
ORIGIN:
China
Warranty:
12 MONTHS
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
BMR-Measuring-Robot

BMR Construction Measuring Robot

Medicine learned long ago that a patient cannot be judged by eye alone. It needed instruments that look beneath the surface and keep a record of what they find. Construction quality inspection is now going through the same change. A wall that looks straight, a basement slab that seems level and a facade that appears true to the drawings must still be proven, and that proof has usually depended on handheld tools, patience and handwritten notes. The BMR Construction Measuring Robot replaces this patchwork with a single, systematic examination. It is an intelligent, multi-purpose measuring robot that scans its surroundings, captures point cloud data and panoramic images, and builds a reverse BIM model in real time. An inspection therefore leaves behind a digital record that can be checked, shared and acted upon, rather than a notebook.

Robots Middle East supplies the BMR Construction Measuring Robot to contractors, developers, consultants and quality inspection teams across the Middle East. We prepare quotations for each of the three published versions and arrange delivery to your project or office. After commissioning, we remain your point of contact for support, so that questions about configuration and day-to-day use are answered by the team that supplied the instrument.

Background

Shenzhen BrightMaster Robotics and the BMR range

The robot is built by Shenzhen BrightMaster Robotics Co., Ltd., a high-tech enterprise working in the intelligent construction sector. The company develops its construction robots in-house and has built a family of machines that address different stages of the building process. The measuring robot sits at the point where those stages are judged: it establishes what has actually been built, so that the next decision on site rests on evidence. For buyers who are assembling an automated workflow, the wider family is presented in our Construction Robots category.

From measurement to closed-loop correction

What distinguishes this instrument from a stand-alone scanner is the way it fits into the rest of the site. BrightMaster designed it to operate in coordination with concrete finishing robots and interior finishing robots. Together they form a closed loop that runs from problem detection to issue documentation and on to corrective execution. In practice, the measuring robot identifies a deviation, the deviation is recorded, and a finishing robot can be directed to correct it. Quality control then becomes a continuous process across the construction programme rather than a single check at handover.

Technical Specifications

SpecificationMeasuring Robot CL10Measuring Robot CL100Measuring Robot CL400
Dimensions (LxWxH)238x218x120mm230x183x103mm230x183x103mm
Weight3.9kg4.4kg4.4kg
Measurement range0.6~30m0.5~100m0.5~400m
Laser classClass 1 laser, eye-safeClass 1 laser, eye-safeClass 1 laser, eye-safe
Battery life4h4h4h
Measurement efficiency2 min/station, 300 m²/h2 min/station, 300 m²/h2 min/station, 300 m²/h
CertificationCECECE

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation. The manufacturer has not published the battery capacity, charging time, connectivity, scanner sensor type, field of view, IP rating, operating software and app, or the contents of the box; we confirm each of these with you at quotation.

Two further figures need a word of explanation. The manufacturer lists two measurement accuracy values, ±1.50mm and ±1.00mm, and two operating temperature ranges, -5°C to +45°C and -10°C to +55°C, across the three versions without stating which version each belongs to. We therefore do not attribute them to a specific model here; the values that apply to your chosen version are stated in your quotation.

How do the CL10, CL100 and CL400 differ?

The clearest difference lies in reach. The CL10 measures from 0.6~30m, which suits rooms, corridors and apartment interiors, where distances are short and the work consists of station after station. The CL100 extends this to 0.5~100m, which opens up larger halls, basements and open floor plates. The CL400 reaches 0.5~400m and is the version to consider when the task involves facades, long elevations or wide open areas that a shorter-range instrument would have to cover in many separate setups.

The housings differ as well. The CL10 measures 238x218x120mm and weighs 3.9kg, while the CL100 and CL400 share a body of 230x183x103mm at 4.4kg. The published working figures, namely 2 min/station and 300 m²/h, a Class 1 eye-safe laser and a battery life of 4h, appear as single values for the range. The choice between versions is therefore chiefly a question of how far you need to measure, not how quickly the robot works.

What does the robot capture beyond measurements?

Measurement is the starting point, not the whole output. The robot supports panoramic image capture, which gives every inspected area a visual record to accompany its figures. It acquires point cloud data, the dense spatial record from which surfaces and geometry can be analysed after the visit. It performs real-time reverse BIM modelling, turning what has been built into a model that can be compared with the design. It also calculates construction material quantities, so that the same survey that checks quality can inform how much material a correction or the next trade will require. One deployment thus serves the inspector, the BIM coordinator and the quantity surveyor, each of whom would otherwise need a separate visit.

Who is the BMR Construction Measuring Robot for?

The first group is main contractors on residential and public building projects, who carry the burden of proving quality at each stage and need inspection data that keeps pace with the programme. Third-party quality inspection firms and consultants form a second group: for them, a consistent digital record per room strengthens reports and reduces disputes about how a reading was taken. Developers and owners' representatives make up a third group, using as-built data at acceptance and handover.

Within these groups, the version follows the work. Fit-out and interior specialists who measure rooms and units will generally find the CL10 sufficient. Teams responsible for basements, large floor plates and halls are better served by the CL100. Facade contractors and those surveying long building elevations should look at the CL400 for its 0.5~400m range. Contractors that already use, or plan to use, BMR finishing robots gain most from the closed-loop workflow, because the measuring robot's findings feed directly into corrective work.

What is the BMR Construction Measuring Robot used for?

  1. Indoor as-built measurement – recording rooms as they have actually been built, for comparison with the design.
  2. Building facade measurement – checking elevations and external surfaces, with the longer-range versions suited to larger faces.
  3. Basement floor flatness measurement – verifying floor surfaces in basements before acceptance or subsequent trades.
  4. Concrete surface measurement – assessing concrete work so that deviations are found while they can still be corrected.
  5. Reverse BIM modelling – producing a real-time model of built conditions from point cloud data.
  6. Material quantity calculation – deriving construction material quantities from the same survey used for inspection.

Pricing and Availability

Robots Middle East supplies the BMR Construction Measuring Robot on a quotation basis, so that the version, configuration and supporting services match your project. Please tell us which version interests you and the kind of work you intend to carry out, and we will prepare a quotation that includes confirmation of the specifications the manufacturer has not yet published. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, use the quotation request available on this page.

Frequently Asked Questions

Which version should I choose?

The choice depends mainly on measuring distance. The CL10 covers 0.6~30m for interiors, the CL100 covers 0.5~100m for larger spaces, and the CL400 covers 0.5~400m for facades and long elevations.

Is the laser safe to use around site personnel?

The robot uses a Class 1 laser, which the manufacturer specifies as eye-safe.

How long does a measuring station take?

The published measurement efficiency is 2 min/station, with a coverage rate of 300 m²/h.

Does the robot carry CE certification?

Yes, the BMR Measuring Robot is CE certified, which shows compliance with applicable European safety, health and environmental protection requirements.

Can it produce BIM data?

It performs real-time reverse BIM modelling based on the point cloud data it acquires, alongside panoramic image capture and material quantity calculation.

Does it work with other BMR robots?

It can operate in coordination with concrete finishing robots and interior finishing robots, forming a closed loop from problem detection through documentation to corrective execution.

Where can I buy the BMR Construction Measuring Robot and what does it cost?

You can buy it from Robots Middle East, which supplies it across the Middle East. The cost depends on the version and configuration, so please request a quotation and we will prepare one for your project.

Summary

Just as diagnosis moved from observation to instruments that record what they see, construction inspection is moving from scattered manual readings to a complete digital examination. The BMR Construction Measuring Robot brings that change to residential and public building sites. It measures in three published ranges, captures panoramic images and point clouds, builds reverse BIM models in real time and calculates material quantities. Its coordination with BMR finishing robots turns findings into corrections. Robots Middle East quotes, delivers and supports the range across the region, and for contractors ready to make quality evidence a routine part of their work, this page is the starting point.

Specifications

h
Runtime

General

BRAND BMR
MODEL CL10 / CL100 / CL400
ROBOT USE INSPECTION, RESEARCH

Physical

LENGTH 23.8 cm / 23.0 cm / 23.0 cm
WIDTH 21.8 cm / 18.3 cm / 18.3 cm
DEPTH 12.0 cm / 10.3 cm / 10.3 cm
WEIGHT 3.9 kg / 4.4 kg / 4.4 kg

Performance

OPERATING TEMPERATURE -5°C to 45°C / -10°C to 55°C

Battery + Power

RUNTIME 4 h

Hand

POSITIONING ACCURACY ±1.50 mm / ±1.00 mm

Source Details

OTHER SENSORS Measurement range: CL10 0.6–30 m; CL100 0.5–100 m; CL400 0.5–400 m. Laser class: Class 1 laser, eye-safe. Measurement efficiency: 2 min/station, 300 m²/h. Digital delivery options include panoramic photos, point cloud models, BIM model, material quantity calculation, and multi-robot linkage.
