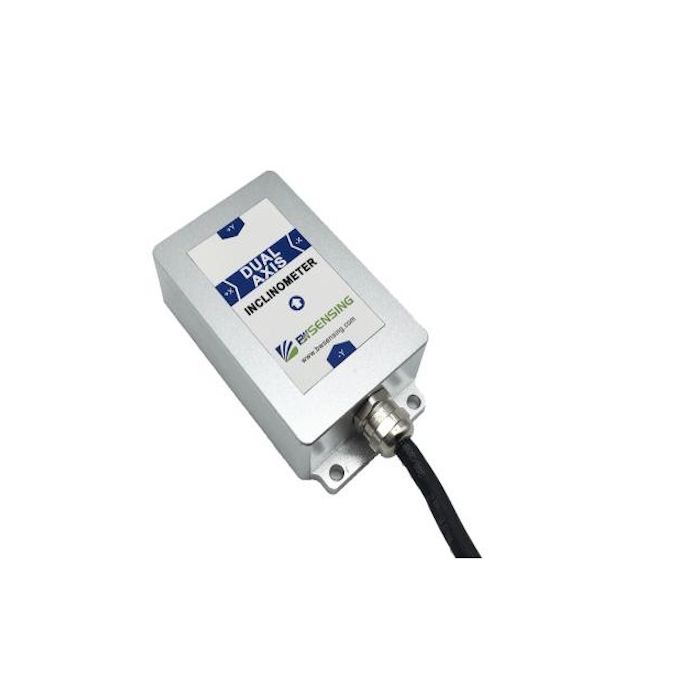

BWSENSING Ultra High Precision Dual-Axis CAN Output Inclinometer (BWS2500)

A sealed, high-precision tilt sensor that measures inclination on two axes and delivers its readings straight onto a CAN network. It is designed for engineers who monitor bridges and buildings, level precision platforms or automate equipment that must keep working in harsh conditions.

In stock

BRAND:
BWSENSING
PART #:
BWS2500
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
BWSENSING-BWS2500

BWSENSING Ultra High Precision Dual-Axis CAN Output Inclinometer (BWS2500)

A spirit level gives an engineer a bubble and a judgement call: level, or not quite. A modern control system needs something else entirely, namely a number, repeated many times a second, delivered onto the same network that already carries its other sensors and actuators. The BWSENSING Ultra High Precision Dual-Axis CAN Output Inclinometer (BWS2500) is built to provide exactly that. It turns the tilt of a structure or platform into figures on two axes and reports them over CAN, so the angle stops being something a technician inspects and becomes something a controller, a logger or a monitoring dashboard can act on directly.

Robots Middle East supplies the BWS2500 to engineering firms, integrators, research institutions and government projects across the Middle East. Robots Middle East prepares each quotation, arranges delivery to the project site and remains the point of contact for technical questions after the sensor has been installed, so that a single partner can be held accountable from the first enquiry to commissioning.

Background

BWSENSING and its inclinometer family

BWSENSING produces a range of tilt sensors, and the BWS2500 sits alongside several of the brand's more economical models in our BWSensing range. Those siblings cover single-axis and dual-axis measurement with a variety of digital outputs, including CAN and Modbus. The BWS2500 occupies the precision end of that family: the model name itself announces ultra high precision, and its figures are written for applications where small angular changes carry real engineering consequences. For buyers, this lineage matters because a project can often standardise on one manufacturer, selecting a precision unit where accuracy is critical and a cost-effective unit where it is not.

Precision over a fieldbus

The defining combination in the BWS2500 is high angular accuracy delivered through a CAN interface. CAN is a robust, multi-node bus widely used in vehicles, mobile machinery and industrial automation, valued because many devices can share a single cable pair and because the protocol tolerates electrically noisy surroundings well. By pairing dual-axis measurement with an adjustable CAN baud rate and an adjustable output frequency, BWSENSING allows the sensor to be tuned to the network it joins rather than forcing the network to accommodate the sensor. The IP67 protection level and wide supply voltage range extend the same thinking to the physical installation, which is frequently outdoors, on a machine or on a structure far from a clean equipment room.

Technical Specifications

SpecificationValue
AxesDual axis inclination measurement
Highest accuracy0.001°
Resolution (completely still)0.0005°
Zero temperature drift (-40~85℃)±0.0007 °/°C
Output interfaceCAN
CAN baud rate25k~500k adjustable
Output frequency5~ 100Hz adjustable
Supply voltage9-36VDC
Operating current20-40 mA (no load)
Operating temperature-40~+85 ℃
Storage temperature-55~+100 ℃
Power-on start-up time<3s
MTBF≥90000 h
Impact resistance2000g,0.5ms,3 times/axis
Insulation resistance≥100 MΩ
Protection levelIP67
CustomisationOEM customisation accepted

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation. The manufacturer has not published the package contents, the cable length or details of the output signal beyond the CAN interface itself; these are confirmed at quotation.

Which measuring range should I choose: ±5°, ±15° or ±30°?

The BWS2500 is offered in three measuring ranges, and the choice should follow the movement you expect to see rather than the largest figure on offer. Structural monitoring of bridges and buildings typically concerns very small angular changes around a level reference, which is where a narrow range is the natural fit. Platform levelling and equipment automation may involve a structure that starts some way off level before it is corrected, and that argues for a wider range so the sensor never runs out of span during the correction.

The headline accuracy of 0.001° is the highest accuracy BWSENSING states for the BWS2500 series; the manufacturer's material does not assign an accuracy figure to each range individually. If your project depends on a particular accuracy at a particular range, tell us which version you are considering when you contact Robots Middle East.

Why choose a CAN output inclinometer?

Analogue tilt sensors remain common, but every analogue channel needs its own wiring and its own input on the receiving controller, and long cable runs invite interference. A CAN inclinometer behaves as a node on a shared bus. On a machine or a monitoring installation that already carries other CAN devices, the BWS2500 can be added without a dedicated acquisition channel, and its readings arrive as digital values rather than voltages that must be scaled and filtered.

The adjustable parameters make integration practical. A baud rate selectable from 25k to 500k lets the sensor match an existing network, while an output frequency adjustable from 5 to 100Hz lets the engineer balance responsiveness against bus traffic: a fast control loop can take frequent updates, whereas a long-term structural logger can take fewer and keep the bus quiet. The low no-load current of 20-40 mA and the wide 9-36VDC input suit installations fed from vehicle electrics, solar-backed monitoring cabinets or industrial supplies alike.

Who is the BWS2500 for?

Structural and civil engineering teams form the most obvious audience. Bridge deflection and building health monitoring are named applications, and the combination of fine resolution, low temperature drift and IP67 sealing suits long-term outdoor installations, where daily temperature swings in this region can be considerable.

Machine builders and integrators working on precision platforms are the second group. Automatic levelling depends on a sensor that reports small departures from level quickly and repeatably, and the CAN interface allows the BWS2500 to sit directly on the platform's control network.

Defence and security contractors are a third segment, with military equipment automation listed among the intended uses; the impact resistance and wide operating temperature range are relevant to such equipment. OEMs designing their own products should note that BWSENSING accepts OEM customisation, which Robots Middle East can raise with the manufacturer as part of a quotation.

Not every project needs this level of precision. Where only one axis matters and budget takes priority, the BWSENSING Cost-Effective Single-Axis CAN Output Inclinometer (BWM415) is worth comparing, and the wider Sensors category lists further options.

What is the BWS2500 used for?

  1. Bridge deflection monitoring: tracking the tilt of decks and supports over time to reveal deflection under load and seasonal change.
  2. Building health monitoring: recording the inclination of structural elements to detect settlement or movement early.
  3. Precision platform automatic levelling: feeding live dual-axis angle data to a control loop that brings a platform to level and holds it there.
  4. Military equipment automation: supplying orientation data to automated systems that must operate across harsh temperatures and shocks.
  5. CAN-based machine networks: adding inclination sensing to vehicles and mobile machinery that already communicate over CAN.
  6. OEM product integration: embedding a customised version of the sensor within a manufacturer's own equipment.

Pricing and Availability

Robots Middle East supplies the BWS2500 on a quotation basis, which allows us to agree the measuring range and any OEM customisation for your project before an order is placed. Delivery, customs clearance and technical support are arranged together with the quotation. To begin, please tell us the range you need, the quantity and the application, using the quotation request available on this page.

Frequently Asked Questions

How many axes does the BWS2500 measure?

It measures inclination on two axes. This allows a single sensor to report tilt in both directions across a platform or structure.

What is the accuracy of the BWS2500?

The highest accuracy is 0.001°, with a resolution of 0.0005° when the sensor is completely still. Please tell us your preferred range version when you enquire.

Which output does it use?

The sensor outputs over CAN, with a baud rate adjustable from 25k to 500k and an output frequency adjustable from 5 to 100Hz. This lets it join an existing CAN network without a dedicated acquisition channel.

Is it suitable for outdoor installation?

The BWS2500 carries an IP67 protection level and operates from -40 to +85 ℃. Its zero temperature drift is ±0.0007 °/°C across that span.

What power supply does it need?

It accepts a supply of 9-36VDC and draws 20-40 mA with no load. Start-up after power-on takes less than 3s.

Can the sensor be customised?

Yes, BWSENSING accepts OEM customisation. Robots Middle East can discuss your requirements with the manufacturer as part of the quotation.

Where can I buy the BWSENSING BWS2500 and what does it cost?

You can buy it from Robots Middle East, which supplies it across the Middle East. The cost depends on the range version, quantity and any customisation, so it is given in a tailored quotation that you can request on this page.

Summary

The spirit level asks a person to look and decide; the BWS2500 removes that step. It measures tilt on two axes with a highest accuracy of 0.001°, holds its zero well as temperatures change, survives demanding installations behind IP67 sealing, and hands its readings to the rest of the system over a configurable CAN interface. Offered in ±5°, ±15° and ±30° versions and open to OEM customisation, it serves structural monitoring, platform levelling and equipment automation alike. For engineers in the Middle East who want angle to be data rather than an observation, with Robots Middle East handling the quotation, delivery and support, this page is the starting point.

Specifications

General

BRAND BWSENSING
PART # BWS2500

What's included

BWSENSING Ultra High Precision Dual-Axis CAN Output Inclinometer (BWS2500)
