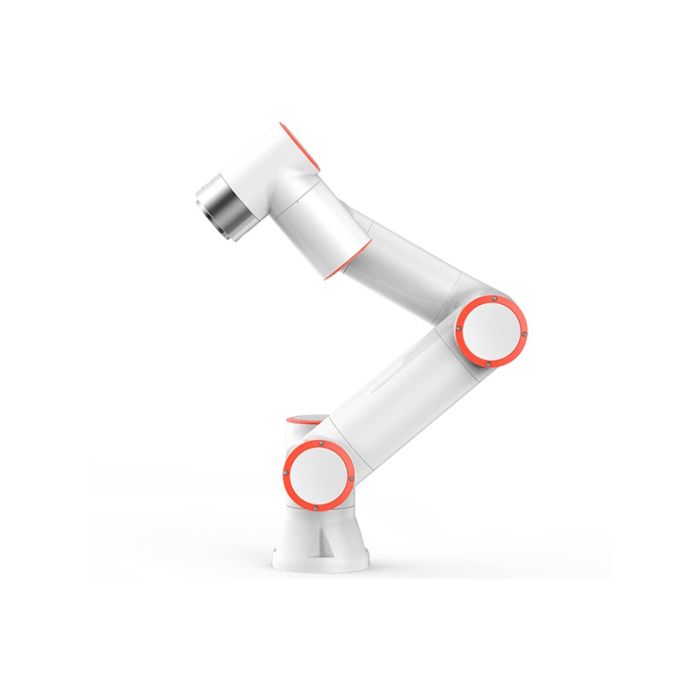

Fairino Cobot (FR3)

A compact collaborative robot arm from FAIRINO, built to bring precise, repeatable handling to crowded benches and small cells where people and machine share the work. Robots Middle East supplies it to manufacturers, integrators and research teams seeking a flexible arm that adapts to the workstation rather than the other way round.

In stock

BRAND:
FAIRINO
PART #:
FR3
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
Fairino-FR3
AED 20,029.29
Loading...

Fairino Cobot (FR3)

Most machines on a factory floor dictate where they stand: the press needs its foundation, the conveyor its line, the fixed industrial robot its fenced cell. The Fairino Cobot (FR3) reverses that order. It can be mounted in any orientation, so the arm goes to the work instead of the work being rearranged around the arm. With a 3kg payload, a 622mm reach and ±0.02mm pose repeatability across six rotating joints, it is sized for compact stations where small components must be picked, placed, fastened, dispensed or inspected with consistent precision, often within arm's length of a human colleague.

Robots Middle East sells the Fairino Cobot (FR3) and supplies it to manufacturers, system integrators, laboratories and educational institutions across the Middle East. Our team prepares your quotation, arranges delivery to your site and remains your point of contact for technical support once the arm is in service, so that a single partner accompanies the project from the first enquiry to productive use.

Background

FAIRINO and its family of collaborative arms

FAIRINO develops collaborative robot arms as a family rather than as isolated products, offering several payload classes so that each workstation can be fitted with an arm of appropriate size. The FR3 sits at the compact end of that range. A family approach of this kind brings a practical benefit for plants that automate step by step: once engineers and operators have learned to programme and maintain one arm, those skills generally carry over when further cells are added. The full range is presented in our Fairino category.

Collaborative robots of this class are typically deployed where conventional automation would be too large, too rigid or too costly to justify. They are commonly placed on workbenches, pedestals or mobile carts and moved between tasks as production requirements change, which makes them well suited to high-mix, lower-volume manufacturing.

Programming built around the operator

The FR3 can be programmed in three ways: by direct teaching, in which the operator guides the arm by hand through the required motion; through a web interface; or with a teach pendant. FAIRINO states that this choice of methods reduces commissioning time. The human-machine interface is either a 10.1 inch teach pendant or a mobile terminal Web App, which allows routine adjustments to be made without specialist programming knowledge.

For engineering teams that need deeper integration, the FR3 supports software development in C/C++/Python as well as ROS/ROS2. This opens the arm to custom applications, vision pipelines and research projects, and allows it to sit within a wider software architecture rather than operating as a closed unit.

Technical Specifications

SpecificationValue
Payload3kg
Reach622mm
Degrees of freedom6 rotating joints
Pose repeatability±0.02mm
Typical TCP speed1m/s
IP classificationIP54 (IP65 optional)
Noise<65dB
Robot mountingAny orientation
I/O ports(DI) 2 (DO) 2 (AI) 1 (AO) 1
Footprint128mm
Weight≈15kg
Operating temperature0–45°C
Typical average power220W
Typical peak power280W
Human-machine interface10.1 inch teach pendant or mobile terminal Web App
Software developmentC/C++/Python / ROS/ROS2
Programming methodsDirect teaching, web interface or teach pendant

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation. The manufacturer has not published the rated supply voltage of the arm, the joint torque limits, the collision detection sensitivity, the cable length between arm and controller, the accessories included in the box or the safety certifications; these details are confirmed with your quotation.

Should I choose the IP54 or the IP65 version of the FR3?

The FR3 is offered in two protection levels. IP54 is the standard classification, and an IP65 version is available as an option for dusty and damp environments. The choice therefore depends less on the task itself than on the conditions around it.

Under the IEC ingress protection code, the first digit describes protection against solid particles and the second against water. In general terms, an IP54 enclosure is protected against dust to a degree that does not impair operation and against splashing water, while an IP65 enclosure is dust-tight and protected against water jets. For a clean electronics assembly room or a laboratory bench, the standard version is usually sufficient. Where the arm will work near machining coolant, wash-down areas, fine abrasive dust or outdoor-adjacent loading zones, the IP65 option deserves serious consideration.

Environmental planning should also take temperature into account. The FR3 is specified for operation between 0–45°C, so cells in un-air-conditioned buildings or warehouses should be assessed against that range before installation. Robots Middle East will discuss the intended environment with you and confirm the appropriate version in the quotation.

What makes the FR3 suited to compact workstations?

Several published figures point in the same direction. The base footprint is 128mm and the arm weighs ≈15kg, which means it can be fixed to a standard workbench or a light pedestal without heavy structural work. Because it can be mounted in any orientation, it may also be fitted to a wall, beneath a gantry or upside down above a fixture, freeing the bench surface for parts and tooling.

The working environment matters as much as the mechanics. With noise below 65dB, the FR3 can operate in rooms where people are talking, training or concentrating on delicate manual work. Its typical average power of 220W, with a typical peak of 280W, is modest by industrial standards, which keeps the electrical demands of a small cell straightforward to plan.

Finally, the arm carries I/O ports with two digital inputs, two digital outputs, one analogue input and one analogue output. These allow grippers, sensors and simple end effectors to be connected and coordinated within a program, so that a compact cell can be assembled around the arm with few additional components.

Who is the Fairino Cobot (FR3) for?

The FR3 suits electronics and precision manufacturers who handle small, light components and need repeatable placement at the level of ±0.02mm. Assembly lines for connectors, circuit boards, small housings and consumer devices are typical examples, as are dispensing and gluing stations where a steady path and consistent positioning determine quality.

It is equally relevant for small and medium-sized enterprises taking their first step into automation. The combination of hand-guided teaching, a web interface and a teach pendant lowers the threshold for staff who have not programmed a robot before, while the compact size allows a pilot cell to be set up without reorganising the shop floor.

Universities, research centres and technical colleges form a third group. Support for C/C++/Python and ROS/ROS2 makes the FR3 a practical platform for teaching robotics, developing vision-guided applications and prototyping algorithms, and its quiet operation suits classrooms and laboratories.

Where a task involves heavier tools, larger parts or a longer working envelope, a larger arm from the same family will be the better choice. Buyers in that situation should compare the Fairino FR5 Collaborative Robot (Cobot) and the Fairino FR10 Collaborative Robot (Cobot), or, for still more demanding handling, the Fairino Cobot (FR16). Robots Middle East will gladly help you match the payload class to your application.

What is the Fairino Cobot (FR3) used for?

  1. Small-part pick and place: transferring light components between trays, feeders and fixtures with consistent positioning.
  2. Precision assembly: inserting, fitting and fastening small parts in electronics and device manufacturing.
  3. Dispensing and gluing: guiding a dispenser along a repeatable path to apply adhesive or sealant.
  4. Inspection and testing: presenting parts to cameras or test equipment and sorting them according to the result.
  5. Light machine tending: loading and unloading small parts at compact machines and test stations.
  6. Education and research: teaching robotics and developing applications through C/C++/Python and ROS/ROS2.

Pricing and Availability

The Fairino Cobot (FR3) is offered by quotation, so that the configuration, the IP version and any accessories reflect your actual application. When you contact Robots Middle East, please describe the task, the parts to be handled, the working environment and the intended mounting position; this allows us to propose a suitable set-up and to confirm the specifications that the manufacturer has not yet published. Delivery, customs and support are arranged together with your quotation. Further collaborative arms can be compared in our Cobots category, and a personal quotation for the FR3 is available on this page.

Frequently Asked Questions

What payload and reach does the Fairino Cobot (FR3) offer?

The FR3 carries a payload of 3kg and has a reach of 622mm. These figures make it suitable for light components and compact work areas.

How precise is the FR3?

The pose repeatability is ±0.02mm. This level of repeatability supports precision tasks such as electronics assembly, dispensing and inspection.

Can the FR3 be mounted on a wall or ceiling?

Yes. The arm can be mounted in any orientation, including on a bench, a wall or overhead, which helps to keep the work surface clear.

How is the FR3 programmed?

It can be programmed by direct teaching, through a web interface or with a teach pendant. The interface is a 10.1 inch teach pendant or a mobile terminal Web App, and software development is supported in C/C++/Python and ROS/ROS2.

Is the FR3 suitable for dusty or damp environments?

The standard version is classified IP54, and an IP65 version is available as an option for dusty and damp environments. Robots Middle East will advise on the appropriate version for your site.

What operating temperature does the FR3 support?

The FR3 is specified for operation between 0–45°C. Installations in buildings without climate control should be assessed against this range.

Where can I buy the Fairino Cobot (FR3) and what does it cost?

You can buy the Fairino Cobot (FR3) from Robots Middle East, which supplies it across the Middle East. The price depends on the chosen version and configuration and is provided in a personal quotation that you can request on this page.

Summary

The Fairino Cobot (FR3) is defined by adaptability of place. Because it can be mounted in any orientation, occupies a 128mm footprint and weighs ≈15kg, it fits into existing workstations instead of demanding new ones. Its 3kg payload, 622mm reach and ±0.02mm pose repeatability suit precise work with small parts, while quiet operation, a choice of IP54 or IP65 protection and flexible programming through direct teaching, a web interface, a teach pendant or C/C++/Python and ROS/ROS2 widen the settings in which it can serve. Robots Middle East quotes, delivers and supports the FR3 across the region, and for anyone planning a compact, collaborative cell, this page is the starting point.

Specifications

Degrees of Freedom
meter / second
Max Speed
kg (6.6 lbs)
Payload

General

BRAND FAIRINO
PART # FR3
ROBOT TYPE COBOT

Physical

WEIGHT ≈15 kg (without wire)

Mobility

TOTAL DOF 6 DOF

Performance

MAXIMUM SPEED 1 METER / SECOND
MAXIMUM PAYLOAD 3 KG (6.6 LBS)
OPERATING TEMPERATURE 0°C TO 45°C
INGRESS PROTECTION IP54, IP 65

Software

SECONDARY DEVELOPMENT SUPPORTED

Hand

POSITIONING ACCURACY ±0.02 MM

Source Details

MOTION CONTROL SUPPORT Source: FAIRINO FR3 page. Payload 3 kg (max 5 kg); reach 622 mm; 6 rotating joints; pose repeatability per ISO 9283 ±0.02 mm; typical TCP speed 1 m/s. Axis ranges/speeds: base ±175° at ±180°/s; shoulder +85°/-265° (dual-arm mirror -85°/+265°) at ±180°/s; elbow ±150° at ±180°/s; wrist1 +85°/-265° (dual-arm mirror -85°/+265°) at ±180°/s; wrist2 ±175° at ±180°/s; wrist3 ±175° with optional ±360° at ±180°/s. Footprint 128 mm; robot mounting any orientation; noise <65 dB; operating humidity 90% RH non-condensing; materials aluminium and steel.
RATED POWER Controller: DC MINI Controller 2KW or AC MINI Controller 2KW. Controller power supply 30-60 VDC; output 48 VDC / 42 A max. Controller size 245*180*44.5 mm; DC controller 2.1 kg, AC controller 2.5 kg; galvanized sheet.
CONTROLLER / TELEOPERATION HMI: 10.1 inch teach pendant or mobile-terminal Web App. Robot tool I/O: DI 2, DO 2, AI 1, AO 1, high-speed pulse input 2; tool I/O power 24 V / 1.5 A. Controller communications: I/O, TCP/IP, Modbus_TCP/RTU; optional CC-Link, Profinet, Ethernet/IP, EtherCAT; SDK C#/C++/Python/ROS/ROS2.
