Agilex RANGER

An omnidirectional robot platform for teams that need one base for covered buildings and open ground alike, built to keep working through battery changes and to carry the sensors and tools a project demands. Robots Middle East supplies it as a configurable foundation for research, inspection and field automation across the region.

In stock

BRAND:
AGILEX
PART #:
RANGER
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
AgileX-RANGER

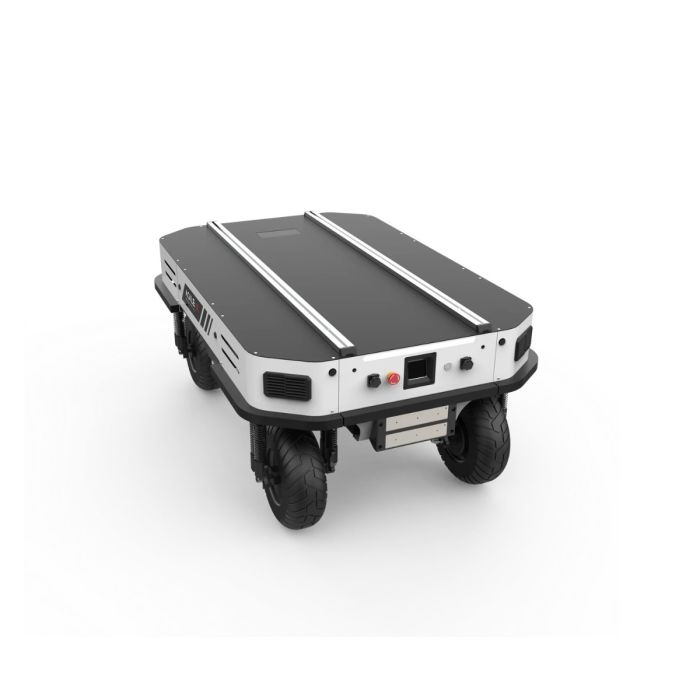

Agilex RANGER

The most costly minutes in a field robotics trial are rarely spent driving. They are spent waiting beside a charger while the light fades, the weather turns or the booked test window closes. The Agilex RANGER addresses that problem from the power system outwards. It is an omnidirectional robot for indoor and outdoor environments, and its Hot Swap Modular Battery System lets a team exchange energy and keep working. Around that battery sits a robust frame that supports 150 KG payloads, a Four-Wheel Independent Suspension system and a modular architecture. Together they make a platform that buyers can shape into the machine their project requires.

Robots Middle East supplies the Agilex RANGER to universities, research institutes, system integrators and industrial operators across the Middle East. Robots Middle East prepares each quotation for the specific configuration requested. It coordinates delivery to the customer's site and remains the point of contact for technical questions once the platform is in service.

Background

AgileX Robotics and its open approach

AgileX Robotics was founded in 2016. The company is committed to advancing embodied intelligence innovation and to accelerating the global commercialisation of robotics through full-stack robotic technologies and an open-source ecosystem. That philosophy shapes the RANGER directly. The platform is not a closed appliance with a fixed purpose. It supports the CAN bus protocol for connections and comes with an open-source SDK and software resources for expanded capabilities. For a research group or an integrator, this matters as much as any mechanical figure. The value of a mobile base lies in how quickly a team can put its own perception, navigation and application software onto it.

Positioning: a configurable base rather than a finished robot

The RANGER is best understood as the foundation on which a working robot is built. Its modular architecture allows free module combinations, so users can tailor a solution precisely to their needs. Aluminium T-slot rails provide secure mounting points for external sensors or complete kits. In practice, a mapping lidar, a camera mast, a manipulator or a custom enclosure can be fixed to the chassis without fabricating a bespoke frame. The hot-swap battery, the independent suspension and the generous payload allowance all serve the same aim. The base should keep running, keep moving and keep carrying whatever the mission adds to it.

Technical Specifications

SpecificationValue
Product typeOmnidirectional robot for indoor and outdoor environments
Payload150 KG
Weight100kg
Top speed2.6m/s
SuspensionFour-Wheel Independent Suspension
Slope capabilityTerrains with slopes exceeding 10°
Test resultMaximum sloping of 10 degrees; 10cm-high obstacles
Drive48V brushless geared hub motor
Battery600W*4
Battery systemHot Swap Modular Battery System
ChargingFast charging and hot swapping
Ingress protectionIP55 water-resistant shell
Track560mm
Wheelbase890mm
MountingAluminium T-slot rails for external sensors or kits
CommunicationCAN bus protocol
SoftwareOpen-source SDK and software resources
ArchitectureModular, with free module combinations

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the overall dimensions, charging time, battery capacity, operating temperature range, ground clearance, minimum turning radius or the contents of the box; Robots Middle East confirms these details at quotation.

What makes the Agilex RANGER different from a fixed-battery robot chassis?

On many mobile bases, energy is a hard limit on the working day. When the pack is empty, the robot stops, and the whole test stops with it. Software state is lost, sensors cool down and the team waits. The RANGER's Hot Swap Modular Battery System is designed to prevent exactly that. Hot swapping allows a depleted module to be exchanged while operation continues. Fast charging then shortens the time before the removed module is ready again. The result is uninterrupted operation and minimal downtime. That is a practical advantage for long data-collection runs, multi-shift trials and demonstrations that cannot be paused.

The second difference is how much the platform is intended to carry relative to its own mass. The chassis weighs 100kg yet supports 150 KG payloads. A team can therefore mount heavy computing, sensor arrays or a manipulator without first worrying that the base is the weakest link. This load capacity enhances manoeuvrability, passability and safety, especially on terrains with slopes exceeding 10°. Combined with the IP55 water-resistant shell, it gives the RANGER the character of a working vehicle rather than a laboratory trolley.

How does the Agilex RANGER handle rough and uneven ground?

Each of the four wheels has its own independent suspension. This lets the chassis follow uneven surfaces instead of lifting a wheel and losing traction, and the system excels on challenging terrain. In testing, the vehicle conquered a maximum sloping of 10 degrees and 10cm-high obstacles. The 48V brushless geared hub motor drive, the 560mm track and the 890mm wheelbase contribute to a stable stance. The omnidirectional capability lets the platform rotate in any direction, which helps in tight aisles, doorways and congested yards where a conventional vehicle would need repeated manoeuvres. The RANGER withstands most terrains and weather conditions. Even so, any site with extreme heat, sand or steep gradients should be discussed when requesting a quotation, as the operating temperature range is confirmed at that stage.

Who is the Agilex RANGER for?

The first group is university and institute laboratories. They need a dependable, open platform for research in autonomous navigation, perception and embodied intelligence. For them, the open-source SDK and CAN bus interface are as decisive as the payload. The second group is system integrators building inspection, security or logistics solutions for clients. They gain a base that can be fitted out through T-slot rails and module combinations rather than designed from nothing.

A third group is industrial and infrastructure operators: facilities, campuses, energy sites and agricultural estates. They want a single platform able to move between covered buildings and open ground. The IP55 shell and the independent suspension are relevant here, as is the hot-swap battery for long patrols. Finally, innovation teams in government and enterprise use the RANGER to prove a concept before committing to a fleet.

Buyers whose application calls for a different form of mobility, or for a ready-made manipulation package, can compare the wider AgileX range. Robots Middle East can advise on which platform best matches the task.

What is the Agilex RANGER used for?

  1. Autonomous navigation research – a programmable mobile base on which teams can develop and test localisation, mapping and path planning.
  2. Site inspection – carrying cameras and sensors around industrial facilities, utilities and infrastructure, indoors and out.
  3. Security patrol – long patrol routes around campuses and perimeters, where hot-swappable batteries reduce interruptions.
  4. Material transport – moving equipment and supplies between buildings, workshops and yards on varied surfaces.
  5. Agricultural field trials – hosting sensing and monitoring equipment across uneven ground between crop rows and greenhouses.
  6. Mobile manipulation development – serving as the travelling base for an arm or tool kit mounted on the aluminium T-slot rails.

Pricing and Availability

Robots Middle East supplies the Agilex RANGER on quotation. This allows each offer to reflect the configuration, accessories and integration support that a project actually requires. Delivery, customs clearance and after-sales support are arranged together with the quotation, so that the platform arrives ready for commissioning. To begin, please submit your requirements through the quotation request available on this page.

Frequently Asked Questions

Can the Agilex RANGER work both indoors and outdoors?

Yes. It is an omnidirectional robot built for both indoor and outdoor environments, with an IP55 water-resistant shell and Four-Wheel Independent Suspension for challenging terrain.

What payload can the RANGER carry?

The RANGER supports payloads of 150 KG, while the platform itself weighs 100kg.

How fast is the RANGER?

The platform reaches a top speed of 2.6m/s.

Does the battery need to be removed for charging, and does the robot stop?

The Hot Swap Modular Battery System allows battery modules to be exchanged during operation and supports fast charging, which minimises downtime. Charging time and battery capacity are confirmed at quotation.

How do I connect my own sensors and software?

Sensors and kits mount on aluminium T-slot rails. The robot communicates over the CAN bus protocol, and AgileX provides an open-source SDK and software resources for development.

What obstacles and slopes can it manage?

The RANGER handles terrains with slopes exceeding 10°. In testing, it conquered a maximum sloping of 10 degrees and 10cm-high obstacles.

Where can I buy the Agilex RANGER and what does it cost?

You can buy the Agilex RANGER from Robots Middle East, which supplies it across the Middle East. Pricing is provided by individual quotation according to your configuration, so please request one through this page.

Summary

The Agilex RANGER is built around a simple conviction: a mobile robot earns its value through the hours it keeps working, not the minutes it spends driving. Its Hot Swap Modular Battery System and fast charging tackle downtime directly. Four-Wheel Independent Suspension, an IP55 shell and a 150 KG payload allowance let it carry real equipment across real ground. The aluminium T-slot rails, CAN bus interface and open-source SDK turn it into a base that each team can complete in its own way. For laboratories, integrators and operators across the Middle East who need a platform that stays in service from the first trial to the final deployment, this page is the starting point.

Specifications

General

BRAND AGILEX
PART # RANGER

What's included

Agilex RANGER (RANGER)
