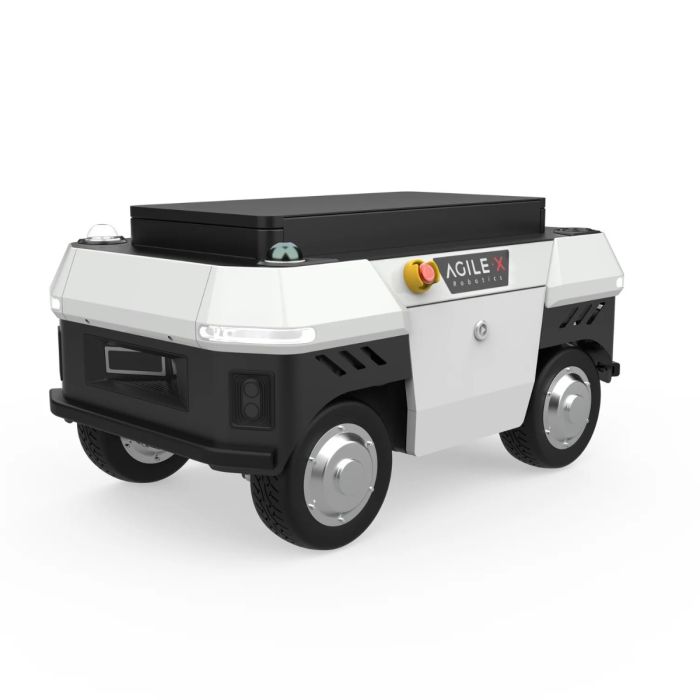

Agilex UMR

The Agilex UMR is an industrial robotic platform from AgileX, built on independent hub motors and multi-sensor safety for inspection, delivery and material-handling work across indoor and outdoor sites. It gives research and engineering teams an open, customisable base on which to build their own applications.

In stock

BRAND:
AGILEX
PART #:
UMR
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
AgileX-UMR

Agilex UMR

On a large industrial site, every metre of floor is a place where a robot can lose its bearings. The bigger the site, the smaller the margin seems to become, and a machine that knows roughly where it is will not be trusted with real work. The Agilex UMR addresses that problem from both ends. It can map areas of over 2 million square metres and position itself to within ±2cm, with four independent hub motors and an IP65-rated, industrial-grade build to carry that precision indoors and outdoors.

Robots Middle East supplies the Agilex UMR to companies, integrators, universities and research institutes across the Middle East. Our team prepares each quotation against your application, arranges delivery to your site and provides support after commissioning, so that the platform reaches your engineers ready for the work you have planned.

Background

AgileX Robotics and its approach

AgileX Robotics was founded in 2016. The company states its aim as advancing innovation in embodied intelligence and accelerating the global commercialisation of robotics through full-stack robotic technologies and an open-source ecosystem. That emphasis on openness runs through its range, which spans mobile chassis, development kits and mobile manipulation platforms, many of them used as starting points by research groups and engineering teams rather than as closed, finished appliances. The wider family can be explored in the AgileX category.

An industrial platform with an open core

The UMR is an advanced, versatile industrial robotic platform. Its design combines three elements that rarely appear together in one base. The first is a robust mechanical package: four independent hub motors, industrial-grade materials and an IP65 rating. The second is a large-scale, high-accuracy navigation capability. The third is a software layer built for customisation, through open API support and the Navis Plus module. The intention is clear: a platform that engineers can adapt quickly to a specific task, then deploy on sites where dust, water and changing temperatures are part of everyday conditions.

Technical Specifications

SpecificationValue
Product typeAdvanced, versatile industrial robotic platform
DriveFour independent hub motors
Protection ratingIP65
Operating temperature-10°C to 40°C
Mapping areaOver 2 million square metres
Positioning accuracy±2cm
Safety sensing15 sensors including LiDAR, depth camera and ultrasonic sensor; multi-sensor fusion for 360° surrounding safety
Dimensions (L*W*H)830*540*410mm
Weight90 kg
Maximum load70KG
Climbing capacity≤20°
Ground clearance90 mm
CommunicationStandard CAN, Serial Port 232
Software and customisationOpen API support; Navis Plus module
Navigation APINavis API interface instructions with Python/C++ demo programs; compatible models UMR, Navis

Specifications as published by the manufacturer; confirmed against the datasheet at quotation. The manufacturer has not published the battery capacity and chemistry, the charging time, the onboard processor, the maximum obstacle-crossing height or the list of included accessories; these are confirmed at quotation.

How does the UMR stay precise on a very large site?

Precision and scale usually pull against each other. A platform tuned for a single laboratory corridor can hold a tight position easily, but the task becomes far harder once the map grows to the size of a factory campus, a logistics yard or an industrial estate. The UMR is specified to map areas of over 2 million square metres while achieving positioning accuracy of ±2cm, which places it in a different category from bases intended only for small, controlled spaces.

That accuracy is supported by the perception package. The UMR carries 15 sensors, among them LiDAR, a depth camera and an ultrasonic sensor, and fuses their data to provide 360° surrounding safety. In practice, this means the platform is designed to be aware of its surroundings on every side rather than only in the direction of travel, an important consideration on sites where people, vehicles and fixed equipment share the same routes.

The mechanical side completes the picture. Four independent hub motors give the UMR the ability to move through challenging terrain and tight spaces. A climbing capacity of ≤20° and a ground clearance of 90 mm suit ramps and uneven surfaces found between buildings. The IP65 rating and an operating range from -10°C to 40°C allow the same platform to work consistently both inside a facility and outdoors.

How open is the UMR to custom development?

For many buyers, the robot itself is only half of the project; the other half is the application they intend to build on it. AgileX provides open API support and the Navis Plus module, so that the UMR can be customised quickly for specific tasks and researchers and engineers can shorten their development cycles. The Navis navigation API is documented with interface usage instructions and demo programs in Python and C++, and it is listed as compatible with the UMR and Navis.

At hardware level, the platform communicates over standard CAN and Serial Port 232, interfaces familiar to integrators connecting controllers, top modules or manipulators. Together with a maximum load of 70KG, this gives an engineering team a clear framework within which to design a payload, whether a sensor mast for inspection, a container for delivery or an arm for mobile manipulation.

Who is the Agilex UMR for?

The UMR is aimed first at industrial operators who need autonomous mobility on sites that are large, mixed indoor and outdoor, and not always clean or dry. Facilities managers planning inspection rounds, logistics teams studying in-plant delivery and manufacturers looking at intelligent material handling will find that its protection rating, temperature range and mapping scale match the conditions they work in.

The second group is system integrators. With open APIs, the Navis Plus module and standard CAN and serial communication, the UMR can serve as the mobile base for a solution delivered to an end client, with the integrator focusing effort on the application rather than on the chassis.

The third group is research and development: university laboratories, corporate research centres and engineering teams working on navigation, multi-sensor fusion or mobile manipulation. The Python and C++ demo programs give them a direct entry point into the navigation stack. Buyers whose project calls for a different form factor, such as a compact educational platform, a tracked chassis or a ready-made manipulation kit, can compare the alternatives across the AgileX range, and Robots Middle East will advise on the most suitable choice.

What is the Agilex UMR used for?

  1. Industry inspection – carrying cameras and sensors on regular rounds through plants, yards and facilities.
  2. Smart delivery – moving items between buildings, workstations or departments on an autonomous route.
  3. Intelligent material handling – transporting parts, tools and containers within an industrial site.
  4. Mobile manipulation – serving as the mobile base beneath a robotic arm for tasks that combine movement and handling.
  5. Navigation research – developing and testing mapping, localisation and path-planning work through the Navis API.
  6. Custom application development – giving integrators an open platform on which to build and deliver solutions for specific clients.

Pricing and Availability

Robots Middle East supplies the Agilex UMR on a quotation basis, so that the configuration, documentation and support match your project. Please share your application, site conditions and any payload or integration requirements, and our team will prepare a tailored offer. Delivery, customs clearance and after-sales support are arranged together with the quotation. To begin, use the quotation request available on this page.

Frequently Asked Questions

Can the Agilex UMR operate outdoors?

Yes. The UMR has an IP65 rating, is built with industrial-grade materials and operates from -10°C to 40°C, which makes it suitable for both indoor and outdoor industrial settings.

How accurate is the UMR's positioning?

The UMR achieves positioning accuracy of ±2cm and can map areas of over 2 million square metres.

What sensors does the UMR use for safety?

It carries 15 sensors, including LiDAR, a depth camera and an ultrasonic sensor. A multi-sensor fusion solution combines them to provide 360° surrounding safety.

How much can the UMR carry?

The user manual states a maximum load of 70KG. The platform itself weighs 90 kg and measures 830*540*410mm.

Can I develop my own software for the UMR?

Yes. The UMR supports open APIs and the Navis Plus module, and the Navis API comes with interface instructions and Python and C++ demo programs.

Which interfaces does the UMR provide for integration?

The UMR communicates over standard CAN and Serial Port 232, which allows integrators to connect controllers and add-on modules.

Where can I buy the Agilex UMR and what does it cost?

You can buy the Agilex UMR from Robots Middle East, which supplies and supports it across the Middle East. The cost depends on your configuration and project requirements, so please request a quotation and our team will prepare an offer for you.

Summary

The challenge for any mobile robot on a large site is to keep a small margin of error across a vast area. The Agilex UMR meets it with ±2cm positioning over maps of more than 2 million square metres, 15 sensors fused for 360° surrounding safety, four independent hub motors and an IP65-rated build that works from -10°C to 40°C. Open APIs, the Navis Plus module and standard CAN and serial interfaces turn that capability into a foundation for inspection, delivery, material handling and mobile manipulation. Robots Middle East quotes, delivers and supports the UMR throughout the region; for any team ready to put precise, large-scale autonomy to work, this page is the starting point.
