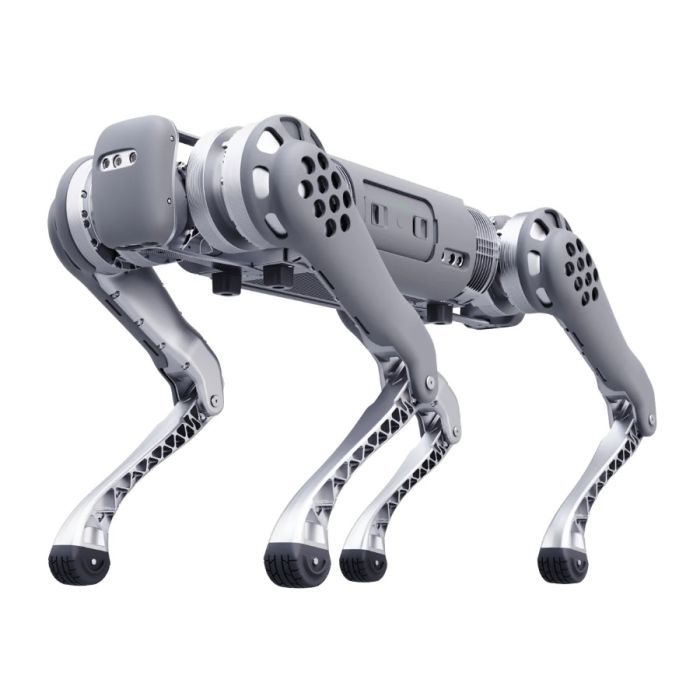

Unitree B1 Quadruped Robot
Machines that think well tend to stay indoors, and machines that survive outdoors tend to think very little. Field robotics has long been caught between those two habits: a capable computer is delicate, while a rugged chassis is usually short of processing power. The Unitree B1 Quadruped Robot is Unitree Robotics' answer to that dilemma on four legs. It is an industrial-grade platform that combines an IP68 waterproof body and an industrial-level heavy-loader build with an Intel i5-1135G7 main processor, three Xavier NX sensing modules and five depth cameras. It is designed to go where the work is and to do the thinking on the spot.
Robots Middle East sells the Unitree B1 Quadruped Robot and supplies it to organisations across the Middle East, including industrial operators, security integrators, agricultural enterprises, research institutions and public-safety agencies. Our team prepares each quotation around the buyer's intended application, arranges delivery to site and provides support after handover. The aim is that the robot arrives ready for work, with no unanswered questions about what it is expected to do.
Background
Unitree Robotics and the move to industrial legs
Unitree Robotics is known for bringing legged robots out of the laboratory and into wider use. Its quadruped line ranges from compact platforms for education and development to heavier machines for commercial deployment. The B1 sits at the industrial end of that line. It is an industrial-grade quadruped robot product, and its headline features reflect that positioning: IP68 waterproofing and an industrial-level heavy-loader design, rather than the agility displays that often introduce consumer robot dogs.
This distinction matters when you plan a purchase. A platform intended for agriculture, industry, security patrols, surveys, exploration and public rescue has to be judged on three questions. Can it carry the equipment? Can it endure the environment? Will it integrate with the operator's own systems? The B1's specification is built around those questions.
Computing and sensing on board
The most distinctive feature of the B1's specification is the amount of processing it carries. Main control runs on an Intel i5-1135G7, a general-purpose processor that allows developers to work with familiar operating systems and software tools. Perception is handled separately. The sensing calculation platform consists of three Xavier NX modules, with multiple brands and models available for this role. Five Intel RealSense D430 depth sensors supply the visual data.
Professional field robots commonly separate control from perception in this way. Heavy vision workloads can run alongside the locomotion system without competing with it. Integrators also gain room to deploy their own perception software on the sensing modules without disturbing core control. An expansion board with gigabit Ethernet, RS485, USB and CAN interfaces completes the architecture, so payloads and accessories connect directly to the robot.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | Industrial-grade quadruped robot |
| Headline protection | IP68 Waterproof, Industrial Level Heavy Loader |
| Recommended load when carrying | Within 20kg |
| Main control CPU | Intel i5-1135G7 |
| Sensing calculation platform | XavierNX *3 (multiple brands and models available) |
| Sensing sensor | Intel RealSense D430*5 |
| Expansion board | Gigabit Interface*7 / RS485*4 / USB*5 / CAN*4 |
Specifications as published by the manufacturer; they are confirmed against the datasheet at quotation.
Unitree has not published the maximum walking speed, the slope-climbing angle, the number of degrees of freedom or the contents of the box, and Robots Middle East confirms these details with your quotation.
What makes the Unitree B1 different from a consumer robot dog?
At first glance, most quadrupeds look alike. The differences appear when the weather turns, the load increases and the robot has to work with other equipment. The B1 is built for exactly those conditions.
The first difference is environmental. The B1 is IP68 waterproof, a level of protection aimed at outdoor and wet industrial settings rather than clean indoor floors. For buyers who plan to work in rain, wash-down areas, dusty plant rooms or irrigated fields, this is often the deciding factor.
The second is load. The B1 is built as an industrial-level heavy loader, and Unitree recommends keeping carried weight within 20kg. Inspection kits, communication relays and sensor heads should be planned within that figure.
The third is computing. A consumer robot dog is usually designed around its own built-in behaviours. The B1 instead carries a dedicated main control processor, a separate sensing platform of three Xavier NX modules and five RealSense D430 depth cameras. This architecture gives development teams the resources to build autonomy, mapping and detection functions for their own applications.
What can be integrated with the Unitree B1?
Integration is where an industrial robot either earns its place or becomes a demonstration piece. The B1's expansion board provides seven gigabit interfaces, four RS485 ports, five USB ports and four CAN ports. That combination covers the main connection types used in industrial equipment. High-bandwidth devices such as cameras, LiDAR units and network radios can use the gigabit links. Serial instruments and legacy sensors connect through RS485, and CAN suits automotive-style controllers and actuators.
For a system integrator, this reduces the amount of custom hardware between the robot and the mission payload. A gas detector, a thermal camera and a communications module can each connect to an appropriate port. Their data can then be processed on the sensing platform or forwarded to an operator. Robots Middle East can discuss your intended payload and its interfaces during the quotation, so that the robot and its equipment are planned together from the outset.
Who is the Unitree B1 Quadruped Robot for?
The B1 suits organisations that need a legged robot to do a job, rather than simply to demonstrate mobility. Industrial operators in energy, utilities and manufacturing can use it to carry inspection equipment through plant areas that are difficult or unpleasant for staff. Security integrators can build patrol services around its weather protection and onboard perception. Agricultural enterprises can take sensing equipment along field rows and greenhouse aisles.
Survey and exploration teams will value the combination of load-carrying ability and depth sensing for mapping unfamiliar ground. Public rescue and civil-defence agencies can use it to look into areas that are unsafe for people to enter first. Universities and corporate research groups will find substantial onboard computing and open interfaces for work on autonomy and perception.
The sources describe the B1 as a single version. Buyers comparing configurations and accessories can browse the Unitree B1 category, and our team can advise on whether a different Unitree platform would better suit a lighter or more education-focused requirement.
What is the Unitree B1 Quadruped Robot used for?
- Industrial inspection: carrying cameras and instruments on routine rounds through plants, substations and process areas.
- Security patrols: repeating perimeter and facility routes in all weathers, with onboard perception to support detection.
- Agriculture: transporting sensing equipment through fields, orchards and greenhouses to monitor crops and infrastructure.
- Surveys and exploration: mapping terrain and structures with depth sensing on ground unsuited to wheeled vehicles.
- Public rescue: scouting hazardous or unstable areas ahead of responders and relaying visual information back to them.
- Research and development: serving as a well-equipped testbed for autonomy, perception and payload integration projects.
Pricing and Availability
Robots Middle East supplies the Unitree B1 Quadruped Robot by quotation. Each project differs in its payload, its software requirements and the environment it will operate in, so we price the configuration you actually need. Please tell us about your application, the conditions on site and any equipment you intend to mount, and we will prepare a formal offer for that configuration. Delivery, customs clearance and after-sales support are arranged with the quotation. To begin, use the quotation request available on this page.
Frequently Asked Questions
Is the Unitree B1 waterproof?
Yes. The B1 is IP68 waterproof and built as an industrial-level heavy loader for demanding environments.
How much weight can the Unitree B1 carry?
Unitree recommends keeping the carried load within 20kg. Payloads and mounted equipment should be planned within that figure.
What computing hardware does the B1 use?
Main control runs on an Intel i5-1135G7. Perception is handled by a sensing calculation platform of three Xavier NX modules, with multiple brands and models available for this role.
Which sensors does the B1 use for perception?
The B1 uses five Intel RealSense D430 depth sensors. These provide the visual data for navigation and for perception software developed by integrators.
Can I connect my own payloads and instruments?
Yes. The expansion board provides seven gigabit interfaces, four RS485 ports, five USB ports and four CAN ports for connecting cameras, sensors, radios and controllers.
Which applications is the B1 designed for?
The B1 has great application potential in agriculture and industry, as well as in security patrols, surveys and exploration, and public rescue. Its waterproof body and onboard computing suit work in demanding field conditions.
Where can I buy the Unitree B1 Quadruped Robot and what does it cost?
You can buy the Unitree B1 Quadruped Robot from Robots Middle East, which supplies it across the Middle East. The cost depends on configuration and project scope, so we provide it in a formal quotation prepared on request.
Summary
The Unitree B1 Quadruped Robot addresses an old compromise in field robotics: the choice between a machine that thinks well and one that can withstand the outdoors. It brings both into one industrial-grade body. That body is IP68 waterproof and built as a heavy loader, with a recommended carried load within 20kg. Inside, an Intel i5-1135G7 handles main control, three Xavier NX modules handle sensing, five RealSense D430 cameras supply depth data, and a broad expansion board connects mission equipment. For agriculture, industry, security, survey and rescue work, it is a platform on which serious applications can be built. For a B1 configured for your application and supplied with delivery and support by Robots Middle East, this page is the starting point.
