Unitree B2-W Wheeled Quadruped Robot
In stock
- BRAND:
- UNITREE ROBOTICS
- MODEL:
- B2-W
- ORIGIN:
- China
- AVAILABILITY:
- ALLOW 2-4 WEEKS FOR DELIVERY
- SKU:
- Unitree-B2-W

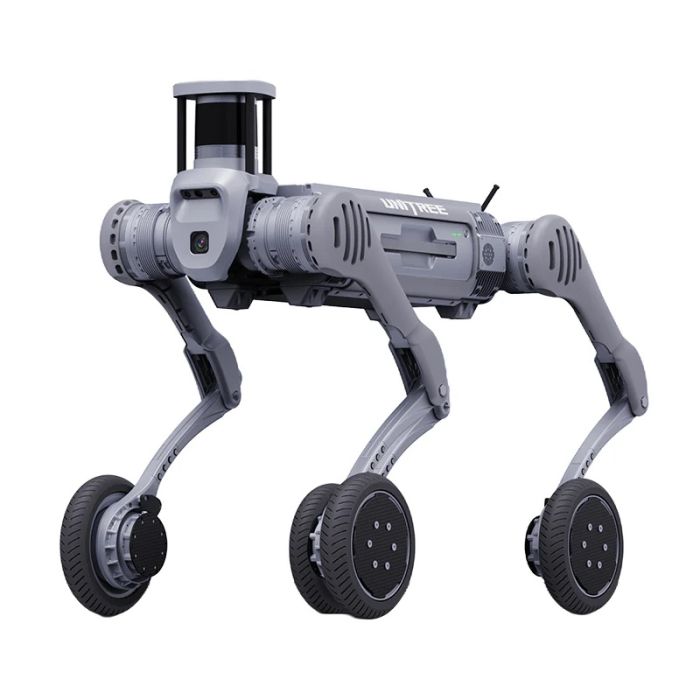

Unitree B2-W Wheeled Quadruped Robot
At midday on a Gulf refinery, a site inspection route can cover several kilometres of pipe racks, tank farms and access stairways. Every hour spent getting between checkpoints is an hour of exposure for people and equipment. A robot that walks covers that ground carefully but slowly, while a robot that drives covers it quickly until it meets the first stair. The Unitree B2-W Wheeled Quadruped Robot is built to avoid choosing between the two. It is a four-legged machine with a driven wheel at the end of each leg, so it can roll at speed along a service road and then lift itself up a flight of steps without changing vehicles.
Robots Middle East sells the Unitree B2-W and supplies it to industrial, security, research and government clients across the Middle East. Robots Middle East prepares each quotation for the specific project, arranges delivery to the site and provides technical support after commissioning, so that a single point of contact covers the robot from first enquiry to daily operation.
Background
Unitree Robotics and its quadruped family
Unitree Robotics is a Chinese manufacturer best known for legged robots, ranging from compact platforms used in teaching and research to heavy, ruggedised machines for industrial work. The B-series sits at the industrial end of that range. The family comprises three versions: the legged B2, the wheeled B2-W described on this page, and a B2-W configuration supplied with a navigation kit. Each version keeps its own figures, and the data on this page belongs to the B2-W alone.
Positioning: a hybrid of leg and wheel
The B2-W is a wheeled quadruped robot designed for fast movement, including in demanding environments. The idea behind a wheel-leg robot is straightforward. Wheels are efficient on smooth or compacted ground, while legs let the robot step over obstacles, climb stairs and keep its balance on uneven surfaces. By combining the two, the B2-W aims to cover long distances quickly and still reach places that a conventional wheeled robot cannot. This makes it a candidate for routine patrol and inspection work, where most of a route is easy and a small but critical part is not.
Technical Specifications
| Specification | Value |
|---|---|
| Dimensions (standing) | ≈ 1098 mm × 550 mm × 758 mm |
| Dimensions (lying prone) | ≈ 950 mm × 550 mm × 450 mm |
| Weight | ≈ 85 kg (battery included) |
| Battery capacity and voltage | > 2 kWh, 58 V |
| Speed | 15 km/h |
| Endurance (with 40 kg load) | Up to 25 km |
| Endurance (no load) | Mileage ≈ 30 km |
| Maximum static load (standing) | 120 kg |
| Load while walking | > 40 kg |
| Wheel diameter | 225 mm |
| Maximum wheel speed | 50 rad/s |
| Maximum wheel torque | 40 N.m |
| Continuous stair climbing | Steps of 20 to 25 cm |
| Slope angle | > 45° |
| Operating temperature | -20 ℃ to 55 ℃ |
| Ingress protection | IP67 |
| Computing (standard) | Intel Core i5 (platform functions), Intel Core i7 (user development) |
| Computing (optional) | Intel Core i7 and Jetson Orin NX (up to 3 devices) |
| Sensors | 1 3D LiDAR, 2 depth cameras, 2 optical cameras |
| Battery | Removable, quick replacement, optional autonomous charging solution |
| Connectivity | WiFi 6, Bluetooth 5.2 |
Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.
The manufacturer has not published the payload mounting interfaces, the charging time, the noise level, the service life or the camera resolution; these details are confirmed at quotation.
How do wheels and legs work together on the B2-W?
The case for the B2-W rests on the way its mobility figures complement one another. The robot reaches a speed of 15 km/h, which is a brisk pace for an inspection platform and allows a long route to be completed in a fraction of the time a walking robot would need. Each wheel is 225 mm in diameter and is rated for a maximum wheel speed of 50 rad/s and a maximum wheel torque of 40 N.m. These are the figures that matter on access roads, factory floors and paved yards.
The legs take over where the ground stops cooperating. The B2-W climbs stairs continuously with steps of 20 to 25 cm and handles slopes greater than 45°. In practice, this means a single machine can drive along a service corridor, climb a stairway to a mezzanine or tank platform, and continue its route without a second robot or a human escort.
Range is the other half of the argument. With a 40 kg load, the robot's endurance reaches up to 25 km, and without a load its mileage is about 30 km. It carries more than 40 kg while walking and supports a maximum static load of 120 kg when standing. Its battery is rated at more than 2 kWh at 58 V and is removable, with quick replacement, so a fleet can stay in service by swapping packs rather than waiting for a recharge. An autonomous charging solution can be integrated where a project requires unattended operation.
Is the B2-W built for harsh climates?
For buyers in the Middle East, environmental tolerance is often the first question. The B2-W carries an IP67 ingress protection rating and an operating temperature range of -20 ℃ to 55 ℃. The upper end of that range is directly relevant to outdoor work in the region's summer months, and the IP67 rating addresses the dust, sand and wash-down conditions found on industrial and coastal sites.
The perception system supports that outdoor role. The robot relies on a sensor suite comprising one 3D LiDAR, two depth cameras and two optical cameras. As standard, an Intel Core i5 handles platform functions and an Intel Core i7 is reserved for user development, which separates the robot's own control from customer software. An optional configuration adds an Intel Core i7 and Jetson Orin NX, with up to three devices, for teams running heavier perception or AI workloads. WiFi 6 and Bluetooth 5.2 provide the wireless links. Robots Middle East reviews the intended site conditions with each client so that the configuration matches the environment.
Who is the Unitree B2-W for?
The B2-W suits organisations whose routes are long, partly outdoors and interrupted by stairs or slopes. Oil, gas and petrochemical operators can use it for routine inspection rounds across process areas. Utilities, including power, water and desalination facilities, can deploy it for patrols of substations, pumping stations and pipelines. Security teams responsible for large perimeters, logistics hubs or campuses can use its speed to cover more ground per shift.
Universities and research institutes form a second group. The dedicated user-development computer and the optional Jetson Orin NX configuration make the B2-W a platform for work on locomotion, autonomy and perception. System integrators, who build complete solutions around a robot, will value the separation between platform and development computing as well as the removable battery and the optional autonomous charging.
Buyers who would like the robot supplied as a fuller package can review the Unitree B2-W Industry Grade Quadruped Robot Dog with Wheels Basic B2-W Kit with Battery, Navigation Kit, and Robots Middle East can advise on which configuration fits a given project.
What is the Unitree B2-W used for?
- Industrial inspection: carrying its LiDAR and cameras along routine rounds of plants, refineries and tank farms.
- Perimeter security: patrolling large sites at speed and reaching elevated positions by stairway.
- Utility monitoring: checking substations, pumping stations and pipeline corridors in outdoor conditions.
- Load carrying: moving tools, sensors or supplies across a site within its rated walking load.
- Research and development: serving as a platform for autonomy, navigation and AI work on the user-development computer.
- Emergency and hazardous-area support: entering areas where sending people first would carry unnecessary risk.
Pricing and Availability
The cost of a B2-W depends on its configuration, including the computing option, charging solution and accessories, so Robots Middle East provides pricing by individual quotation. Delivery, customs clearance and technical support are arranged together with the quotation. To begin, share your application, site conditions and preferred configuration, and a tailored quotation for the Unitree B2-W Wheeled Quadruped Robot is available on this page.
Frequently Asked Questions
How fast is the Unitree B2-W?
The B2-W reaches a speed of 15 km/h. That pace allows long inspection or patrol routes to be completed quickly.
Can the B2-W climb stairs?
Yes. It climbs stairs continuously with steps of 20 to 25 cm and handles slopes greater than 45°.
How far can it travel on one battery?
With a 40 kg load, its endurance reaches up to 25 km, and without a load its mileage is about 30 km. The battery is removable and can be replaced quickly.
Is the robot suitable for hot and dusty environments?
The B2-W is rated IP67 and operates from -20 ℃ to 55 ℃. Robots Middle East can review specific site conditions before you order.
What sensors does it carry?
The sensor suite comprises one 3D LiDAR, two depth cameras and two optical cameras. Together they give the robot both depth perception and visual imaging for inspection work.
Can I run my own software on it?
Yes. An Intel Core i7 is dedicated to user development as standard, and an optional configuration adds an Intel Core i7 and Jetson Orin NX, with up to three devices.
Where can I buy the Unitree B2-W and what does it cost?
You can buy the B2-W from Robots Middle East, which supplies it across the Middle East. The cost depends on the chosen configuration, so it is provided by quotation, together with delivery, customs and support arrangements.
Summary
On a large site, the hardest part of a robot's job is often neither the distance nor the obstacle, but having to deal with both on the same route. The Unitree B2-W answers that with driven wheels for the long stretches and legs for the stairs and slopes in between, supported by IP67 protection, an operating range up to 55 ℃, a removable battery and dedicated computing for development. For organisations in the Middle East planning inspection, security or research programmes, Robots Middle East quotes, delivers and supports the robot as one service. To discuss your project and the right configuration, this page is the starting point.
Specifications
General
Physical
Performance
Sensors
Software
Battery + Power
Feature
-
Size(Standing)
≈ 1098mm×550mm×758mm
-
Size(Lying Prone)
≈ 950mm×550mm×450mm
-
Battery Capacity
>2kwh,voltage 58V
-
Maximum horizontal pulling force
15km/h [1]
-
Endurance Ability
Maximum endurance of 25km with 40kg load [2]
Maximum endurance without load > 4h, and the mileage ≈70km
-
Maximum Load(Standing)
120kg
-
Load(Walking)
> 40kg
-
Wheel Diameter
225mm
-
Maximum wheel speed
50rad/s
-
Maximum wheel torque
40N.m
-
Continuous Stair Climbing
Stairs of 20~25cm
-
Climbing Ability
Climb up and down stairs of 40cm in forward direction
-
Operating Temperature
-20℃ ~ 55℃
-
Climbing Angle
> 45°
-
Control and Perception
Standard configuration: Intel Core i5(Platform Function) ,Intel Core i7(User Development)
Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)
