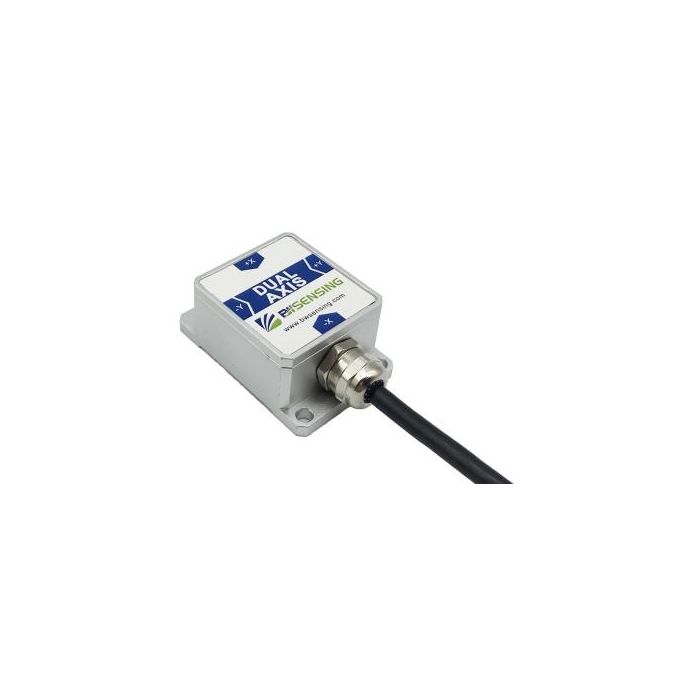

BWSENSING Digital Dual-Axis Inclinometer (BWL326S)

A compact MEMS tilt sensor from BWSENSING that reports pitch and roll as a digital signal, sealed for long service on machinery, structures and outdoor equipment. Robots Middle East supplies it to integrators and engineering teams who need a dependable sense of level built into their systems.

In stock

BRAND:
BWSENSING
PART #:
BWL326S
ORIGIN:
China
AVAILABILITY:
SUBJECT TO AVAILABILITY
SKU:
BWSENSING-BWL326S

BWSENSING Digital Dual-Axis Inclinometer (BWL326S)

On most machines the tilt sensor is one of the least conspicuous components, yet it is often the one that decides whether everything else is allowed to move. A boom that may not extend, a platform that must not lift, a panel that must track the sun at the right angle: each depends on a small device reporting, without pause, how far the structure leans. The BWSENSING Digital Dual-Axis Inclinometer (BWL326S) is built for that role. It measures inclination on two axes across ±90°, resolves changes of 0.01° and holds an accuracy of 0.1°, and sends the result as a digital signal over RS232, RS485 or TTL. It does this from a sealed IP67 body measuring L55mm×W37mm×H24mm.

Robots Middle East supplies the BWL326S to integrators, machine builders, research groups and engineering contractors across the Middle East. Our team prepares a formal quotation, confirms the configuration you require, including the output interface, and arranges delivery to your site. We also provide technical support during integration and afterwards.

Background

Bewis Sensing Technology LLC

The BWL326S is designed by Bewis Sensing Technology LLC, whose products are sold under the BWSENSING name. The company describes the BWL326S as a digital output, low-cost dual-axis inclinometer. That places it among instruments meant to be fitted in quantity across fleets of machines and structures, rather than reserved for a single laboratory bench. Buyers who wish to compare it with the wider range can browse the BWSensing catalogue, which sits within our broader Sensors category.

MEMS sensing at the core

At the heart of the BWL326S is an industrial-level MEMS accelerometer, which the designer describes as the latest of its kind. MEMS inclinometers infer tilt from the direction of gravity acting on a microscopic sensing structure. Because there is no fluid, pendulum or moving mechanism of the traditional kind, they are well suited to vibration, shock and continuous duty. In the BWL326S that sensing element sits behind IP67 protection. The design is rated to withstand impacts of 2000g, three times per axis, and carries a mean time between failures of at least 90000 hours. Together these figures describe a component intended to be installed once and then left to work.

Technical Specifications

SpecificationValue
DesignerBewis Sensing Technology LLC
MeasurementDual-axis inclinometer measurement
Sensing elementIndustrial-level MEMS accelerometer
Measuring range±90°
Resolution0.01°
Accuracy0.1°
Output interfaceRS232/485/TTL optional
Output frequency5-100Hz adjustable, up to 100 Hz
Start-up time<50ms
Voltage input9~35V
Protection ratingIP67
Product sizeL55mm×W37mm×H24mm (customizable)
Weight210 g (without outer packaging)
MTBF≥90000 h
Impact resistance2000g, 3 times/axis

Specifications are as published by the manufacturer and are confirmed against the datasheet at quotation.

The manufacturer has not published the package contents, the cable length, the supply current range, the supported baud rates or the zero temperature drift; we confirm these with you at quotation.

Which output interface should I choose for the BWL326S?

The BWL326S is offered with RS232, RS485 or TTL output, so the right choice depends on what the sensor will talk to and over what distance. RS232 is the familiar point-to-point serial link. It suits connection to an industrial PC, a data logger or a test rig where the sensor sits relatively close to the receiving equipment. RS485 is the usual choice on machinery and in plant installations. It uses differential signalling, which tolerates electrical noise and longer cable runs, and it allows several devices to share one bus. TTL-level output is intended for direct connection to a microcontroller or embedded board without a line driver in between, which makes it convenient for compact robotic and prototype designs.

Whichever interface you select, the adjustable output frequency of 5-100Hz lets you match the data rate to the application. A slow-moving structure can be sampled gently to keep traffic and logging volumes low. A machine that needs rapid feedback can run at up to 100 Hz. The start-up time of <50ms means the sensor reports promptly after power is applied, which matters in systems that must verify their attitude before an actuator is released. The wide 9~35V voltage input allows the device to draw from common vehicle and industrial supply rails.

What is the BWL326S bare plate version?

The sources name two versions: the BWL326S and the BWL326S bare plate. The figures in the table above belong to the BWL326S, and its protection rating, dimensions, weight and other characteristics should not be assumed to carry over to the bare plate version. As the name suggests, a bare plate variant is generally of interest to designers who will house the electronics within their own enclosure. If that is your intention, please state it in your enquiry, and Robots Middle East will quote that version against its own datasheet.

Who is the BWSENSING Digital Dual-Axis Inclinometer (BWL326S) for?

The BWL326S is aimed first at machine builders and OEMs who need a sealed, compact tilt sensor to fit in numbers across a product line. Its designer positions it as a low-cost device, and its customisable size gives scope for integration into existing housings. Systems integrators working on construction, agricultural or material-handling equipment will value the IP67 protection, the impact resistance and the wide supply voltage range. Engineers responsible for structural and asset monitoring can combine the ±90° range with long service intervals, since the MTBF is stated at no less than 90000 hours. University laboratories and robotics developers who need pitch and roll data from an embedded controller may find the TTL option the simplest route to a working prototype.

Some projects call for a different communication standard or only one measuring axis. In those cases the BWSENSING range offers alternatives, such as the BWSENSING Cost-Effective Dual-Axis Digital Output With Modbus Inclinometer (BWN427) and the BWSENSING Cost-Effective Single-Axis CAN Output Inclinometer (BWM415). Our team can compare their datasheets with the BWL326S for your application.

What is the BWSENSING Digital Dual-Axis Inclinometer (BWL326S) used for?

  1. Platform levelling: keeping aerial work platforms, outriggers and mobile equipment level before and during operation.
  2. Safety interlocks: preventing a machine from lifting, extending or travelling when its inclination leaves a permitted band.
  3. Solar tracking: reporting panel angle to the tracker controller so that alignment can be verified and corrected.
  4. Structural monitoring: watching bridges, towers, walls and slopes for gradual tilt that may signal movement or settlement.
  5. Robot attitude feedback: supplying pitch and roll data to mobile robots and robotic arms working on uneven ground.
  6. Antenna and dish alignment: confirming the mounting angle of antennas and satellite dishes during installation and in service.

Pricing and Availability

Robots Middle East supplies the BWL326S on a quotation basis. This lets us agree the output interface and the version with you before you commit. Delivery, customs and support are arranged together with your quotation, so you receive one complete proposal for your project. Please tell us the quantity, the interface you require and the intended application, and we will respond with a formal offer. To begin, request a quotation using the form available on this page.

Frequently Asked Questions

How many axes does the BWL326S measure?

The BWL326S is a dual-axis inclinometer, measuring tilt on two axes across a range of ±90°.

What accuracy and resolution does it offer?

The BWL326S has an accuracy of 0.1° and a resolution of 0.01°. It can therefore register very small changes in angle while holding a tighter tolerance on the absolute reading than many general-purpose tilt switches.

Is the BWL326S suitable for outdoor installation?

The BWL326S carries IP67 protection and is rated for impacts of 2000g, three times per axis, which makes it suitable for exposed machinery and structures.

What power supply does it require?

The BWL326S accepts a voltage input of 9~35V, which suits common vehicle and industrial supply rails.

Which communication options are available?

The output interface is RS232, RS485 or TTL, selected at order. The output frequency is adjustable from 5 to 100Hz.

Can the housing size be adapted?

The product size of L55mm×W37mm×H24mm is listed as customisable. Robots Middle East can raise any dimensional requirement with the manufacturer as part of your enquiry.

Where can I buy the BWSENSING Digital Dual-Axis Inclinometer (BWL326S) and what does it cost?

You can buy the BWL326S from Robots Middle East, which supplies it across the Middle East. The cost depends on quantity, version and interface, so please request a quotation and we will send a formal offer that includes delivery and support.

Summary

A tilt sensor rarely attracts attention, but it is often the component that gives a machine permission to move. The BWL326S fills that role with a measured set of credentials. It covers two axes across ±90°, with 0.01° resolution and 0.1° accuracy. It offers a choice of RS232, RS485 or TTL output, with a data rate adjustable up to 100 Hz and a start-up time below 50ms. All of this comes from an IP67 body designed to withstand shock and to run for at least 90000 hours between failures. Robots Middle East will agree the version and the interface with you, then arrange delivery and support. For any project that needs a dependable sense of level, this page is the starting point.

Specifications

General

BRAND BWSENSING
PART # BWL326S

What's included

BWSENSING Digital Dual-Axis Inclinometer (BWL326S)
